Screen Printing Color Separation for Beginners

Screen printing color separation for beginners is more manageable than it looks. Every color in a design gets its own screen — separation is the process of breaking artwork into individual color layers. Our team at PrintablePress has run hundreds of multi-color jobs, and this guide walks through the whole process step by step. Anyone getting started with multi-color screen printing at home needs to understand separation before touching a squeegee — everything else depends on it.

Most people assume this step requires expensive software or a professional background. It doesn't. Our team has walked total beginners through clean two- and three-color separations using free tools on their first attempt.

The core rule: one color, one screen. A two-color design means two screens, two ink passes, two separate film positives (transparent sheets used to burn the design onto each screen). Lock in that concept and the rest falls into place fast.

Screen Printing Color Separation: Step-by-Step for Beginners

This is where beginners either set themselves up for clean results or spend weeks fixing preventable problems. The process is straightforward once the logic clicks.

Start with the Right Artwork

Color separation starts long before touching a screen. The artwork format matters enormously.

• Vector files (AI, EPS, SVG) — best choice. Clean edges, infinitely scalable, easy to separate by layer in any design application.
• High-res raster files (300 DPI minimum) — acceptable for simple designs. Anything lower produces fuzzy edges on the film positive.
• Low-res JPEGs — avoid these entirely. Compression artifacts create edge problems that are nearly impossible to clean up for printing.

Our team always asks for vector source files first. When that's not available, we rebuild the design from scratch rather than fight a bad raster file. It saves time in the long run.

Break the Design into Color Layers

In software like Adobe Illustrator or Inkscape (free), each color lives on its own layer. The separation process looks like this:

1. Open the design file and identify every distinct color in the artwork.
2. Select all objects sharing the same color and move them onto a dedicated layer.
3. Label each layer by ink color — "Red," "Black," "Navy," and so on.
4. Check for areas where colors sit adjacent to or overlap each other. Decide whether to add a trap (a small overlap) or let the colors butt-register (meet exactly at edges).
5. Turn off all layers except one. That isolated layer is the first separation.

For simpler raster designs, most people work in Photoshop using channels instead of layers. Both approaches produce the same result. Channels feel more intuitive to some people; layers feel more natural to others. Either works.

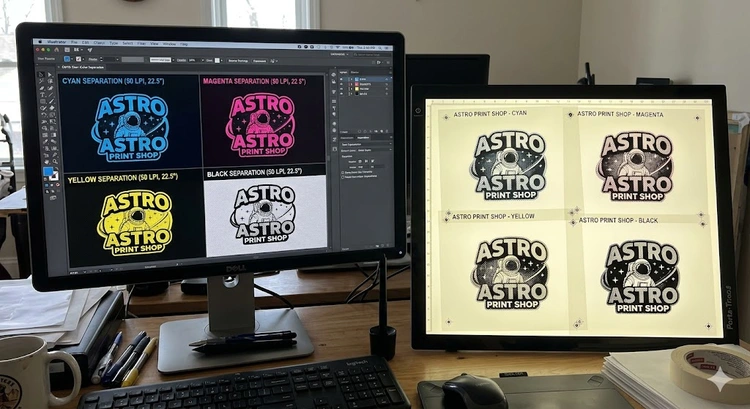

Export Each Layer as a Film Positive

Each color layer gets printed to film — a solid black image on a clear transparency sheet. The black areas block UV light during screen exposure, creating the stencil.

• Print at 1200 DPI minimum for sharp, clean edges on the film.
• Use solid black ink only, never gray or composite black.
• Print on a laser printer for the densest blacks. Inkjet can work but density often falls short, leading to underexposed screens.
• Check opacity by holding the film up to a bright light. No light should pass through solid areas.

Once the film is ready, each screen gets coated with emulsion (a light-sensitive coating) and exposed. Our guide on how to expose a screen printing screen with emulsion covers that step in complete detail.

What Color Separation Looks Like on Real Jobs

Theory is useful. Real examples are better. Here's how screen printing color separation plays out in practice across different design types.

Spot Color Separations

Spot colors — solid, flat colors with no gradients — are the easiest type of separation. A red circle, a black text block, a blue outline: each is a discrete layer with no blending or tonal variation.

Most small print shops and home printers run spot color jobs exclusively. The separation is clean, the registration (alignment of each color layer during printing) is forgiving, and results are predictable even on older presses.

Pro tip: Limit spot color jobs to four colors or fewer when starting out. Every additional color adds registration complexity and another screen to manage — the variables multiply fast.

Printing on dark shirts adds a wrinkle. An underbase — a white or light-colored ink layer printed first — is required to make colors visible and vibrant. Our breakdown of how to screen print on dark-colored shirts explains exactly when and how to add that underbase layer. The underbase counts as a separate color in the separation. Plan for it from the beginning, not as an afterthought.

Halftone Separations for Complex Artwork

Photographs and gradients can't be printed as flat solid colors. They require halftones — tiny dots of varying size that simulate tonal ranges and shading.

Halftone separation is more advanced but still accessible to motivated beginners. The key decisions:

• Dot frequency (LPI — lines per inch): Lower LPI (35–45) for coarser fabric or mesh. Higher LPI (55–65) for smooth shirts with fine mesh counts.
• Dot shape: Round dots are the standard. Elliptical dots reduce the visual "jump" in midtone areas.
• Simulated process vs. CMYK process: Simulated process uses custom spot color mixes to approximate photorealistic results. True CMYK screen printing is possible but demands tight press registration and consistent ink density.

Halftone work requires close attention to moiré patterns — interference patterns that emerge when halftone dot grids are misaligned. Standard angle offsets between each color separation (typically 15°, 45°, 75°) eliminate most moiré problems.

Manual vs. Software Separation: What Actually Works

Two camps exist: manual separation inside standard design software, and automated separation using dedicated tools. Both have a place. The right choice depends on design complexity and production volume.

Free Tools for Beginners

• Inkscape — free, vector-based, handles spot color separation cleanly. Our team's top recommendation for anyone starting out.
• GIMP — free raster editor with halftone generation and channel-based separation. Handles more complex artwork than Inkscape.
• Photopea — free, browser-based, closely mirrors Photoshop's interface. Solid option for quick separations without installing anything.

Our team starts every beginner on Inkscape. The learning curve is real but manageable. Within a few sessions, most people handle three- and four-color separations with confidence.

When Paid Software Makes Sense

For complex photo separations or high-volume production, dedicated tools save significant time and improve output quality.

• Adobe Illustrator + Photoshop — industry standard. Separation is mostly manual but the tools are precise and the workflows are well-documented.
• AccuRIP / Separation Studio — RIP (raster image processor) software built specifically for screen printing. Automates halftone angles, manages film density, and outputs press-ready files.
• FastFilms / CADlink — used by production shops running photo-realistic simulated process work at volume.

Best Practices That Prevent Costly Mistakes

Most separation problems are entirely preventable. These are the practices our team follows on every job, regardless of complexity or color count.

Registration and Trapping

Registration marks — crosshairs or small circles placed outside the design area — let the printer align each color screen precisely during setup. Without them, multi-color prints drift and colors misalign from the first shirt.

• Add registration marks to every film positive in an identical position across all separations.
• Use a pin registration system (physical pins that hold films and screens in exact position) for consistent multi-color work.
• Add a trap of 0.5–1pt between adjacent colors. This tiny overlap hides minor misalignment in the finished print.
• Print a test on paper before moving to garments. Catching a registration issue on paper costs nothing.

Warning: Skipping registration marks on multi-color prints is the single most common beginner mistake our team sees — and the most expensive one to fix after a print run has already started.

Choosing the Right Ink

Ink type affects how separated colors interact on press. Our complete guide on screen printing ink types covers all the options, but here's the short version for separation purposes:

• Plastisol — the most forgiving ink for beginners. It doesn't dry in the screen during printing, and it stacks cleanly on top of underbases. Our post on plastisol vs water-based ink for screen printing is worth reading before committing to either.
• Water-based — more transparent than plastisol. Colors blend differently when overprinted, so separation work needs to account for ink transparency more carefully. Less forgiving of beginner mistakes on press.

Mesh count also directly affects how ink lays down and how halftone dots reproduce on fabric. Our screen printing mesh count guide explains which count works best for each ink type and design complexity.

Fixing Common Color Separation Problems

Even with solid prep, issues come up. Here's what our team checks first when a multi-color job goes sideways.

Colors Bleeding Into Each Other

Bleeding is almost always a trapping or ink-consistency issue.

• No trap set in the file — add a 0.5pt overlap between adjacent colors in the separation artwork.
• Ink too thin — thicker ink consistency reduces bleed under the screen edges. Test viscosity before committing to a full run.
• Underbase not flashed — on dark shirts, the white underbase must be partially cured (flashed) before printing the next color directly on top. Our guide on how to use a flash dryer for screen printing covers timing and distance for this step precisely.
• Screen off-contact distance too low — increase the gap between the screen and the garment to reduce ink drag at the edges.

Misregistration on Multi-Color Prints

Colors that don't align point to a registration problem — either in the separation files themselves or in the press setup.

• Check that all film positives carry registration marks in identical positions across every separation.
• Verify the press isn't shifting between color passes. Tighten any loose screen clamps or pallet locks.
• On manual presses, ensure off-contact printing (the screen raised slightly above the shirt surface) to prevent smear and drag on the wet ink.
• If the artwork itself is the root problem — layers built in mismatched coordinate spaces — the cleanest fix is to rebuild the entire separation inside one file with all layers aligned to the same origin point.

Frequently Asked Questions

Final Thoughts

Screen printing color separation is a learnable skill, and it gets intuitive fast once the first few jobs are done. Our recommendation: grab a two-color spot color design, do the separation manually in Inkscape, print two film positives, and burn two screens. That first hands-on run teaches more than any guide can. Start there, build the muscle memory, and the path to four-color and halftone work opens up naturally from that foundation.
