Plastisol vs Water-Based Ink for Screen Printing

Which ink system will define the quality of a screen printing operation — plastisol or water-based? The answer depends on substrate, production volume, environmental compliance, and the finish the end client demands. For anyone serious about the screen printing craft, the choice between plastisol vs water-based ink for screen printing is not a matter of preference. It is a foundational technical decision with cascading consequences for curing temperature, washfastness, and production throughput.

Plastisol dominated commercial shops for decades due to its predictable cure window and exceptional opacity on dark garments. Water-based inks have surged in relevance as brands prioritize softer hand-feel and eco-conscious production credentials. Neither system is universally superior. Each excels in specific contexts, and misallocating one to the wrong application produces costly rework, failed adhesion, or non-compliant chemistry on regulated substrates.

This comparison examines both systems across chemistry, equipment requirements, substrate compatibility, garment care protocols, and practical workflow transitions — giving screen printers the technical data to make an informed choice.

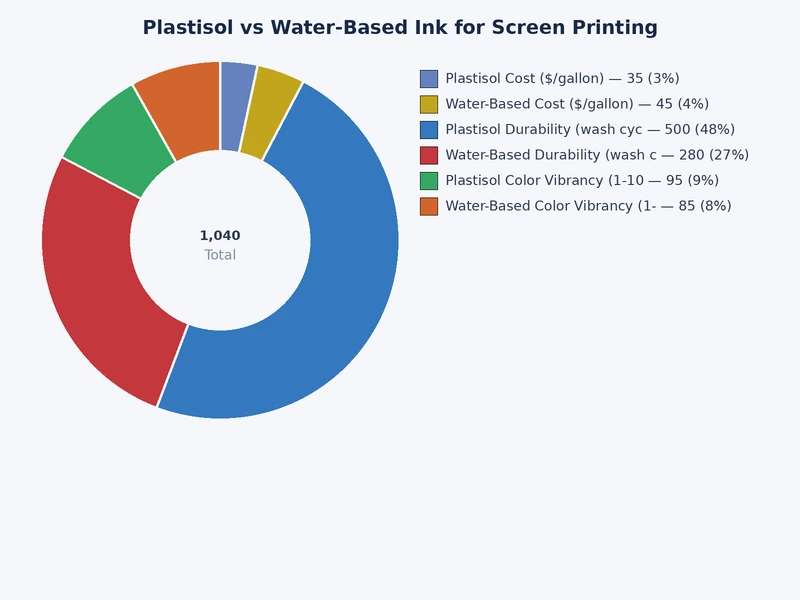

Plastisol vs Water-Based Ink: At a Glance

The table below distills the critical differences between both ink systems. These distinctions inform every subsequent decision in a screen printing operation — from mesh selection to garment care labeling.

The Chemistry Behind Each Ink System

Plastisol: PVC-Based and Heat-Cured

Plastisol ink is a suspension of polyvinyl chloride particles in a plasticizer carrier. It does not air-dry. Heat curing at the target temperature fuses the PVC particles into a continuous, flexible film. This characteristic makes plastisol exceptionally forgiving on press — screens remain open indefinitely without flooding, supporting aggressive print cadences and long production runs without ink degradation. The cured film sits atop the fabric rather than penetrating the fibers, yielding the characteristic raised hand and vibrant color saturation that commercial buyers recognize as standard print quality.

Water-Based Ink: Aqueous Binder Systems

Water-based inks suspend pigments within an aqueous binder — most commonly an acrylic or polyurethane emulsion. Unlike plastisol, water-based ink penetrates the fabric weave during printing, producing a hand-feel that integrates with the garment rather than resting on its surface. Achieving a full cure requires not only reaching the activation temperature of the binder but also ensuring complete moisture evaporation beforehand. Residual moisture prevents full crosslinking, causing premature washout. This two-phase curing requirement demands more precise process control than plastisol. For context on how different printing technologies interact with woven substrates, the comparison in Direct To Garment Printing vs. Screen Printing covers analogous chemistry considerations.

Equipment and Studio Setup

Flash Dryers and Conveyor Tunnel Requirements

Both ink systems require a conveyor dryer or infrared flash cure unit. Water-based inks demand the more exacting setup. Because moisture must fully evacuate before the binder activates, shops running water-based inks need conveyor dryers with consistent, zoned heat distribution and adequate forced-air circulation. A dryer calibrated exclusively for plastisol will often produce under-cured water-based prints — visually acceptable until the first wash cycle. Investment in a dual-zone conveyor with adjustable belt speed is standard for shops running both systems.

Screen Mesh and Emulsion Compatibility

Plastisol functions across a wide mesh range — from 86 for heavy ink deposits to 230 for halftone detail work. Water-based inks require higher mesh counts, typically 160 to 230, to control deposit thickness and reduce curing risk. Emulsion selection is equally critical. Standard dual-cure emulsions break down rapidly under sustained water-based ink exposure. Water-resistant SBQ-photopolymer emulsions are the correct choice for any aqueous ink system and should be treated as non-negotiable for production quality.

Pro Tip: Always confirm emulsion water resistance with a 60-second direct water spray test on a coated test screen before committing to a water-based production run.

Matching Ink to Application

High-Volume Commercial Production

Plastisol is the industry default for high-volume production on cotton and cotton-blend garments. Its long open time eliminates screen-drying risk between prints, reduces downtime between color changes, and supports high press speeds without quality degradation. Shops producing thousands of units daily standardize on plastisol for its consistency and the relative ease of troubleshooting cure failures through simple stretch and wash testing.

Fashion, Retail, and Soft-Hand Markets

Premium apparel brands and retail-facing operations increasingly specify water-based inks. The fiber-penetrating characteristic of aqueous systems produces prints that preserve the drape and softness of the base garment — a critical specification for high-thread-count t-shirts, fashion fleece, and performance hoodies. Beyond aesthetics, water-based inks are free of PVC and phthalates, qualifying prints for compliance with OEKO-TEX Standard 100 and bluesign certification, requirements increasingly mandated by major retail buyers in the apparel supply chain.

Warning: Confirming ink chemistry compliance with retail buyer standards before production begins prevents costly rejection at the quality-assurance stage — a specification error is not correctable after garments are decorated.

Specialty and Performance Substrates

Polyester and synthetic performance fabrics present a dye migration risk for both ink systems. Sublimation dyes embedded in the fiber bleed into the ink film during high-temperature curing, shifting colors — particularly whites and pastels. Low-bleed and low-cure plastisol formulations specifically address this failure mode. Water-based inks are generally more susceptible to migration on polyester because deep fiber penetration increases dye contact. Shops decorating technical garments should specify dye-migration-resistant formulations from the ink manufacturer's product line before selecting a system. Readers exploring heat-applied alternatives for performance substrates will find the analysis in DTF Transfers vs HTV Vinyl: Pros, Cons, and Best Uses directly applicable.

Curing, Garment Care, and Print Longevity

Curing Protocols

Plastisol cure validation follows a simple protocol: a stretch test on a cooled sample. A properly cured plastisol print stretches with the fabric without cracking or delaminating. A wash test on three production samples before a full run is standard practice for quality-conscious shops. Water-based cure validation is more demanding. The print must reach and sustain target temperature after full moisture evacuation — a condition that mandates an extended dwell time in the conveyor tunnel and confirmed airflow velocity, not merely thermocouple temperature readings at the belt surface.

Washing and End-User Care

Plastisol prints are durable but degrade under high-heat laundering and aggressive tumble-drying cycles. The PVC film becomes brittle over time when repeatedly subjected to temperatures exceeding garment care guidelines. Well-cured water-based prints age differently — the fiber-integrated ink softens further over successive washes, producing a vintage, broken-in appearance that many consumers value in premium apparel. Both systems benefit from cold-water washing and inside-out garment orientation. For decoration-agnostic garment care best practices, How to Care for Clothes with Heat Transfer Designs provides a thorough overview of laundering protocols applicable across print types.

Pro Tip: Instruct end-users to launder decorated garments inside-out on a cold, gentle cycle — this single practice extends print life significantly regardless of ink chemistry.

Transitioning Between Ink Systems

Cleaning and Screen Reclamation

Plastisol cleanup uses petroleum-based screen wash or emulsified solvent products. Cured plastisol does not dissolve in water. Water-based inks present the opposite constraint: they must be removed immediately after a print run. Dried water-based ink forms a film that bonds to mesh fibers and is extremely resistant to reclamation chemistry, often requiring repeated emulsion remover treatments and high-pressure washing that risks stencil and mesh damage. Cross-contamination between systems is also a production risk. Dedicated squeegees, flood bars, and ink trays — color-coded by ink type — are the standard precaution in professional shops running both systems.

Step-by-Step Workflow for Introducing Water-Based Inks

Shops transitioning from plastisol-only production to a dual-system operation should follow a structured introduction sequence to avoid quality failures on live production orders.

1. Audit all emulsion inventory and replace standard dual-cure coatings with water-resistant SBQ-photopolymer emulsions on screens designated for water-based runs.
2. Recalibrate the conveyor dryer to the water-based ink manufacturer's published temperature, belt speed, and airflow specifications — then validate with a full wash test on five sample prints before any production order proceeds.
3. Designate and mark separate squeegees and flood bars for water-based use with color-coded tape; do not mix equipment between systems.
4. Brief all press operators on the screen-drying risk: maintain a consistent print cadence and apply a flood coat immediately if press activity pauses for more than ninety seconds.
5. Establish a reclaim protocol using water-based-specific emulsion remover and a pressure washer, and confirm local wastewater regulations regarding pigment and binder disposal before scaling aqueous ink production.

Frequently Asked Questions

Next Steps

1. Produce a controlled side-by-side test run — five prints each in plastisol and water-based ink on identical garment blanks, washed ten times, documented photographically to establish a durable quality baseline for the shop's specific equipment.
2. Audit current emulsion and mesh inventory for water-based compatibility, and replace any non-water-resistant emulsion coatings on screens designated for aqueous ink use before the next production cycle.
3. Verify conveyor dryer specifications against the target ink manufacturer's published data sheet, then commission a full calibration run with wash-test validation prior to any live water-based order.
4. Review the substrate specifications on all pending orders — flag polyester and performance fabric jobs requiring low-bleed or discharge formulations and source appropriate ink variants before scheduling production.
5. Consult local wastewater authority guidelines to confirm that current screen-wash and ink-disposal practices are compliant with municipal standards before scaling water-based production volume.
