Index Color Screen Printing: What It Is and How It Works

A client once handed me a design with twenty-three distinct colors and a five-hundred-shirt order on a tight budget — spot color was impossible, and simulated process would have blown the margin entirely. Index color screen printing solved the problem in a single afternoon of separation work, and it's been a permanent fixture in the toolkit ever since. If you work anywhere in the screen printing world, understanding index separations gives you a production advantage that most hobby printers never discover.

Index color screen printing works by placing a grid of uniformly sized, solid-filled dots — each carrying a pure, unmixed ink — across your artwork, with dot position and color assignment doing the optical work of color blending. Your eye resolves the discrete dots into continuous-looking gradients when viewed at normal distance, a phenomenon rooted in the same optical mixing principles behind halftone printing. The critical difference is that index dots never vary in size — only in color and position.

Getting the separations right requires you to think about artwork preparation with real precision. Unlike simulated process printing — covered in depth in our simulated process color screen printing guide — index separations work from a pixelated, low-resolution source file where each pixel's color maps directly to one of your limited ink channels. The pixel grid becomes the dot grid on film, which becomes the ink grid on the substrate, and that direct translation is both index printing's greatest strength and its most demanding technical requirement.

Understanding Index Color Screen Printing

The Mechanics of Uniform Dot Grids

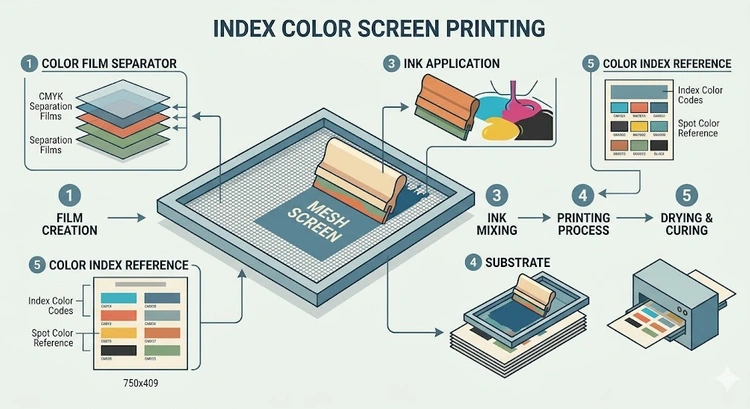

When you convert artwork for index color printing, you reduce a full-color image to a fixed palette — typically five to ten colors — and map every pixel to its nearest match in that palette. The resulting file looks blocky on screen, but at print size and viewing distance, the pixel grid resolves into convincing, continuous-looking color. Each channel of your palette generates one film positive, and each film positive burns one screen. You're printing solid ink, full stop; the complexity lives entirely in the grid geometry.

This is fundamentally different from a traditional halftone, where dot size varies continuously across tonal ranges and channels are printed at different angles to prevent optical interference. Index dots are all the same size, positioned on a strict rectangular or diagonal grid, with no angle variation between channels. The separation software handles the pixel-to-color assignment, and the mesh count you select determines how fine that grid resolves in the finished print.

How and Why It Emerged

Index separation became practical as affordable digital film output reached small print shops in the 1990s. Before high-resolution imagesetting, halftone screens demanded precise angle control that budget film hardware couldn't reliably deliver. Index printing sidestepped that requirement entirely, since all dots share the same orientation. It became the practical path to photorealistic output for shops that wanted complex color without the equipment investment that traditional four-color process required.

Pro tip: If your film output device can't hold dots below 30 microns consistently, index color will outperform halftone separations at the same screen ruling — every time.

The Tools and Setup You Need

Separation Software and File Prep

Your most important tool is the software generating the index separation. Programs like Separation Studio, AccuRIP, and Adobe Photoshop's indexed color mode all approach the problem differently, but the core task is identical: reduce your source image to a fixed-palette indexed file and extract each color as a separate channel. Start with a high-resolution source — at least 150 DPI at print size — and apply a noise-reduction pass before indexing, since artifacts in the source become visible dot patterns in the separation.

File setup discipline matters as much as software choice. The principles in preparing artwork files for screen printing — color profile management, bleed setup, and raster vs. vector handling — apply directly to index work. Your output film should be printed at 1200 DPI minimum to ensure crisp dot edges; soft edges cause ink spread on press and destroy the clean optical mixing that makes index printing work.

Mesh Count and Emulsion

Most practitioners use a 230 to 305 mesh for index work on soft-hand plastisol, with the higher end reserved for light garments and fine pixel detail. Go too coarse and the dots lose definition; go too fine and ink volume drops enough to compromise opacity on dark shirts. Your emulsion should be a dual-cure or high-solids photopolymer that holds fine detail — SBQ-based emulsions are the standard for this application and hold up well across long index runs.

Warning: Using the same mesh count you'd apply to a spot color job (160 or below) causes excessive ink deposit and destroys the sharp dot edges that index color separations require.

When Index Color Printing Makes Sense

Ideal Design Characteristics

Index color printing excels with certain artwork and struggles with others. Designs that benefit most share a common profile: strong contrast, defined edges between color zones, and limited gradient complexity. Photography-based designs with smooth skin tones are challenging because the human eye is extremely sensitive to banding in flesh, and index's fixed palette produces visible stepping. Graphic illustrations, poster-style artwork, and bold color fields are the natural sweet spot.

• Bold graphic illustrations with defined color regions
• Vintage and retro artwork working within a limited palette
• Designs with text integrated into complex color backgrounds
• Artwork where a slight pixel-art aesthetic is acceptable or intentional
• Jobs where minimizing screen count is a budget or schedule priority

Substrate and Garment Fit

The substrate affects index print quality as directly as the separation does. Smooth, tightly woven fabrics give you the cleanest dot reproduction because fiber interference at the dot edges is minimized. If you're printing on athletic or performance fabrics, the weave structure disrupts dot geometry — our guide on screen printing on athletic and moisture-wicking fabrics covers those substrate-specific challenges in detail. Ring-spun cotton at 160 GSM or above is the benchmark substrate for index color work when you have a choice in the matter.

Advantages and Limitations of Index Color

No single printing method dominates every situation, and index color is no exception. Understanding where it earns its keep — and where it costs you — lets you make the right call at the quoting stage rather than discovering a mismatch on press day.

• Fewer screens than simulated process — most index jobs run in five to eight colors versus the seven to twelve channels simulated process typically demands
• No inter-channel moiré risk — all channels share the same dot angle, making cross-channel optical interference structurally impossible
• Forgiving of modest registration — slight misregistration creates visible gaps rather than hue contamination, which is far less damaging to perceived quality
• Works well with water-based and discharge inks — lower-viscosity inks hold fine index dots better than heavy plastisol, expanding your specialty ink options

The limitations are equally concrete. Smooth gradients — particularly skin tones and sky backgrounds — are the Achilles heel of index printing, where the fixed palette creates visible banding that simulated process halftones handle smoothly. Highly detailed photorealistic designs with complex tonal ranges still belong in the simulated process workflow. And if you're considering adding specialty inks like metallic or puff to an index print, test your opacity carefully — these inks often require a higher mesh ink deposit than fine index screens allow.

Index Color vs. Simulated Process: Side by Side

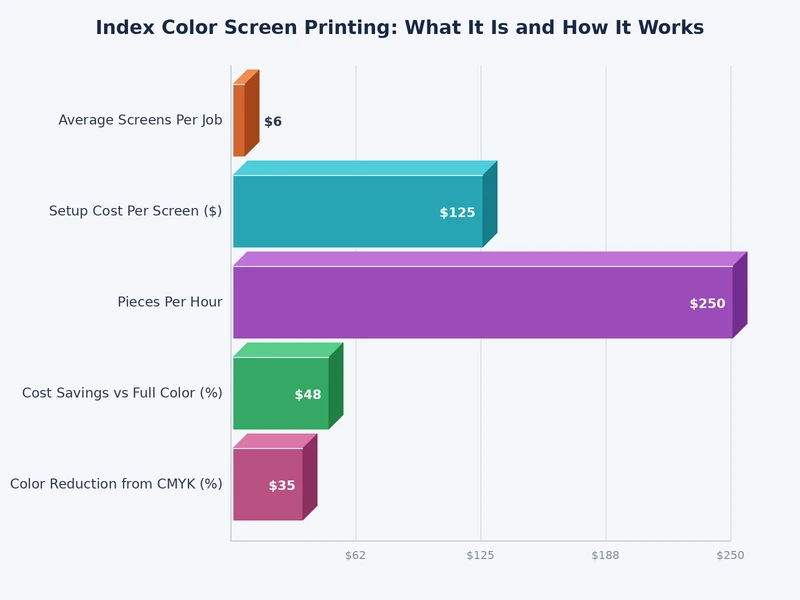

Printers frequently debate index versus simulated process for photorealistic jobs. The honest answer is that each method wins in specific conditions, and the comparison below captures the practical decision points that experienced printers actually use when quoting a job.

The registration tolerance advantage is significant for shops running manual presses. Because the dots are uniform and the grid is geometric, slight misregistration creates a gap rather than a color shift — and gaps are far less damaging to perceived quality than the hue contamination that misregistered halftone channels produce. That tolerance makes index a practical choice for DIY screen printing setups where automatic-press precision isn't available.

Diagnosing and Fixing Common Index Color Problems

Dealing with Banding and Grid Artifacts

True inter-channel moiré is nearly impossible in index printing, but single-channel moiré can still appear when your pixel grid frequency interacts with the mesh count in an unfortunate resonance. If you see a repeating wave pattern in a single color area, the fix is almost always adjusting the pixels-per-inch setting in your indexed file rather than changing the screen ruling — try shifting the source image resolution by 10 to 15 percent in either direction before re-indexing.

Banding in gradient areas requires a different approach. Add a small amount of Gaussian noise to the source image before indexing — one to three pixels is typically sufficient — and the noise randomizes palette assignment at color-transition boundaries, breaking up the visible step pattern. Too much noise and you lose the clean, solid fills in non-gradient areas; find the minimum noise level that eliminates the banding artifact and stop there.

Ink Buildup and Screen Clogging

Fine index dots are more susceptible to ink buildup and clogging than large spot color areas, particularly when running water-based or discharge inks. Slow down your print stroke slightly and increase off-contact distance by half a millimeter compared to your spot color setup. If dots are filling in after the first few hundred impressions, your ink viscosity is too low — add a compatible thickening agent to bring the body up. Catching a clogging screen at fifty prints is far less costly than catching it at five hundred.

Insider tip: Schedule a dedicated press washdown every 200 to 300 impressions during index runs — the gradual dot fill accumulates before you can see it, and prevention costs far less than reprinting a spoiled batch.

Frequently Asked Questions

Final Thoughts

Index color screen printing earns a permanent place in a serious shop's toolbox once you understand precisely what it does well and where its boundaries are. Take your next complex, multi-color graphic design and run a test separation in indexed color mode — output the film, burn screens on 280 mesh, and pull a press proof before committing to simulated process. That hands-on comparison will sharpen your quoting judgment for every multi-color job that follows, and it costs you nothing but an afternoon of setup time to discover exactly what this method can do for your business.
