Simulated Process Color Screen Printing: How to Print Photorealistic Designs

Roughly 40% of professional print shops now report that simulated process color screen printing accounts for the majority of their premium decorated apparel orders — a figure that reflects just how dramatically the craft has evolved beyond flat spot-color work. When our team began tracking this market shift, clients requesting photorealistic designs on dark garments were already becoming the rule rather than the exception. For anyone getting serious about the discipline, our overview of the broader screen printing craft provides the essential foundation before tackling simulated process specifics.

Simulated process color screen printing uses opaque inks laid at controlled halftone densities to reconstruct full-color images without relying on the transparent CMYK inks that offset and inkjet printing depend on. Because each ink layer sits on top of the substrate rather than combining optically beneath it, the technique handles dark garments that would defeat conventional four-color process printing entirely. The result, when executed correctly, reads as photographic from arm's length and holds fine detail that spot-color methods simply cannot approach.

The technique has a well-earned reputation for difficulty. Our team has witnessed experienced printers abandon a simulated process run mid-job after miscalibrated separations produced muddy, undersaturated prints. Separations, ink selection, press mechanics, and exposure must all converge with precision. When they do, the output is unlike anything else in garment decoration.

From Spot Color to Full Spectrum: Understanding the Learning Curve

Where New Printers Start

Most people entering simulated process for the first time come from a spot-color background, and that experience carries genuine value. Solid understanding of mesh counts, squeegee pressure, and ink rheology transfers directly. What changes is the complexity of the color separation stage and the sheer number of screens involved. A simulated process job routinely uses six to ten screens — sometimes more — compared to the two or three that define most spot-color work.

Our team recommends that newcomers begin with high-contrast artwork: images with distinct light and shadow zones rather than smooth photographic gradients. High-contrast subjects tolerate more separation error, which allows the printer to build intuition for how opaque inks interact before tackling true photographic complexity. Starting here prevents the discouragement that comes from attempting a portrait on the first run.

Where Advanced Printers Take It

Veteran simulated process printers work with underbase white optimization, selective gray channels, and ink-mixing systems calibrated to the specific gamut their inks can actually reproduce. They also test press variables methodically — squeegee durometer, off-contact distance, stroke speed — because simulated process amplifies any deviation in press mechanics. Our experience across hundreds of production runs is consistent: the difference between a competent result and an exceptional one traces almost entirely to this level of mechanical discipline.

• Underbase optimization reduces ink volume without sacrificing opacity, which improves hand feel significantly.
• Gray channel separations create smooth tonal transitions that a pure-color-channel approach cannot achieve cleanly.
• Ink gamut mapping to the actual pigment set — not theoretical values — prevents color casts that only appear on press.

Separation Fundamentals: Best Practices That Define Print Quality

Building a Reliable Separation Workflow

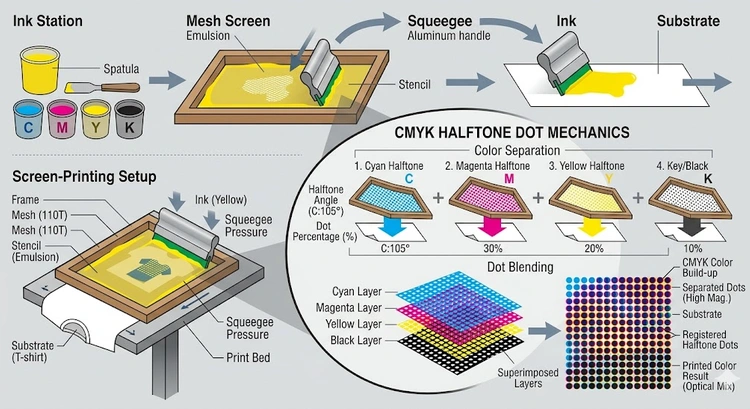

Color separations for simulated process are fundamentally different from CMYK separations. The printer must account for the actual pigment density of the specific opaque inks being used, not theoretical values pulled from a color profile. Industry-standard tools — Separation Studio, AccuRIP with custom curves, or Adobe Photoshop with specialized separation plugins — generate channel outputs mapped to the printer's actual ink behavior. Generic CMYK profiles produce predictably poor results.

Pro insight: Our team runs a proof-to-press verification cycle on every new ink lot — pigment density shifts across production batches, and a separation built around one batch will underperform when printed with another without a recalibration step.

Maintaining a separation archive is as important as the separations themselves. When a client requests a reorder months later, reproducing the original print from a documented separation file — with its specific curve adjustments, channel blending decisions, and ink channel assignments — is far faster and more accurate than rebuilding from scratch.

Film Output and Screen Exposure

Film output quality directly controls halftone fidelity on press. Our team outputs at 1200 dpi minimum, using stochastic (FM) or elliptical dot halftones depending on artwork characteristics. Stochastic halftones distribute dots randomly rather than in a regular grid, which suppresses moiré patterns and handles smooth gradients more cleanly — at the cost of requiring slightly finer mesh counts to hold the irregular dot pattern consistently.

Screen exposure must be calibrated precisely to the specific emulsion and light source in use. Overexposed screens lose fine halftone dots entirely; underexposed screens produce thinner ink deposits and shorten screen life dramatically. For shops building or refining their UV exposure setup, our detailed guide on building a DIY UV exposure unit for screen printing covers lamp selection, exposure timing, and step wedge testing in full.

What It Looks Like in Production: Real Shop Examples

Dark Garment Printing

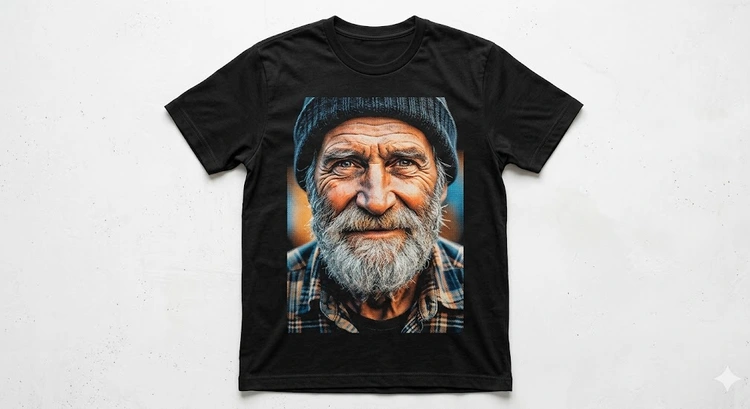

The clearest demonstration of simulated process color screen printing's value appears on black and navy garments. A six-to-eight color simulated process print on a black shirt routinely achieves 80–90% of the original image's color accuracy, whereas a standard four-color process job on the same garment produces washed-out, semi-transparent results. Our team has run side-by-side comparisons across dozens of artwork types and the performance gap is consistent and decisive.

The underbase white is the structural foundation of every dark garment simulated process print. Flash-curing the underbase before printing color channels is non-negotiable — wet-on-wet underbase printing produces ink mixing that destroys halftone detail. Most production shops flash at 320–350°F for three to five seconds, using conveyor dryer tunnels or dedicated flash cure units positioned between stations.

Vintage and Gradient-Heavy Artwork

Vintage aesthetics — faded colors, worn edges, distressed textures — rank among the most requested looks in custom apparel and among the most technically demanding in simulated process. Separations must intentionally reduce ink density in certain zones to create the appearance of age while maintaining enough ink volume to produce a clean, durable print. Underdelivering on ink creates a print that looks legitimately faded; overdelivering creates a print that looks merely poorly executed.

Our team has found that vintage artwork benefits from reduced underbase coverage paired with a gray highlight channel rather than white. The combination produces natural-looking fade without the chalky overexposed appearance that straight white highlights often create on aged-look designs. For shops interested in expanding their ink toolkit beyond standard plastisol, our breakdown of specialty screen printing inks including metallic, glitter, and puff options covers specialty formulations that complement simulated process color layers effectively.

Equipment That Makes Simulated Process Possible

Press Selection and Configuration

Simulated process requires a press with enough stations to carry six to ten screens simultaneously, with consistent off-contact distance across all heads. Automatic presses with programmable stroke and speed settings handle production volume at scale, but a well-configured manual press delivers comparable print quality at lower run counts. Our guide on choosing a first manual screen printing press walks through the station count and registration precision requirements that matter most for multi-color work.

Registration tolerance is more critical in simulated process than in any other screen printing method. Misregistration of even a quarter millimeter is visible in fine halftone areas where multiple channels overlap. Our team uses micro-registration systems on every press head and verifies registration with a loupe — not the naked eye — before the first production print leaves the platen.

Mesh Counts and Ink Systems

Mesh count selection depends directly on halftone frequency. A 65 LPI halftone prints reliably on 160–180 mesh; a 45 LPI halftone tolerates lower mesh counts but produces a coarser visual texture visible at close range. Our team runs plastisol inks formulated specifically for halftone printing — lower viscosity than standard plastisol, reduced tack to prevent garment picking, and high pigment density to maintain opacity at thin film weights that don't compromise hand feel.

Warning: Never use standard high-opacity underbase plastisol for simulated process color channels — the elevated viscosity prevents halftone dots from laying down cleanly and creates ink buildup between stations that degrades print definition rapidly.

Water-based inks are gaining ground in simulated process applications, particularly in shops prioritizing lower hand feel and environmental compliance. Open time management and preventing press downtime during long runs require active attention — but output can match or exceed plastisol in color brightness when executed correctly. According to Wikipedia's overview of screen printing history, modern plastisol-based simulated process workflows emerged only in the late twentieth century as ink chemistry advanced to support fine halftone printing at commercial scale.

Simulated Process vs. True Process: A Direct Comparison

Choosing the Right Method for the Job

The decision between simulated process and true CMYK process comes down to three factors: garment color, artwork complexity, and run size. True process printing is faster to set up and sufficient for photographic artwork on white or light-colored garments at modest quantities. Simulated process dominates whenever the garment is dark, the artwork contains smooth gradients that demand high fidelity, or the client expects output that survives close visual scrutiny. Our team treats true CMYK process as a specialty tool for specific narrow use cases — not a default.

Building a Workflow That Scales Long-Term

Establishing Repeatable Standards

The shops producing consistent simulated process output at scale share one characteristic: they treat the process as a system, not a skill. Every variable — film density, exposure time, mesh count, ink viscosity, squeegee pressure, flash temperature, cure time — is documented per ink set and mesh combination. When a print fails, the documentation identifies where the system broke down. Without documentation, the same failures repeat indefinitely.

• Maintain an ink viscosity log by lot number — track temperature at time of measurement for accuracy.
• Document exposure step wedge results for each emulsion batch — don't assume consistency across suppliers.
• Archive separation files with press notes attached — reorders require reproducibility, not guesswork.
• Run a test print on production garments before committing the full run — garment fiber content affects ink lay-down visibly.

When Automation Pays Off

Automatic press investment changes the economics of simulated process significantly. Manual presses produce exceptional quality but cap output at roughly 60–80 garments per hour on a multi-color simulated process job. Automatic presses running the same job routinely hit 200–350 pieces per hour with more consistent pressure and stroke mechanics than any human operator can sustain across a full shift.

The crossover point for most shops is around 10,000 simulated process impressions per month. Below that volume, a well-equipped manual operation with disciplined technique produces comparable quality at lower capital investment. Above it, automatic press consistency — particularly in halftone registration across a long run — becomes a competitive requirement rather than a luxury.

Key Takeaways

• Simulated process color screen printing uses opaque ink halftones to achieve photorealistic output on dark garments where transparent CMYK process printing fails entirely.
• Separation quality — calibrated to the printer's specific ink set, not generic CMYK profiles — is the single largest determinant of print accuracy and consistency.
• Disciplined documentation of every press variable transforms simulated process from an unpredictable craft into a reproducible, scalable production system.
• Automatic press investment pays off above roughly 10,000 simulated process impressions per month; below that threshold, a well-configured manual press delivers competitive quality at significantly lower capital cost.
