How to Build a DIY UV Exposure Unit for Screen Printing

Screen printing operations that switched to DIY UV exposure unit screen printing setups report material cost savings of $400 to $1,200 over entry-level commercial units — with no measurable degradation in emulsion resolution when the build is done correctly. If you're still burning screens under a photoflood lamp or relying on sunlight exposure, you're introducing the most avoidable variable in your entire workflow. For a full foundation on the process, read our guide on DIY screen printing first; this piece focuses exclusively on the exposure unit build, calibration, and optimization.

The core physics are straightforward. UV-A light in the 350–420 nm range cross-links photopolymer emulsion wherever your film positive allows it through. Hardened areas hold ink. Unexposed areas wash clean. Commercial units automate the timer and contact pressure — both of which are trivially replicable with $30 in hardware and an afternoon of assembly time.

This guide covers when to build (and when not to), real-world use cases, a direct comparison of proven build configurations, a complete step-by-step assembly walkthrough, and calibration techniques that determine whether your halftone edges come out sharp or bloomed. A component comparison table and seven-question FAQ round out everything you need to make an informed build decision.

When a DIY UV Exposure Unit Makes Sense — and When It Doesn't

The Case for Building Your Own

If you're burning more than a dozen screens per month, a dedicated exposure unit isn't optional — it's operational infrastructure. Inconsistent exposure is the single biggest quality killer in small-shop screen printing. A well-built DIY UV exposure unit screen printing setup eliminates that variable for $60–$200 in parts, depending on your light source choice.

The economics are unambiguous. A Vastex E-1000 lists at $1,200. A comparable DIY LED panel costs under $200. Even a six-tube fluorescent BLB (black light blue) box using F40T12/BLB tubes costs $40–$80 in materials and delivers repeatable 4-to-8-minute exposures on standard dual-cure emulsion. You're a strong candidate for the DIY route if:

• You're processing fewer than 500 screens per month (commercial units justify their cost at higher volume)
• You have basic woodworking or electrical confidence
• You're working with dual-cure or diazo/photopolymer blend emulsions that tolerate 3–8 minute exposure windows
• Your shop can accommodate a flat, lightproof enclosure with a 20×24-inch or larger footprint

Once you've finalized your exposure unit plans, building out your full press setup is the logical next step. Our guide on how to choose your first manual screen printing press walks through every station and clamp configuration decision you'll need to make.

When to Skip the DIY Route

Don't build your own unit if you're running high-precision halftone work above 120 lpi, processing more than 50 screens daily, or you need vacuum draw-down contact. Those applications require commercial-grade units with calibrated irradiance output and pump-driven vacuum contact. The DIY route tops out at roughly 85–100 lpi with excellent technique. Beyond that, physics demands contact pressure that a foam-weighted glass lid cannot provide.

High-volume operations also face a maintenance calculus that favors commercial equipment: fluorescent BLB tubes require replacement every 12–18 months regardless of apparent output, and a missed replacement cycle on a production shop means dozens of burned screens before the underexposure shows up in washout.

What Makers Actually Use DIY UV Exposure Units For

Garment Printing and High-Volume Spot Color

The dominant application for DIY UV exposure unit screen printing is spot-color garment work: bold graphics, type-heavy designs, and two-to-four-color separations on cotton blanks. Spot color doesn't demand 150-lpi halftone capability. Clean washout and sharp edges are the metrics that matter — and a properly built DIY unit hits both with consistency.

Plastisol on cotton is the most forgiving combination in screen printing. Standard Saati PHU dual-cure emulsion, 45-line halftone angles, and 156-mesh count — all of this falls cleanly within what a DIY LED panel handles. If your designs incorporate specialty effects, review our roundup of specialty screen printing inks including metallic, glitter, puff, and glow-in-the-dark options for ink-specific exposure and mesh considerations before you finalize your screen specs.

Specialty Substrates and Fine-Line Work

DIY exposure units also serve well for:

• Athletic polyester garments — though proper emulsion selection and curing temperatures are critical; see our detailed breakdown of screen printing on polyester and preventing dye migration for the full picture
• Paper and cardstock (poster runs, art prints, zine production)
• Multi-mesh spot-color work where you're running different mesh counts across stations for the same design
• Stencil work for mixed-media and ceramic applications

Fine-line work below 65 lpi is achievable with solid film positive density, clean glass contact, and precise exposure calibration. The limiting factor in most DIY setups isn't the light source — it's contact quality and film positive optical density. A DIY LED array running correctly will resolve line widths that entry-level commercial units also fail on when the film or contact is substandard.

Proven DIY UV Exposure Unit Configurations

The Fluorescent BLB Box

The fluorescent BLB build is the most historically documented DIY UV exposure unit configuration in the screen printing community. The standard setup uses six to twelve F40T12/BLB 40-watt tubes spaced 3–4 inches apart inside a plywood enclosure, with ½-inch plate glass on top. Exposure times run 4–8 minutes for dual-cure emulsions at a lamp-to-glass distance of 3–4 inches.

Fluorescent BLB tubes emit primarily at 350–400 nm, the lower end of the UV-A range, which is effective but slower than LED. The tube replacement schedule is non-negotiable: output degrades invisibly over time, and faded tubes will cause systematic underexposure long before the lamps appear dim to the naked eye.

The LED Strip Panel Build

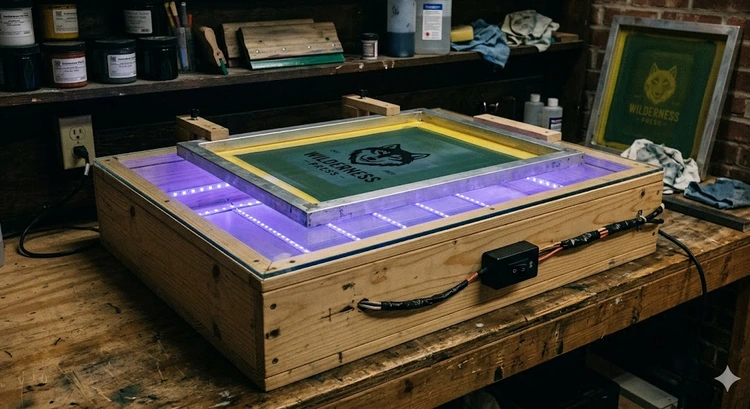

UV LED strip panels have largely replaced fluorescent builds for new construction. A 24V array using 395 nm LED strips at 60 LEDs/meter density, sufficient for a 20×24-inch frame, costs $25–$45 in strips plus a power supply. Exposure times drop to 60–120 seconds for most dual-cure emulsions — a throughput improvement that compounds quickly in any volume operation. LED output is stable across the lifespan (typically 25,000+ hours), which eliminates the recalibration cycles that fluorescent builds require.

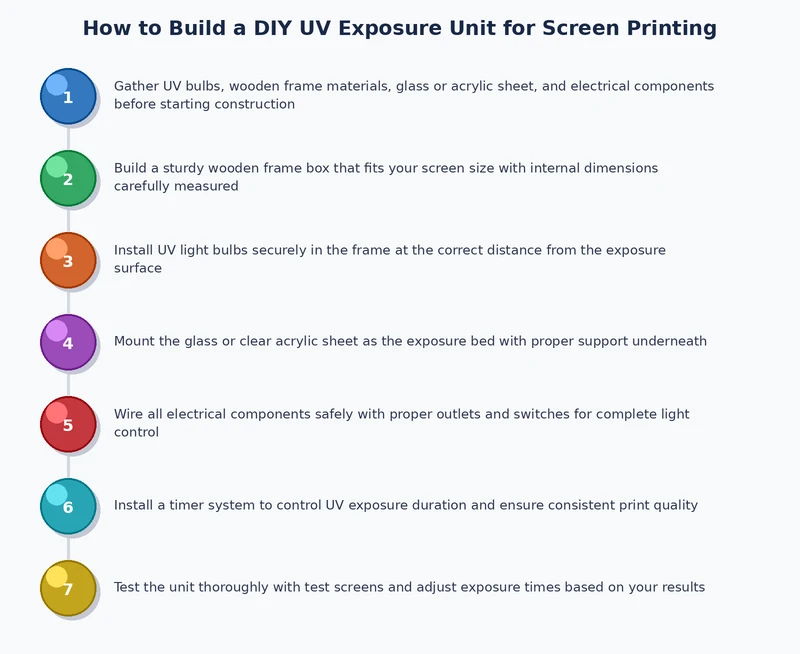

How to Build Your DIY UV Exposure Unit Step by Step

Materials and Tools

The LED strip panel build is the recommended approach for any new construction. For a unit sized to handle 20×24-inch frames, gather:

• ¾-inch plywood (box base, sides, and back)
• UV LED strips — 395 nm peak wavelength, minimum 60 LEDs/meter density, rated for 24V DC
• 24V DC power supply (match wattage to total strip draw; add 20% headroom)
• ½-inch plate glass or tempered glass, cut to your frame size plus a 2-inch border on each side
• Piano hinge (lid attachment)
• Flat black spray paint (interior surfaces only)
• Foam weather stripping (lid seal)
• Mechanical countdown timer or digital relay timer, 120V AC rated
• Reflective Mylar or aluminum foil (optional — improves output uniformity by 15–20%)
• Wood screws, wood glue, electrical wire (18 AWG minimum for strip runs)

Tools required: circular saw or table saw, drill, wire stripper, multimeter, soldering iron (if wiring strips at cut points rather than using click connectors).

Assembly and Wiring

Follow this sequence precisely. Skipping the paint step or the external power supply placement are the two most common build errors that cause quality problems downstream.

1. Cut plywood to dimension. Interior box size should be at least 2 inches larger than your maximum screen frame on each side, and deep enough to mount the LED strips 3–4 inches below the glass surface.
2. Paint all interior surfaces flat black before assembly. Reflective interior surfaces cause secondary UV scatter that undercuts fine lines and bleeds halftone dots.
3. If using Mylar, apply it to the interior floor only — not the sides. Floor reflection improves uniformity; side reflection increases scatter.
4. Mount LED strips in parallel horizontal rows, 2–3 inches apart. Solder or use click connectors at all junction points. Run all positive leads to the power supply positive rail, all negatives to the negative rail. Never wire strips in series — voltage drop creates a visible intensity gradient across the array.
5. Mount the power supply externally on the back or side of the enclosure. Heat generated inside the box extends emulsion dry times and can affect consistency.
6. Wire the countdown timer inline with the power supply's AC input lead. A $12–$15 mechanical outlet timer from any hardware store works reliably.
7. Attach the glass to the box top using a piano hinge on the back edge. The glass should seat flush against the foam weather stripping when closed.
8. Apply foam weather stripping to the full perimeter of the lid opening. This is not for light safety — it provides even contact pressure distribution across the screen mesh.
9. Before first use, test the entire array with a multimeter. All LED strip segments should draw within 5% of rated wattage. A significant deviation indicates a wiring fault or a defective strip segment.

Pro tip: Run a step wedge test before burning any production screens — expose strips of coated mesh for 30, 60, 90, and 120 seconds, then wash out and compare edge quality under magnification to identify your exact exposure window for each emulsion type.

Calibrating Exposure Times

According to Wikipedia's overview of photopolymer materials, photopolymer emulsions cross-link when exposed to UV in the 350–420 nm band — precisely the wavelength range your LED strips target. Start with the emulsion manufacturer's published exposure range, then use a step wedge to find your actual operational window.

Key calibration variables to lock down:

• Lamp-to-glass distance: 3–4 inches for LED strips. Closer creates hot spots at strip locations; farther loses intensity and uniformity
• Film positive optical density: Inkjet-printed films need OD 4.0 or higher on a densitometer. Thin positives transmit UV through "black" areas and cause partial hardening under image areas
• Emulsion over mesh (EOM): Thicker coats require proportionally longer exposure and affect ink deposit volume — know your target EOM before setting your timer
• Glass cleanliness: A single fingerprint diffuses UV enough to create a visible soft spot in the burned image

Understanding the difference between DPI and PPI is directly relevant here: your film positive's output resolution sets a hard ceiling on the detail the emulsion can resolve, regardless of how accurately your timer is calibrated. A 720 dpi film can't hold a 100-lpi halftone dot no matter how perfect your exposure.

Small Adjustments That Sharpen Your Exposure Results

Film Positive Quality

Your film positive is the highest-leverage variable in the exposure workflow. A correctly calibrated light source burning an underexposed, low-density film produces garbage results. Upgrade your film process before you invest another dollar in hardware.

Film positive checklist:

• Print on the matte side of the transparency film
• Use black-ink-only or RIP software output mode — never composite black from CMY channels
• Set your inkjet to minimum 1440 dpi output for any halftone or fine-line work
• Check density on a light table before burning: solid black areas should be completely opaque
• Store films flat, away from humidity and direct light; print and burn within 48 hours for best density retention

Halftone angles also matter more than most beginners realize. Misaligned separation angles on multi-color work cause moiré regardless of exposure accuracy. Get your separations right in prepress before the film ever reaches your unit. Screen printing is part of a larger screen printing discipline — every upstream variable affects downstream quality.

Emulsion Application and Humidity

Coat screens in subdued safelight conditions — yellow LED safelights or dim incandescent lighting. Apply two coats using a sharp-edged emulsion scoop coater: print side first, then a flood coat on the substrate side. Let each coat dry fully before the second pass. Single-coat screens have thinner EOM and produce shallower ink deposits with reduced durability.

Humidity above 60% RH causes pinholes, extended dry times, and reduced emulsion adhesion to mesh. A small dehumidifier in a drying cabinet is a more reliable solution than switching to premium emulsion. Store dried, coated screens vertically in complete darkness, substrate-side facing down, and burn within 24–48 hours of coating. Screens stored longer than 72 hours in humid environments will show degraded resolution regardless of exposure accuracy.

Frequently Asked Questions

Final Thoughts

A well-built DIY UV exposure unit screen printing setup is one of the highest-ROI projects in a small-shop workflow — the materials cost less than a single roll of premium emulsion, and the consistency gains are immediate and measurable. Start with the LED strip panel build outlined here, run your step wedge tests before burning any production work, and dial in your film positive density first. Browse more techniques and equipment guides in our screen printing section to complete your studio setup and keep your quality improving.
