Screen Printing on Polyester: How to Prevent Dye Migration

Last spring, a local sports team brought in 48 polyester jerseys for a screen printing run. The design came out sharp. The cure looked clean. But 24 hours later, the red dye had bled directly into the white ink, turning it an unmistakable shade of salmon. That is screen printing on polyester dye migration in action — and it ruins prints, wastes materials, and damages client relationships. Understanding why it happens is the first step. Knowing exactly how to stop it is what this guide covers. For the full craft foundation, start with the complete DIY screen printing guide on this site.

Dye migration happens because polyester is colored with disperse dyes. These dyes are thermoplastic — they go mobile when exposed to heat. Standard plastisol ink requires a cure temperature around 320°F. That is precisely the range where polyester dyes reactivate and bleed upward into the ink film. The result is discoloration, ghosting, and off-color artwork no client will accept. The fix requires specialty inks, lower cure temperatures, and a disciplined repeatable process.

Explore the full range of techniques in our screen printing resource library. Whether you are printing team uniforms or custom athletic gear, the same core principles apply. According to Wikipedia's overview of polyester, the fiber's thermoplastic dye chemistry is what makes it both a versatile material and a challenging substrate for heat-based printing processes — a fact every printer working with performance fabrics needs to internalize.

The Right Equipment for Screen Printing on Polyester

Your equipment choices determine whether you win or lose the migration battle before a single stroke is pulled. Standard plastisol inks and high-cure dryers are engineered for cotton. Applying them to polyester without modification produces predictable failures. You need purpose-built tools for synthetic substrates.

Low-Bleed Inks and Specialty Formulas

Low-bleed plastisol inks are the industry-standard answer to dye migration. These inks contain blocking agents that form a chemical barrier against migrating disperse dyes. They cure at lower temperatures — typically 270°F to 290°F — which keeps polyester dyes below their activation threshold. Several proven lines dominate the market:

• Wilflex Epic Low Bleed — industry benchmark; excellent opacity on dark substrates
• Rutland Low Bleed Polyester White — designed specifically for white underbase on polyester
• Chromaline Polyester White — lower-cost entry point with reliable blocking performance
• Union Ink EVO LB — water-based option with reduced migration risk and soft hand

For white ink on dark polyester — the highest-risk scenario in the shop — use a dedicated low-bleed white. Never substitute standard white plastisol and assume it will hold. It will not. The blocking chemistry is not present, and migration will follow.

Screens, Squeegees, and Flash Units

Your press hardware matters as much as your ink selection. Use these specifications when printing on polyester:

• Mesh count: 160–230 tpi for detail work on performance fabrics; higher mesh limits ink deposit
• Squeegee durometer: 70–75 Shore A — firm enough to prevent over-deposit without tearing mesh
• Flash dryer: must have adjustable temperature control, not just an on/off switch
• Conveyor dryer: digital temperature readout required; belt-speed precision is critical at lower cure temps

A flash dryer without temperature control is a liability on polyester jobs. You need to flash at the lowest effective temperature — around 180°F to 200°F measured at the garment surface — to gel the ink without reactivating the dyes. Invest in an infrared thermometer gun. At $25 to $60, it is the cheapest insurance available to a screen printer.

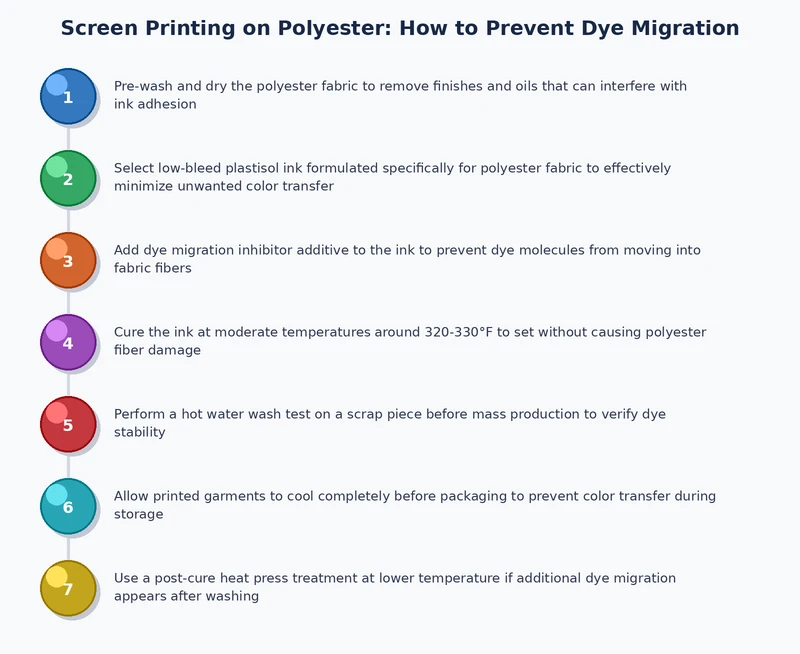

How to Screen Print on Polyester and Prevent Dye Migration

Process discipline prevents migration more reliably than any single product. A repeatable workflow eliminates the variables that cause inconsistent results across a production run. Every step below serves a specific function in the migration-prevention chain.

Preparing the Fabric

Start with the garment itself. These steps reduce migration risk before ink ever touches the screen:

1. Pre-wash all garments — removes finishing chemicals and pre-shrinks the fabric
2. Check fabric content — confirm polyester percentage; blends above 50% polyester carry the highest migration risk
3. Heat press the print area — a 5-second press at 250°F drives out excess moisture and slightly pre-sets the dyes, reducing reactivity
4. Let cool completely — print only on room-temperature garments; residual heat from pressing raises your effective cure temp

Fabric selection itself makes a measurable difference. Heather and athletic polyesters with reactive dyes migrate far more aggressively than solution-dyed polyester, where the colorant is encapsulated within the fiber. Read fabric specs carefully before quoting a job. Our comparison of Hanes vs. Gildan shirt construction illustrates how fabric specification affects printability — the same analytical approach applies when evaluating polyester blanks from different manufacturers.

Printing and Curing

This is where the migration battle is won or lost. Follow this sequence on every polyester job:

1. Print low-bleed white underbase — one or two passes depending on garment color depth; dark reds and burgundies need two
2. Flash at 180–200°F surface temperature — measure with your IR thermometer, not the dryer's dial setting
3. Print color layers immediately — do not let the garment cool below 100°F between flashes
4. Final cure at 270–290°F — full cure without exceeding the migration threshold
5. Cool flat — stack garments loosely; avoid folding hot prints

One squeegee stroke is better than two where possible. Excess ink deposit increases the cure time required, which raises total heat exposure and migration risk. Print lean, cure fast, and move efficiently through the run.

Pro Techniques for Consistent Results

Equipment and process get you 80% of the way there. The remaining 20% comes from disciplined testing and temperature management on every single job — not just new ones.

Temperature Management

Temperature is the single biggest variable in dye migration. Every degree above 300°F increases migration risk substantially. Here is what experienced printers do differently:

• Use a donut probe thermometer inside the dryer to measure actual garment temperature, not air temperature
• Test and log belt speed at the start of every shift — dryers drift as they warm up over the course of a day
• Keep flash dwell time under four seconds when possible; shorter exposure means less cumulative heat
• Never stack hot garments immediately — residual heat continues curing and can push surface temperature above your target
• Recalibrate your dryer any time you switch garment weights or ink systems

Dial settings on most conveyor dryers are not accurate at the lower temperatures polyester jobs demand. The only number that matters is what your thermometer reads at the garment surface. Build that habit into your workflow from day one.

Pre-Production Testing

A wash test is non-negotiable before any production run on a new polyester substrate. Print a sample, cure it, wash it three times in warm water, and examine the ink film under good light. Migration often appears — or worsens — after washing. What looks clean off the dryer can fail in the client's laundry. Document every test with these data points:

• Garment brand, style number, and polyester percentage
• Ink brand and specific formula
• Flash temperature (measured) and dwell time
• Cure temperature and belt speed
• Wash test result at 1, 3, and 5 cycles

This record becomes your reference library. When a client reorders the same blank six months later, you pull the data sheet and print with confidence. Screen printing on polyester dye migration prevention is ultimately a documentation problem as much as a chemistry one.

Polyester vs. Cotton: What You're Trading Off

Polyester is not a difficult substrate — it is a different one. Understanding its trade-offs helps you price jobs correctly and set realistic client expectations from the first conversation.

Where Polyester Has the Edge

Polyester blanks deliver real advantages for specific markets:

• Moisture wicking — athletic and performance markets demand it; cotton cannot compete here
• Color vibrancy — polyester holds dye saturation better than cotton over repeated washing
• Durability — synthetic fibers resist shrinkage and maintain shape through hard use
• Weight — performance shirts are lighter, which matters for shipping costs at scale
• Sublimation compatibility — all-over sublimation requires 100% polyester, making it uniquely versatile

Where Cotton Still Leads

Cotton remains the easier substrate for most screen printers. The reasons are straightforward and measurable:

• Standard plastisol cures at 320°F with zero migration risk
• No underbase required for light-colored designs on white cotton
• Wider ink selection without specialty pricing premiums
• Simpler process with fewer failure points and faster setup

If your client base spans both athletic and lifestyle markets, plan your pricing to reflect the difference. Polyester jobs demand more setup time, specialty consumables, and tighter process control. Those costs belong in your quote, not absorbed into your margin.

Cost Breakdown for Dye-Migration-Safe Printing

Preventing dye migration is not free, but the investment is modest relative to the cost of reprinting a failed order. The numbers break down cleanly into upfront equipment and per-print ink costs.

Equipment and Ink Investment

If you are setting up specifically for polyester work, budget for these items beyond a standard press configuration:

• IR thermometer gun: $25–$60 — essential measurement tool, not optional
• Donut probe thermometer: $80–$150 — accurate dryer calibration at lower temps
• Flash dryer with temperature control: $400–$900 — if upgrading from a basic unit
• Low-bleed ink starter set (white plus four colors): $120–$250 depending on brand

Per-Print Cost Comparison

The table below compares estimated per-print ink costs for a standard front-chest design on a dark garment — a two-color print with white underbase included:

The premium for low-bleed ink runs roughly $0.06 to $0.10 per print. On a 48-piece run, that is $3 to $5 in additional ink cost. Reprinting a failed order — blanks, labor, and client goodwill — costs exponentially more. Build the specialty ink cost into your base price for every polyester job and move forward with confidence.

Frequently Asked Questions

Final Thoughts

Screen printing on polyester dye migration is a solvable problem — not a reason to turn down jobs. The chemistry works against you, but the tools and techniques to counter it are well-established and accessible at every budget level. Pick a proven low-bleed ink, calibrate your dryer with an IR thermometer, document your test results, and wash-test every new fabric-ink combination before production. Take your next polyester order, apply this process from prep through cure, and run a wash test before delivering — the results will give you the confidence to price and pursue synthetic-fabric work without hesitation.
