How to Prepare Artwork Files for Screen Printing: Spot Colors and Vector Setup

The first time our team sent a design to a commercial screen printer, the file came back rejected within hours. The artwork was a flattened JPEG — gradients intact, fonts unoutlined, resolution at a modest 72 DPI. That single experience made clear that knowing how to prepare artwork for screen printing is as important as the design itself. Poor file preparation wastes screens, delays production, and costs money. Our team has documented every lesson learned in our screen printing guide library, and this article consolidates the most critical technical requirements into a single, actionable reference.

Screen printing operates on a fundamentally different logic than digital or inkjet output. Each color in a design requires a separate screen, a separate film positive, and precise registration. Every decision made at the file preparation stage — color mode, resolution, stroke weight, font handling — has direct consequences on press. Our team works with printers across the country, and the feedback is consistent: well-prepared files move through production faster, print cleaner, and require fewer corrections.

The principles covered here apply whether the work involves a single-color logo on a cotton tee or a six-color graphic on a performance fabric. The core workflow remains the same. Mastering it eliminates the most common points of failure before the job ever reaches the shop floor.

The Foundation of Clean Screen Print Files

Screen printing predates digital design by decades. The process involves pushing ink through a mesh screen onto a substrate, with each color requiring its own stencil. Understanding that physical reality explains why certain file formats and color specifications exist — they are not arbitrary preferences. They map directly to how screens are made and how ink layers.

Color Modes and Why Spot Colors Are Standard

The screen printing industry relies on the Pantone Matching System (PMS) as the standard for color communication. When a design calls for a specific red, naming it "PMS 485 C" leaves no room for interpretation. CMYK and RGB values shift depending on the monitor, printer, or ink batch — PMS does not.

• Spot colors are premixed, single-ink colors. Each one burns onto its own screen and prints as a solid, opaque layer.
• CMYK separations use four process ink channels and require halftone dots — suitable only for photorealistic prints via simulated process color workflows.
• RGB is a display color mode. It has no place in a print-ready file. Every RGB value must be converted before submission.

Our team's standard is to assign Pantone Solid Coated swatches in Adobe Illustrator and confirm with the printer before production begins. This step alone eliminates the majority of color disputes after printing.

Resolution Requirements for Film Output

Film positives — the transparent sheets used to expose screens — require crisp, high-contrast artwork. For raster elements embedded in a vector file, the resolution standard is 300 DPI at the final print size. For halftone work, 1200 DPI is the professional baseline. Understanding the difference between DPI and PPI is essential here, as the two terms describe different measurement contexts even though they are frequently treated as interchangeable.

• Pure vector artwork is resolution-independent — it scales to any size without pixelation.
• Embedded raster images must be inspected at 100% zoom before export.
• Grayscale raster elements used as spot color channels require 300 DPI minimum at the intended output size.

Pro tip: Our team always requests the final print dimensions from the client before opening the design file. Scaling artwork after setup introduces resolution problems that are faster to prevent than to fix after the fact.

How to Prepare Artwork for Screen Printing: Step-by-Step

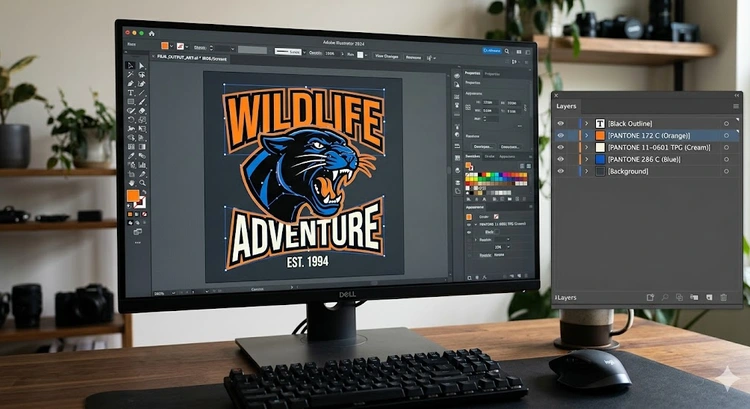

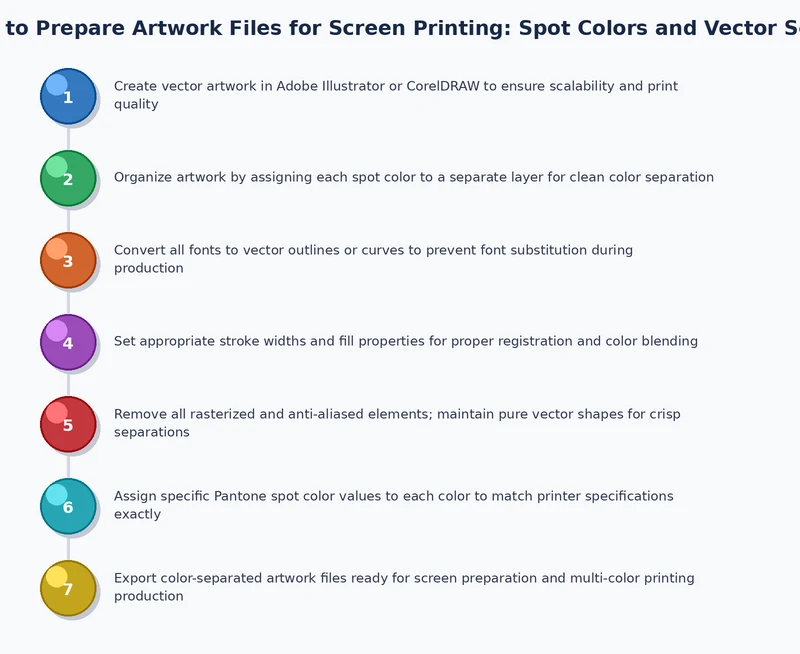

The process of how to prepare artwork for screen printing follows a clear, repeatable sequence. Skipping steps creates compounding problems downstream. Our team treats the following workflow as non-negotiable on every file before it leaves our hands.

Converting and Cleaning the Vector File

1. Start in vector software. Adobe Illustrator is the industry standard. CorelDRAW is also widely accepted. Photoshop is raster-native and should not serve as the primary design tool for spot color work.
2. Outline all fonts. Select all text, then navigate to Type > Create Outlines. This converts letterforms to paths so printers do not need the original font files installed on their system.
3. Expand all strokes and effects. Live strokes can shift during export. Expand them via Object > Expand Appearance before saving the final file.
4. Remove all hidden layers. Hidden layers with stray objects inflate file size and occasionally cause output errors. Delete them entirely before submission.
5. Resolve overlapping paths. Overlapping shapes with transparency or multiply blending modes do not translate to screen-print separations cleanly. Unite or exclude shapes explicitly using the Pathfinder panel.
6. Set the artboard to exact print dimensions. The printer should not need to guess at scale. Artboard width and height must match the final garment print dimensions precisely.

Setting Up Spot Colors Correctly

1. Open the Swatches panel in Illustrator.
2. Add each required Pantone color from the Pantone Solid Coated library — not the Uncoated library, unless the substrate specifically requires it.
3. Name each swatch clearly (e.g., "PMS 286 C — Blue") so the printer's separator can identify each channel without ambiguity.
4. Apply each swatch to its corresponding layer or object group.
5. Use the Select Same Fill Color function to audit that no objects share multiple swatches unintentionally.
6. Confirm the total ink count with the printer before finalizing. Most manual presses handle four to six colors efficiently — each additional color increases cost and registration complexity substantially.

Halftones and Trapping Considerations

Halftones break a solid color into a dot pattern that simulates shading or gradients within a single ink channel. Trapping adds a slight overlap between adjacent color areas to prevent gaps caused by press misregistration.

• Halftone frequency: 45–55 LPI (lines per inch) is standard for most garment inks on standard mesh counts. Finer mesh allows higher LPI values.
• Dot shape: Elliptical dots are preferred for smooth tonal gradients. Round dots produce sharper edges for graphic work.
• Trapping value: A 0.25–0.5pt trap is sufficient for most spot color borders. Over-trapping creates visible halos around color boundaries.
• Underbase: Printing on dark garments requires a white underbase layer. This is an additional separation and must be included in the file or specified explicitly in the job order.

Warning: Never submit a file with unconverted gradient fills for a spot color print job — gradients must be manually converted to halftone artwork before delivery, or the file will be rejected outright.

Spot Color Separations in Real-World Projects

Theory only carries so far. Examining how spot color separations function in actual production reveals where preparation succeeds or breaks down under real shop conditions.

Single-Color vs. Multi-Color Print Examples

Single-color logo on a white tee: This is the simplest case. One PMS swatch, one screen, one pass. The file should be 100% black on white in Illustrator, with the PMS color named in the swatch. The printer burns the screen from the black artwork and then prints with the specified ink.

Four-color graphic on a dark shirt: This requires a white underbase plus three additional spot colors — four screens total. Each color must occupy its own layer. The underbase is typically a slightly expanded version of the full artwork shape, so the top colors sit on a neutral white ground without the shirt color contaminating ink opacity.

For designs that push beyond six spot colors — particularly photo-style artwork — our team recommends reviewing simulated process color screen printing as a viable alternative. Simulated process uses halftone-based separations to reproduce hundreds of apparent colors from a limited ink set, making it the correct tool for photorealistic work.

When Simulated Process Color Applies

Simulated process is not a beginner technique. It demands precise halftone angles, high mesh counts, and an experienced separator. The file preparation workflow differs significantly from spot color work:

• The source file is typically a high-resolution raster image rather than a vector.
• Separations are produced in specialized software such as Separation Studio, FastFilms, or through Photoshop channel-based methods.
• Ink sequence and underbase opacity become critical variables that must be dialed in per press and per substrate.
• Our team treats simulated process as a separate discipline — one worth pursuing only after spot color preparation is fully mastered.

Troubleshooting Artwork Rejection and Film Problems

File rejection is one of the most common friction points in the screen printing workflow. Most rejections trace back to a small, recurring set of mistakes. Our team has catalogued these errors through years of submitting files to commercial shops and operating our own DIY screen printing setup, where file quality directly determines output quality on every run.

Most Common File Rejection Reasons

• RGB color mode: The file was never converted to spot colors. A printer cannot determine intent from an RGB hex value — it requires a named ink specification.
• Unoutlined fonts: Missing font files cause output errors or substitution with incorrect typefaces, which corrupts the design entirely.
• Low-resolution embedded images: Raster elements below 300 DPI print with visible pixelation on film and on the final garment surface.
• Unconverted gradient fills: Gradients without halftone conversion are incompatible with spot color separations and produce unpredictable output.
• Incorrect file format: Submitting a JPEG or PNG for a spot color job signals an unprepared file. Accepted formats are AI, EPS, or a press-quality PDF with outlined or embedded elements.
• Wrong canvas size: Artwork set to the wrong dimensions forces the printer to scale, which introduces sizing errors and registration inaccuracies on press.

Fixing Raster-Heavy Artwork

Occasionally, the only available source file is a raster image — a logo saved as a PNG, a client scan, or a low-resolution photograph. The correct path forward depends on what the artwork contains:

1. Simple logos and text: Redraw in Illustrator using the Pen or Shape tools. This produces a fully scalable, fully editable vector and is the cleanest solution available.
2. Complex illustrations: Use Illustrator's Image Trace as a starting point. Live Trace performs well on high-contrast artwork. Always clean up the trace output manually — automated traces generate redundant anchor points and fragmented color fills that require correction before the file is print-ready.
3. Photographic source art: If the design is inherently photographic, reconsider whether spot color is the appropriate process. Photorealistic designs belong in simulated process or direct-to-garment (DTG) workflows — not in standard spot color separations.

Additionally, preparation principles extend to substrate-specific considerations. Anyone printing on synthetic materials should consult guidance on screen printing on nylon and synthetic fabrics, since ink adhesion and cure requirements on these materials can influence how underbase layers and mesh selection are specified in the file setup.

Quick File Checks That Prevent Costly Mistakes

Even experienced designers miss small details under deadline pressure. Our team runs a standard preflight check on every file before delivery. The items below take fewer than ten minutes to verify and prevent the vast majority of rejections and costly press corrections.

The Pre-Submission Preflight Checklist

• All fonts outlined or embedded
• All strokes expanded to filled shapes
• All live effects expanded or rasterized at 300 DPI minimum
• Color mode: CMYK document with named Pantone Solid Coated spot swatches applied
• No unconverted gradient fills in spot color separations
• Artboard set to final print dimensions
• File format: AI, EPS, or press-quality PDF with bleeds and marks as required
• Underbase layer included, labeled, and expanded for dark garments
• Total color count confirmed with the printer in advance
• Trapping applied at all critical color boundaries at 0.25–0.5pt

Running this checklist as a saved action or a literal printed card beside the workstation eliminates reliance on memory. Our team treats it exactly as a pilot treats a pre-flight check — non-optional, executed identically every single time.

Vector Setup Versus Raster Artwork: Weighing the Trade-offs

The debate between vector and raster is settled for most screen printing applications. Vector wins. Understanding precisely why — and where raster still enters the picture — is necessary for complete mastery of the preparation process.

Format Comparison at a Glance

The sole scenario where raster is necessary is simulated process color work on photographic designs. For every other category — logos, typography, graphics, and standard spot color designs — vector is the non-negotiable professional standard. Our team has never encountered a compelling reason to argue otherwise, and neither has any experienced separator we have consulted.
