Screen Printing on Nylon and Synthetic Fabrics: What You Need to Know

Can screen printing work on nylon and synthetic fabrics? The answer is yes — but only with the right approach. Screen printing on nylon fabric demands specialized inks, lower cure temperatures, and methodical substrate preparation. Get any of those wrong and the print cracks, peels, or bleeds. This guide covers everything print shops and serious hobbyists need to execute clean, durable prints on synthetic materials.

Nylon and synthetic fabrics account for a growing share of the printable apparel market. Athletic wear, outdoor gear, promotional items, and performance uniforms all rely on synthetic substrates. Print shops that master synthetic printing expand their service menu significantly. Those that apply cotton workflows to nylon get returns and reprints.

According to Wikipedia, nylon is a synthetic polyamide first developed in the 1930s. Its properties — low friction, high tensile strength, and heat sensitivity — create specific challenges for screen printers. Understanding those properties is the starting point for every successful synthetic print job.

Why Nylon Challenges the Screen Printer

Fabric Structure and Ink Absorption

Cotton absorbs ink. Nylon repels it. That single difference drives every technical decision in synthetic screen printing.

Nylon fibers are hydrophobic and non-porous. Plastisol ink — the workhorse of cotton screen printing — bonds by mechanical adhesion into fiber gaps. On nylon, those gaps are minimal. Standard plastisol sits on the surface rather than keying into the substrate, leading to poor adhesion and early delamination under flexion and washing stress.

• Nylon has a tight weave with minimal ink absorption capacity
• Surface energy is low, requiring adhesion promoters or specialty ink systems
• Fabric stretch in athletic cuts puts mechanical stress on the ink film with every wear cycle
• Many nylons carry factory coatings — DWR finishes, ripstop treatments, antimicrobial applications — that actively worsen adhesion

Operators who come from cotton printing often compare this to screen printing on polyester. Polyester shares nylon's low-absorption profile and adds dye migration risk. Nylon typically skips the bleed problem but compensates with even stricter ink bonding requirements.

Heat Sensitivity Thresholds

Nylon deforms at temperatures that are routine for cotton print curing. Most standard plastisol inks cure at 320°F. Many nylons begin to distort at 250–275°F. That 45–70°F gap creates the central tension in synthetic screen printing workflows.

Low-cure plastisol formulations and water-based inks are engineered to close this gap. Both gel below 270°F. Neither performs identically to standard plastisol, and wash durability requires validation testing on each specific substrate before committing to production runs.

Inks and Equipment for Synthetic Substrates

Ink Selection

Four ink systems have proven track records on nylon and synthetic fabrics:

1. Low-cure plastisol — gels at 260–280°F; best opacity on dark substrates; most compatible with existing shop infrastructure
2. Water-based ink — penetrates slightly better on lightly treated fabrics; requires adequate dryer airflow; lower opacity on darks without a white underbase
3. UV-curable ink — cures via UV lamp with no heat whatsoever; optimal for heat-sensitive coated nylons; higher equipment entry cost
4. Discharge ink — not compatible with nylon; dye removal chemistry requires reactive fiber structures that nylon does not have

Specialty formulations extend these options further. High-opacity whites and metallic inks designed for synthetic substrates are commercially available from major ink manufacturers. The specialty screen printing inks guide covers metallic, glitter, puff, and glow variants, many of which have nylon-compatible low-cure versions.

Adhesion promoters — standalone bonding agents applied as a base layer or blended into ink at manufacturer-specified ratios — improve mechanical bonding on slick synthetic surfaces. Compatibility with the chosen ink system must be verified; not all promoters work with all formulations.

Press and Screen Setup

Press configuration for nylon differs from cotton in four critical areas:

• Mesh count: 160–230 mesh for detail work; 110–160 mesh for bold graphics requiring maximum ink deposit
• Screen tension: 25–35 N/cm²; under-tensioned screens smear on slick synthetic surfaces
• Off-contact distance: 3–4mm; allows clean snap-off on fabrics that do not absorb ink quickly
• Squeegee durometer: 70–75 Shore A; harder blades deposit thinner ink films, reducing surface pooling on non-absorbent substrates
• Pallet surface: foam or rubber-topped pallets with high-tack synthetic adhesive; standard aluminum pallets do not grip slick nylon without it

Operators selecting their first manual press for synthetic work should review how to choose a manual screen printing press — press rigidity and platen flatness matter more on synthetic substrates where every registration variable is amplified.

Screen Printing on Nylon Fabric: Where It Delivers Results

Sportswear and Activewear

The athletic and performance apparel segment drives the majority of commercial demand for nylon printing. Common substrates include:

• Nylon track shorts and athletic pants
• Ripstop wind jackets and pullovers
• Compression sleeves in nylon-spandex blends
• Soccer, volleyball, and lacrosse uniforms
• Swim team warm-up gear

Team uniform runs typically range from 12 to 144 pieces per order. Print shops price these as specialty jobs — material cost, setup complexity, and scrap risk all justify a 25–40% premium over standard cotton pricing. Print-ready turnaround on athletic nylon typically runs 5–7 business days versus 3–4 for standard tees.

Promotional and Technical Gear

Beyond apparel, nylon appears across a wide range of printable promotional products:

• Nylon tote bags, drawstring bags, and stuff sacks
• Fanny packs and waist packs
• Lightweight event banners and tent panels
• Structured and unstructured hats with nylon panels
• Safety vests with nylon mesh panel sections

Each substrate carries a different surface energy profile and potential coating treatment. Requesting a fabric spec sheet from the blank supplier before confirming print method is standard practice for experienced shops — never assume two nylon items behave identically.

How Industry Professionals Handle Nylon Projects

Athletic Uniform Runs

A mid-size regional print shop handling a 96-piece ripstop nylon uniform run follows a consistent pre-production protocol:

1. Request a sample garment from the client at order confirmation — never start without one
2. Run a wash test on the sample with production ink before touching the full run
3. Set dryer to 265°F and verify actual fabric temperature with a donut probe thermometer at the garment surface
4. Print a 12-piece pilot batch; inspect adhesion, opacity, and print edge definition
5. Adjust ink deposit or dwell time based on pilot results, then complete the run

Shops that skip the pilot batch on nylon jobs report significantly higher reprint rates. This five-step protocol adds roughly two hours to setup but cuts reprints by an estimated 70–80% based on production shop reporting. The math is straightforward: two hours of prevention beats a full reprint run.

Outdoor Gear and DWR-Coated Substrates

Outdoor gear brands — backpacks, stuff sacks, wind jackets — use lightweight nylon that commonly carries DWR (Durable Water Repellent) coating from the factory. DWR is the primary adhesion killer in synthetic screen printing. Ink applied over an active DWR coating peels within the first three wash cycles regardless of ink type.

Professional approaches to DWR-coated nylon substrates:

• Pre-treat print area with solvent degreaser to strip the coating before printing
• Apply brief heat via heat press at 180°F for 8–10 seconds to deactivate surface treatment
• Use UV-curable ink for maximum adhesion on heavily treated surfaces
• Inform the client that the print area will lose DWR functionality — document this in the order confirmation

This mirrors substrate prep discipline documented in DIY screen printing guides — prep is the step hobbyists consistently skip and experienced professionals never skip, regardless of substrate.

Mistakes That Derail Nylon Print Jobs

Ink and Cure Errors

These are the most common failure modes in nylon screen printing, ranked by frequency:

1. Using standard plastisol without a low-cure formulation — curing at 320°F melts or warps most nylon substrates
2. Under-curing low-cure plastisol — running at safe temperatures without confirming full gel; ink washes off after the first launder cycle
3. Over-depositing ink — a thick ink film on a non-absorbent substrate cracks under fabric flexion within weeks
4. Skipping wash testing entirely — adhesion failures are invisible until laundering; no wash test means no quality assurance
5. Treating all nylons as equivalent — denier, weave construction, and factory coatings vary dramatically; each substrate warrants its own test

Substrate Prep Failures

Prep on nylon is non-negotiable. The most common prep mistakes:

• Printing on fabric with residual manufacturing oils — always pre-wash new nylon garments before the print run
• Using standard pallet adhesive that fails to grip slick nylon — switch to high-tack synthetic-specific adhesive
• Ignoring fabric stretch during loading — misregistration occurs when nylon shifts on the pallet between colors
• Printing on wrinkled nylon — press briefly at 200°F for 3 seconds before loading to flatten without damaging fabric

Multicolor registration on synthetic fabric benefits from the same principles used in simulated process color printing — precision screen alignment is mandatory when slick fabric amplifies even minor registration errors between passes.

Quick Wins for Better Nylon Print Outcomes

Pre-Production Checks

These five checks take under 30 minutes and prevent the majority of nylon print failures before they happen:

1. Pull the ink manufacturer's tech sheet and confirm cure temperature — never assume it matches standard plastisol
2. Test pallet adhesion on a scrap piece before loading production garments
3. Verify dryer temperature with a contact thermometer at multiple points across the tunnel width
4. Inspect each substrate for coatings — DWR, silicone, antimicrobial, or water-resistant treatments all reduce adhesion
5. Run a minimum 3-piece test with a full wash cycle before committing to the production run

On-Press Adjustments

Small mid-run adjustments produce measurable print quality improvements on synthetic substrates:

• Reduce flood stroke pressure on repeat strokes — ink pools on non-absorbent surfaces and causes screen clogging
• Flash cure between colors at reduced temperature (200°F, 3 seconds) to stabilize ink before the next color pass
• Print wet-on-wet only for closely registered colors with minimal overlap areas
• Inspect every 10th piece for ink build-up on the screen underside — slick fabric transfers ink differently than cotton

Screen emulsion quality directly affects how long screens hold up through a nylon production run. Properly exposed emulsion handles repeated squeegee pressure without breaking down. For exposure calibration specifics, building a DIY UV exposure unit covers emulsion and exposure settings in detail.

Care and Longevity for Screen-Printed Nylon

Washing Guidelines

Laundering is where screen-printed nylon either validates the production process or exposes its weaknesses. Clients must receive explicit care instructions with every order:

• Cold water wash only — hot water degrades both nylon fiber integrity and ink adhesion simultaneously
• Turn garment inside out before every wash cycle
• Use mild detergent; avoid bleach and fabric softener — both chemically attack plastisol and water-based ink films
• Air dry or tumble on low heat for 20 minutes maximum — high dryer heat re-stresses the ink-fabric bond
• Never iron directly on the print area — iron from the reverse side at the lowest temperature setting only

Shops that include printed care instruction cards with nylon orders report significantly fewer warranty claims. The card costs under $0.10 per unit and eliminates the majority of post-sale client disputes over print durability.

Long-Term Durability Factors

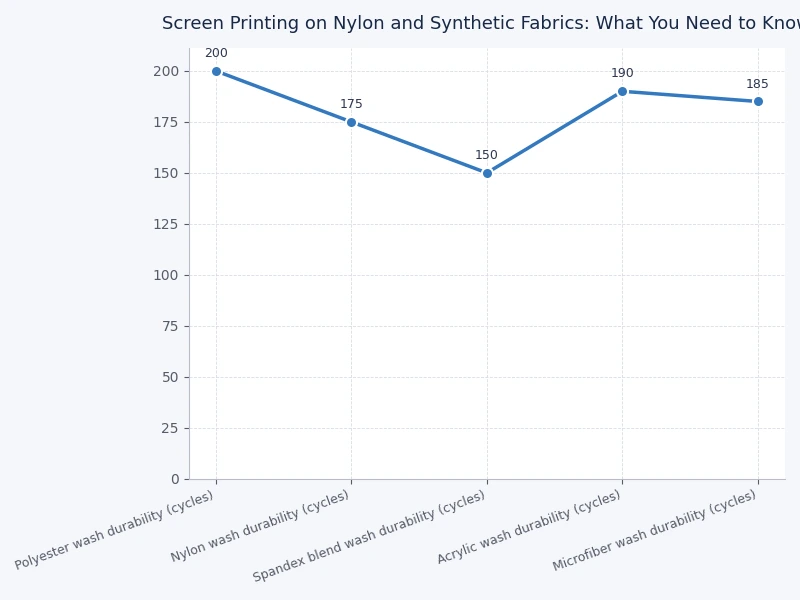

With correct ink selection and full cure, screen prints on nylon reach 30–50 wash cycles with minimal visible degradation under normal laundering conditions. Factors that extend print service life:

• Full crosslink cure — whether UV or low-cure plastisol, partial cure is the leading cause of early failure
• Thin-to-medium ink deposit — thick layers crack; thin layers flex with fabric movement over time
• Adhesion promoter base layer — documented to significantly extend delamination resistance on difficult substrates
• Client adherence to care instructions — laundering abuse is the leading field cause of premature print failure, not production error

Frequently Asked Questions

Final Thoughts

Screen printing on nylon and synthetic fabrics is a profitable specialty that separates full-service print shops from commodity operations. The technical barriers are real — heat sensitivity, low surface adhesion, coating interference — but every one of them is solvable with correct ink selection, disciplined cure protocols, and non-negotiable substrate preparation. Operators ready to expand into synthetic printing should source low-cure plastisol samples from two or three manufacturers, run a controlled wash test series on their most common synthetic substrate, and let the data build the production standard — that process becomes the foundation for a repeatable, defensible nylon printing workflow.

More in Screen Printing
