How to Use Puff Ink for Raised 3D Screen Prints

What separates a flat, ordinary print from one that commands genuine physical attention? Understanding puff ink screen printing — how to use it, when to apply it, and how to cure it precisely — gives decorators a versatile tool for creating raised, three-dimensional surfaces on fabric. Available through most screen printing suppliers, puff ink embeds a foaming agent that expands under heat, lifting the printed layer into a soft, cushioned relief that elevates garments well above standard plastisol results.

Puff ink operates on a direct chemical principle. A blowing agent — typically azodicarbonamide — sits dormant within the ink base at room temperature and decomposes rapidly under sustained heat, releasing gas that forms micro-bubbles within the printed layer and producing the characteristic raised surface. The degree of expansion depends on ink deposit volume, mesh count, and curing temperature precision — variables that each printer must calibrate through systematic testing before entering production. For those exploring the full spectrum of specialty options, a review of metallic, glitter, puff, and glow-in-the-dark screen printing inks provides essential comparative context before committing to a puff-specific workflow.

The finished effect resembles embroidery in visual weight but requires none of embroidery's specialized equipment. A standard press, properly tensioned screens, and a conveyor dryer capable of reaching appropriate curing temperatures constitute the complete toolkit. This accessibility, combined with the technique's premium visual results, explains puff ink's enduring position as one of the most commercially valuable specialty printing methods available to shops of any scale.

Entry-Level and Professional Approaches to Puff Ink

What New Printers Should Understand First

Puff ink is more forgiving than many specialty inks at the setup stage but demands strict precision during curing — a balance that rewards methodical practitioners and penalizes shortcuts. Those who have worked through the fundamentals outlined in a thorough DIY screen printing resource will find the transition manageable, provided they recognize the two critical failure modes: insufficient heat produces inadequate foam expansion, while excessive heat collapses the cell structure entirely, leaving a brittle, flat surface. Water-based puff formulations typically cure at 320–330°F (160–165°C); plastisol-based variants require 330–350°F (165–177°C). Every new practitioner should run test prints on scrap fabric and document temperature, belt speed, and mesh count before committing ink to saleable goods.

Pro Tip: Reduce squeegee pressure when printing puff ink; excessive force distributes ink unevenly through the mesh, producing inconsistent lift across the design that no amount of additional curing can correct after the fact.

Advanced Techniques for Experienced Printers

Experienced printers use puff ink as one element within a layered composition rather than as a standalone application. A base layer of standard plastisol beneath a puff overprint creates compelling contrast between flat and raised surfaces within a single design, directing the viewer's attention toward focal elements and adding visual hierarchy that photographs exceptionally well. Advanced practitioners also employ partial curing — exposing the ink to heat long enough to set without fully activating the blowing agent — then printing standard ink layers over the puff before completing the final cure, building complex dimensional compositions that are unavailable through any other ink category.

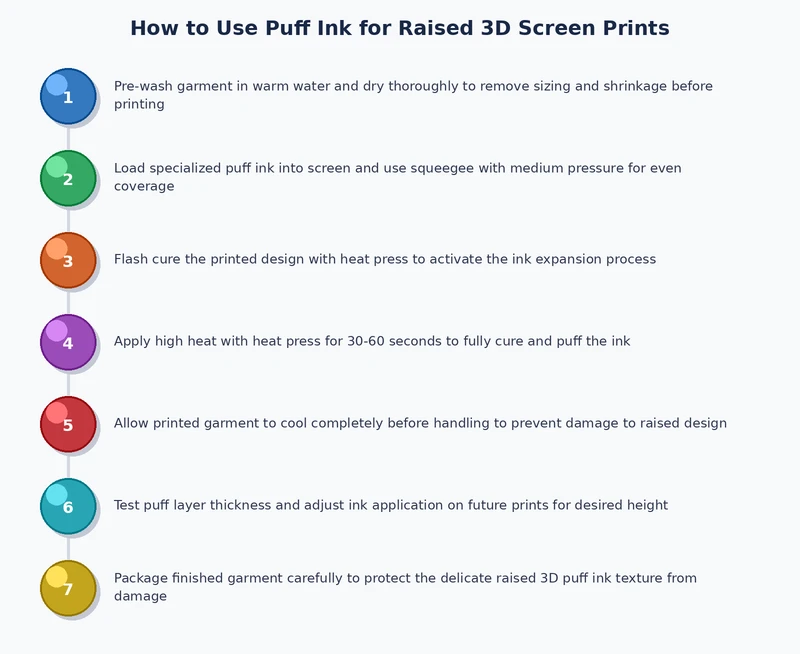

Puff Ink Screen Printing How to Use: A Step-by-Step Process

Screen Preparation and Artwork Setup

Proper artwork preparation establishes the foundation of a clean puff print. Because puff ink expands significantly after curing — often doubling in surface height — designs must favor bold letterforms and simplified shapes over fine lines and intricate detail. Lines thinner than two points in the original artwork will blur as foam expansion softens edge definition across the cured surface. Those unfamiliar with preparing clean separations should consult the guide on preparing artwork files for screen printing, which covers spot color setup and vector requirements applicable directly to puff workflows.

A mesh count between 86 and 110 threads per inch is standard for puff ink applications. Coarser meshes allow sufficient ink volume to deposit for meaningful expansion; finer meshes restrict ink volume and produce inadequate lift regardless of curing temperature precision. Stencil emulsion should be applied at standard thickness, exposed per the manufacturer's specifications, and fully hardened before the screen enters any production rotation.

Mixing, Loading, and Pulling the Squeegee

Puff ink is available in water-based and plastisol formulations, each suited to different production environments and end-use requirements. Water-based puff ink requires a softer squeegee durometer and produces a lower dimensional profile; plastisol puff ink offers greater height and wash durability, making it the preferred choice for commercial production runs. Both formulations are applied with a flood coat followed by a single firm print stroke — multiple strokes deposit excessive ink and create irregular, uneven expansion during the curing phase. Ink should always be printed at room temperature, as cold storage increases viscosity and disrupts uniform deposit across the full design area.

Curing for Consistent Three-Dimensional Results

Curing is the most consequential step in the entire puff ink process. A calibrated conveyor dryer set to the manufacturer's recommended temperature ensures even heat distribution across the full print area, producing uniform lift from edge to edge without hot spots or uneven surface texture. Spot-curing with a flash dryer is possible but requires careful management of the unit's distance from the garment to prevent scorching at the print center while leaving peripheral areas undercured. The correctly cured surface feels firm yet slightly compressible, with a consistent raised profile across all design elements.

Warning: Avoid flash-curing puff ink on athletic or moisture-wicking garments at elevated temperatures without prior testing; synthetic fiber constructions are highly susceptible to scorching and dimensional distortion. Consult the full resource on screen printing on athletic and moisture-wicking fabrics for safe temperature and pressure protocols specific to performance textiles.

Where Puff Ink Delivers the Most Impact

Apparel, Branding, and Streetwear

Puff ink sees its strongest commercial demand within the streetwear, collegiate branding, and children's clothing markets, where tactile differentiation directly influences perceived value at the point of sale. Bold team logos, vintage lettering, and graphic mascots translate exceptionally well into dimensional print because the raised surface photographs with natural depth and shadow, communicating craftsmanship to the end consumer without any additional styling. Many established brands apply puff ink selectively — reserving it for key text elements or focal graphic components within a larger flat design — to create visual hierarchy without adding excessive weight or stiffness to the garment construction.

Promotional Products and Specialty Items

Beyond apparel, puff ink is applied to canvas tote bags, structured caps using specialty platens, and heavyweight cotton goods where the substrate tolerates the curing temperatures required for full foam activation. Performance garments present additional complexity: dye migration risks compound the technical demands of puff curing on synthetic substrates, and printers undertaking such projects should consult the dedicated resource on screen printing on nylon and synthetic fabrics before proceeding with puff applications on those materials.

Pro Insight: Puff ink applied to 100% cotton fleece or heavyweight jersey produces the most dramatic and consistent lift because natural fibers tolerate the higher curing temperatures required for full blowing agent activation without structural compromise or fiber distortion.

Puff Ink Versus Other Specialty Inks: A Technical Comparison

Puff vs. Metallic, Glitter, and High-Density Inks

The following table compares puff ink against the most common specialty ink categories across key production parameters, illustrating where each formulation excels and where it presents trade-offs.

Choosing the Right Specialty Ink for the Job

Puff ink occupies a distinct position among specialty formulations because it generates dimensional relief through a chemical reaction rather than through stencil geometry or substrate layering. According to Wikipedia's overview of screen printing, specialty ink development has evolved substantially alongside synthetic chemistry, and puff formulations represent one of the category's most accessible and widely adopted innovations. High-density ink, the closest alternative for raised effects, demands heavier emulsion stencils and significantly greater squeegee pressure than puff ink requires, making puff the more practical entry point for shops adding dimensional printing to their service menu.

Diagnosing and Resolving Common Puff Ink Problems

Insufficient Lift After Curing

When a print fails to expand adequately after curing, the root cause is almost always insufficient heat exposure, an excessively fine mesh count, or insufficient ink deposit volume — rarely a defective ink formulation. Printers should verify dryer temperature and belt speed using a calibrated donut probe thermometer before drawing any conclusions about the ink itself. Reducing belt speed by ten to fifteen percent increases dwell time within the heat chamber and frequently resolves marginal lift deficiencies on the very next production run. Switching from a 110-mesh to an 86-mesh screen increases ink deposit volume in a single step and typically produces measurably improved results without any other adjustment.

Cracking, Peeling, and Adhesion Failures

Adhesion failures and cracking in cured puff prints most often indicate over-curing rather than under-curing — a distinction that surprises many new practitioners accustomed to pushing curing temperatures on standard plastisol. Excessive heat collapses the foam cell structure and leaves a brittle, hollow surface that cracks under flex and peels at the edges after repeated laundering. The optimal cure window for most puff formulations is narrow, typically ten to twenty seconds of sustained, even heat at the correct temperature. Garments must also be fully pre-dried before printing; residual moisture converts to steam during curing and disrupts foam cell formation, producing irregular surface texture and adhesion inconsistencies that no post-cure process can correct.

Frequently Asked Questions

Final Thoughts

Puff ink represents one of the most commercially rewarding specialty techniques available in screen printing, delivering measurable premium differentiation without requiring any additional capital equipment beyond what a standard shop already owns. Printers ready to expand their service offerings and command higher per-unit pricing should begin with a single-color test on 100% cotton jersey, document every production variable — mesh count, ink deposit, curing temperature, and belt speed — and build systematically from that foundation toward multi-layer dimensional compositions. Explore the full range of technique guides, ink comparisons, and equipment reviews at PrintablePress's screen printing resource hub to continue developing a competitive, differentiated print operation.
