How to Choose the Right Screen Printing Mesh Count

The mesh count on your screen printing frame determines everything from ink deposit thickness to the sharpness of fine lines, and matching it correctly is the single most important technical decision before any press run. This screen printing mesh count guide covers the full count spectrum, so you can identify the right mesh for any design, ink system, and fabric before you coat a single screen.

Mesh count refers to the number of threads woven per linear inch across the screen surface, and a higher number means smaller openings with less ink passing through per squeegee stroke. A low count like 86 leaves large gaps between threads that allow heavy ink deposits to push through freely, while a high count like 305 creates fine openings suited for halftone dots and small-point text. This single variable determines whether a print bleeds into the weave of the fabric or holds crisp, sharp edges across a full production run.

Your ink system interacts directly with mesh count in ways that many beginners overlook, because thick inks require large openings to flow without clogging, while thin inks need fine openings to prevent flooding the substrate with excess pigment. The differences outlined in the guide to plastisol vs water-based ink for screen printing map directly onto the mesh selection process, since each ink type carries a manufacturer-specified mesh range for a reason. If you're also weighing screen printing against other decoration methods for one-off jobs, the guide to making DTF transfers at home provides a useful workflow comparison before you invest in screen supplies.

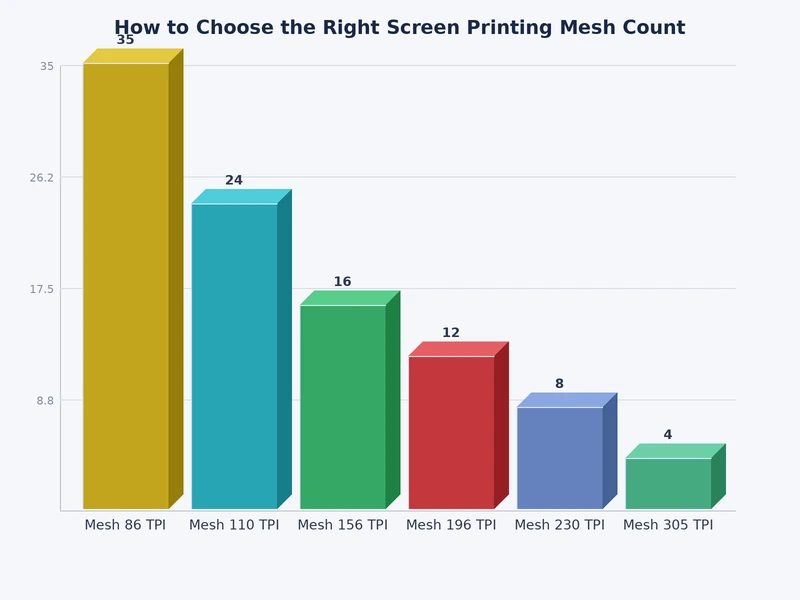

Screen Printing Mesh Count Guide at a Glance

The screen printing industry organizes mesh counts into three broad tiers, and your choice within each tier depends on the specific ink formulation, artwork complexity, and fabric surface you're working with. The table below provides a direct reference for the most commonly used counts, their opening characteristics, and the applications where each count performs best.

Low-Count Meshes (40–86)

Low-count meshes move a high volume of ink per squeegee pass, which makes them the standard choice when you need texture effects, opaque coverage on dark garments, or specialty inks that contain particles too large to pass through finer openings without clogging. Glitter ink contains metallic flakes that would block a 200-count screen within a single run, so 40- to 60-count meshes are the accepted industry standard for that application. Printing bold, single-color athletic graphics on heavyweight fleece also calls for an 86-count mesh, because the uneven surface texture of thick fabric absorbs ink and a coarser mesh compensates without requiring multiple passes to achieve full coverage.

Mid-Range Meshes (110–160)

The 110 to 160 range handles the majority of commercial garment printing because it balances ink deposit volume with the level of detail that most standard designs require, and most production shops keep several screens in this range in continuous rotation. A 110-count mesh handles standard plastisol spot colors reliably across long runs and resists clogging under normal conditions, while a 156-count screen opens the door to four-color process printing, where controlling dot gain — the spreading of ink dots into the fabric weave — becomes critical to reproducing clean color transitions between tones.

High-Count Meshes (200–355)

High-count meshes deposit a thin, controlled layer of ink that preserves fine halftone lines, photographic gradients, and small reversed text that lower-count screens cannot reproduce without those details bleeding into surrounding ink. Water-based and discharge inks are the primary match for this range because their lower viscosity allows them to pass through tight openings without the excessive squeegee pressure that distorts mesh geometry over time. According to the Wikipedia overview of screen printing, fine-art and graphic applications that require photographic quality routinely use meshes above 200 to achieve the image resolution those designs demand.

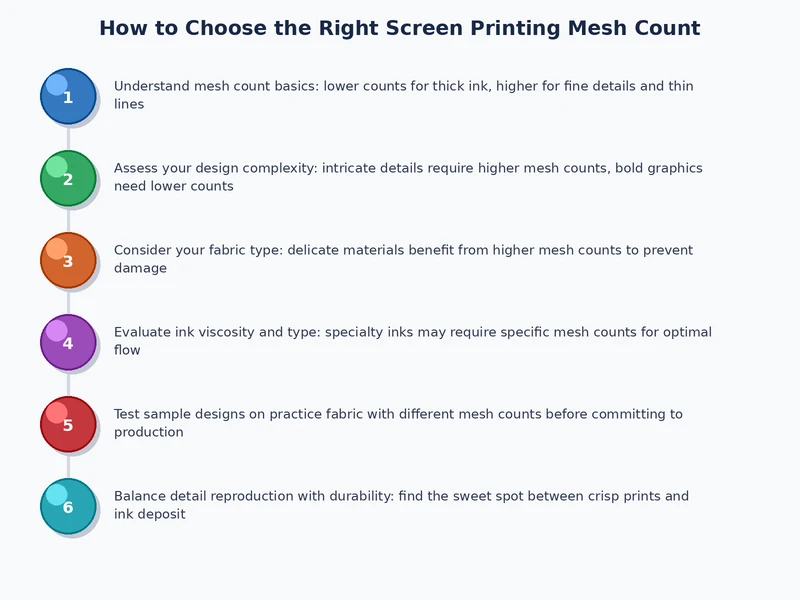

Matching Mesh to the Job

Selecting the right count is less about memorizing a reference table and more about reading the combined demands of each project, which means evaluating your artwork complexity, ink system, and substrate texture together as a group before you coat any screen for production.

When a Lower Mesh Is the Right Call

You should reach for a lower-count mesh whenever your design depends on heavy ink coverage, an opaque white underbase on a dark shirt, or specialty inks whose suspended particles cannot pass through fine openings. Rough-textured fabrics like canvas, heavyweight fleece, and certain tri-blend constructions also push you toward a lower count, because their surface irregularities absorb more ink and an underfilled deposit results in incomplete coverage that forces a second pass. Discharge printing — where the ink chemically removes the fabric dye and replaces it with a new color — specifically requires the volume that low-count meshes provide, because the active discharge agent must penetrate the fibers in sufficient quantity to produce an even, consistent result across the whole garment.

When a Higher Mesh Earns Its Place

Artwork with halftone gradients, small text below 14-point, or photographic imagery pushes you into the 200-plus range, where the tighter weave positions each ink dot precisely and prevents adjacent colors from bleeding into one another during the stroke. Soft-hand printing — a technique that aims for minimal ink feel on the garment surface — also demands higher counts paired with water-based inks, because the thin deposit cures directly into the fibers rather than building a raised layer on top. If you're deciding between screen printing and other decoration methods for a detail-heavy project, the comparison in direct-to-garment printing vs screen printing clarifies which method is better suited to photographic artwork at low production quantities.

A mesh count that's one tier too low for your artwork will produce bleed and blur that no amount of squeegee adjustment can fix — match the mesh before you coat the screen.

Errors That Cost You Ink and Screens

Most mesh count errors follow predictable patterns, and identifying them before the press run is far less expensive than diagnosing them after a full batch of garments has already been printed and needs to be scrapped or reprinted entirely.

Mismatch Between Mesh and Ink Viscosity

Using a high-count mesh with thick plastisol ink is among the most common errors in screen printing production, and it typically produces pinholes in solid areas, incomplete coverage on dark garments, and excessive squeegee pressure that stretches the mesh out of tension alignment over time. The inverse problem — running thin water-based ink through a low-count screen — floods the print area with excess ink, causes colors to bleed into surrounding fabric fibers, and makes fine-line reproduction impossible regardless of how accurate the color separation is. Checking the ink manufacturer's recommended mesh range before coating any screen costs nothing and prevents both categories of error from ever reaching the press.

Ignoring Fabric Texture

Fabric surface texture acts as a modifier on the effective mesh count you need, and printers who apply the same screen specification to every fabric type will consistently see results that fall short of what the design actually requires. A 160-count screen that produces clean spot colors on a smooth 100% combed-cotton tee may print unevenly on a slubbed tri-blend, because the raised surface texture interrupts contact between the screen and the substrate during the squeegee stroke. The principle extends beyond screen printing itself — the guide on caring for clothes with heat transfer designs discusses how fabric composition influences ink adhesion and wash durability in ways that parallel the mesh selection challenge you face in screen printing.

Getting Consistent Results Every Time

Choosing the right mesh count is the first decision in a chain that also includes emulsion selection, coating thickness, screen tension, squeegee hardness, and off-contact distance, and managing all of these variables together is what makes results repeatable across different operators and production days.

Emulsion Thickness and Mesh Tension

The emulsion-over-mesh (EOM) ratio — how thick your emulsion coating is relative to the mesh thread diameter — should correspond to the ink deposit you're targeting, and this ratio changes as mesh count changes because the thread diameters themselves are different at each count. High-count screens require thinner emulsion coatings to avoid blocking the fine openings before exposure, while low-count screens accept thicker coatings that contribute additional volume to the ink deposit during the print stroke. Screen tension, measured in Newtons per centimeter, also affects print quality independently of mesh count, and a properly tensioned screen at the correct count will consistently outperform a poorly tensioned one regardless of how well-chosen the mesh specification is.

Testing Before a Full Run

Running a test print on an actual production garment before committing to a full batch lets you evaluate ink deposit volume, edge definition, and color accuracy under real press conditions rather than estimated ones, and it catches mesh-related problems while you still have time to swap screens without penalty. A test print also reveals whether your artwork contains fine-detail elements — thin hairlines, small reversed text, delicate halftone areas — that the chosen mesh cannot hold, and it does so before those details disappear across a hundred shirts. Comparing screen printing output to alternatives covered in DTF transfers vs HTV vinyl can also help you decide whether screen printing is the right process for a particular job or whether a different method handles the design better at your target production volume.

Frequently Asked Questions

The mesh count you choose before you coat the screen is cheaper to change than the batch of shirts you ruin by choosing wrong.
