How to Use a Flash Dryer for Screen Printing

Flash dryer screen printing how to use comes down to three variables — distance, temperature, and dwell time — and calibrating all three correctly is what makes multi-color work register cleanly on every print. Our team treats the flash unit as the most consequential piece of equipment on the press, because a poorly gelled underbase undermines every subsequent color layer regardless of how well everything else runs. For anyone building a serious workflow in the screen printing craft, mastering this one step separates professional output from a frustrating cycle of smeared colors and wash failures.

Flash dryers come in three main configurations — infrared, quartz, and electric coil — each with different heat distribution profiles that affect cure evenness and required dwell time. Infrared units are our team's preferred choice for most plastisol jobs because they heat quickly and spread energy evenly across the print surface. Quartz units offer tighter temperature control, which benefits water-based ink work and heat-sensitive synthetic substrates where overshoot triggers dye migration. Electric coil units are the most common entry-level option but produce hot spots directly under the element, which requires deliberate print-area positioning to avoid uneven gel depth.

The most overlooked part of flash dryer operation is pre-session calibration. Most operators skip a surface temperature check entirely and rely on visual cues, which produces inconsistent gel-cure depth and results in ink smearing, color contamination, or outright wash failure. Our team uses a laser thermometer on a test substrate before every session, and our troubleshooting work consistently confirms that this single habit eliminates the majority of flash-related defects before production begins.

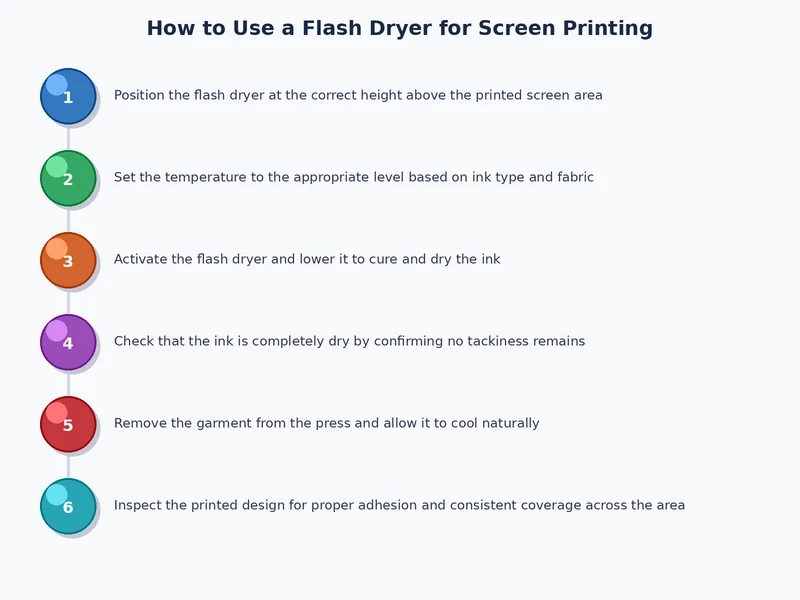

Running a Flash Dryer for Screen Printing: The Step-by-Step Process

Preparing the Workspace and Equipment

Before the first garment goes on the platen, our team runs a consistent five-minute pre-session routine that prevents the majority of flash-related issues before they occur. Skipping this routine costs far more time in reprints and corrections than it ever saves at setup. Here is the checklist our shop runs through every single time:

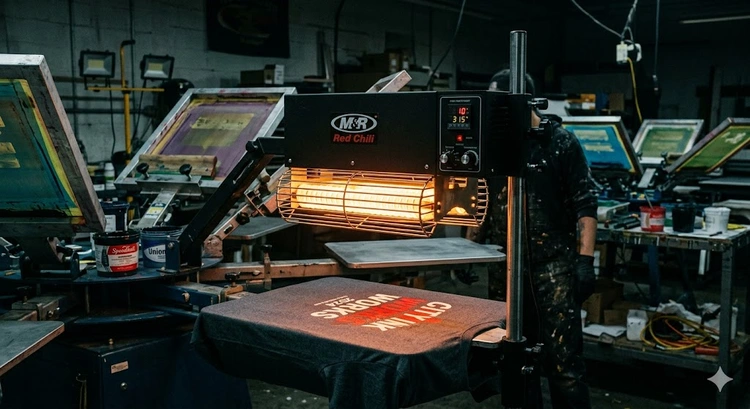

• Center the flash unit directly over the print platen with the heating element 2–4 inches from the substrate surface — closer for dense ink deposits on standard cotton, farther for heat-sensitive blends.
• Preheat the unit for at least 5 minutes before the first print cycle, since cold elements produce uneven heat distribution that ruins the first several shirts in a run.
• Verify surface temperature with a laser thermometer on a test substrate; the target for plastisol gel cure is 240–270°F on the fabric surface, not the air temperature the unit's display reads.
• Set a dedicated timer for each flash cycle rather than relying on feel — consistent dwell time is the only way to maintain uniform gel quality across a long production run.
• Confirm that the platen is clean and free of ink buildup from prior sessions, which otherwise acts as an insulating layer that throws off surface temperature readings.

The Flash Cure Cycle, Station by Station

On a multi-station press, the flash dryer sits between printing stations, and the cycle runs in a locked sequence: print the color, rotate the platen under the flash unit, activate the timer, verify gel status with a finger-touch test, then rotate to the next print station. The finger-touch test is the most reliable real-time quality check available at press side — properly gelled ink feels firm and slightly tacky without any transfer to the fingertip. If ink transfers to the finger, temperature or dwell time requires adjustment before the run continues, no exceptions.

Pro insight: Always perform the finger-touch gel check at the edge of the ink deposit rather than the center, because edge areas cool faster and give the most conservative read on gel depth — if the edge is firm, the center is solid.

For screen printing on hoodies, our team adds 3–5 seconds to the standard dwell time because the additional fabric mass absorbs and dissipates heat more aggressively than a standard t-shirt. Insufficient flash on thick garments produces inter-layer adhesion failures that often only surface after the first wash cycle, well after the run is complete and corrections are far more costly.

Flash Dryer Settings and Techniques That Deliver Consistent Results

Temperature and Distance Guidelines by Ink Type

Flash dryer parameters are not universal across ink types, and applying plastisol settings to water-based inks is one of the most common calibration errors our team encounters in troubleshooting sessions. The table below reflects the baseline parameters our shop uses as a starting point, adjusted from there based on substrate type and ambient shop conditions.

Ink chemistry drives these differences at a fundamental level — plastisol vs water-based ink behave entirely differently under heat exposure. Water-based formulations require higher surface temperatures because the water carrier must evaporate before the binder can gel, which is why minimum flash time for water-based work nearly doubles that of plastisol on comparable substrates and deposit thicknesses.

Timing, Dwell, and the Gel-Check Method

Dwell time is only part of the equation, because residual heat continues curing the ink for several seconds after the flash unit retracts from position. Our team accounts for this carry-over effect by running flash times slightly shorter than the maximum and allowing a 2–3 second rest before checking gel status — particularly on thick ink deposits where heat penetrates more slowly through the full ink film. On automatic presses running at speed, this carry-over effect is less significant, but on manual presses with longer rotation intervals, it adds meaningfully to total gel development.

Warning: Flashing too long on polyester or polyester-blend substrates causes dye migration — the synthetic fibers release garment dye into the wet ink layer under sustained heat, creating discoloration that cannot be corrected after the fact.

Flash Dryer Applications Across Common Print Scenarios

Multi-Color Plastisol Runs

Multi-color work on a manual or automatic press is where flash dryer mastery pays the clearest dividend. On a four-color job, our team flashes after the white underbase layer and again after the second color if ink deposit density warrants it. The underbase flash is the most critical point in the sequence — an undercured white allows subsequent colors to sink into the base layer rather than sitting on top of it, muddying color accuracy and neutralizing the opacity the underbase was printed specifically to provide. An overcured underbase is equally damaging: the slick gelled surface rejects adhesion from the next color layer entirely, producing delamination failures that appear clearly after the print cools.

Pro insight: On manual presses, our team marks the platen edge with a registration line to ensure the flash dryer returns to exactly the same position each rotation — even a half-inch shift produces uneven gel depth across the print area.

Setting up a reliable home or small-studio press environment — including optimal platen layout and flash dryer placement for one-person operation — is covered in full in our guide on how to set up a screen printing station at home, which our team updated based on lessons learned from actual small-batch production runs.

Specialty Inks and Difficult Substrates

Discharge inks — a specialty category in screen printing that removes garment dye rather than depositing pigment on top — require modified flash parameters and mandatory ventilation because the zinc formaldehyde sulfoxylate activator releases fumes during the flash cycle. Our shop runs discharge work at 295–310°F surface temperature, 3 inches from the substrate, with 12–15 second dwell times and a commercial exhaust fan positioned to pull air away from the press operator throughout the session. High-density specialty inks — glitter, puff, metallic — require longer flash dwell to gel uniformly through the full deposit depth. Our team checks gel depth on these inks by nicking the edge of the deposit lightly with a fingernail rather than pressing with a full finger, which compresses the surface and gives a false firm reading on a deposit that is still soft underneath.

Flash Dryer Myths Our Team Has Seen Derail Print Jobs

The "Hotter Is Faster" Problem

The most persistent flash dryer myth is that running higher temperatures shortens flash time proportionally and makes the press run faster overall. In practice, excessive temperature creates surface-cured ink — where the outer skin gels and the timer suggests completion, but the deposit below remains soft and adhesion-weak, a condition sometimes called a false cure. Our team has tested this pattern extensively and found that surface-cured prints pass the initial finger-touch test convincingly but fail wash testing within three laundry cycles. The correct approach is to match temperature to the ink manufacturer's specification and adjust dwell time to compensate, never push operating temperature beyond the recommended range to chase speed.

Other Persistent Misconceptions Worth Correcting

• Flash curing replaces conveyor curing: It does not. Flash cure produces a gel state sufficient for overprinting, not a wash-resistant final cure. Full cure requires a conveyor dryer running the entire ink deposit through sustained 320°F+ heat, and garments skipping the conveyor step wash out within weeks regardless of how well the flash cycle ran.
• All flash dryers produce identical heat profiles: They do not. Coil-element units produce hot spots directly beneath the coil and cooler perimeter zones, which is why center-positioning the print area and rotating the substrate mid-flash matter on coil units in a way they simply do not on infrared models with even distribution.
• Flash settings are permanent once dialed in: They are not. Ambient temperature shifts, platen heat buildup across long runs, and substrate moisture variation all change effective flash times as a session progresses. Our team rechecks gel quality every 20–30 prints during extended sessions to catch parameter drift before it produces a run of rejects.
• A flash dryer is only needed for multi-color jobs: Single-color specialty inks — puff, high-density, glitter — also benefit from a brief flash cycle to partially set the deposit before final conveyor cure, which improves dimensional stability and prevents the heavy ink deposit from shifting under the conveyor belt's weight during the full-cure pass.

Frequently Asked Questions

A flash dryer does exactly one thing — give the next color a clean, stable surface to land on — and every multi-color print failure that flows from neglecting it could have been prevented by treating that single step with the precision it has always deserved.
