How to Do Multi-Color Screen Printing at Home

The first time I tried multi-color screen printing at home, I ruined a perfectly good black tee. Two colors, one shirt, complete disaster — the red shifted a full inch into the white, and the whole design looked like it was printed by someone who'd never held a squeegee. That failure cost me one shirt and saved me a hundred more.

If you've been sticking to single-color prints because multi color screen printing at home felt too complicated, this guide is for you. The full world of screen printing techniques lives in our screen printing resource hub, but here we focus specifically on the multi-color process: from burning your first color separation to pulling a clean, registered final print.

The core idea is simple. Each color gets its own screen. You print them in order, one layer at a time, onto the same garment. The challenge is registration — the precise alignment of each color layer. Nail the registration, and everything else falls into place.

What Multi-Color Screen Printing Actually Involves

Multi-color screen printing means using a separate screen for each color in your design. A two-color print needs two screens. A five-color design needs five. Each screen carries one color layer of the artwork, and you print them in sequence onto the same garment, building the full image layer by layer.

The challenge isn't printing each color — that part is straightforward. The challenge is registration: making sure every color lands exactly where it should, relative to the others. Shift one screen off by a few millimeters, and your design looks like a blurry 3D movie without the glasses. That's the whole game.

How It Differs From Single-Color Printing

Single-color printing is forgiving. You tape the shirt down, squeegee once, cure, and you're done. Multi-color printing demands more at every step:

• A separate screen burned for each color in the design
• A reliable registration system to align each screen to the same position
• Flash curing each color layer before printing the next
• Consistent shirt placement across every garment in your run

More colors means more setup time and more opportunity for things to go wrong. Start with two colors before you push to three or four. You'll learn the registration workflow without overwhelming yourself.

The Gear You Need Before You Start

You don't need a rotary press for solid multi-color work at home. You do need the right essentials:

• One screen per color (aluminum frames with the same dimensions make registration much easier)
• Photo emulsion and a UV exposure unit — our guide on exposing a screen with emulsion covers the full process
• A flat printing surface with a hinge clamp system or registration pallet
• Quality inks suited to your substrate — check the Screen Printing Ink Types guide for a full breakdown
• A squeegee with the right durometer (hardness rating) for your ink and mesh
• A flash dryer for curing between color passes

If your workspace isn't set up yet, start with the guide on how to set up a screen printing station at home. Getting organized before you add the complexity of multiple colors makes a real difference.

How to Do Multi-Color Screen Printing at Home, Step by Step

Step 1 — Prepare and Burn Your Screens

Separate your artwork by color. Each color becomes its own film positive — a transparent sheet with that one layer printed in solid, opaque black. A two-color design produces two film positives. Print them at maximum density so no light leaks through during UV exposure.

One critical detail: add registration crosshairs (small + or X marks) to every film positive in identical positions. These marks are how you align multiple screens to each other. Without them, you're guessing every time you swap screens.

Coat each screen with emulsion, dry it in a dark room, then expose with your UV light source. Choose the right mesh count for your design — fine detail needs a higher mesh count (160–230), heavy ink deposits need a lower count (110–160). The mesh count guide helps you match mesh to design type.

Step 2 — Set Up Your Registration System

Registration is the step most beginners rush through, and it's why most beginners fail at multi-color printing. Here are your options:

• Tape method: Tape the garment to a flat surface, print, untape, re-tape the next shirt. Fast and cheap, but drifts badly after 5–6 shirts.

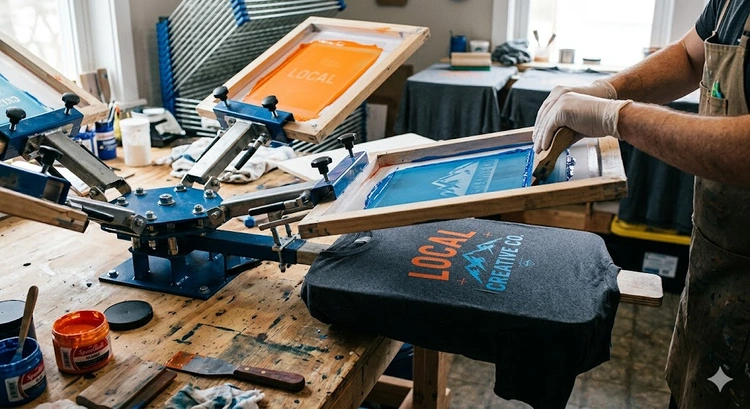

• Hinge clamp system: Attach your screens to a hinge clamp mounted to a pallet or board. The hinge locks screen position relative to the pallet so every shirt gets the same print placement. This is the right tool for multi-color work.
• Pallet adhesive with registration tabs: Apply sticky pallet spray to hold shirts in place. Use T-pins or adhesive tabs to mark exact garment positioning and press each shirt to the same marks every time.

The hinge clamp method is the best investment for consistent multi-color work. Buy it once. It pays for itself in shirts you don't ruin on your first run.

Step 3 — Print Colors in the Right Order

On light garments, print light colors before dark ones. On dark shirts, white underbase (a thick, opaque white layer) goes first — all other colors sit on top of it. Without an underbase on dark fabric, your colors look faded and dull.

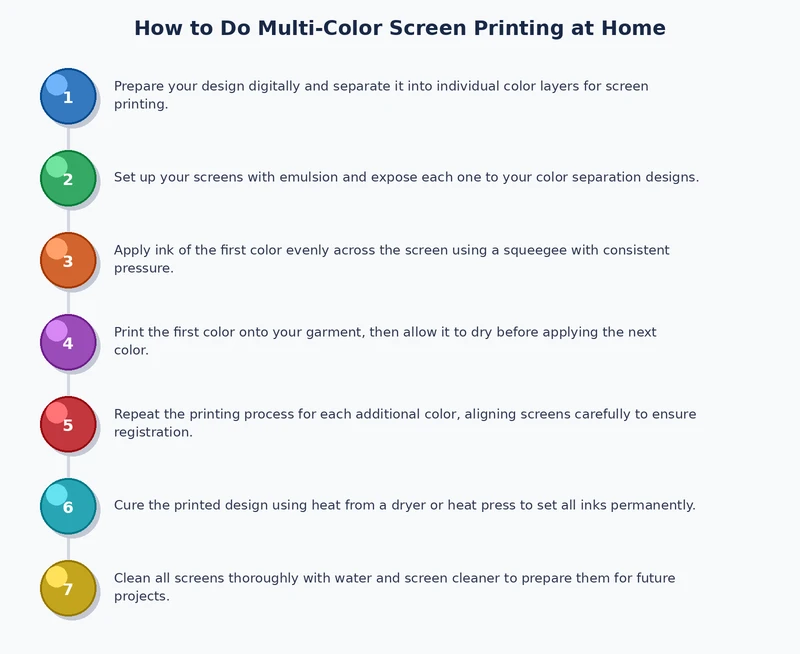

Here's the sequence for a standard multi-color run:

1. Print your first color (or white underbase on dark shirts)
2. Flash cure — partial cure only, not a full heat cure
3. Register and print the second color
4. Flash cure again
5. Repeat for each remaining color
6. Fully cure the finished print at 320°F (160°C) for plastisol inks, or per the manufacturer's spec for other ink types

Don't skip the flash cure between colors. Wet ink printed over wet ink bleeds — full stop. If you don't have a dedicated unit yet, our guide on how to use a flash dryer for screen printing covers both setup and technique.

Pro Tips for Sharp, Clean Results

Registration Tricks That Actually Work

Before you print on a single shirt, do a test print on paper or transparency film. Stack each color layer, hold them up to a light source, and check whether the crosshairs align. Fix any drift on paper before you commit to fabric. Skipping this step is how you waste shirts.

Replace your pallet adhesive often. Most people wait too long. After 15–20 shirts, adhesion drops enough that shirts shift during the squeegee stroke. That shift shows up as misalignment on the second color. Fresh adhesive costs almost nothing compared to a ruined shirt.

Pro tip: Print your first color on 5–6 test shirts before advancing to the second. It locks in your hand pressure and shirt placement while the process is still fresh in your hands.

Apply consistent squeegee pressure on every pass. Varying pressure shifts the screen slightly and throws off registration across a long run. Angle, pressure, and speed should be identical every time. The squeegee guide covers durometer, angle, and technique in detail if you need to dial this in.

Choosing the Right Inks for Multi-Color Work

For most home printers doing multi color screen printing at home, plastisol ink is the right call. It doesn't dry in the screen between passes, it's predictable, and it's easy to flash cure. Water-based ink produces a softer hand feel but dries fast in the mesh during pauses — a serious problem when you're stopping to register the next color.

A few ink principles specific to multi-color work:

• Use low-bleed inks on colored polyester or blended garments to prevent dye migration
• Use opaque bright white for underbase on dark shirts — thin white won't block the fabric color
• Match ink viscosity to your mesh count — thick ink on fine mesh clogs quickly
• Use high-opacity ink for any color printed directly over a dark underbase

Still deciding between ink types? The plastisol vs water-based ink comparison lays out the tradeoffs clearly.

Fixing the Most Common Multi-Color Problems

When Colors Don't Line Up

Misalignment is the most common failure in multi-color screen printing at home. Diagnosing it correctly saves you from chasing the wrong fix:

• Consistent drift in one direction across the whole run: Your hinge or screen mount shifted. Re-clamp, re-register, test on paper before printing another shirt.
• Random drift from shirt to shirt: Shirts aren't being placed consistently. Use registration tabs and press each shirt firmly to the same marks every time.
• Drift only on the second or third color: That screen isn't aligned to the first. Use your registration crosshairs to re-align it before continuing the run.
• Drift only at the edges of the print: Screen mesh may be loose, or the frame is flexing under squeegee pressure. Retension or replace the screen.

Ink Bleed and Color Contamination

If your second color is bleeding into the first, the first color wasn't cured enough before you printed over it. Extend your flash time — 8 to 12 seconds with a flash dryer positioned 2–3 inches above the print. The ink should be dry to the touch but still slightly warm before the next color goes down.

If you see color mixing on the back of the screen after printing, you're using too much ink pressure. Back off your squeegee angle and reduce downward force. More pressure doesn't mean better coverage — it means bleed and waste.

Mistakes That Cost You Good Prints

Artwork and Separation Errors

The biggest mistake in multi-color printing happens before you coat a single screen: bad color separations. If your film positives aren't printed at full, opaque density, light leaks through during exposure and your image comes out weak — with soft, bleedy edges that make registration impossible to hold.

Print film positives at maximum quality. If they look slightly gray when held up to light, run the sheet through your printer a second time. It makes a genuine difference. And put registration crosshairs on every separation. Without them, you have no reliable way to align screen to screen when you're mid-run.

Rushing the Process

• Skipping the test print: Always test on paper or cheap fabric before committing to a shirt. Every single time — even on designs you've printed before.
• Skipping the flash cure: There is no shortcut here. Wet on wet bleeds. Period.
• Using the wrong mesh count: Fine detail needs a higher mesh. Heavy ink deposits need a lower one. Wrong choice means clogging or fuzzy edges.
• Overloading ink on the screen: More ink doesn't mean better coverage. It means bleed, smear, and a mess to clean up.
• Skipping the final full cure: Flash curing between colors is a partial cure. Every finished print still needs a full cure at the correct temperature. Under-cured ink washes out in the first laundry cycle.

According to Wikipedia's overview of screen printing, the technique traces back over a thousand years to early stencil methods in East Asia. The fundamentals haven't changed: clean ink deposition, consistent pressure, proper curing. Patience and precision are still the whole game.

Caring for Your Screens After a Multi-Color Run

Cleaning Between Colors and After Printing

Clean your screens immediately after printing. Don't let ink dry in the mesh — dried plastisol in the mesh is a serious problem that can ruin a screen permanently. For plastisol ink, use a dedicated plastisol screen wash or mineral spirits with a soft scrub brush. For water-based ink, plain water works fine while the ink is still wet.

Between color passes during a live run, flood the screen — push ink back to the top of the mesh without printing a stroke — to keep the ink from drying in the openings while you're repositioning the shirt or adjusting registration. It takes three seconds and saves the screen.

Reclaiming and Reusing Your Screens

After your run, reclaim your screens by stripping the emulsion out of the mesh so each screen can be recoated and burned with a new design. It's one of the best cost-saving habits in the craft. Our guide on how to reclaim a screen printing screen walks through the full process. A well-maintained aluminum screen can handle dozens of runs before the mesh shows any real wear.

Store clean, dry screens flat in a dark space. Don't stack them with objects pressing on the mesh. Pressure stretches and loosens mesh tension over time — and low tension leads directly to registration problems on your next run.

Frequently Asked Questions

Final Thoughts

Multi color screen printing at home is genuinely achievable — you just have to respect the process. Get your registration system sorted before you try anything ambitious, choose plastisol ink while you're learning, flash cure between every color without exception, and always test on paper before touching a shirt. Pick one two-color design you've been wanting to print and work through it from film positive to final cure this week. That hands-on run is where everything in this guide stops being theory and starts making sense.
