How to Expose a Screen Printing Screen with Emulsion

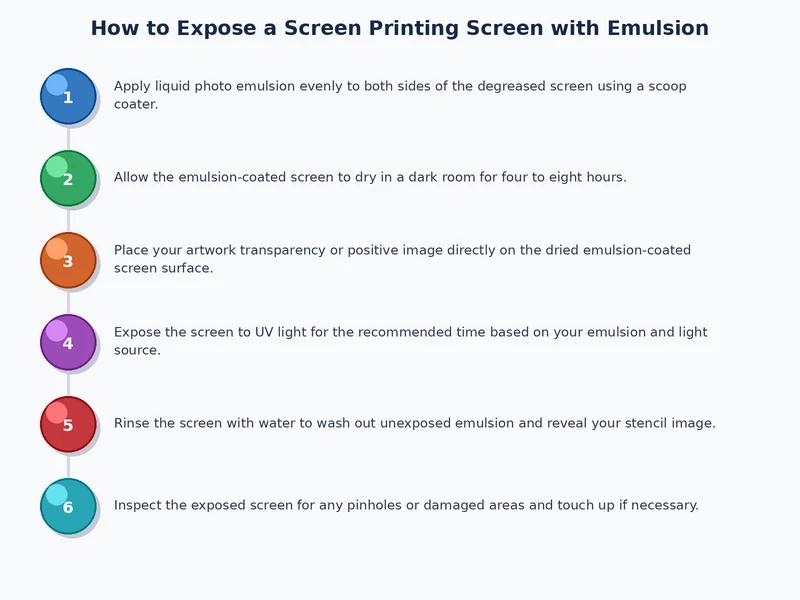

A first-time shop owner once burned a screen for thirty minutes under a 500-watt halogen floodlight, expecting a crisp stencil. The image washed out completely — emulsion gone, mesh bare. Learning how to expose screen printing screen correctly is the difference between a production-ready stencil and wasted materials. The photochemical process is precise, repeatable, and unforgiving of shortcuts. Every operator working in the screen printing craft learns early that exposure variables stack — one miscalculation cascades through every stage that follows.

Emulsion exposure bonds a photosensitive coating to the mesh using UV light transmitted through a film positive. Every variable interacts: emulsion chemistry, mesh count, light source spectrum, and exposure duration all compound. Underexposure washes out the stencil. Overexposure blocks fine detail and kills halftone dots. Neither outcome is recoverable without stripping and recoating the screen.

Properly exposed screens hold tight registration, survive extended print runs, and maintain edge definition through hundreds of impressions. The following breakdown covers the full exposure workflow — equipment selection, emulsion chemistry, exposure calculation, and failure diagnosis — for practitioners ready to move beyond guesswork.

Essential Equipment for Exposing a Screen Printing Screen

Screen Frames and Mesh Selection

Aluminum retensionable frames are the professional standard. They hold tension over time, unlike wood frames, which absorb moisture and lose tension unpredictably. Tension should read 25–35 N/cm² on a mesh tension meter before coating. Screens running below 20 N/cm² produce dot gain and registration drift that no amount of careful exposure can correct.

Mesh count directly affects emulsion deposit thickness and exposure latitude. Fine-detail work — halftones, four-color process — runs on 230–355 mesh. Heavy ink deposits for specialty applications use 86–160 mesh. Selecting the right screen printing mesh count determines how thin the emulsion film must run and whether the stencil can hold intricate detail under UV.

Film Positives and Artwork Preparation

Film positives must block UV effectively. Optical density of 3.5 or higher is the production benchmark. Inkjet output on transparency film with RIP-driven black ink channels reliably achieves this. Laser output on vellum works for simple spot-color work but typically measures 2.0–2.5 optical density — borderline for halftone reproduction.

Film positives print matte-side down on the emulsion surface during exposure. Emulsion-to-film contact eliminates undercutting caused by light scatter between separated surfaces. Even a small air gap between film and screen produces soft, ill-defined stencil edges.

Entry-Level vs. Professional Exposure Approaches

DIY Exposure Setups

Budget operators build exposure rigs from 500-watt photoflood bulbs, UV blacklight tubes, or repurposed sunbed units. These setups require longer exposure times and produce inconsistent results across the frame. Distance variation from bulb to screen changes UV intensity significantly. Without a vacuum blanket, film lift creates soft, underdefined stencil edges that fail under production ink pressure.

The contact printing principle demands intimate contact between film and emulsion surface. DIY setups approximate this with weighted glass plates or foam-backed contact frames. Results are workable for single-color spot work, but not viable for fine halftone or process-color production.

Dedicated Exposure Units

Professional exposure units use metal halide or LED arrays with vacuum drawdown. The vacuum blanket pulls film against emulsion with zero air gap. Metal halide lamps emit at 350–450nm, matching the peak UV sensitivity of diazo and SBQ emulsions. LED units run cooler, eliminate lamp replacement costs, and deliver consistent output from the first second of exposure.

Entry-level LED units from brands like Vastex and Ryonet run $600–$2,500. Metal halide units from M&R and Workhorse start at $3,000. Production environments justify the investment through consistent stencil quality and faster cycle times.

Pro tip: Always warm up metal halide exposure units for 5–10 minutes before the first burn — cold lamps produce inconsistent UV output and will underexpose the first screen of the day.

What a Professional Exposure Setup Actually Looks Like

Small Shop Configuration

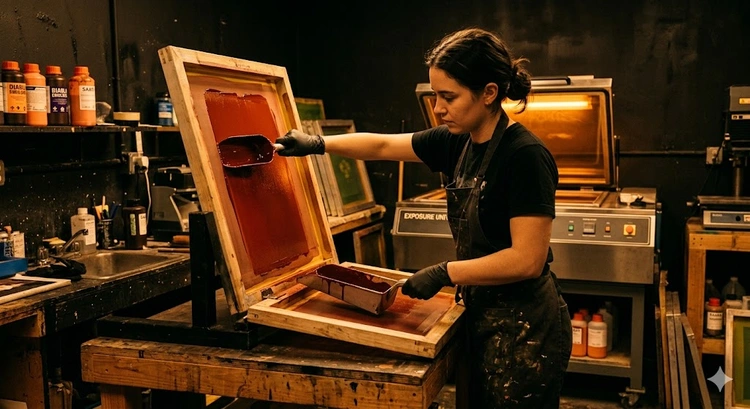

A two-person screen printing operation typically runs a 21" × 25" LED exposure unit alongside a coating trough and a drying cabinet. Screens coat in a dedicated darkroom or under yellow safelight — yellow filters the UV spectrum that hardens emulsion prematurely. After coating, screens dry horizontally emulsion-side up. Humidity control in the drying area is non-negotiable. Screens dried above 60% relative humidity develop pinholes as moisture becomes trapped beneath the emulsion surface.

High-Volume Production Floor

Large contract printers run exposure units inline with automated coating systems. Screens cycle through coating, drying, and exposure on timed schedules calibrated to the specific emulsion in use. Some facilities operate computer-to-screen (CTS) systems that laser-image emulsion directly, eliminating film positives entirely. CTS cuts film costs, eliminates optical density variables, and tightens registration tolerances across long production runs. The upfront equipment cost runs $15,000–$80,000, but the workflow savings justify it at volume.

Choosing the Right Emulsion for Each Application

SBQ vs. Dual-Cure Emulsions

SBQ (pure photopolymer) emulsions expose faster than diazo-sensitized or dual-cure products. They deliver sharper edges, better solvent resistance, and longer shelf life once coated. Dual-cure emulsions combine SBQ and diazo chemistry to provide broader exposure latitude — useful for operators without a controlled darkroom environment or consistent light source output. The tradeoff is reduced edge sharpness and a narrower ink compatibility range.

Ink Compatibility Considerations

The ink type running through the screen dictates emulsion selection from the start. Plastisol inks tolerate most emulsion chemistries. Water-based and discharge inks require solvent-resistant or water-resistant emulsion coatings — standard dual-cure formulations break down quickly under repeated water-based ink contact. The choice between plastisol vs. water-based ink for screen printing should drive emulsion selection before the screen gets coated, not after the first breakdown mid-run.

Solvent-based and UV-curable inks demand solvent-resistant emulsion formulations. Standard dual-cure emulsions dissolve under exposure to ketones and esters present in solvent ink systems. Screen printers running specialty inks must verify emulsion compatibility with the ink manufacturer's documentation before production.

Exposure Light Sources Compared

Metal Halide, LED, and Fluorescent Units

Light source selection affects exposure time, consistency, and long-term operating costs more than any other equipment variable. The table below compares the four most common exposure light sources across the metrics that matter in production.

Metal halide remains the benchmark for production output quality. LED arrays now match metal halide stencil quality at lower operating temperatures and significantly higher energy efficiency. Fluorescent UV tubes underperform on fine halftones due to lower UV intensity and broader spectral spread.

Diagnosing and Fixing Exposure Problems

Undercutting and Pinholes

Undercutting occurs when UV light scatters beneath opaque areas of the film positive, hardening emulsion that should remain soft and wash away. The stencil opening shrinks, killing fine detail and halftone dots. Low film optical density is the primary cause. Secondary causes include film not in full contact with emulsion, or overexposure allowing light to wrap beneath image edges. This is a common issue that significantly impacts the comparison between direct to garment printing vs. screen printing for fine detail work — DTG sidesteps the exposure variable entirely.

Pinholes develop from dust on the film or emulsion surface, air bubbles introduced during coating, or humidity-damaged emulsion stored improperly. Inspect film under a backlit table before every burn. Wipe coated screens with a tack cloth before loading them into the exposure unit to eliminate particulate contamination.

Washout Failures

Underexposed screens wash out in large patches or fail to hold image edges during the rinse. The emulsion hasn't fully cross-linked and lifts from the mesh under water pressure. Overexposed screens resist washout entirely — fine detail fills in as the entire emulsion hardens. Neither condition is salvageable without stripping and recoating.

Warning: Never use high-pressure spray directly on an underexposed screen — the emulsion will strip from the mesh in sheets, and the screen cannot be recovered without a full reclaim.

Pro Techniques for Sharper, More Durable Stencils

Step Wedge Testing and EOM Ratio

A step wedge test exposes the same screen at multiple timed intervals — typically 10 to 120 seconds in increments — to identify the optimal exposure window for a given emulsion and light source combination. The optimal exposure produces the smallest open area with the cleanest edge. Run step wedges when changing emulsion brands, switching light sources, or replacing metal halide bulbs. Lamp degradation on metal halide units drops UV intensity 30–40% before visible symptoms appear. What worked at 45 seconds on a new bulb may require 65 seconds at 500 hours of lamp life.

The emulsion over mesh (EOM) ratio determines ink deposit thickness and edge quality. Low EOM — under 15% — holds sharp halftone dots but carries less ink volume. High EOM — 25% and above — builds ink deposit for specialty discharge or puff applications but reduces resolution. Most commercial plastisol work targets 15–20% EOM as the optimal balance between edge sharpness and ink laydown.

Post-Exposure Hardening

Post-exposure hardening, or post-cure, bakes exposed screens under strong UV after washout and drying. It increases stencil hardness by 15–25% and extends run life significantly. Shops running water-based or discharge ink rely on post-cure to prevent premature stencil breakdown. The process adds ten minutes to the prepress workflow and can add hundreds of additional impressions to stencil life — a worthwhile exchange on any run over 500 pieces.

Frequently Asked Questions

Final Thoughts

Mastering how to expose screen printing screen correctly is the single skill that unlocks consistent, professional-quality stencils at any volume. Start with a step wedge test on the specific emulsion and light source in use — build the exposure index before running production screens. Explore the PrintablePress screen printing resource library for deeper guides on mesh selection, ink chemistry, and press setup, and build each variable of the stencil process on a foundation of calibrated, repeatable data.
