How to Print on Dark Shirts: The Screen Printing Underbase Technique

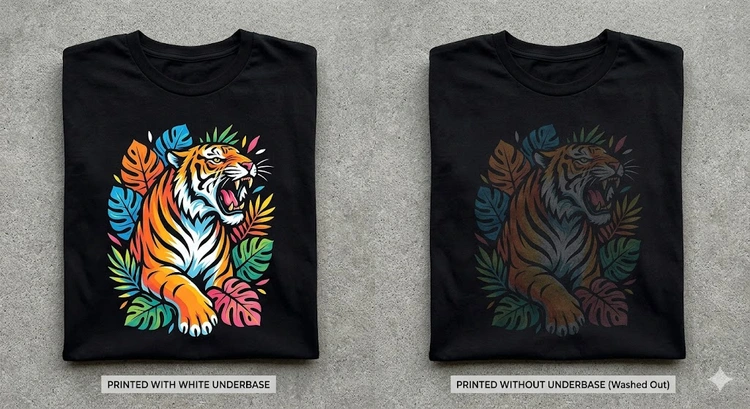

A screen printer pulling the first dark navy tee off the platen during a new job noticed every design color looked murky and barely visible against the fabric. The culprit: a missing foundation layer. Screen printing on dark garments requires the screen printing underbase dark shirts technique — printing an opaque white or light ink layer first, flash-curing it, then overprinting the actual design colors on top.

The underbase acts as a light-reflective canvas. Dark fabrics — black, navy, charcoal, forest green, burgundy — absorb standard plastisol and water-based inks, pulling colors toward the garment dye and shifting hues dramatically. A properly flashed underbase reflects light upward, letting top colors read true. Without it, even high-quality plastisol formulas appear dull and undersaturated on dark substrates.

Mesh count, flash timing, ink viscosity, and fabric construction all interact with underbase performance. Operators who understand these variables produce vibrant, color-accurate prints consistently across dark-shirt production runs.

When a Screen Printing Underbase Is Required — and When It Isn't

Fabrics and Colorways That Demand a Base

The industry standard rule: any garment darker than medium gray requires an underbase for most ink formulas. This threshold shifts based on ink opacity and design complexity.

Scenarios that require a screen printing underbase on dark shirts:

• Printing white, yellow, or pastel inks on black or navy garments
• Reproducing photorealistic or full-color artwork on dark substrates
• Using standard plastisol inks — not high-opacity formulas — on any dark fabric
• Achieving consistent color matching across large production runs
• Any design where top colors need to read at full saturation against a dark ground

When the Underbase Can Be Skipped

Not every dark-shirt job requires the extra screen and flash step. Several alternatives produce acceptable results in specific contexts:

• High-opacity or "athletic" plastisol inks designed for direct dark printing can achieve acceptable coverage in two passes without a separate underbase screen
• Discharge ink removes fabric dye rather than building opacity on top — producing a soft-hand print on 100% cotton without a white base layer
• Simple one- or two-color designs printed in darker tones where minor hue shift from the garment is acceptable
• Specialty single-layer dark-shirt inks — water-based or hybrid formulas — engineered for direct dark printing at higher mesh counts

Skipping the underbase on athletic jerseys with high-opacity ink saves a screen and a flash cycle — but holds up reliably only on non-ringspun poly blends where dye migration risk is low and color accuracy tolerances are wide.

Best Practices for Applying the Underbase Layer

Mesh Count and Ink Deposit

Mesh count directly controls ink deposit thickness — the critical variable determining underbase opacity on dark shirts.

• 86–110 mesh (34–43 cm): maximum ink deposit, standard choice for underbase on very dark garments
• 130–160 mesh: moderate deposit, suitable for medium-dark fabrics and designs with fine detail in the underbase layer
• 200+ mesh: not recommended for underbases — deposit is too thin for reliable opacity on dark shirts

Ink selection is equally critical. Dedicated underbase whites carry higher pigment loads and are formulated to minimize bleed and dye migration. Standard mixing whites are not substitutes — their lower pigment concentration produces noticeably less opacity under the same press conditions. The plastisol vs. water-based ink guide covers formulation differences directly relevant to underbase applications.

Flash Curing the Underbase Correctly

Proper flash cure is non-negotiable. An under-cured underbase smears on contact with the squeegee during the next pass. An over-cured underbase creates inter-layer adhesion failures.

Flash cure targets for screen printing underbase on dark shirts:

• Surface temperature: 200–230°F (93–110°C) at the ink surface
• Gel stage: ink dry to the touch, matte finish — not fully cured, not shiny
• Dwell time: typically 3–8 seconds depending on flash unit wattage and platen distance

For temperature calibration and equipment setup, how to use a flash dryer for screen printing covers both manual and infrared thermometer methods. Common flash errors:

• Too hot or too long: ink becomes glossy; subsequent color layers bead off the surface
• Too cool or too short: smearing and color contamination in subsequent screens
• Uneven heat distribution: inconsistent opacity across the print field, visible as patchy coverage

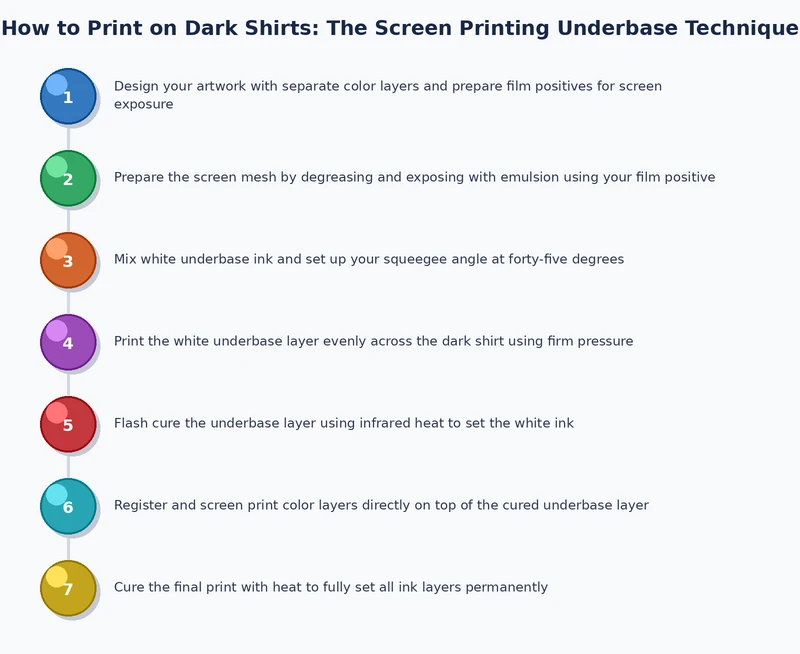

Building a Repeatable Underbase Workflow

Registration and Screen Alignment

Multi-color underbase jobs demand precise registration. The underbase screen must align exactly with every subsequent color screen — even slight misregistration creates visible halo effects or edge bleed around design elements.

Registration workflow for dark-shirt underbase printing:

1. Use a press with micro-registration adjustments on every print head — standard on manual presses of four colors or more
2. Print registration marks outside the garment area on transparency or paper during press setup
3. Test print on acetate or scrap fabric before loading production garments
4. Lock all screens before the production run begins — do not adjust mid-job
5. Check registration every 25–50 pieces on longer runs; heat expansion can shift screens marginally over extended sessions

For a full multi-color alignment walkthrough, how to register multi-color screens for perfect alignment covers both manual and automatic press registration procedures in detail.

Wet-on-Wet vs. Flash-Between-Colors

Understanding which layers require flash curing versus which can be printed wet-on-wet reduces cycle time significantly on multi-color dark-shirt jobs.

• Underbase: always flash before printing colors on top — no exceptions
• Non-overlapping colors: can be printed wet-on-wet to eliminate flash steps
• Overlapping colors: require flash between layers to prevent contamination and unintended color mixing
• Final cure: all plastisol layers, including the underbase, require tunnel dryer cure at 320°F (160°C) minimum for wash durability

Wet-on-wet printing can eliminate one or two flash cycles per job — but the underbase always requires its own dedicated flash step, regardless of what prints on top of it.

Underbase Applications Across Ink Types and Fabric Constructions

Plastisol Underbase on Common Fabrics

Plastisol remains the dominant underbase medium for production shops due to shelf stability, cure predictability, and broad fabric compatibility.

• 100% cotton ringspun: ideal substrate — underbase adheres cleanly, minimal dye migration risk
• 50/50 cotton-poly blends: moderate dye migration risk from polyester content — use low-bleed or low-cure underbase white
• 100% polyester performance wear: highest dye migration risk — requires specialty low-cure or barrier underbase formulas; pre-print temperature testing recommended per dye lot
• Tri-blends (cotton/poly/rayon): treat like 50/50 blends; always run a test print before full production

Dye migration on polyester causes underbase whites to turn pink, orange, or yellow during tunnel cure. Common screen printing problems and fixes covers dye migration diagnosis, barrier ink selection, and prevention in detail.

Water-Based and Discharge Alternatives

Water-based underbases are less common in production environments but serve specific applications:

• Softer hand feel versus plastisol at equivalent ink deposit weights
• Lower VOC profile — relevant for shops pursuing eco-certifications or working in poorly ventilated spaces
• Slower surface drying — requires longer flash times or elevated flash unit temperatures compared to plastisol
• Lower opacity than equivalent plastisol whites at the same mesh count

Discharge ink operates on a fundamentally different principle: it bleaches the fabric dye and replaces it with pigment, producing a print that bonds with the fiber rather than sitting on top of it. Discharge is not a traditional underbase — it works only on reactive-dyed 100% cotton — but it is a viable alternative for dark natural fiber shirts where hand feel is the priority over brightness. The discharge ink screen printing guide covers activation, cure, and fabric compatibility requirements.

Underbase Methods Compared

Standard White vs. Gray Underbase

Gray underbases — sometimes called tonal underbases — serve a specific role in photorealistic and simulated-process printing on dark shirts.

• Standard white underbase: maximum brightness, increases saturation of top colors, standard for bold graphic and spot-color designs on dark garments
• Gray underbase: reduces color intensity in shadow areas, enables accurate tonal range in photorealistic halftone printing — prevents highlights from blowing out on dark shirts
• Yellow underbase: rarely used; primarily for warming skin tones in photorealistic prints where the ground color would otherwise cool the flesh tones

For color separation workflows that account for underbase layers in dark-shirt halftone printing, screen printing color separation for beginners covers channel building, tonal underbase separation, and simulated process techniques.

Underbase in Multi-Color Production Runs

Scaling underbase printing to production volume introduces efficiency and consistency considerations beyond single-shirt setup.

1. Increase flash dryer capacity before adding underbase screens to existing press configurations
2. Pre-mix dedicated underbase whites in production quantity — do not substitute mixing whites mid-run
3. Track squeegee angle and pressure across operators: underbase opacity varies measurably with technique variation between printers
4. Document mesh count, ink brand, and flash settings per substrate type for job repeatability on reorders
5. Pull test prints at regular intervals during long runs to confirm opacity and registration integrity

According to the Wikipedia entry on screen printing, plastisol inks became the production standard for garment printing largely due to their non-drying-in-screen properties and predictable cure behavior — characteristics that make them particularly well-suited to multi-pass underbase workflows on dark shirts.

Frequently Asked Questions

Does every dark shirt require a screen printing underbase?

Not necessarily. High-opacity plastisol inks, discharge formulas, and specialty dark-shirt inks can produce acceptable results without a separate underbase screen. The requirement depends on garment color depth, design complexity, and color accuracy tolerances for the specific job.

What mesh count should be used for an underbase screen on dark shirts?

Most production shops use 86–110 mesh for standard underbases on dark garments. Finer meshes produce insufficient ink deposit for full opacity. Coarser meshes are rarely necessary and can cause excessive ink buildup at design edges.

Can an underbase be printed on synthetic fabrics like polyester?

Yes, but polyester and poly-blend garments carry high dye migration risk. Low-bleed and low-cure underbase whites are formulated specifically for synthetic substrates. Standard plastisol whites will often show discoloration — pinking or yellowing — during tunnel cure on high-polyester fabrics.

Is a gray underbase better than white for photorealistic printing on dark shirts?

For designs with complex tonal ranges and shadow detail, gray underbases typically produce more accurate results than full white. A white underbase maximizes brightness but can cause highlight areas to blow out in photorealistic simulated-process prints on dark garments.

How does underbase printing affect turnaround time and cost?

Each underbase screen adds one setup step, one flash cure cycle, and additional ink costs. For shops printing dark shirts at volume, these costs are predictable and factored into standard dark-shirt pricing — typically a flat surcharge per color run on dark garments.

Next Steps

1. Pull three dark test garments in different fabric constructions — 100% cotton, 50/50 blend, and 100% polyester — and run opacity tests with the current underbase white at 110, 130, and 160 mesh counts to establish a baseline before the next production run.
2. Calibrate the flash dryer to accurate surface temperature readings using an infrared thermometer and confirm gel-stage timing at the press distance used in production — document the result per wattage setting.
3. Review the how to screen print on dark-colored shirts guide for a parallel workflow overview covering garment prep, ink loading, and full cure verification procedures.
4. For any jobs involving polyester or performance wear, source a dedicated low-bleed underbase white and run a dye migration test at the planned cure temperature before committing to a full production run.
5. Create a press settings log — mesh count, ink brand, flash time, flash surface temperature, squeegee durometer — per substrate type so that dark-shirt underbase results are repeatable across operators and on future reorders.
