How to Register Multi-Color Screens for Perfect Alignment

Ever stared at a finished multi-color print and noticed the colors are slightly off — a ghost edge here, a color halo there? That's a registration failure, and learning how to register screens for screen printing is the fix. Misaligned screens are the single most common cause of rejected multi-color prints, and they're almost always preventable. This guide covers the full registration workflow, from film positives to mid-run corrections, with the tools, steps, and pro habits that keep every color exactly where it belongs.

Registration is the process of aligning every screen to a common reference point so each ink layer falls precisely on top of the last. It sounds simple. The challenge is that small errors compound fast — a half-millimeter shift on screen two turns into a full millimeter of visible blur by screen four. The solution isn't expensive equipment. It's a repeatable system applied consistently.

Whether running two colors or six, the principles are identical. Establish shared reference points on every separation, burn them into the screens, and align them methodically on the press before a single garment hits the platen. The sections below walk through every step of that process in detail.

What Beginners Get Wrong — and What Pros Do Differently

The Most Common Registration Mistakes

Most registration problems trace back to one of three errors. They're all easy to fix once identified.

• Skipping registration marks on the film. Without crosshairs on every separation, there's no shared reference point. Printers end up guessing, and guessing fails on multi-color work.
• Rushing setup to save time. Registration is the investment that protects the entire run. Cutting corners on a 15-minute setup causes hours of reprints.
• Failing to lock screens properly. A screen that shifts even slightly between colors destroys alignment mid-run. Every clamp and lock needs to be checked before printing starts.
• Eyeballing alignment instead of using acetate overlays and crosshairs. This works for single colors. It fails every time for multi-color.

How Experienced Printers Approach Registration

Experienced printers treat registration as a system with defined steps — not a judgment call made at the press. That system includes:

• Consistent registration marks on every film positive, placed before separations are output
• A controlled screen exposure process that locks marks into the emulsion accurately
• A press with micro-registration adjusters for fine-tuning X, Y, and rotation per screen
• Acetate test prints used to overlay colors and verify alignment before garments are loaded
• A reference acetate taped to the press frame for spot-checks throughout the run

The gap between beginner and experienced printer isn't talent — it's documented process. Build the right habits and registration becomes fast, predictable, and repeatable.

Pro tip: Always verify film alignment by stacking all positives on a light box before burning a single screen. Catching a misaligned separation at this stage costs nothing — catching it after exposure costs a screen.

How to Register Screens for Screen Printing: Step by Step

Step 1 — Add Registration Marks to Film Positives

Registration marks are the shared reference points that tie every screen to one another. Add them before outputting film. The standard mark is a crosshair (+), placed outside the print area — at the top and bottom center, or at all four corners of the design.

1. Build the design with all colors on separate layers. For help with separations, see the color separation for beginners guide.
2. Add identical crosshair marks to every layer at the same coordinates.
3. Output all film positives from the same master file without repositioning any layer.
4. Stack all films and hold them up to light. The crosshairs should overlap perfectly — if they don't, the separation file has an error.

Step 2 — Expose Screens with Marks Intact

When screens are exposed, the crosshairs burn into the emulsion alongside the design. Every screen now carries a physical reference point that matches every other screen in the set.

• Keep films flat during exposure — wrinkles shift marks and soften edges.
• Use a vacuum exposure unit when possible to maintain contact between film and emulsion.
• Expose all screens in a set for consistent duration — variations affect emulsion depth and mark clarity.
• After washout, verify that crosshairs are fully open with crisp, clean edges.

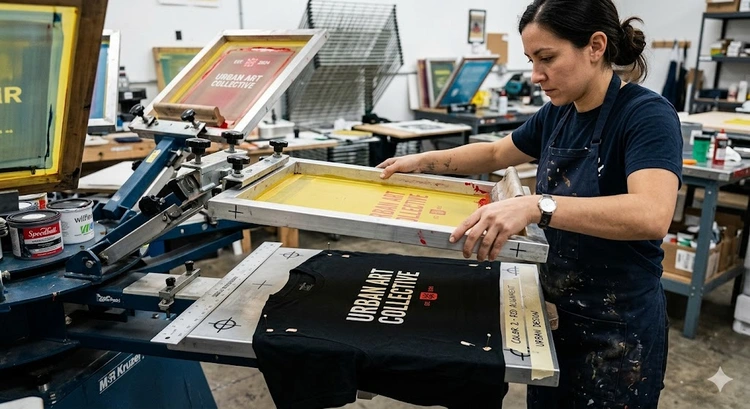

Step 3 — Load and Align Screens on the Press

This is where registration happens. The goal is to align every screen's crosshairs to a single reference point on the platen.

1. Load the first screen — typically the base color or underbase on dark shirts.
2. Position the screen so the design falls centered on the platen, then lock it in.
3. Tape a piece of clear acetate flat onto the platen surface.
4. Print a test impression through screen one onto the acetate.
5. Load the second screen. Align its crosshairs to match the marks on the acetate.
6. Use micro-registration adjusters to fine-tune position — small side, front, and rotation adjustments until marks overlap.
7. Print another test through screen two onto the same acetate. Overlay both layers.
8. Repeat for every additional screen in the set.

Step 4 — Run Paper Test Prints Before Any Garments

After all screens are aligned to the acetate, run at least two sequential test prints on paper or scrap fabric with every screen in order. Stack the layers and inspect under bright light or a magnifier. Adjust any screen that shows drift before loading the first real garment.

Warning: Never skip the paper test print on a new setup. It takes two minutes and can save an entire production run of garments from being scrapped.

The Right Tools for Accurate Screen Registration

Essential Registration Equipment

The right equipment makes registration faster and more consistent across every job. Here's what matters at each level:

Manual vs. Automatic Press Registration

The press type determines the registration workflow and the practical upper limit on color count per run.

• Manual press — Alignment is done by hand using micro-registration adjusters. Quality four-arm and six-arm manual presses allow side-to-side, front-to-back, and rotational adjustments per screen. Most small shops and home studios run manual presses with excellent results up to four or five colors.
• Automatic press — Screens index into preset positions and the press advances automatically. Registration is faster, more consistent across long runs, and less dependent on operator technique. The tradeoff is cost and setup time.

For anyone setting up a home studio, a four-color manual press with micro-registration is the right starting point. The full setup guide for multi-color screen printing at home covers press selection and platen setup in detail.

Mesh count also affects registration precision. Finer meshes produce sharper crosshairs and tighter design edges, making alignment easier to verify visually. The screen printing mesh count guide covers which mesh to use based on ink type and design detail requirements.

It's worth noting that screen printing's industrial roots go back to large-format commercial printing, where registration across multiple frames was solved through mechanical indexing long before digital alignment existed — a point covered in the Wikipedia overview of screen printing. The core principle hasn't changed: shared reference points, consistent process.

Registration in Practice: What Real Runs Look Like

Two-Color vs. Six-Color Registration

The number of colors in a design directly determines how much time registration requires and how tight tolerances need to be.

• 1–2 colors: Basic crosshair registration, 15–20 minutes of setup. Tolerance is wider when colors don't share a hard edge.
• 3–4 colors: Acetate overlay checking is mandatory. Plan 30–45 minutes for setup. Test prints on paper before garments.
• 5–6 colors: Every screen must be verified against every other. Automatic press is a practical necessity at this level. Budget 45–60 minutes minimum for setup.
• Halftone or simulated process work: Tolerance drops to fractions of a millimeter. Vacuum exposure unit, micro-registration press, and careful film output are all required.

The full workflow for managing complex multi-color jobs, including how to sequence colors to minimize registration risk, is covered in the multi-color screen printing design guide.

Catching and Fixing Misregistration Mid-Run

Even a correctly registered job can drift during a production run. Garments shift, platens move, and operator fatigue affects squeegee pressure. Catching drift early is what separates clean runs from wasted garments.

1. Pull a test print every 20–25 shirts. Don't wait for a customer complaint — build it into the workflow.
2. Look for color halos. A thin ring of one color visible around the edge of another is the first visible sign of drift.
3. Stop the run immediately. Printing through known misregistration wastes garments, ink, and time.
4. Identify which screen shifted. Compare each screen's crosshair position to the reference acetate taped to the press frame.
5. Adjust and retest before continuing. Make one adjustment at a time and run a paper test before resuming on garments.

Drift during a run is almost always caused by a loose screen clamp, an unlevel or sticky platen, or inconsistent squeegee pressure between passes. Identifying the root cause prevents it from recurring in the same run.

Pro Tips for Consistent Registration Every Time

Before the Run Starts

• Add registration marks at the design stage — every time, without exception. Never skip them because the design "looks simple."
• Use a light box to verify film stacking before exposing any screen. Two minutes of verification prevents one wasted screen.
• Expose all screens in a job for the same duration to ensure consistent emulsion depth and mark sharpness.
• Let screens dry fully before loading them onto the press. Wet emulsion can swell slightly and shift dimensions.
• Clean platens before every run. Ink buildup lifts garments and causes registration shift between colors.
• Check that all screen clamps and locks are fully tightened after final alignment. A half-tightened clamp moves under print pressure.

During the Run

• Apply pallet adhesive evenly across the full platen surface. Reapply every 10–15 shirts in humid environments.
• Maintain consistent squeegee angle and pressure across every pass. Variation in stroke introduces variation in ink deposit and apparent color position.
• Never reposition a garment once the first color is down. If it shifts before printing, reset it on the adhesive platen completely.
• Keep the reference acetate taped to the press frame for the duration of the run — it's a 30-second check that catches problems before they compound.
• When using water-based inks, flash cure between colors to prevent wet-on-wet smearing that mimics misregistration visually.

On dark fabric, registration precision matters more than on light garments because any shift becomes visible against the underbase layer. The strategies for maintaining tight registration on dark substrates are covered in the guide on screen printing on dark-colored shirts.

Frequently Asked Questions

Key Takeaways

• Registration marks on every film positive are non-negotiable for multi-color screen printing — they are the foundation the entire alignment system is built on.
• The full registration workflow (marks → exposure → acetate alignment → test prints) must be completed before any garments touch the platen.
• A micro-registration press dramatically speeds up alignment and improves consistency, especially for jobs with three or more colors.
• Pulling a test print every 20–25 shirts during a run catches drift early and protects the entire production batch from misregistration waste.
