How to Expose a Screen for Screen Printing

The first time our team tried to expose a screen, we used a bare 100-watt incandescent bulb and guessed the time. The emulsion washed right off — completely underexposed. That one botched screen kicked off a proper education in what actually matters. Learning how to expose a screen for screen printing correctly is the single step that determines whether the whole job works or falls apart. Get it right and the stencil holds up through hundreds of prints. For anyone building a setup from scratch, our DIY screen printing section covers the full workflow from emulsion to finished shirt.

Here's the chemistry in plain terms: emulsion is a photopolymer coating that hardens when it absorbs UV light. Coat the mesh, dry it completely, then lay a printed film positive (black ink on clear film) over it and expose it to UV. The light hardens everything it touches. The black ink blocks the light in the design area, so those spots stay soft. Rinse with water and the soft emulsion clears out, leaving an open stencil right where the design is. That stencil is what controls where ink passes through to the shirt.

The tricky part is controlling three variables at once: emulsion thickness, light intensity, and exposure time. Miss any one of them and the stencil either falls apart under the squeegee or the fine detail fills in with hardened emulsion. Our team has worked through all of those failures — and the breakdown below covers the fixes too.

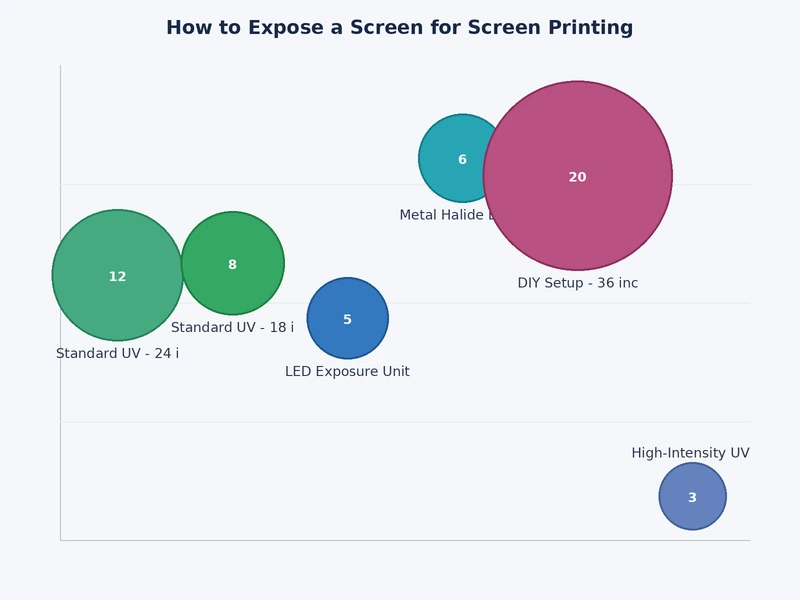

Exposure Method Comparison: Sunlight, Bulbs, and Exposure Units

Three methods work for exposing screens, and each one suits a different budget and production volume. Our team's recommendation is to be honest about how many screens get burned per week before spending anything — the wrong tool creates more inconsistency, not less.

Using Sunlight

Sunlight is free and outputs enough UV to expose most emulsions in one to three minutes on a clear day. The catch is consistency. Cloud cover, time of day, and season all shift the UV intensity. Results vary run to run, sometimes dramatically.

• Best for: occasional hobbyist printing, bold low-detail designs
• Exposure time: 1–3 minutes in direct midday sun
• Cost: $0 extra
• Main risk: unpredictable output, weather dependence

Our team uses sunlight specifically when testing a new emulsion brand — a quick outdoor burn tells us the emulsion's sensitivity range before investing time calibrating a bulb setup.

DIY Bulb Setups

A 500-watt halogen or a bank of four to six UV fluorescent (black-light) tubes mounted in a simple wooden box gets the job done indoors. Exposure times run five to fifteen minutes depending on bulb output and emulsion type. Total build cost stays under $80 for most people.

• Best for: part-time home printers running a few jobs per week
• Exposure time: 5–15 minutes
• Cost: $30–$80 to build
• Main risk: hot spots if bulb placement isn't centered directly above the screen

Dedicated Exposure Units

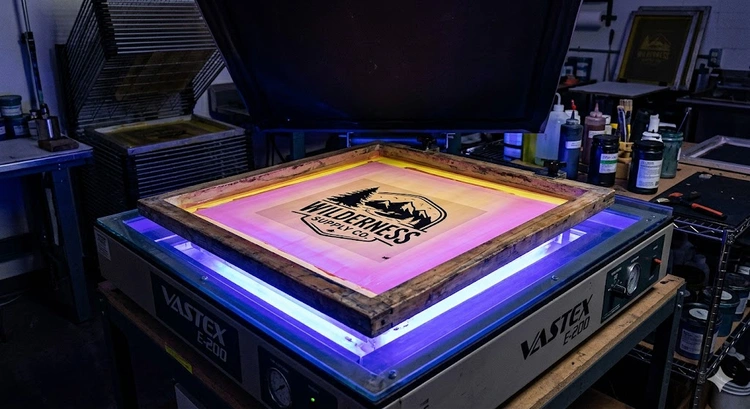

A proper exposure unit uses a bank of UV fluorescent or LED tubes with a vacuum blanket — or weighted glass — to press the film flat against the mesh. Exposure times drop to 30 to 90 seconds. The consistency is simply hard to beat at any volume above a dozen shirts per week.

• Best for: anyone printing regularly or running a small business
• Exposure time: 30–120 seconds
• Cost: $150–$500 for entry-level units
• Main risk: upfront cost, requires dedicated bench space

Our team's standing rule: anyone printing more than 10 shirts a week consistently should own a dedicated exposure unit — it pays for itself in saved screen remakes within two months.

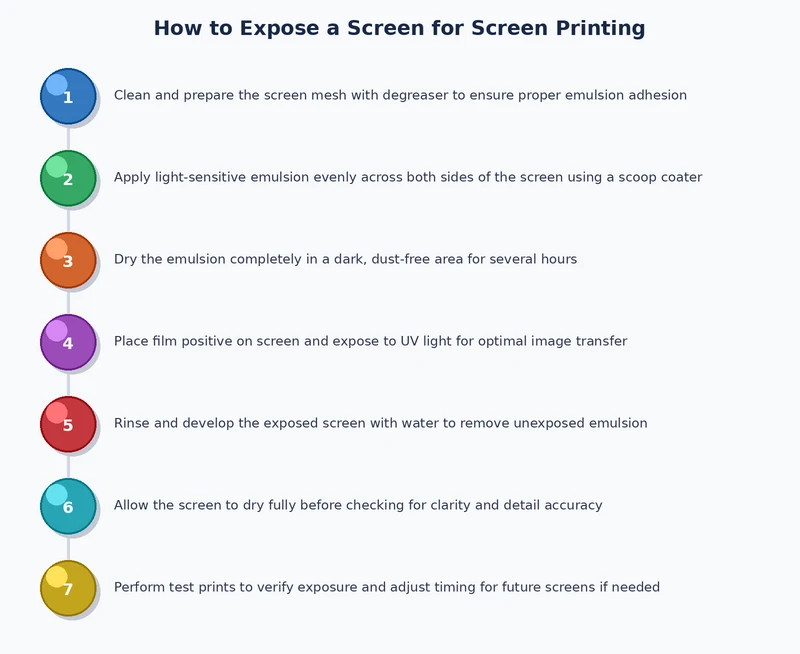

How to Expose a Screen for Screen Printing: The Complete Process

Consistency starts before the exposure step. The screen has to be coated and dried correctly or no amount of perfect timing helps. Here's the process our team uses on every screen, every time.

Coating and Drying the Screen

Emulsion application is the foundation. Thin, uneven coats cause pinholes and weak stencils that fail mid-run. Our team applies two thin coats — one on each side of the mesh — using a scoop coater (a smooth metal trough with a sharp edge designed for this purpose).

1. Pour emulsion into the scoop coater, filling it roughly one-third full.
2. Tilt the screen at a 45–75° angle, print side facing you.
3. Press the coater against the mesh at the bottom edge and push upward in one firm, smooth stroke. No stops, no hesitation.
4. Flip the screen and coat the squeegee side the same way.
5. Lay the screen print-side-down on a flat surface in a completely dark room and let it dry.

Drying takes 30 to 60 minutes at room temperature, or 15 to 20 minutes with a fan pointing at the screen — no heat lamps, because heat partially pre-cures the emulsion before exposure. The coated screen must be completely dry before the next step. Any residual moisture causes the emulsion to wash out in patches and ruins the stencil.

Choosing the right mesh count before coating matters more than most people realize. Finer meshes (156–230) hold detail better for halftones and text. Coarser meshes (86–110) suit thick plastisol ink passes and bold solid artwork. Coating a 230 mesh screen with a thick dual-cure emulsion and then trying to push a heavy ink through it is a recipe for a clogged stencil.

Setting Up the Film Positive

A film positive is the printed design on clear acetate or inkjet transparency film. The black areas need to be fully opaque — any light leaking through thin ink causes soft edges and underexposed detail in the final stencil.

• Use inkjet film with an inkjet printer, or laser film with a laser printer — mixing these causes adhesion problems with the ink
• Print at the highest DPI the printer supports — 1440 DPI minimum for clean fine lines
• Run the film through the printer twice if the output looks gray rather than solid black
• Handle the film by the edges only — fingerprints on the black areas scatter light just enough to soften edges
• Place the film emulsion-side-down (printed side against the screen mesh) for the sharpest possible contact and cleanest edge definition

For multi-color jobs, our team works through color separation before any coating happens. Producing one accurate film positive per color before touching the emulsion saves remakes and keeps the registration tight from the start.

Making the Exposure

1. Place the dry, coated screen print-side-up on the exposure unit or exposure surface.
2. Lay the film positive emulsion-side-down onto the mesh, centered over the planned print area.
3. Cover with glass or close the vacuum blanket to press the film completely flat — any gap between film and mesh causes blurry, soft-edged stencils.
4. Set the timer based on the emulsion manufacturer's recommendation, adjusted for the light source being used.
5. Expose. Do not open the unit early to check progress.
6. Remove the film immediately and move to washout while the emulsion is still reactive.

Fast Adjustments for Sharper Results

Most exposure problems reveal themselves at the washout sink. Knowing what to look for turns each screen into useful data for the next one. Our team treats every washout as a quick quality check, not just a rinse step.

Washout Technique

After exposure, rinse both sides of the screen with a gentle spray of room-temperature water. Start with the print side, then flip and spray the squeegee side. The design area should begin opening up within 30 to 60 seconds.

• Use a garden hose nozzle on a fan setting — not a pressure washer, which tears the emulsion
• Hold the screen up to a light source to confirm the design is fully open and free of emulsion haze
• If the design area won't open after 2 minutes of steady rinsing, the screen is overexposed
• If large sections of the non-design area wash away along with the design, the screen is underexposed
• A light haze visible in the open areas (called "ghosting") means slightly underexposed — bump up time by 10%

Dialing In Exposure Time

The fastest way to find the correct exposure time is a step-wedge test. Cover the screen in sections with a piece of cardboard, expose in 10-second increments (moving the cardboard between each increment), then wash out. The section with the cleanest open design and hardest stencil edge is the correct exposure time. Our team runs this test any time we open a new emulsion bucket or change the light source.

Warning: Never trust a manufacturer's suggested exposure time without testing it first — ambient temperature, humidity, emulsion batch variation, and bulb age all shift the actual exposure needed by meaningful margins.

Once a screen passes washout, the team lets it dry fully before printing begins. Damp emulsion can cause ink adhesion issues and reduces stencil durability on long runs. For jobs involving plastisol versus water-based inks, stencil durability matters more than most people account for — water-based inks are thinner and more aggressive on the emulsion edge during high-volume runs.

Mistakes That Wreck Exposures

Our team has made every mistake on this list at least once. These are the ones that show up most consistently in troubleshooting scenarios, both in home setups and small production shops.

Underexposure vs. Overexposure

These are opposite problems that can look similar at first. Knowing the specific signs of each one points directly to the fix.

• Underexposure signs: emulsion feels soft or tacky after washout, stencil tears during the first few pulls, large chunks wash out during ink cleanup, fine lines and small text disappear entirely
• Underexposure fix: increase exposure time in 10–15% increments and retest with a step-wedge
• Overexposure signs: design area won't open during washout even after extended rinsing, fine detail fills in with hardened emulsion, image edges appear ragged or blurry
• Overexposure fix: decrease exposure time and verify that the film positive ink is fully opaque — light leaking through thin film ink mimics the symptoms of overexposure

Film Contact and Light Leaks

The film positive must be in full, flat contact with the emulsion surface. Any gap — from a warped frame, wrinkled film, or uneven glass — scatters light underneath the film edges. The result is blurry outlines and undercutting (light sneaking under the design borders and hardening emulsion in the open areas).

• Always use a vacuum blanket or weighted glass sheet — never rely on a loose film simply resting on the screen
• Check the screen frame for warping before coating — a twisted frame creates uneven contact regardless of how much weight sits on top of it
• Tape the film corners lightly to the mesh to prevent shifting before closing the unit or applying glass
• Black out the exposure area completely — even ambient room light during a longer DIY-bulb exposure can fog emulsion edges and soften the stencil boundary

For anyone configuring a workspace, our guide on setting up a screen printing station at home covers the lighting and room layout details that make this step easier. And for jobs involving dark garments that require a white underbase, our breakdown of printing on dark-colored shirts explains directly how stencil quality affects underbase results at production scale.

Sharp film positives are non-negotiable — our team has seen more screens ruined by thin inkjet output than by any other single factor, including wrong exposure times.

Starter Setup vs. Full Production: What Actually Changes

The gap between a free sunlight exposure and a $400 exposure unit is real, but it doesn't mean beginners can't get professional-looking prints. The fundamentals are identical. What changes is repeatability and speed.

Beginner Approach

Most people starting out benefit from keeping the setup minimal. Overspending on equipment before learning the process is one of the most common early mistakes our team sees.

• Start with sunlight or a basic DIY UV bulb box — both produce clean stencils when the timing is dialed in
• Use 110 or 160 mesh count screens — they coat more forgivingly and suit standard artwork
• Choose a dual-cure emulsion (compatible with both UV and visible light) — it tolerates more timing variation without ruining the screen
• Limit designs to bold, solid artwork with no fine lines or halftones until the process is consistent
• Coat only one or two screens at a time so adjustments can be made before a full batch is ruined

The single most impactful investment for a beginner is a quality film positive. A sharp, dense print on proper inkjet transparency film compensates for a lot of inconsistency in cheap light sources. Our team recommends printing at 1440 DPI minimum and doubling the pass for any text or halftone work. For a complete overview of the stencil-making side of this process, our screen printing stencil guide fills in what this article doesn't cover.

Scaling Up

At production volume — 50 or more shirts per week — inconsistent exposures stop being a nuisance and become a direct business cost. Here's what changes at that level:

• A dedicated exposure unit with a vacuum blanket becomes the baseline, not a splurge
• Exposure time is fixed per emulsion batch and logged — no guessing on any run
• Emulsion over mesh (EOM) thickness is measured with a wet-film thickness gauge to ensure a consistent ink deposit across all screens
• Capillary film or premium dual-cure emulsion replaces standard scoop-coated emulsion for fine detail and halftone work
• Screens are post-cured (re-exposed with a UV flood after washout and drying) for maximum stencil durability on long runs

At this scale, reclaiming screens efficiently becomes as important as exposing them correctly. Our process for reclaiming and reusing screens keeps overhead low on high-volume runs. The savings on emulsion and blank mesh from a consistent reclaim process add up faster than most people expect — something the screen printing business startup costs breakdown quantifies clearly for anyone doing the math on a new operation.

Frequently Asked Questions

Get the exposure right and everything downstream — ink deposit, print clarity, stencil life — falls into place on its own.
