How to Create a Screen Printing Stencil

A first batch of shirts ruined by a blurry stencil is a common baptism in screen printing. The image bleeds, the edges feather, and the whole run ends up in the scrap pile. Knowing how to make a screen printing stencil correctly changes the outcome entirely. Sharp edges, consistent ink deposit, and clean registration all start at the stencil — nothing downstream compensates for a bad one. For anyone serious about results in screen printing, stencil quality is the single most controllable variable in the entire process.

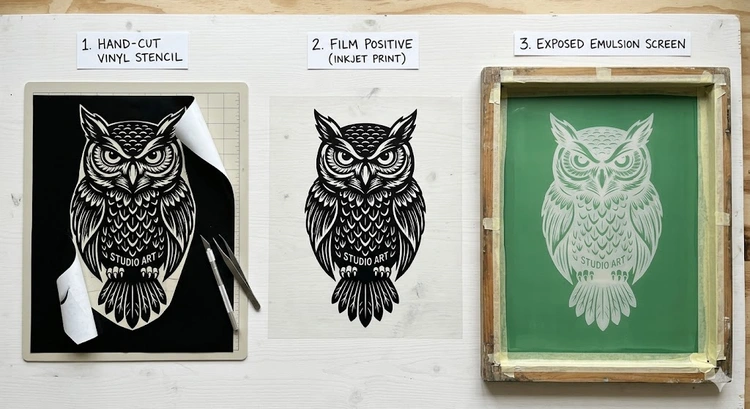

Three stencil methods dominate the craft: photo emulsion with a film positive, direct emulsion painting, and hand-cut stencil film. Each suits different budgets, detail tolerances, and production volumes. Matching the method to the job is the first real decision a printer makes — and the right call here saves hours of troubleshooting later.

This guide covers equipment selection, step-by-step processes for each method, real cost breakdowns, and long-term maintenance. The goal is a stencil that holds detail, anchors to the mesh cleanly, and survives a full print run without degrading mid-job.

The Right Tools Make the Stencil

No stencil method performs above its equipment. A warped frame, the wrong mesh count, or an underpowered exposure unit undermines even the best technique. Getting the hardware right is non-negotiable before touching emulsion or film.

Mesh and Frame Selection

Aluminum frames are the standard for serious work. They hold tension consistently and don't warp with humidity the way wood frames do. Retensionable aluminum frames are worth the investment for shops running regular production. For occasional home setups, pre-stretched aluminum frames at fixed tension are sufficient.

Mesh count is the most misunderstood variable in stencil making. Lower counts — 110 to 160 — suit plastisol inks and bold graphics. Higher counts — 230 and above — handle fine halftones and water-based inks. Choosing the right mesh before coating a screen prevents wasted emulsion and failed runs. This is covered in depth in this screen printing mesh count guide, which should be read before committing to any stencil method.

Frame tension is measured in Newtons per centimeter (N/cm). Production shops target 25–35 N/cm for most work. Slack mesh distorts the stencil during printing and causes off-contact problems that no technique adjustment can fix.

Exposure Unit Options

A proper exposure unit is the dividing line between sharp stencils and soft ones. UV fluorescent units are the entry-level standard. LED exposure units cost more upfront but deliver faster exposure times, more consistent UV output, and substantially longer bulb life. DIY exposure setups using sunlight work in a pinch but produce inconsistent results — UV intensity varies too much with cloud cover and sun angle to be reliable.

Any exposure unit must produce even, full-coverage UV across the entire screen surface. Hot spots or dead zones result in uneven emulsion hardening and premature stencil breakdown during a print run.

Photo emulsion is light-sensitive at all stages. All coating and drying must happen under yellow safelight or in a darkroom — a common shortcut that ruins more screens than any other mistake.

How to Make a Screen Printing Stencil: Three Proven Methods

Each method produces a workable stencil. The differences come down to detail resolution, durability, and cost per use. Understanding all three gives printers the flexibility to match the method to the job rather than forcing every project through a single process.

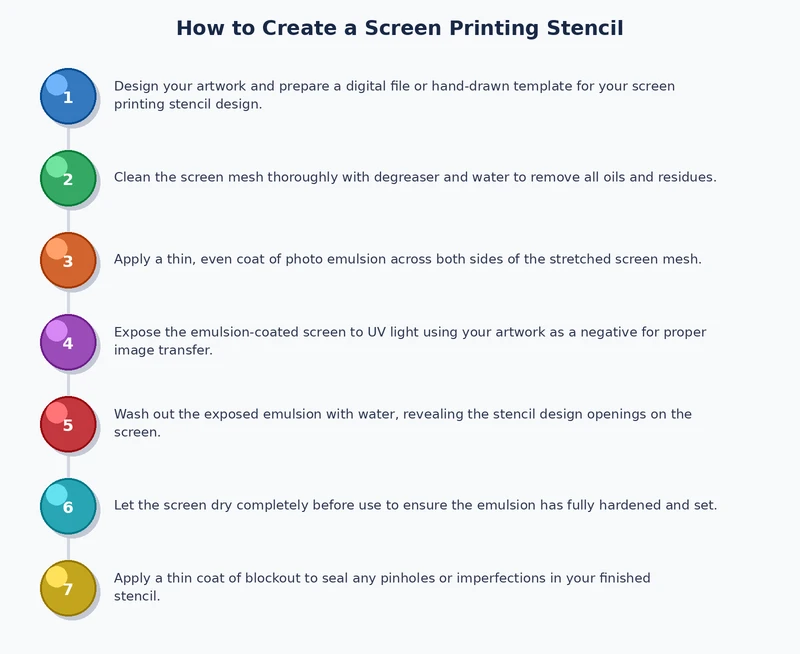

Photo Emulsion with Film Positive

This is the industry-standard method for most production work. It handles fine detail, supports high print runs, and scales from hobby setups to commercial shops without changing the fundamental process.

The process starts with coating the screen. Apply a smooth, even layer of sensitized emulsion to the mesh using an emulsion scoop coater. Two passes — one on each side — is the baseline. The screen dries horizontally in a dark, dust-free space. Drying takes one to two hours under a fan, or overnight in humid conditions.

Once dry, position the film positive (a printed transparency or vellum with the design in opaque black) emulsion-side down on the coated screen. Expose under UV light. The UV hardens emulsion everywhere except where the black ink blocks it. Wash the screen immediately after exposure with water at medium pressure. The unexposed areas rinse out, leaving open mesh where ink passes through.

Exposure time varies by emulsion type, coating thickness, and UV source power. Underexposure results in soft stencil walls that break down fast. Overexposure fills in fine details and bridging halftone dots. A step wedge test on a sacrificial screen dials in the correct time. For a complete breakdown of the exposure process, this guide on exposing screens with emulsion covers every variable in full.

Direct Emulsion Painting

This method skips the film positive entirely. The design is painted directly onto the screen using a brush or pen applicator with photo emulsion or opaque screen filler. It works for simple shapes and one-off projects. Detail resolution is limited by hand steadiness, not by mesh. Lettering smaller than 48pt becomes impractical. For quick logos or clean geometric shapes, direct painting is fast and adds no cost beyond emulsion already in stock.

Hand-Cut Stencil Film

Rubylith, Amberlith, and equivalent knife-cut stencil films were the industry standard before photo emulsion became affordable. Today, hand-cut film is used for oversized graphics, simple bold shapes, and situations where no darkroom is available. The film is cut with a swivel knife or X-Acto blade, the top layer peeled away to expose open areas, then adhered to the underside of the mesh with lacquer thinner or film solvent.

Detail work with knife-cut film is demanding. Curved lines require a practiced hand. Isolated interior shapes — the center of an "O" or "D" — need hand-cut bridges to stay attached. For bold, graphic art, the method is fast and reliable without any UV equipment.

Breaking Down the Costs

Stencil costs vary significantly by method. The table below reflects realistic per-screen costs for a small shop or dedicated home printer. Emulsion-based methods spread equipment costs across many screens over time. Hand-cut film has no equipment overhead but demands more time per stencil unit.

The biggest upfront cost is always the exposure unit. Budget LED units start around $150. Professional flatbed units with vacuum contact frames run $500 to over $1,000. For shops pricing work to clients, understanding the true cost-per-stencil — including emulsion, film, and equipment amortization — is essential for accurate quoting. The screen printing pricing guide breaks this down in full for production environments.

Once sensitized with diazo or pre-mixed, most photo emulsions last four to six weeks refrigerated. Unmixed emulsion stored cool and dark lasts up to a year — label every batch with the mix date.

Where These Methods Shine in Practice

Theory is clean. Real-world application is where printers learn which method actually fits their workflow — and which ones create more problems than they solve at a given production scale.

Small Batch vs. High Volume

For runs under 24 pieces, any stencil method works. The time investment in a photo emulsion screen — coating, drying, exposing, washing — is fully justified when the screen prints hundreds of units. For single-piece custom work, a hand-cut film stencil or direct-painted screen is faster. High-volume shops running the same design repeatedly coat screens thicker, use high-solids emulsions, and apply emulsion hardeners to extend stencil life past 1,000 impressions without breakdown.

Multi-color designs require one stencil per color, each demanding precise registration. For anyone working multiple ink colors on a single garment, screen printing color separation is the prerequisite skill before stencil making even begins. Misregistered separations make even a perfect stencil useless.

Fine Detail Work

Halftones, fine text, and gradient simulation demand photo emulsion with a high-quality film positive output on inkjet or laser transparency film. The film positive must be fully opaque in all black areas — any pinholes or gray zones allow UV to partially harden emulsion and close up fine details before washout. A densitometer or simple loupe confirms opacity before exposing.

Mesh count matters here more than anywhere else. A 230 or 305 mesh is the baseline for halftone work at 45–65 lpi. Running a halftone positive on a 110 mesh screen destroys the detail — Wikipedia's overview of screen printing confirms that mesh count directly controls achievable ink film thickness and maximum printable detail resolution. These aren't guidelines. They're physics.

Quick Wins for Cleaner Stencils

Most stencil failures are entirely preventable. A handful of consistent habits separate printers who achieve reliable results from those constantly troubleshooting the same problems across batches.

Exposure Tips That Stick

Run a step wedge test on every new emulsion batch and after every bulb replacement. Never assume last month's exposure time still applies. UV output from fluorescent units degrades gradually over bulb hours, and emulsion formulations vary between batches. The step wedge is a five-minute investment that prevents ruined screens and wasted emulsion. Log the results and keep the record near the exposure unit.

Use a vacuum contact frame whenever possible. Intimate contact between the film positive and emulsion surface prevents light scatter — known as undercutting — that softens stencil edges and destroys fine detail. A thick sheet of glass and a sandbag function as a low-cost alternative but can't replicate the edge quality produced by proper vacuum contact.

Film Positive Printing Tips

• Print on matte inkjet transparency film with maximum black density settings. Glossy film causes light scatter at the film surface under UV exposure.
• Let film positives dry completely before exposing. Wet ink on the film transmits UV and produces soft, degraded stencil edges regardless of exposure time.

A well-printed matte film positive, exposed with proper vacuum contact and dialed-in timing, produces stencil edges clean enough to hold 65 lpi halftones reliably. The film positive is where image quality lives or dies — it deserves the same attention as the screen itself.

Maintaining and Reclaiming Stencils

Stencils aren't disposable by default. With proper care, a photo emulsion screen survives hundreds of print cycles. With proper reclaiming, the same mesh runs dozens of different designs over its working life — making the initial screen investment pay back many times over.

Emulsion Reclaim

After a run is complete, remove ink residue first. Plastisol comes off with mineral spirits or a commercial ink degradent. Water-based ink requires immediate attention before it fully cures in the mesh — dried water-based ink is significantly harder to remove and may require enzyme cleaners or extended soak times. Once ink-free, apply emulsion remover to both sides of the screen, dwell two to three minutes, then pressure wash out. The full reclaim process — including handling stubborn ghost images and haze — is documented in this guide on reclaiming and reusing screen printing screens.

Ghost images — the faint outline of a previous design left in the mesh — don't affect print quality unless they fall in open mesh areas of the new stencil. A dedicated haze remover handles most ghost images. Persistent haze on heavily used screens eventually signals that the mesh needs replacement or the frame needs to be restrung entirely.

Storage for Cut Film Stencils

Hand-cut stencil films stored flat between sheets of newsprint last indefinitely when kept clean. The critical rule: keep them away from solvents during storage. Stencil films adhere to mesh using solvent — any residual exposure during storage degrades the film and causes adhesion failure on reuse. Store cut stencils vertically in a clean, dry cabinet if extended shelf storage is needed. Label each stencil on the newsprint sheet with the design name and the mesh count it was sized for.

For exposed emulsion screens held in storage between runs, darkness is the only real requirement. A dry, dark cabinet or an opaque bag prevents the gradual UV degradation that softens a cured stencil over weeks of ambient light exposure. Screens stored properly remain print-ready for months.

Final Thoughts

Mastering how to make a screen printing stencil is the foundation every serious printer builds on. The photo emulsion method with a properly printed film positive is the clear choice for anyone moving beyond one-off projects. The next step is concrete: coat a screen, run a step wedge test, expose it, and print it. The feedback from a correctly made stencil — clean snap-off, sharp ink deposit, edges that hold through a full run — makes every hour spent on technique immediately worth it. Start with one method, dial it in completely, and build from there.
