Discharge Ink Screen Printing: How It Works and When to Use It

Discharge ink screen printing accounts for an estimated 15–20% of premium apparel decoration among high-volume contract shops — a niche share that carries outsized influence on finished garment quality. Unlike plastisol, which sits on top of the fabric as a polymer film, discharge formulations chemically neutralize the reactive dyes bonded inside cotton fibers, then deposit replacement pigment directly within the opened fiber structure. The result is a print that feels like part of the shirt. Decorators working across the silk screen printing spectrum consistently find discharge occupying its own distinct category — not a substitute for other ink systems, but a purpose-built tool for specific substrates and markets.

The activating chemistry is the core mechanism. Most discharge formulations use zinc formaldehyde sulfoxylate (ZFS) — or increasingly, sodium-based alternatives — as the agent that deactivates reactive fabric dyes under heat. Mixed into a discharge base at roughly 5–10% by weight, the activator enables the ink to bleach the ground color and deposit pigment in a single cure cycle. A "clear discharge" variant uses no added pigment, producing a bleached cream or off-white effect determined entirely by the natural fiber color beneath.

Shops evaluating their ink lineup alongside the ongoing plastisol vs water-based ink discussion often find discharge sits in a third category entirely. It shares water-based ink's soft hand and low-opacity cured film but differs sharply in substrate dependency, process sensitivity, and the fundamental mechanism by which color is achieved.

Where Discharge Ink Performs Best

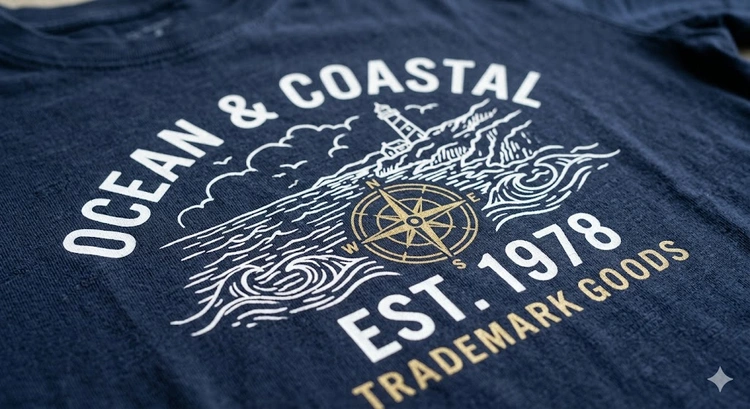

Discharge ink's defining strength is soft-hand reproduction on dark-ground garments — precisely the scenario where plastisol requires a white underbase that adds stiffness and visual weight. Premium fashion labels, boutique lifestyle brands, and hospitality uniform programs use discharge to achieve a matte, washed aesthetic that signals quality without the rubberized feel.

Apparel Applications

• Dark fashion tees — Navy, black, and charcoal blanks print with a lived-in matte finish that reads as premium against plastisol-heavy alternatives.
• Athletic and performance shirts — Zero hand-feel suits active garments where plastisol traps heat and creates hot spots.
• Vintage and distressed effects — Partial or intentionally uneven discharge activation mimics legacy garment aging that DTG and plastisol cannot credibly replicate.
• Heavyweight fleece and hoodies — Discharge penetrates dense knit structures that resist standard water-based adhesion.

Design Characteristics That Suit Discharge

Halftone gradients, fine-line artwork, and large coverage areas translate exceptionally well. Because there is no ink film buildup on the fabric surface, halftone dots at 45–65 lpi hold clean edge definition without bridging. Full-coverage prints that register as rubbery in plastisol lie completely flat with discharge — a meaningful visual difference at point of sale.

The Discharge Printing Process, Step by Step

Fabric and Emulsion Selection

Fabric selection is non-negotiable. Discharge works exclusively on reactive-dyed cotton or high-cotton-content blends — minimum 80% cotton. Polyester fibers are chemically immune to ZFS activation; prints on poly-heavy blends produce mottled, incomplete discharge zones. Confirming both fiber content and dye type with the blank supplier before ordering production inventory is standard practice among experienced shops.

On the screen side, discharge inks require emulsions rated for water-based systems. SBQ-sensitized or pure photopolymer emulsions perform reliably. Mesh count typically runs 160–230 t/cm (400–600 t/in) depending on artwork detail level. Coarser meshes deposit excessive ink volume and can over-activate the ground dye, producing halos around fine elements.

Pro tip: Always discharge-test a swatch from the actual production blank before committing to a full run — even the same shirt style across different dye lots can yield noticeably different discharge results.

Mixing and Activating

Discharge base and activator are combined immediately before printing. Working window is typically 4–8 hours at room temperature; after that, activator degrades and discharge performance drops sharply. Most formulations call for 5–10% activator by weight — over-activating produces unpredictable dye removal, under-activating leaves ground color bleeding through the print pigment. Weigh activator by gram rather than volume, as density varies across brands.

Printing and Curing

Discharge inks print wet-on-wet in multi-color runs without inter-color flash stops — a meaningful throughput advantage over plastisol underbase setups. Full activation requires conveyor dryer curing at 149–163°C (300–325°F) for a minimum 90-second dwell. A flash dryer or heat gun alone will not complete the discharge chemistry. Confirming print-surface temperature with a probe — not just the dryer thermostat — is essential for consistent results.

Best Practices for Consistent Discharge Results

Warning: ZFS-activated discharge inks release formaldehyde vapor during curing. Exhaust ventilation directly over the dryer and appropriate respirator selection are required in all production environments — review the ink SDS before setup.

• Control ambient humidity. High relative humidity slows activation and extends required dwell time. Climate control or a dehumidifier in the print area is standard for serious discharge operations.
• Flood the screen after every print cycle. Discharge inks dry faster than plastisol. Dried ink on a halftone screen creates bridged dots that are difficult to recover cleanly.
• Mix only what will be used within six hours. Label every pot with mix time and discard at the limit — degraded activator produces inconsistent bleaching that rejection-rates entire runs.
• Reclaim screens promptly after the run. ZFS residue hardens in mesh over time and accelerates emulsion breakdown on recoat.

Color accuracy in discharge work diverges from standard ink matching. The final color is a function of the pigment deposited plus the residual ground tone after dye neutralization. The same pigment formula on different blank brands — or different dye lots of the same blank — can yield visibly different finished colors. Shops printing discharge for brand-sensitive clients run color-approval swatches from the actual production blanks before final sign-off.

When Discharge Works — and When It Doesn't

Substrate compatibility is the primary decision gate. The table below maps common blank scenarios against discharge suitability.

Beyond substrate limits, discharge becomes the wrong tool when exact Pantone spot accuracy is non-negotiable, when clients supply mixed dye-lot blanks, or when turnaround is too tight for swatch testing. For light-ground shirts where soft hand is still the goal, standard water-based inks often deliver equivalent results without the added chemistry. Shops printing dark shirts at volume should also evaluate the full range of dark-shirt screen printing strategies to understand where discharge fits relative to high-opacity underbase alternatives.

Cost Considerations for Discharge Ink Printing

Discharge inks carry a higher per-quart cost than standard plastisol — typically $25–$45/quart versus $12–$20/quart for commodity plastisol — with activator adding another $8–$15 per unit. The larger cost driver is often the blank itself. Reactive-dyed premium cotton blanks (Bella+Canvas 3001, Next Level 6010) run $4–$7 each at wholesale, compared to $2–$3 for budget shirts that may not discharge consistently.

Production cost inputs specific to discharge include:

• Blank premium over synthetic or budget cotton alternatives
• Activator waste from mixed-but-unused ink at end of run
• Setup time for pre-production swatch testing and client color approval
• Reject budget — budget 3–5% spoilage on large runs due to dye-lot variation
• Dryer energy at sustained 300°F+ for the extended dwell times discharge requires

Despite higher inputs, discharge commands a pricing premium. Market rates for discharge prints on dark shirts typically run 15–30% above equivalent plastisol prints of similar complexity. For a thorough look at how ink type and substrate cost affect overall job margins, the screen printing cost breakdown guide covers input cost modeling across ink systems and garment types.

Discharge Ink in Professional Shop Environments

High-Volume Contract Decorator Use

Contract shops running discharge at scale typically dedicate specific presses and dryers to water-based chemistry, avoiding cross-contamination with plastisol. A six-color automatic running discharge on a fashion program can process 400–600 shirts per hour — competitive with plastisol throughput — because wet-on-wet printing eliminates inter-color flash stops. The per-shirt economics favor discharge when order volumes justify setup overhead and swatch approval time.

Small Shops and Independent Decorators

Independent decorators increasingly use discharge for boutique label clients who specify soft-hand prints. Manual press operators find discharge easier to work with than high-solids plastisol for fine detail work — lower viscosity pulls through tight mesh without heavy squeegee pressure. According to established screen printing practice, manual operators face greater exposure to ambient humidity and temperature variation than climate-controlled production floors, making process discipline more critical at smaller scale.

Hybrid techniques — clear discharge base to strip the ground, water-based overprint to deposit final color — extend the system further. This two-pass approach achieves soft-hand vibrancy that single-pass discharge and standard water-based inks cannot replicate independently, and it positions shops to serve clients who prioritize both feel and color intensity.

Frequently Asked Questions

Next Steps

1. Order test blanks from two or three reactive-dyed cotton suppliers and run discharge swatches from each to build a personal dye-lot reference library before taking on client work.
2. Audit the shop's conveyor dryer with a surface-contact probe on actual discharge prints — not just the thermostat — and calibrate belt speed to achieve consistent 149–163°C for a full 90-second dwell.
3. Source both a ZFS-based and a sodium-based activator from a specialty ink supplier and compare performance side by side on the same blank to determine which fits the shop's ventilation setup and quality standards.
4. Build a discharge-specific job pricing model that accounts for blank premium, activator waste, swatch testing time, and reject budget, then compare against current plastisol rates to identify where discharge adds defensible margin.
5. Run a pilot order of 24–48 shirts combining a clear discharge base with a pigmented water-based overprint to evaluate the hybrid technique before incorporating it into the standard service menu.
