How to Build a DIY Screen Printing Press at Home

A commercial screen printing press can cost anywhere from $400 to over $4,000 depending on the number of stations and arms, which makes a DIY screen printing press built from plywood and basic hardware an appealing alternative for anyone serious about printing at home. If you've been exploring the world of DIY screen printing, you already know that the press is the centerpiece of your entire setup, and getting the build right from the beginning saves you from tearing it apart and starting over months later. The materials for a functional single-color hinged platen press typically run between $40 and $120, depending on what you already have in your workshop.

The core concept behind any screen printing press is straightforward: you need a flat printing surface called a platen, a hinge mechanism that holds your screen at a consistent angle above it, and a registration system that keeps your design aligned in the same spot across every garment you print. Whether you're planning a small run of shirts for a local event or building toward a side business, these three elements work together to determine the quality and consistency of your output. Understanding how screen printing works at a mechanical level gives you a useful foundation before you cut your first board.

This guide covers the best practices for building a reliable press, the quick upgrades that deliver noticeable improvements in print quality, and an honest look at when a DIY build makes sense and when it doesn't. You'll also find a breakdown of common myths that can mislead first-time builders, plus the maintenance habits that keep your press performing well long after your first print run.

Best Practices for Building Your DIY Screen Printing Press

Choosing the Right Materials

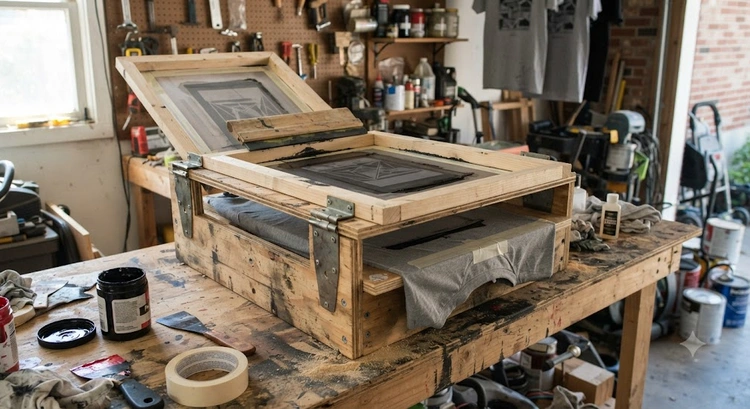

The most important decision you'll make early on is choosing the right base material for your platen and frame, and most experienced builders recommend three-quarter-inch plywood or MDF for the platen surface because it provides a flat, stable base that resists warping under repeated pressure and use. Pine boards work well for the frame and arm structure and keep your lumber costs low, while a pair of heavy-duty door hinges — ideally with a removable pin — gives you the hinge mechanism your screen needs to swing up and down smoothly and repeatably. You'll want to coat your platen surface with several layers of polyurethane to prevent ink absorption and to make cleanup much easier after each session.

Here's a materials breakdown to help you plan your build and budget before you make a single cut:

Building a Registration System

Registration is what separates a frustrating printing experience from a smooth, consistent one, and it deserves as much attention as any other part of your press build. A simple system uses T-nuts pressed flush into the platen surface and corresponding bolts or commercial screen printing registration pins that your screen's frame rests against before every squeegee pull. If you're planning to move into multi-color designs, setting up proper color separations in Illustrator alongside a solid registration system is what makes the difference between a professional-looking result and blurry, misaligned colors. Even for single-color work, a fixed registration system keeps your design centered on every garment without you measuring manually each time you load a new shirt.

Simple Upgrades That Instantly Improve Your Print Quality

Setting the Right Off-Contact Distance

Off-contact distance — the small gap between your screen mesh and the platen surface when the screen is lowered — is one of the most overlooked variables for new DIY press builders, and getting it right makes an immediate, visible difference in the sharpness of every print you pull. Without any gap, the screen drags across your shirt during the squeegee stroke and produces smeared, feathered edges; with the correct distance, the mesh peels away cleanly behind your squeegee and leaves a crisp, defined line. Most printers aim for a gap between 1/16 and 1/8 of an inch, which you can achieve by placing thin washers or layers of foam weatherstripping under the screen frame corners.

• Cut small squares of closed-cell foam and stack them under screen corners until you reach the right gap.
• Test your off-contact setting on scrap fabric before moving to finished garments.
• Thicker inks and finer mesh counts often need slightly more off-contact to release cleanly from the substrate.
• Check the gap every few sessions, since foam compresses gradually over time and may need to be replaced.

Adding Micro-Registration Adjustments

Once your basic DIY screen printing press is working, adding micro-registration adjustment bolts on two sides of your screen hinge lets you make tiny lateral and rotational corrections without rebuilding anything or repositioning the hinge itself. This upgrade involves a pair of threaded bolts with wing nuts that press lightly against the side of your screen frame and allow fine adjustments of a millimeter or two at a time, which is all you usually need to bring a multi-color registration into alignment. For anyone moving toward printing designs with two or more colors, this addition is practically essential, and it adds very little cost or complexity to the original build. If you eventually work with properly tensioned and re-tensioned screens, a tight micro-registration system becomes even more valuable because higher mesh tension improves print detail significantly.

When a DIY Press Makes Sense (And When It Doesn't)

Ideal Use Cases for a Homemade Press

A DIY screen printing press fits certain situations very well, and knowing those situations in advance helps you decide whether this is the right use of your time and energy before you gather your first piece of lumber. You're likely a good candidate for a DIY build if any of these apply to you:

• You want to print small batches of one or two-color designs for personal use, gifts, or community events.
• Your budget is limited and you're willing to trade some convenience for significant cost savings.
• You have basic DIY skills and enjoy building things as part of the creative process itself.
• You want to understand the physical mechanics of screen printing before investing in commercial gear.
• You're exploring a print business idea and don't want to commit significant capital before validating demand.

When Commercial Equipment Is the Better Choice

There are real scenarios where a commercial press delivers enough advantage to justify its higher cost, and being honest about those scenarios can save you from outgrowing a homemade build far sooner than you expect. If you're regularly printing orders of 50 or more shirts with three or more colors, the registration precision and long-term durability of a commercial multi-arm carousel press starts to make practical and economic sense very quickly. Shops that need fast turnaround on larger orders will also find that the time spent compensating for the inherent limitations of a homemade press adds up to real lost productivity over a season. Setting up a complete printing environment — including a proper screen printing washout booth at home — is often a sign that your operation is maturing into something a commercial press would serve more reliably over time.

Common Myths About DIY Screen Printing Presses

Myth: DIY Presses Always Produce Lower-Quality Prints

This is probably the most common concern new builders bring up, and the reality is considerably more nuanced than a blanket statement in either direction. Print quality depends far more on screen preparation, ink consistency, squeegee angle, and technique than on whether your press cost $80 to build or $800 to buy from a distributor. A well-built plywood press with good registration and correct off-contact distance will produce prints that are genuinely indistinguishable from commercially pressed shirts in a direct side-by-side comparison at the finished-garment level. Where commercial presses genuinely outperform DIY builds is in speed, long-term durability under thousands of print cycles, and the fine precision of multi-color registration — not in the fundamental quality of a single, carefully pulled print.

Myth: Building a Press Requires Advanced Woodworking Skills

Most DIY screen printing press plans require nothing more complex than straight cuts, hole drilling, and basic assembly — skills that a beginner with a jigsaw and a drill can manage comfortably on a weekend afternoon. The designs that circulate among home printers have been refined by thousands of builders over many years, so the plans themselves have been simplified down to their most functional and reproducible form without adding unnecessary complexity. If you can follow a set of assembly instructions and take careful measurements, you can complete a functional press in a single session. The steeper learning curve in this craft comes from the printing process itself — ink mixing, emulsion exposure times, and screen tension management — rather than from anything particularly demanding about the physical press build.

Keeping Your DIY Press in Top Shape

After Each Print Session

The habits you develop after every printing session have a bigger impact on your press's long-term performance than any individual repair you might make down the road, so building a consistent cleanup routine pays dividends over time. Ink that dries inside the hinge mechanism or on registration pins can interfere with alignment accuracy, and dried ink on the platen surface creates uneven thickness that affects future prints if you don't address it right away. Here are the post-session steps worth building into your regular workflow:

• Wipe down the platen with a damp rag immediately after printing, before any residual ink has a chance to cure.
• Clean registration pins and T-nuts with a cotton swab dipped in press wash to prevent buildup.
• Check hinge bolts for any loosening, since repeated pressure and vibration can back them out gradually.
• Store squeegees flat or blade-down to prevent the rubber edge from developing a permanent curl or set.

Long-Term Care and Adjustments

Over months of regular use, the wood components of your press can shift slightly due to humidity changes and repeated mechanical stress, and catching those changes early prevents them from compounding into larger alignment problems that affect your print registration. Check your platen surface for warping or high spots every few months by laying a straightedge across it and looking for any gap between the edge and the wood surface. If you notice the platen developing a slight bow, you can often correct it by adding a thin shim of hardboard to the low side or simply replacing the platen panel, which is inexpensive and straightforward with a wood-based design. Reapplying a fresh coat of polyurethane to the platen surface once a year keeps it sealed and prevents ink from working its way into exposed wood grain over time.

Frequently Asked Questions

Next Steps

1. Use the materials table in this guide to price out your build at a local hardware store or online supplier before committing to a specific press design or dimensions.
2. Sketch or download a simple hinged single-arm press plan and mark all your cuts on the lumber before you power up any tools.
3. Build and seal your platen first — it's the simplest component and gives you hands-on practice with your materials before you tackle the more precise hinge and registration assembly.
4. Set up your registration pin system and verify alignment using paper test prints before you apply any ink to fabric.
5. Run a small test session on scrap fabric to dial in your off-contact distance, squeegee pressure, and ink consistency before moving on to finished garments or customer orders.
