How to Do Spot Color Separations for Screen Printing in Illustrator

Ever wondered why a bold logo design comes out muddy or misregistered on a finished shirt? The answer almost always traces back to the separation stage. Spot color separation for screen printing in Illustrator is the process of isolating each ink color onto its own layer — one layer per ink, one screen per color, one clean pass per print. Getting this right is foundational to quality screen printing, and it connects directly to the broader skill of how to prepare artwork files for screen printing.

The concept itself is straightforward. Each spot color — a premixed ink, typically from the Pantone (PMS) library — lives on its own layer in Illustrator. When the file goes to a print shop, each layer outputs separately to film or a digital screen. One screen per color. That is spot color separation in a nutshell.

Getting it wrong causes real problems. Wrong color mode, merged layers, missing underbase, or incorrect swatch types all lead to misprinted garments and wasted screens. This guide covers the full workflow: from planning color count before opening a file, to exporting something a print shop can use without guesswork.

Planning a Smart Color Strategy Upfront

Most separation headaches start before Illustrator is ever opened. The design itself — how many colors it uses, whether gradients are involved, whether it prints on a dark or light garment — determines how complex the separation process will be. Thinking through these questions early prevents costly rework later.

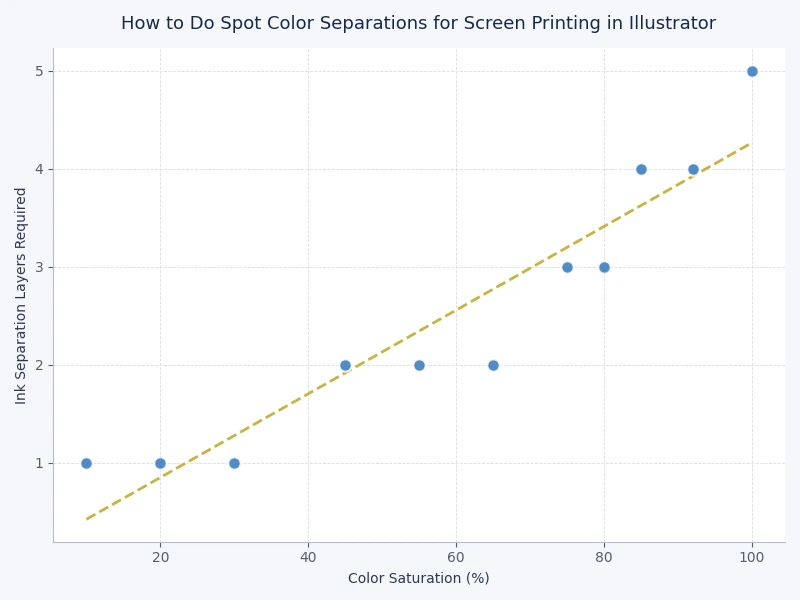

Choosing the Right Number of Colors

Every color in a screen print needs its own screen. More screens mean more cost, more setup time, and more registration challenges. Here is a general guide for planning:

• One to two colors: simplest setup, lowest cost, great for text and basic logos
• Three to four colors: common for branding and detailed graphics, still manageable
• Five to six colors: requires precise registration and experienced operators
• Seven or more: typically reserved for specialty shops with high-end presses

Designs with bold, solid color areas separate cleanly. Designs with soft gradients or photographic detail are harder to separate with pure spot colors and may need halftone techniques or a full switch to process color printing.

The goal during planning is to simplify wherever possible. Combining colors that appear close in hue, or eliminating colors that only appear in small accent areas, can cut a six-screen job down to four. That saves money and reduces the chance of registration problems on press.

Understanding Pantone Spot Colors

A spot color is not mixed from other colors during printing. It is a premixed ink that goes straight to the screen as its own unique shade. The Pantone Matching System (PMS) is the industry standard for naming and matching these inks.

According to the Pantone color system on Wikipedia, each swatch carries a unique reference number that translates to a precise ink formula. When artwork uses proper Pantone swatches in Illustrator, any print shop worldwide can mix the exact same ink. This consistency is what makes spot color so reliable for brand work.

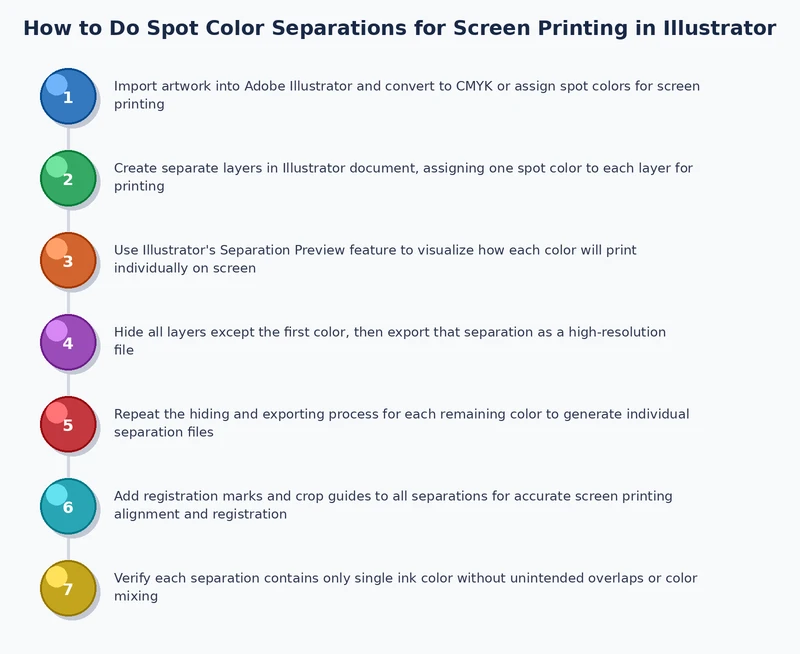

How Spot Color Separations Work in Illustrator

The actual spot color separation process for screen printing in Illustrator follows a repeatable set of steps. Once the workflow is internalized, it becomes fast and predictable.

Setting Up the Document Correctly

Start with the right document foundation:

• Create a new file in CMYK color mode — even for spot-color-only work, this ensures Illustrator handles output separations correctly
• Work at 300 DPI for any raster (pixel-based) elements embedded in the file
• Build the design with each color isolated on its own named layer (e.g., "White Underbase," "PMS 186 C Red," "Black")
• Keep all objects for a single color on their corresponding layer — no mixing

After the artwork is organized by layer, assign proper spot color swatches. Open the Swatches panel, click New Swatch, and set Color Type to "Spot Color" in the dialog. Use the Pantone library (accessible via the swatch panel menu) to find the correct PMS number. Apply that swatch to every object on the matching layer.

This swatch assignment is what signals to Illustrator — and to the RIP (Raster Image Processor) software at the print shop — that each color is an independent separation, not a mixture of other inks.

Pro tip: Never substitute a global process color for a spot color swatch — they look identical on screen but will not separate correctly when the file is output to film or screen-making equipment.

Using the Separations Preview Panel

After assigning swatches, open Window → Separations Preview. This panel shows exactly what each separation will look like when output. Clicking the eye icon next to each color temporarily hides everything except that ink layer.

Check for these common issues:

• Objects assigned the wrong swatch (they will appear in the wrong separation)
• Overprint settings that cause two colors to mix unexpectedly
• Gaps in the white underbase layer on dark garment designs
• Any rogue objects showing up in a separation they should not be in

The white underbase is a common sticking point. On dark shirts, a white ink layer is printed first so subsequent colors appear vibrant rather than washed out by the garment color. In Separations Preview, the white underbase should completely cover every area where another color will print on top.

Spot Color vs. Other Separation Methods

When Process Color Falls Short

Process color printing (CMYK) uses four inks — cyan, magenta, yellow, and black — to simulate a full color spectrum. It handles photographic images and complex gradients well. But CMYK has real limitations on fabric. Dot gain (ink spreading into the mesh) softens edges and makes tight registration harder. Color matching is also less reliable than with premixed Pantone inks.

For logos, bold graphics, or text-heavy designs, spot color separations consistently produce sharper and more color-accurate results than CMYK process printing. For jobs where process color genuinely makes sense, this guide on 4-color process screen printing explained breaks down the full workflow and when it is worth the added complexity.

Side-by-Side Comparison

Real-World Separation Scenarios

Two-Color Logo on a Dark Shirt

This is the most common spot color job. The finished shirt uses two ink colors — say, white and gold — on black fabric. In Illustrator, this means three actual separations: white underbase, white top layer, and gold. That third screen exists because the underbase and the final white layer may not be identical — the underbase is often expanded slightly to prevent halo effects.

A practical workflow for this job:

• Set the artboard background to black to simulate the garment
• Create three layers: White Underbase, White, Gold (e.g., PMS 123 C)
• Expand the underbase by 0.5 to 1 pt using Object → Path → Offset Path so it peeks under top colors and hides tiny registration gaps
• Verify in Separations Preview that gold does not bleed into solid white areas
• Export as PDF/X-1a or EPS with spot colors preserved (not converted to CMYK)

Once the screens are made, physical tension matters as much as the digital file. Loose or unevenly tensioned screens shift during printing and destroy registration. The guide on how to stretch and re-tension screen printing mesh covers the mechanical side of getting screens press-ready.

Handling More Complex Designs

Designs with five or more spot colors require careful layer management. A few things cause trouble in more complex jobs:

• Stacked transparent objects — transparency must be fully flattened before output, or separations become unpredictable
• Gradients between two spot colors — these do not separate cleanly without converting to a halftone pattern first
• Raster images embedded in a vector file — they need separate treatment or careful spot-color simulation

For gradients, the practical workaround is to convert them to a halftone pattern using Effect → Pixelate → Color Halftone in Illustrator, then apply a single spot color to the result. The halftone dot pattern creates the visual impression of a gradient using one screen instead of two, keeping the job simpler and cheaper.

When Spot Color Separation Is the Right Call

Best Applications

Spot color separations in Illustrator work best in specific situations:

• Brand merchandise where Pantone color matching is non-negotiable — team uniforms, corporate apparel
• Short-run jobs where per-screen setup cost needs to stay low
• Designs with flat, solid color areas and hard edges — no gradients, no embedded photos
• Dark garments that require a white underbase for color vibrancy
• Repeat orders that must match the original print run exactly

Most commercial shops set a practical ceiling of six spot colors before recommending a switch to simulated process or full CMYK. Beyond six screens, setup time and cost often outweigh the color-matching benefits that make spot color appealing in the first place.

Limitations Worth Knowing

Spot color separation has real constraints. Knowing them upfront prevents mismatched expectations between designers and print shops.

• Photorealistic images are not achievable — photos need process or simulated process printing
• Each additional color adds a screen, which means more cost and more room for registration error
• True color blends between two spot colors require halftone techniques or an extra separation
• Ink mixing at the shop can introduce slight color drift from the Pantone reference if the printer is not careful

Understanding these limits before starting a project helps everyone involved set realistic expectations. The goal is always to match the separation technique to what the design actually needs — not the other way around.

Clean spot color separations are built before the ink is mixed — every great screen print starts with a well-organized Illustrator file.
