4-Color Process Screen Printing: How It Works and When to Use It

4 color process screen printing reproduces full-color photographic images using just four ink colors — cyan, magenta, yellow, and black (CMYK). Four screens, four press passes, and the full visible spectrum becomes achievable. Shops handling photo-realistic artwork, smooth gradients, or designs with dozens of blended colors use this method to avoid the cost and complexity of mixing dozens of separate inks. Anyone exploring multi-color printing options should also review this guide to simulated process color screen printing to understand how the two approaches compare before choosing a workflow.

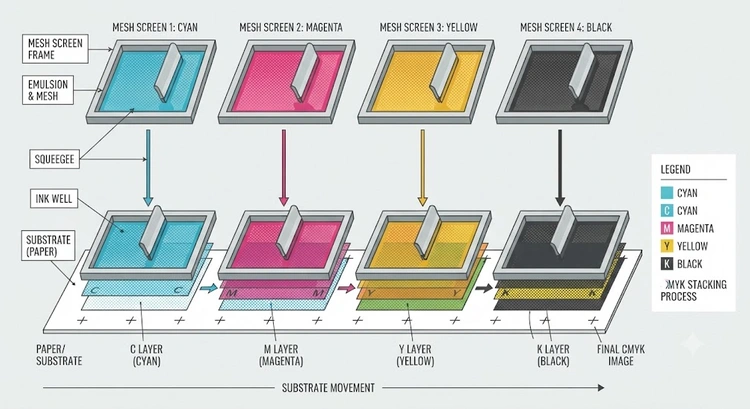

The process works by printing microscopic halftone dots — tiny circles of ink in varying sizes — of each CMYK color through its own separate screen. The dots sit adjacent to each other and overlap slightly, tricking the eye into perceiving a full range of color. That's optical mixing, not physical mixing of inks. It's the same fundamental model offset commercial printers use, adapted for garment decoration.

Understanding the mechanics and real-world limitations of this technique separates shops that waste money on bad setups from those turning out sharp, vibrant prints run after run.

4-Color Process vs. Spot Color Printing: What's the Difference?

The central decision in multi-color screen printing: process colors or spot colors? The answer depends on the artwork, the garment color, and the budget. Getting it wrong costs money and ruins prints.

Spot color printing uses premixed Pantone inks — one ink per color in the design. A logo with a red field, blue text, and a green border needs three separate screens and three separate inks. Results are clean, predictable, and perfectly suited to flat graphic designs with defined, solid color areas.

4 color process screen printing uses translucent CMYK inks printed in halftone dot patterns at varying densities and angles. Those dots overlap and mix visually, creating the illusion of thousands of colors from just four inks. It handles photographic images and smooth gradients that spot color printing simply cannot replicate with any reasonable number of screens.

Key Technical Differences

Registration — keeping each of the four color screens perfectly aligned — matters far more with process printing than with spot color. Even a fraction of a millimeter of misalignment creates visible fringing or blurriness across the entire design. The guide on how to use registration marks in screen printing covers the practical alignment techniques that prevent this problem before it starts.

The Real Advantages and Limitations of 4-Color Process

Why Shops Choose It

The appeal is straightforward. When a design has photographic elements or dozens of blended colors, 4-color process is often the only practical option at reasonable cost.

• Reproduces photographs and smooth color gradients on light-colored substrates
• Fixed at four screens regardless of design complexity — a 50-color gradient costs the same to set up as a 10-color design
• No Pantone formula mixing required — standard CMYK inks ship premixed and ready to use
• Scales efficiently for large print runs where setup cost spreads across many units
• Familiar to shops already working in offset or digital CMYK prepress workflows
• Consistent ink inventory — four colors cover every job, reducing stock management overhead

Where It Falls Short

The limitations are real and worth knowing before committing to a job setup.

• CMYK inks are translucent, not opaque — dark fabric absorbs the ink and destroys color vibrancy
• Requires high mesh counts (230–305 mesh/inch) that many entry-level shop setups don't stock
• Halftone dots are visible under close inspection — not ideal for premium corporate or luxury apparel
• Color accuracy shifts with ink viscosity, mesh tension, squeegee pressure, and substrate — consistency demands calibration
• Film separation and RIP (raster image processor, the software that converts images to halftone dot patterns) output adds prepress steps compared to simple spot color jobs
• Colors can shift slightly between print runs if ink or environmental conditions change

4-color process inks are translucent by design. Print on white or very light-colored fabric for accurate, vibrant color — dark shirts require a fundamentally different technique.

Where 4-Color Process Screen Printing Shines in Practice

Best Use Cases

These are the scenarios where 4 color process screen printing consistently outperforms the alternatives in both quality and cost efficiency.

• Band and concert merchandise — photographic band portraits, illustrated poster art, and album artwork translate well to CMYK halftone reproduction
• Art prints on fabric — reproductions of paintings, detailed digital illustrations, or any image-based design
• Promotional apparel with gradient logos or brand imagery featuring blended color transitions
• Event shirts where artwork changes run-to-run and Pantone spot color matching isn't worth the per-run expense
• White-base specialty jobs — printing an opaque white underbase first allows CMYK layers to work on mid-tone garments
• High-volume production runs of 100 or more pieces, where fixed setup costs become negligible per unit

Finished shirts from CMYK process runs require the same post-production care as any quality screen print. The guide on how to wash and care for screen printed shirts covers the washing and drying practices that keep process color prints looking sharp through heavy use.

Industries That Rely on It

Several segments of the apparel and promotional products industry lean on process color as a standard part of their production workflow.

• Music industry merchandise for touring acts and independent labels
• Festival and large-scale event organizers producing photographic-style shirts in bulk
• Sports apparel brands using player photography or action imagery
• Uniform programs incorporating multi-tone or gradient brand logos

Shops serving these clients need reliable CMYK output without the overhead of managing 10- or 12-color spot color jobs. The screen cost math alone usually favors process color for any design with six or more distinct colors.

What to Expect When Budgeting for a 4-Color Process Job

Setup Costs

Every 4-color process job starts with four screens — one per CMYK channel. Those screens cost the same to produce regardless of how complicated the artwork is. That consistency is the economic core of the process color model.

• Screen production: $15–$35 per screen at most shops × 4 = $60–$140 total per design
• Film positives: $8–$20 per separation — required for accurate halftone dot output at the correct angles
• Press setup and registration: 30–60 minutes of press time before a single production shirt gets printed
• Total typical setup range: $90–$200 before production begins

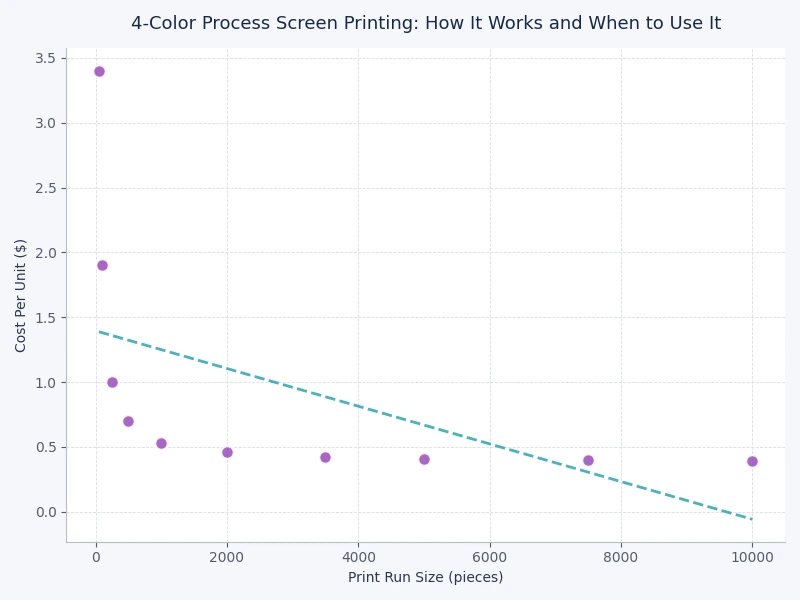

Per-Unit Economics

Setup cost is fixed regardless of run size. That means per-shirt cost drops sharply as the run grows larger. At 24 pieces, setup adds $4–$8 per shirt. At 200 pieces, that same setup cost adds under $1 per shirt.

Compare that to a 10-color spot color job requiring 10 screens ($150–$350 setup) and the cost advantage of process color becomes clear for complex artwork at volume. Most shops set minimum run sizes of 24–48 pieces for process color work to make the setup cost viable for the client.

According to the CMYK color model, the four-ink system traces back to commercial offset lithography — and that heritage explains why screen printers adopted it directly for garment decoration with minimal modification to the underlying color theory.

Techniques That Produce Better 4-Color Process Results

File Preparation

File quality determines print quality. Bad separations produce muddy prints regardless of how well the press is set up.

1. Convert all artwork to CMYK color mode before sending files — never let the RIP handle a blind RGB-to-CMYK conversion
2. Use standard halftone screen angles: black at 45°, magenta at 75°, yellow at 90°, cyan at 105°. These angles prevent moiré — unwanted geometric interference patterns that make prints look wavy or checkered
3. Set halftone line frequency between 45–65 LPI (lines per inch) for garment work. Higher frequencies require tighter mesh and cleaner press conditions
4. Request a press proof or strike-off printed on the actual garment before approving a full production run
5. Keep total ink coverage below 280% in any single image area — heavy ink buildup leads to cracking, poor curing, and ink migration between colors

Screen and Mesh Setup

Mesh tension and emulsion coat thickness directly control halftone dot reproduction quality. These variables separate sharp, clean CMYK prints from blurry, dot-gain-damaged results.

• Use 230–305 mesh per inch for fine halftone detail — lower mesh counts cause dots to spread and muddy the image
• Maintain consistent tension across all four screens, targeting 25–30 N/cm² (Newtons per centimeter squared)
• Apply a thin, consistent emulsion coat — thick emulsion traps ink at the edges of halftone dots and causes gain
• Expose screens precisely to the manufacturer's recommended time — underexposed emulsion breaks down mid-run under squeegee pressure
• Re-check registration after every 50–100 shirts on long runs, as heat and pressure can cause minor screen drift

Mesh tension is one of the most consistently overlooked variables in process color printing. The full breakdown on how to stretch and re-tension screen printing mesh walks through tension measurement, correction, and the tools required to maintain consistent results across all four process screens.

When 4-Color Process Screen Printing Makes Sense — and When to Skip It

Strong Candidates for 4-Color Process

These job characteristics make process color the smart and cost-effective choice.

• Photography-based designs or detailed illustrated artwork with smooth, continuous-tone gradients
• Designs with eight or more distinct colors where spot color screen costs become prohibitive
• White, natural, cream, or very light-colored garments where translucent CMYK inks read true
• Large production runs of 100 or more pieces where fixed setup costs spread effectively
• Clients supplying CMYK-ready print files who understand and accept the visible halftone dot structure at close range
• Recurring designs where screens can be stored and reused across multiple runs, eliminating repeat setup costs

When to Choose Something Else

Knowing when not to use 4-color process is just as important as knowing when it's the right call.

• Dark garments: translucent CMYK inks disappear into dark fabric — use simulated process or discharge printing instead
• Simple 1–3 color logos: spot color is cheaper, sharper, and more consistent for flat graphic designs
• Exact Pantone color matching: CMYK can approximate but rarely hits a Pantone specification precisely enough for strict brand standards
• Very short runs under 24 pieces: setup costs make per-shirt pricing uncompetitive against direct-to-garment (DTG) digital printing
• Premium close-range or luxury apparel: visible halftone dots under close inspection can undermine the perceived quality of high-end branded wear

Frequently Asked Questions

Four inks, properly controlled, can reproduce the entire visible world — the craft is entirely in the control.
