How to Use Registration Marks in Screen Printing for Perfect Alignment

Misregistration causes up to 70% of all reprints in multi-color screen printing shops — and nearly every one of those costly do-overs traces back to the same root problem: skipping or rushing screen printing registration marks. If you've ever pulled a shirt off the platen and found your colors are off by a hair, you know exactly how deflating that moment feels. The fix isn't expensive equipment or years of experience. It's understanding how registration marks work and building the habit of using them every single time. Whether you're brand new to screen printing or tired of wasting garments on preventable alignment errors, this guide covers everything you need to nail it.

Registration marks look deceptively simple — usually just a crosshair (a circle with lines running through the center) or a plus sign — but they're doing serious heavy lifting every time you set up a multi-color job. They give you a fixed reference point that every screen in your setup locks onto. Without them, you're guessing. And guessing in screen printing is expensive.

This isn't only for commercial shops running automatic presses either. Even a hobbyist hand-pulling a two-color design on a manual press gets tighter results with registration marks than without. Let's break it all down.

What Screen Printing Registration Marks Actually Are

Registration marks are small symbols — typically a crosshair or bullseye — placed outside the printable area of your artwork. Their entire job is to give you a shared reference point so every color layer lands exactly where it should in the final print.

In screen printing, each color in a design gets its own screen. A two-color job uses two screens. A six-color job uses six. Every single screen needs to land in the exact same position on the shirt. That's what reg marks make possible — they're the common anchor that ties all those separate layers together into one sharp, aligned image.

The Most Common Mark Types

• Crosshair (target) marks — the industry standard; a circle with perpendicular lines through the center, easy to align visually
• Plus sign marks — simpler, slightly less precise but widely used in hobbyist setups
• Corner crop marks — frame the overall design area and confirm general placement on the substrate
• Micro registration marks — tiny, tight marks used for high-detail photorealistic work where any color gap would be instantly visible

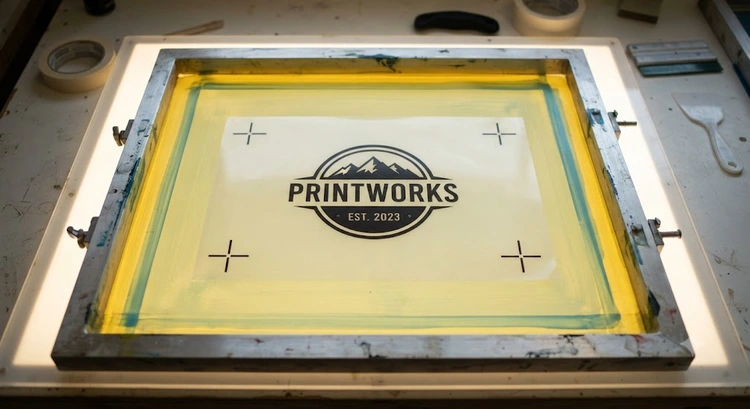

Registration marks live outside your image area. They're not part of the finished print. They should land on the platen tape or off the garment entirely — they're setup tools, not design elements.

Beginner vs. Pro: How Registration Complexity Scales

Registration isn't one-size-fits-all. What a hobbyist doing two-color tote bags needs is completely different from what a shop running a six-color automatic press demands. Here's how to think about it at each level.

The Beginner Approach

If you're just starting out, keep it simple. Two-color jobs are forgiving. Your main goals are:

• Get reg marks onto every film positive before you burn screens
• Use a light table (or tape films to a window) to layer them and confirm marks overlap perfectly before exposure
• Mark your platen with a Sharpie or tape at a consistent reference spot for every screen
• Lock in the first screen, print a test on newsprint, then align the second screen to that test print

That four-step process gets most beginners to acceptable registration without any special equipment. It's not the fastest method, but it consistently works.

The Professional Approach

At the production level, everything is tighter, faster, and more repeatable. Pro shops rely on:

• Pin registration systems that hold screens in precise, repeatable positions run after run
• Computer-to-screen (CTS) technology that burns all colors from a single digital file with automatic alignment baked in — no film positives needed
• Micro-registration knobs on automatic presses for sub-millimeter adjustments while the press runs
• Dedicated registration tables with clamps for holding films and screens in identical positions every time

The principle is identical to the beginner approach — common reference points across all screens — but the tools make it repeatable at scale without drift across a 500-shirt run.

Pro tip: Even on an automatic press with micro-registration knobs, always verify alignment at the start of every run — heat and squeegee pressure can shift screens after the first dozen prints.

The Tools You Need for Accurate Registration

You don't need to spend a fortune to get solid registration. You do need the right basics in place before you start burning screens.

Essential Tools

Nice-to-Have Upgrades

• Exposure unit with vacuum blanket — holds film flat against the screen for sharper, cleaner marks during exposure
• CTS (computer-to-screen) system — burns marks digitally and eliminates film alignment error entirely
• Micro-registration clamps — allow fine adjustments after initial setup without re-taping everything
• Print registration overlay ruler — a clear ruler you place on test prints to measure color-to-color accuracy in millimeters

If you're working with water-based inks, dialed-in registration becomes even more critical. Water-based inks like HSA inks don't have the opacity buffer that plastisol does — a slight shift between colors shows up immediately as a gap or halo, and there's no hiding it.

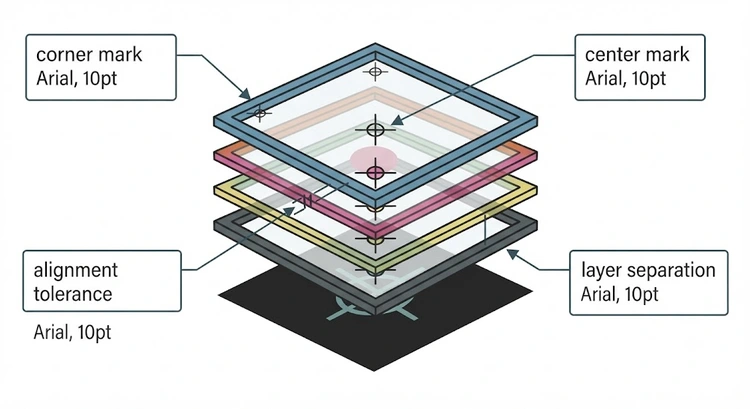

How to Set Up Registration Marks Step by Step

This is the core of the whole guide. Follow these steps every time you set up a multi-color job and your alignment problems will mostly disappear.

Steps 1–3: Creating Marks in Your Design Software

1. Separate your colors in Illustrator or Photoshop. Each color gets its own layer or channel. Create your registration marks on a dedicated layer and duplicate it to every color file — never recreate them from scratch per file.
2. Place four registration marks outside your image area. One at each corner is the standard. Size them at 0.25–0.5 inches. Crosshairs are preferred over plus signs for their extra visual precision.
3. Set reg marks to 100% of each separation's ink color. On your black film, marks are 100% black. On your red film, marks are 100% red. Thin, gray-looking marks won't expose cleanly and will be impossible to align accurately.
4. Print each separation to transparency film using a laser printer or an inkjet loaded with opaque black ink. High optical density is non-negotiable — your emulsion needs solid marks to block UV light during exposure.
5. Stack all your films on a light table and verify every mark lines up perfectly. If they're off at this stage, fix the digital file before you touch a screen. Catching it here costs nothing. Missing it costs screens, emulsion, and time.

Steps 4–5: Exposing Screens with Marks Intact

4. Coat your screens and let them dry completely before exposure. Rushing drying leads to soft emulsion that blurs your marks and produces sloppy edges — not worth saving five minutes.
5. Burn each screen with the film taped in the exact same position. Pick a corner of the screen frame as your anchor point, mark it with tape, and place every film in that identical spot. If screen one's film goes in the top-left corner, every screen's film goes in the top-left corner.

Steps 6–8: Locking Down Each Screen on the Press

6. Print a test on newsprint using your first color. Don't put a shirt down yet. This is your baseline that every other color aligns to.
7. Lower your second screen over the test print and adjust until the reg marks on the screen align with the printed marks below. Tape the screen down. Print another overlay test. Repeat for every color.
8. Once all colors confirm clean alignment, lock down all screens and print a full test shirt before starting the production run. Inspect it under good light. Look at color edges. If it looks sharp, you're ready.

Warning: Never skip printing on newsprint and go straight to a shirt — you'll burn through garments diagnosing problems that a free sheet of paper would have caught in thirty seconds.

Best Practices for Perfect Alignment Every Time

The steps above get you started. These practices are what keep you dialed in across a full production run — not just the first ten prints.

• Always use four registration marks, not two. Two-point registration lets screens rotate slightly without you noticing. Four corners catch rotational drift that a top-and-bottom setup will miss entirely.
• Load garments consistently. Use a T-square or physical shoulder reference to place every shirt in exactly the same spot. Eyeballing shirt placement undoes careful screen registration.
• Check registration every 25–50 prints on a long run. Heat from the dryer, squeegee pressure, and minor play in press arms all accumulate over time. A mid-run check saves the back half of your order.
• Never adjust one screen in isolation. If color three is drifting right, check every other screen and the platen indexing arm before touching anything — the problem may not be that screen at all.
• Document your setup for every job. Write down screen positions, off-contact distance, and micro-registration settings. When that customer reorders in six months, you'll have everything you need to match the original print exactly.
• Print light-to-dark when color order is flexible. Darker ink layers are more forgiving and can visually hide tiny registration gaps at color boundaries.

If you're still weighing screen printing against other methods, our breakdown of screen printing vs. heat transfer vinyl digs into exactly why screen printing requires this kind of setup investment — and why it's worth it once you're running bigger quantities.

Registration in Action: Multi-Color Print Examples

Theory is useful. Seeing how registration plays out in actual jobs makes it click. Here are three scenarios you'll run into.

Scenario 1: Two-Color Logo on a T-Shirt

This is the most common beginner job. Say you have a black outline and a red fill. Your two film positives each carry matching crosshair marks in the same corner positions. You burn two screens, load the black first, print a test on newsprint, lay the red screen over it, align the marks, tape down, test again. Total setup time: 15–20 minutes.

The same core color-sequencing logic that applies here shows up in HTV work too — if you want to see how color layering is handled in a heat press context, our guide on layering heat transfer vinyl for multi-color designs covers the parallels in detail.

Scenario 2: Six-Color Photorealistic Print

This is where registration becomes absolutely non-negotiable. A photorealistic halftone print — where tiny dots of different sizes blend to create continuous tone — has almost zero forgiveness. Even a 0.5mm shift between two of your six colors produces a visible halo. At this level you need:

• A pin registration system, not tape — tape creeps under squeegee pressure
• All screens burned from the same film set without moving between exposures
• Micro-registration adjustments on an automatic press dialed in before the first shirt
• At least three full test shirts checked and confirmed before starting the run

Scenario 3: Foil Print Over a Base Color

Foil screen printing adds an extra alignment challenge because the foil application step happens after the adhesive glue layer is printed and cured. If your glue layer is misregistered, the foil lands off — and there's no correcting it after the fact. Our guide on foil screen printing at home walks through the exact workflow including how registration fits into the glue-and-foil sequence.

Worth knowing: if multi-color registration feels like too much setup overhead for small runs, direct-to-garment printing eliminates registration entirely since all colors print in a single pass — a real advantage for short runs and complex artwork.

Troubleshooting Common Registration Problems

Even when you follow the process correctly, things go sideways. Here's how to diagnose and fix the most common registration failures.

Colors Shifting Mid-Run

Your run starts sharp, and by print 80 it's drifting. Here's why — and what to fix:

• Screen not locked down tightly enough — check all clamps before starting any long run; retighten if there's any play
• Platen indexing arm is loose or worn — tighten the detent mechanism or replace it; a worn indexing arm is the single most common source of mid-run drift on manual presses
• Inconsistent garment loading — the person loading shirts is placing them differently by print 50 than they were at print 1; use a physical stop or consistent reference collar to guarantee identical placement
• Squeegee pressure too heavy — hard strokes can physically push a screen slightly over time; use consistent, moderate pressure and let the squeegee blade do the work

Ghost Lines and Halos Around Color Edges

Ghost lines (a faint duplicate color, slightly offset) and halos (a visible gap or blur at color boundaries) are registration failures — not ink problems. Don't try to fix them with ink adjustments.

• Inconsistent off-contact distance — the gap between screen and substrate should be identical for every screen on the job, typically 1/16 to 1/8 inch; measure it, don't guess it
• Film marks weren't perfectly aligned before burning — go back to the light table step and recheck films; if they were off, re-expose the problem screen
• Underexposed emulsion made marks soft — soft, blurry registration marks on the screen are impossible to align accurately; re-burn with the correct exposure time
• No trapping built into the separations — trapping (a tiny intentional overlap between adjacent colors) is built into professional color separations to hide micro-shifts; for manual press work, 0.25–0.5pt of trapping is standard

Trapping is one of those things most beginner tutorials skip, but every experienced screen printer knows it's essential for tight multi-color work. It's essentially insurance built into your artwork that hides the unavoidable slight drift that happens in a real production run.
