How to Layer Heat Transfer Vinyl for Multi-Color T-Shirt Designs

What separates a crisp, professional multi-color t-shirt from one where the layers peel, shift, or crack after a single wash? The answer is almost always technique — specifically, knowing how to layer heat transfer vinyl in the correct sequence, at the correct temperature, and with the right materials for each color level. This guide covers every variable that determines whether your layered design survives a hundred washes or lifts at the edges after the first. If you've ever wanted to produce custom t-shirt printing results at home without a screen-printing setup, mastering HTV layering is your most direct path there.

Heat transfer vinyl layering works by stacking individual color cuts on top of each other before or during the pressing process, using heat and pressure to bond each layer permanently to the fabric beneath it. The material science is straightforward: most standard HTV uses a polyurethane base that activates between 280°F and 320°F, and when layers share compatible adhesive chemistry, they bond reliably to each other as well as to the garment substrate. The challenge isn't the concept — it's the execution, which demands precision at every stage from design file to final press cycle.

Layered HTV is fundamentally different from other multi-color decoration approaches. Unlike direct-to-garment printing versus screen printing, HTV layering requires no ink, no mesh screens, and no chemical curing process — just a cutting machine, a calibrated heat press, and a disciplined understanding of how vinyl materials interact under heat and pressure. That simplicity is both its greatest advantage and its most common trap.

Understanding How Heat Transfer Vinyl Bonds to Fabric

Heat transfer vinyl is a polyurethane film with a heat-activated adhesive backing, and its layering behavior is governed by how that adhesive responds to heat, pressure, and time. According to Wikipedia's overview of heat transfer materials, modern HTV products are engineered to bond at specific temperature thresholds depending on formulation. When you add a second layer, you're asking that adhesive to grip an existing HTV surface rather than raw fabric fibers — a grip that works reliably only when both layers share compatible polymer chemistry.

Why Material Compatibility Matters More Than Brand

• Standard glitter HTV bonds poorly with other glitter HTV layers due to its uneven surface texture creating inconsistent contact points.
• Metallic and foil HTV types should almost never serve as base layers — their reflective surfaces actively resist adhesion from subsequent vinyl layers pressed on top.
• Smooth matte or glossy HTV layers bond most predictably to each other across all major brands and formulations.
• Mixing brands is acceptable when both products use a standard polyurethane base, but always test a small swatch on a scrap garment before committing to a full production run.

Pro tip: Always position specialty materials — glitter, metallic, flock — as your final top layer. Pressing additional colors on top of those surfaces is the single fastest way to produce a design that fails before the first wash.

The Tools You Need to Layer HTV Like a Pro

Cutting Machines

Your cutting machine determines the registration precision of every individual color layer in the stack. A clean, accurate cut is non-negotiable when multiple vinyl pieces need to align within 1–2mm of each other on the finished garment. The two dominant options remain the Cricut Explore and Maker series alongside the Silhouette Cameo line, both of which handle standard HTV with consistent blade pressure, speed, and cut depth settings. If you're building a complete Cricut-based workflow for apparel decorating, the best printers for Cricut Maker projects covers complementary equipment worth pairing with your cutter.

• Cricut Maker 3: Handles thicker specialty HTV reliably; preferred for high-volume and multi-layer production use.
• Silhouette Cameo 4: 15-inch cutting width gives you more material flexibility; excellent for wide-format base layers.
• Entry-level cutters: Adequate for two- and three-color layered work; blade drift becomes a visible registration problem at four or more colors stacked.

Heat Press Options

A dedicated heat press is the non-negotiable centerpiece of any serious layered HTV operation. Consumer flat irons and EasyPress devices work for single-layer applications on a casual basis, but uniform pressure distribution across the entire platen surface becomes critical when pressing multiple vinyl layers simultaneously or sequentially. For a complete breakdown of what a heat press can accomplish beyond HTV work, see what you can do with a heat press. If you're also running sublimation alongside vinyl in your shop, the best heat press for sublimation guide applies equally to high-end HTV layering setups.

• Clamshell presses: Compact and affordable; adequate for small-format designs with clean layer access.
• Swing-away presses: Better open-platen access when repositioning layered pieces; preferred for production workflows.
• Auto-open presses: Eliminates over-pressing risk; highly valuable when running consistent-temperature batch production.

How to Layer Heat Transfer Vinyl: Simple Techniques vs. Advanced Methods

The Beginner Approach

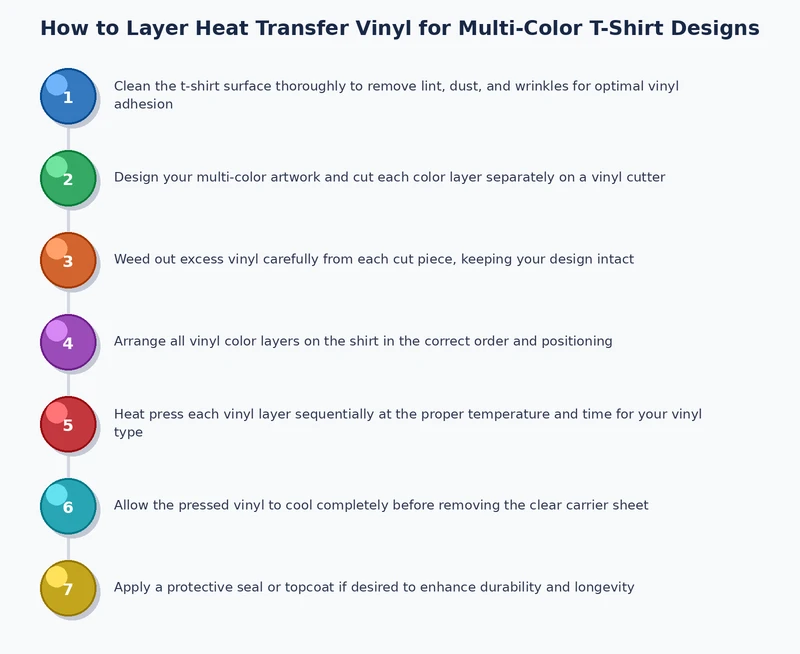

Start with two-color designs and press each layer separately and sequentially before attempting more complex stacks. The standard beginner workflow is linear and forgiving:

1. Cut each color layer individually, mirrored, on separate HTV sheets calibrated to your cutter's blade settings.
2. Weed each layer completely, removing all negative space from around and inside the design elements.
3. Press the base color layer first at the manufacturer's full recommended temperature — typically 305°F for 12–15 seconds with medium-firm pressure.
4. Allow the garment to cool completely before touching or repositioning any vinyl on the surface.
5. Position the second color layer precisely using the carrier sheet as a handling surface, then press at 10–15°F below your first-layer temperature for 10 seconds.
6. Peel the carrier sheet warm or cold per the specific vinyl brand's published instructions for that product line.

Advanced Pre-Layering Methods

Advanced layering uses a technique called off-garment pre-layering, where you build the complete multi-color design on a single carrier sheet before any heat is applied to the garment itself. You stack all color layers in reverse order — top color first, base color last — then transfer the completed stack in a single press cycle to the fabric. This approach dramatically reduces the number of heat cycles the garment endures, which directly extends vinyl adhesion life and reduces fabric stress from repeated pressing. The tradeoff is that registration errors cannot be corrected once the stack is committed to the press — every layer must be perfectly aligned from the start.

When Layering HTV Delivers Results — and When It Doesn't

Ideal Conditions for Layered HTV

• Your design has two to four distinct color regions with minimal or controlled overlap between adjacent layers.
• The garment fabric is 100% cotton or a 50/50 cotton-poly blend, which tolerates repeated heat cycles without significant damage or shrinkage.
• Production volume is small enough that individual garment handling at each press stage remains practical within your time constraints.
• The design features bold, graphic shapes with clear color boundaries rather than fine detail or photographic gradients.

When to Avoid Layered HTV

• Your design requires more than five color layers — the combined vinyl stack becomes rigid and prone to cracking at flex points after repeated laundering cycles.
• The garment is 100% polyester or contains more than 65% synthetic fiber content, which increases heat damage risk with each additional press cycle.
• You need photographic-quality color gradients or continuous-tone imagery — sublimation transfers are the correct tool for that application and deliver results that layered HTV physically cannot replicate.
• Design elements require very fine detail at small sizes, where blade drift between layers causes registration failures that are visible to the naked eye from two feet away.

Warning: Pressing the same garment area more than three times at full temperature and pressure significantly increases scorch risk and adhesive bleed-through, particularly on thin jersey knit fabrics below 5.5 oz. per square yard.

What Multi-Color HTV Projects Actually Cost

Material Costs by Project Type

Cost per garment in a layered HTV project scales with color count and material choice, but the numbers are more manageable than most beginners expect when materials are sourced from bulk rolls rather than retail sheets.

Equipment Investment

Equipment represents the largest upfront cost in any HTV setup. A mid-range 15×15-inch heat press runs $200–$400, while a quality vinyl cutting machine adds another $200–$350 depending on the model and included accessories. Spread across consistent production volume, per-unit equipment cost drops below $0.20 per garment after roughly 500 shirts are completed. Bulk HTV rolls in 10–15 yard lengths reduce material cost by 30–40% compared to retail-sheet pricing, which makes the break-even point on roll investment very short for anyone producing more than 20 shirts per month.

Rules That Make Every Layered Design Stick

Design Preparation

• Always mirror your design before sending it to the cutter — HTV is cut face-down on the carrier sheet, and forgetting to flip the image is among the most common and costly beginner errors.
• Keep overlap between adjacent color layers at 1–2mm maximum; this provides sufficient registration insurance without adding unnecessary vinyl bulk to the finished stack.
• Use offset or contour tools in your design software to create clean, deliberate boundaries between adjacent color regions rather than allowing them to share the same edge path.
• Run a test cut on plain paper before committing expensive specialty HTV — this confirms blade depth, speed, and pressure are correctly calibrated for the specific material thickness you're cutting.
• If you're exploring what the Cricut can produce beyond standard HTV cuts, many of the same registration and alignment principles apply to stamp and stencil workflows built from similar vinyl-adjacent materials.

Pressing Protocol

• Pre-press your garment for 3–5 seconds before applying any vinyl layer — this removes moisture and wrinkle distortion that cause adhesion failures independent of temperature or pressure settings.
• Reduce your press temperature by 10–15°F for each subsequent layer to prevent re-activating and potentially shifting the adhesive on earlier layers that have already bonded to the fabric.
• Use a Teflon sheet or parchment paper over all previously pressed layers when adding new ones — this protects the vinyl surface finish without meaningfully reducing the heat transfer needed to activate the new layer's adhesive.
• Always finish with a final consolidating press over the complete design at a reduced temperature of 275°F for 8 seconds — this bonds all layers uniformly and eliminates any micro-lifting at layer edges that develops during sequential pressing.
• Wait a minimum of 24 hours before washing any newly pressed garment; the adhesive continues its full curing process during that window and washing too soon significantly reduces long-term bond strength.
• Wash all layered HTV garments inside-out in cold water on a gentle cycle — this single care habit extends vinyl life by a measurable margin across repeated laundering compared to standard wash settings.

Frequently Asked Questions

Get the order right, control every degree of heat, and layered vinyl becomes permanent — miss either, and no amount of re-pressing will recover what you've already lost.
