How to Apply Heat Transfer Vinyl to Canvas Tote Bags

Canvas tote bags have experienced a remarkable surge in popularity, with the global reusable bag market projected to exceed $10 billion in value — and custom-decorated versions consistently ranking among the highest-margin items in small craft and print businesses. Applying heat transfer vinyl on canvas tote bags is one of the most accessible entry points into custom accessory decoration, requiring minimal equipment investment while delivering professional, long-lasting results. For those already familiar with HTV application on garments — such as the techniques detailed in the guide on how to use heat transfer vinyl on t-shirts — adapting that workflow to canvas introduces several critical differences worth understanding before the first press.

Canvas presents unique challenges compared to jersey knit or polyester fabrics. Its woven, semi-rigid structure requires precise heat and pressure calibration, and its natural fiber composition responds differently to adhesive polymers than synthetic blends. Understanding these nuances eliminates the most common failure points — peeling edges, bubbling vinyl, and scorched fabric — that frustrate both beginners and experienced decorators alike.

The good news is that once correct settings and preparation steps are established, heat transfer vinyl adheres to canvas with exceptional durability. Properly pressed designs routinely survive fifty or more wash cycles without delamination. The sections below cover everything from vinyl selection and cutting technique to long-term care and troubleshooting.

Selecting the Right Heat Transfer Vinyl for Canvas Tote Bags

Understanding HTV Adhesive Types

Not all heat transfer vinyl is formulated identically. The adhesive layer — the component that bonds to the fabric under heat and pressure — varies significantly between product lines. For canvas substrates, this distinction is especially important because canvas fibers are thicker and more loosely woven than standard T-shirt material, creating larger gaps where adhesive must anchor firmly.

The primary adhesive categories relevant to canvas tote bag projects:

• Standard PU (Polyurethane) HTV — The most common type. Works reliably on canvas weights up to 12 oz. Requires consistent pressure to bridge the fiber gaps characteristic of woven fabric.
• Stretch or Soft HTV — Designed for knit fabrics, but performs adequately on lighter canvas (6–8 oz). Less durable on heavy-duty grocery tote canvas over repeated washes.
• Glitter and Specialty HTV — Thicker base layer; requires slightly higher temperature. Adhesion to textured canvas is strong, but edges need firm, consistent pressing to prevent lifting.
• Printable HTV — Allows full-color designs via inkjet printing before pressing. Compatible with canvas, though ink durability requires heat-setting per manufacturer specifications. The detailed walkthrough on how to use printable HTV for full-color shirt designs provides a complete process overview applicable to canvas as well.

Beginner-Friendly vs. Advanced Vinyl Options

The vinyl category a decorator selects should match their experience level and available equipment.

Beginner-appropriate choices:

• Standard PU HTV in single colors (Siser EasyWeed, ThermoFlex Plus)
• Pre-spaced lettering sheets with carrier alignment guides
• Matte finish vinyl — conceals minor pressure inconsistencies better than gloss
• Solid-color designs with generous interior negative space for easier weeding

Advanced options for experienced decorators:

• Layered multi-color designs requiring precise registration across multiple press cycles
• Foil or holographic HTV, which carry narrow heat tolerance windows of ±10°F
• Patterned or printed HTV requiring exact color calibration before cutting
• Specialty textures such as flock or glitter layered over base color fills

Pro insight: Beginners should complete at least three single-color projects on canvas before attempting multi-layer designs — layer alignment errors multiply rapidly on textured substrates where slight positional drift is difficult to detect before pressing.

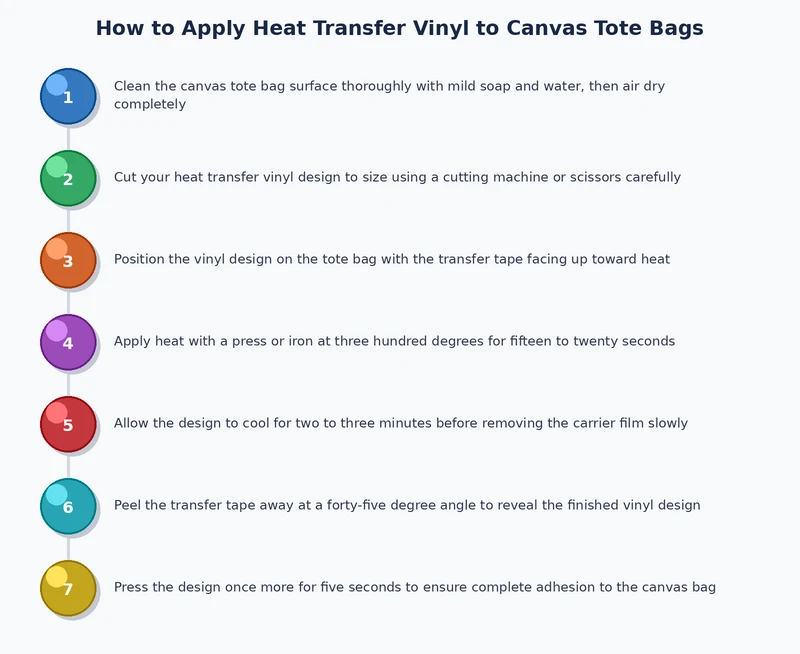

How to Apply Heat Transfer Vinyl to Canvas: Step-by-Step

Preparing the Canvas Surface

Preparation determines whether the vinyl bonds cleanly or fails within the first few wash cycles. Canvas tote bags frequently arrive with surface sizing — a fabric stiffener applied during manufacturing — that inhibits HTV adhesion. Pre-washing every bag before application is non-negotiable.

Preparation checklist:

1. Machine-wash the tote bag on warm, without fabric softener or dryer sheets.
2. Tumble-dry on medium until fully dry — air drying leaves residual moisture that creates adhesion problems during pressing.
3. Pre-press the canvas blank for 5–8 seconds at 305°F (152°C) to eliminate wrinkles and any remaining moisture vapor.
4. Insert a rigid pressing board or Teflon-coated insert inside the bag to create a flat, fully supported pressing surface.
5. Allow the canvas to cool to room temperature before placing any HTV.

The rigid insert step is critical and frequently overlooked. Without internal support, the canvas flexes under platen pressure, producing uneven contact zones where the vinyl will not bond fully. A piece of firm foam board or a commercial bag insert serves the purpose. Canvas, as a woven textile, compresses inconsistently without underlying support — the same principle applies across other heat-press applications on flexible substrates.

Cutting, Weeding, and Pressing

Cutting and weeding technique directly impacts the finished appearance of heat transfer vinyl on canvas tote bags. Blade depth, cutting speed, and weed path all affect edge quality.

Cutting settings for standard PU HTV on a vinyl cutter:

• Blade depth: 1.5–2 (machine-dependent; always test on scrap material first)
• Cutting pressure: 80–120 grams
• Speed: 150–300 mm/s
• Mirror the design before cutting — this is the single most common beginner error and cannot be corrected after pressing

After cutting, weed all negative space cleanly. Canvas texture makes any small unweeded fragments visible under the adhesive layer after pressing. Work under strong directional lighting and use a fine-point weeding tool for interior cut points and tight corners.

Recommended press settings for standard 10 oz canvas using PU HTV:

• Temperature: 305–315°F (152–157°C)
• Pressure: Medium-firm (4–5 on most clamshell presses)
• Time: 15–20 seconds
• Cover sheet: Thin Teflon sheet or parchment — not a thick silicone pad, which reduces heat transfer to the substrate

Pressure calibration requires a test press before any production run. The guide on heat press pressure settings explained provides a thorough breakdown of how to dial in consistent results across different fabric weights and vinyl types.

Post-Press Cooling and Peel Timing

Peel timing is the final variable that determines edge quality and long-term adhesion. Most standard PU HTV for canvas applications is a warm peel or hot peel product, but manufacturers vary — always confirm peel type on the product data sheet.

• Hot peel: Remove carrier sheet immediately after pressing. Canvas retains heat longer than knit fabric — peel slowly at a low, consistent angle to avoid lifting design edges.
• Cold peel: Allow the design to reach room temperature before removing the carrier. This typically yields sharper edges on textured substrates and is the safer default.
• After peeling, re-press the design for an additional 5–10 seconds without the carrier sheet to flatten any edges that lifted during the initial peel. This secondary press step measurably improves durability.

Comparing HTV Types for Canvas Tote Bags

Which Vinyl Performs Best on Heavy Canvas

For heavy-duty canvas tote bags — those in the 12–16 oz range commonly used for grocery and market bags — standard PU HTV remains the most reliable choice. Its adhesive layer is formulated to penetrate dense weave structures, and its mid-range temperature requirements reduce the risk of scorching the natural fiber content.

Flock HTV is an underrated option for heavy canvas. Its thick, velvety texture conceals minor surface irregularities in the canvas weave, and its adhesive performs strongly at the higher temperatures that heavy canvas requires. The tactile finish adds perceived value to promotional or retail tote bags and holds up well through repeated washing.

Foil HTV, while visually striking, is the least reliable option for heavy canvas due to its narrow temperature window and sensitivity to surface texture. Decorators who require a metallic finish should treat foil as a design accent element rather than a large fill area, and should expect reduced wash durability relative to other vinyl categories.

Washing and Long-Term Care for HTV-Decorated Tote Bags

Recommended Laundering Practices

The longevity of any heat transfer vinyl design depends as much on post-application care as on application technique. Canvas tote bags are often washed more frequently and more aggressively than T-shirts, which makes clear care instructions essential for maintaining design integrity over time.

Recommended laundering protocol:

• Turn the bag inside out before every wash cycle to reduce direct agitation against the vinyl surface.
• Use cold water on a gentle or delicate cycle.
• Avoid fabric softeners and bleach — both degrade the HTV adhesive layer and accelerate edge lifting over time.
• Use a mild, pH-neutral detergent formulated for delicate fabrics.
• Tumble dry on low heat or air dry flat — high-heat dryer cycles reactivate adhesive and can bond designs to other items in the load.
• Never iron directly over the vinyl design. If smoothing wrinkles is necessary, use a pressing cloth and set the iron to its lowest steam-free setting.

Warning: Dryer temperatures exceeding 130°F can reactivate HTV adhesive, causing designs to transfer onto other fabrics in the load — always select low heat or air dry for decorated canvas tote bags.

Storage and Handling Guidelines

Between uses and during shipping, HTV-decorated canvas tote bags require basic precautions to prevent premature design damage:

• Store bags flat or loosely folded — avoid tight creases through the design area, as repeated flexing weakens vinyl edges at fold points.
• Do not stack heavy objects on top of decorated tote bags in storage for extended periods.
• For retail or gifting presentation, wrap the design face with acid-free tissue before folding to prevent surface marring.
• Keep finished bags away from prolonged direct sunlight — UV exposure causes color fading in most HTV types, particularly in saturated pigments such as reds and purples.

For sellers producing decorated tote bags for retail or events, the comprehensive breakdown in the guide on how to price heat press items to sell covers material costs, labor calculations, and margin targets directly applicable to custom canvas accessory production.

Diagnosing and Fixing Common Application Problems

Peeling Edges and Incomplete Adhesion

Edge peeling is the most common complaint in heat transfer vinyl on canvas tote bags projects. Unlike smooth fabric surfaces, canvas texture creates microscopic air pockets under the vinyl that allow edges to lift during washing if the initial press was not sufficiently thorough. The root causes are almost always one of the following:

• Insufficient pressure: Increase press pressure by one increment and retest on scrap material before pressing the finished bag.
• Under-pressing time: Extend press time by 3–5 seconds. Canvas requires longer dwell times than knit fabrics of comparable weight.
• Moisture in fabric: Confirm the pre-press step was completed and that no steam setting was activated during any part of the process.
• No rigid insert: Without internal support, canvas flexes and creates uneven pressure zones that prevent full adhesion across the design area.
• Carrier removed too quickly: Even hot-peel products benefit from a 10–15 second cool-down before peeling on textured substrates.

For edge lifting discovered after washing, re-pressing the affected area with a Teflon cover sheet at the original press temperature for 10 seconds often reactivates the adhesive sufficiently. This repair is most effective when identified early, before multiple wash cycles have fully degraded the adhesive bond.

These failure modes appear across heat-press applications broadly — the guide on how to avoid heat press mistakes that ruin T-shirts documents the most frequent application errors and their preventive measures, many of which apply directly to canvas work.

Bubbling, Scorching, and Color Distortion

Three additional failure modes affect canvas tote bag projects, each with distinct causes and targeted solutions:

Bubbling beneath the vinyl:

• Cause: Trapped moisture or air pockets during pressing.
• Fix: Extend the pre-press step to fully evacuate surface moisture. If bubbling appears after pressing, peel the carrier immediately, then re-press with firm pressure and a thin dry Teflon sheet.

Scorching or yellowing of canvas:

• Cause: Temperature too high or dwell time too long for the canvas weight and fiber content.
• Fix: Reduce temperature by 10°F and use a protective parchment cover sheet rather than a thick silicone pad. Natural-fiber canvas scorches at temperatures exceeding 330°F on extended dwell times.

Color distortion or surface dullness:

• Cause: A cover sheet trapping surface humidity, or excessive re-pressing passes degrading the vinyl finish.
• Fix: Switch to a fresh dry Teflon sheet and limit re-presses to a single additional pass. Glitter and foil HTV are particularly susceptible to color shift from over-pressing.

Frequently Asked Questions

Next Steps

1. Purchase a 10–12 oz natural canvas tote bag — uncoated and without surface sizing if possible — and pre-wash it on warm without fabric softener before any pressing attempt.
2. Cut a test design in standard PU HTV on scrap material to dial in blade depth, cutting pressure, and mirror settings on the specific cutter before touching the finished blank.
3. Perform a test press on an inconspicuous area of the tote bag — such as the interior bottom panel — at the target temperature and pressure settings to confirm clean adhesion without scorching or distortion.
4. Complete the full application sequence including pre-press, rigid insert placement, vinyl positioning, primary press, peel, and secondary press, then machine-wash the finished bag three times on cold to verify durability before starting any production quantity.
5. Review the complete process guide on using Cricut iron-on vinyl with a heat press machine to expand the range of design formats and cutting systems applicable to canvas tote bag decoration projects.

More in T-Shirt Printing
