HSA Inks for Screen Printing: The Complete Water-Based Guide

HSA ink screen printing — high solid acrylic — delivers the soft hand feel and wash durability that serious garment printers chase, without the PVC and plasticizers that make plastisol complicated to work with. That's the short answer. Our team has worked with HSA formulas extensively across screen printing projects of all sizes, and we're confident these inks represent the best balance between environmental responsibility and professional output available today. Most people switching from plastisol find the transition more manageable than expected — as long as curing is dialed in correctly from the start.

The distinction between standard water-based inks and high solid acrylic formulas matters more than most guides acknowledge. Standard water-based inks are thin — they work fine on light-colored natural fiber shirts, but anyone printing on darker fabrics runs into opacity problems fast. HSA inks solve this by dramatically increasing the ratio of pigment and acrylic binder to water. The result is an ink that presses onto fabric with real coverage, then cures into a soft, breathable film that doesn't crack after repeated washing.

There's also an environmental dimension worth taking seriously. Water-based inks, including HSA formulas, contain no PVC (polyvinyl chloride) or phthalates (chemical plasticizers used to keep plastisol flexible). The EPA's Safer Chemicals program identifies water-based textile formulations as a preferred alternative in garment production, and our team views this as a meaningful advantage beyond print quality alone.

What Makes HSA Ink Screen Printing High Solid Acrylic Different

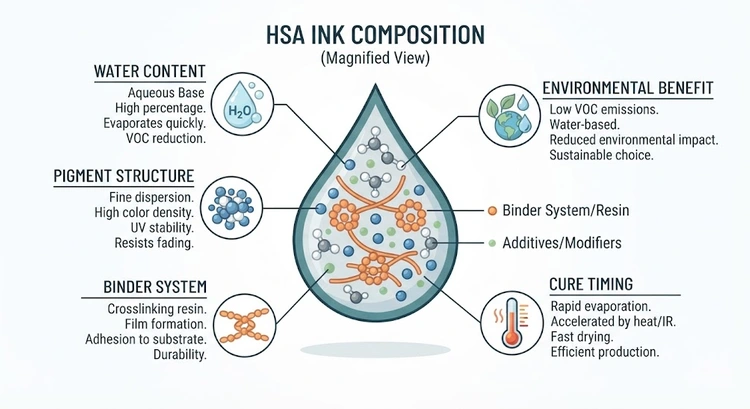

Composition and What "High Solid" Actually Means

The term "high solid" refers to the proportion of non-water content in the ink — specifically the pigment and acrylic binder (the material that bonds pigment to fabric fibers). Standard water-based inks typically sit at 30–40% solids. HSA inks land at 55–65% solids or higher, which explains why they behave so differently on press. More solid content means more ink deposited per stroke, better coverage, and a thicker film building on the fabric surface without multiple flood passes.

The acrylic binder is the other key component. Acrylic polymers cure into a flexible, durable film that bonds mechanically with natural fibers. On cotton in particular, the ink essentially integrates with the fabric rather than sitting on top of it. This is what gives HSA prints their characteristic soft hand feel — most people can barely detect the print when it's done correctly. Plastisol (an oil-based screen printing ink using PVC resin) sits higher on the fabric and can feel thick or rubbery, especially in large solid coverage areas like chest prints or tote bag graphics.

HSA vs. Standard Water-Based Inks

Standard water-based inks are fine for light garments and simple single-color designs. They're inexpensive, thin, and easy to reclaim (remove from screens after printing). But they struggle with opacity on mid-tones and darks, and they tend to bleed into fabric fibers rather than building a clean surface deposit. HSA inks solve the opacity problem without giving up the environmental and tactile advantages of water-based chemistry.

Our team has also found that HSA inks are more forgiving during the actual printing process. The higher viscosity (thickness) means they don't flood under fine detail lines as aggressively, which reduces ink bleed at the edges of small text or intricate artwork. For anyone exploring how screen printing fits into a broader print shop setup, our guide comparing direct to garment printing vs. screen printing puts water-based ink considerations in a useful operational context.

Essential Gear and Supplies for Water-Based Screen Printing

Screen Mesh, Emulsion, and Frame Setup

Mesh count is the first variable to get right when working with HSA inks. Our team recommends starting with a 156 mesh (threads per inch) for most standard graphic work. Lower mesh counts — 110 or below — deposit too much ink and cause flooding and detail loss. Higher counts above 200 restrict ink flow too much for the heavier body of HSA formulas. For halftone work (gradient printing using tiny dots) or intricate fine-line designs, a 180 mesh is worth testing, but 156 handles the majority of production needs cleanly.

Emulsion selection matters just as much as mesh count. Water-based inks require a water-resistant emulsion — specifically a dual-cure or diazo-based emulsion engineered for water-based printing. Standard plastisol emulsions break down quickly under the water content of HSA inks, leading to stencil failure mid-run and ruined shirts. Chromaline, Murakami, and Saati all make reliable options our team has run without issues. Coat screens to an EOM (emulsion over mesh) thickness of 15–25 microns for consistent ink deposit control across a run.

Squeegees, Off-Contact Distance, and Press Setup

Squeegee durometer (hardness rating) directly affects how much ink transfers per stroke. For HSA inks, a 70/90/70 triple-ply squeegee is the industry standard recommendation — it provides enough rigidity to push ink through mesh cleanly without the excessive pressure that would flood ink into the fabric weave. A single 70-durometer blade also works for most jobs. Anything softer than 65 durometer is too soft for HSA inks; the thickness of the formula combined with a soft blade causes over-deposit and smearing at edges.

Off-contact distance — the gap between the bottom of the screen and the garment surface — should sit at approximately 1/8 inch (3mm) for standard flat garment printing. This gap allows the screen to snap back cleanly after each stroke, preventing ghosting (ink transferring imprecisely from screen to shirt). On a manual press, most shops verify off-contact at the start of every new garment style since t-shirt thickness varies enough to affect snap-off behavior.

Pro tip: On a manual press with HSA inks, always flood the screen with a light ink pass before each print stroke — this prevents the ink from drying in the mesh between prints and ensures consistent deposits throughout the entire run.

HSA vs. Plastisol: A Direct Comparison

Performance Comparison Table

Our team gets asked constantly whether HSA inks are truly competitive with plastisol for production volume work. The honest answer is that they're different tools with different tradeoffs, not a simple upgrade from one to the other. Here's a direct side-by-side look at the properties that matter most in a real shop environment.

When to Choose Each Ink Type

Our team's position is straightforward: HSA inks are the right default for cotton garment printing, especially for brands targeting eco-conscious customers or producing children's apparel. Plastisol still wins on synthetic blends and for any shop that needs long uninterrupted print runs without active ink management between pulls. If a shop's core work is 100% cotton basics — tees, hoodies, tote bags — the case for making the switch to HSA is strong.

For creative specialty work, HSA inks can also serve as a base for decorative techniques. Our guide on foil screen printing at home covers how water-based ink layers can work with foil transfer adhesive for metallic effects — a useful technique for adding visual interest without switching to entirely different ink systems.

The Real Advantages and Drawbacks of High Solid Acrylic Inks

Why Our Team Recommends HSA for Most Applications

The case for HSA inks starts with hand feel and ends with the regulatory environment. Soft hand is the single biggest advantage most printers and garment buyers notice immediately. Prints made with properly cured HSA inks feel like part of the shirt — not a patch applied to the front. For premium retail garments or branded merchandise where the unboxing experience matters, this tactile difference is significant and noticed by end customers.

The environmental case is also building real commercial momentum. More brands and print-on-demand buyers are now requiring OEKO-TEX certified or PVC-free products from their printing partners, and plastisol simply cannot meet those standards. HSA formulas from major ink manufacturers like Union Ink, Matsui, and Rutland are specifically engineered to qualify for eco-certifications. Being able to advertise certified eco-friendly printing has become a tangible competitive advantage with certain retail and wholesale customer segments.

Wastewater disposal is simpler too. Water-based ink washout can go through standard drain systems in most municipalities, whereas plastisol washout requires solvent capture and proper hazardous waste disposal. For small and mid-sized shops, the reduction in regulatory overhead is a real operational benefit that compounds over time — fewer compliance headaches, lower disposal costs, and a safer work environment overall.

The Honest Downsides Worth Knowing

Dry-down is the biggest practical drawback. HSA inks begin drying in the mesh if printing stops for more than a few minutes at room temperature. On a manual press, any extended pause means flooding the screen and inspecting for dried ink before resuming. This is a genuine operational friction that plastisol doesn't create. Shops running long production batches with breaks need to keep screens flooded or reclaim and re-coat between sessions — neither option is free.

Opacity on truly dark fabrics is the second honest limitation. While HSA inks have improved considerably, achieving the same vibrancy on black shirts that plastisol with a proper white underbase delivers still requires either specialty high-opacity HSA formulas (which cost more) or additional print passes. Most production shops doing volume work on dark garments use a white plastisol underbase with HSA color layers on top — a hybrid approach that works well but adds process complexity and a mixed-chemistry reclaim challenge.

Storage temperature is also a consideration most guides skip. HSA inks cannot freeze. Freezing breaks down the acrylic emulsion structure irreversibly, and a thawed frozen container is headed for the trash. Shops in climates with cold winters need climate-controlled ink storage year-round — something plastisol, which is completely freeze-stable, never requires.

Workflow, Curing, and Tips for Consistent Results

Printing and Flash Curing on Press

The printing stroke with HSA inks is firm and deliberate — one clean pass at roughly a 45-degree squeegee angle. Over-stroking (running the squeegee back and forth multiple times) forces ink to saturate the fabric and lose edge definition. Our team always prints with a single forward stroke, then immediately floods the screen for the next garment. This rhythm keeps ink fresh in the mesh and produces consistent deposits from the first shirt to the last in a run.

Flash curing between color layers is done at lower temperatures than the final cure — around 250°F (121°C) for 3–5 seconds is enough to gel (partially solidify without fully curing) the ink so a second color can print on top without smearing. Full cure happens at the end of the run in a conveyor dryer. Our experience working with heat pressing on cotton fabric is directly relevant here — the same temperature sensitivity applies. Cotton scorches above 400°F, so managing dwell time and temperature during the curing stage is essential regardless of the ink system in use.

Final Cure and Common Mistakes to Avoid

Full cure for HSA inks requires the entire ink film to reach 300–320°F — not just the fabric surface. This is the most common mistake our team observes from printers making the switch from plastisol. With plastisol, curing is relatively forgiving because the ink is thick and retains heat evenly. With HSA inks, thin deposits can appear fully cured at the surface while remaining uncured underneath, leading to wash failures in the first laundry cycle.

The fix is dwell time, not simply cranking up the temperature. A properly tuned conveyor dryer at 320°F with a 45–60 second belt speed gives the ink film adequate time to reach cure temperature throughout its depth. Using a donut probe (a small embedded sensor that measures ink film temperature rather than ambient air temperature) is how professional shops verify cure with confidence. Wash testing — laundering a sample print five or more times and checking for cracking or color fade — should be standard practice any time a new ink formula or fabric combination is introduced.

Reclaiming screens after an HSA run needs to happen quickly. Any ink left to dry in the mesh will require enzymatic emulsion remover or extended soaking to clear. Our team's standard workflow is to flood screens with water immediately after the last print, before any ink has time to skin over, then complete full reclaim within the hour. This keeps screens in reusable condition and avoids the frustration of dried water-based ink locked permanently into a 156 mesh.

For anyone exploring other heat-activated ink systems alongside screen printing, our breakdown of making sublimation transfers illustrates how differently dye-based and pigment-based heat processes work — useful context for understanding why cure temperatures and dwell times matter so much across print technologies. Shops looking to add digital printing capacity alongside their screen setup should also look at our best DTG printer guide for machines that pair well with existing screen printing workflows.

Frequently Asked Questions

Key Takeaways

• HSA ink screen printing — high solid acrylic — delivers superior soft hand feel and PVC-free chemistry that plastisol cannot match, making it the right default choice for most cotton garment production.
• Water-resistant emulsion, a 156 mesh count, and a firm single-stroke printing technique are the non-negotiable setup requirements for consistent HSA ink results on press.
• Dry-down risk and reduced opacity on true black fabrics are the real operational drawbacks of HSA inks — both are manageable with disciplined press workflow and hybrid underbase approaches.
• Full cure requires the entire ink film — not just the surface — to reach 300–320°F, which means dwell time in the conveyor dryer and regular wash testing are essential parts of any HSA production process.
