Ink Printing Order in Multi-Color Screen Printing: Light to Dark or Dark to Light?

Does the order you pull ink matter when you're printing a six-color graphic on a black tee? It absolutely does — and getting your screen printing ink color order wrong is one of the fastest ways to muddy a clean design. Whether you're running a small shop or scaling to hundreds of pieces, the sequence in which colors hit the substrate shapes opacity, bleed, and vibrancy from the first squeegee stroke. Most printers learn the light-to-dark rule early and follow it without question. But the real answer depends on your substrate, your ink system, and your flash cure setup. Before you can make smart sequence decisions, your registration needs to be locked in — start with the fundamentals of multi-color screen printing registration if that's not already dialed in.

The light-to-dark convention exists for a reason rooted in ink chemistry. Lighter inks — whites, yellows, creams — have lower pigment density and rely on a clean, uncontaminated surface to show their full value. When a light ink sits on top of wet dark ink, it picks up surrounding pigment, shifts in hue, and loses coverage. That said, plenty of experienced printers flip the sequence deliberately for specific jobs — simulated process prints, low-bleed dark garments, and high-opacity specialty inks all have their own logic.

This post breaks down both approaches, covers the tools and techniques that make each one work, and flags the mistakes that derail even a well-planned color build.

Why Screen Printing Ink Color Order Exists

The Physics Behind Ink Layering

Screen printing ink doesn't sit in isolation on a garment — each layer interacts with the one beneath it. Plastisol and water-based inks both behave differently depending on what surface they're deposited onto: raw fabric, a cured underbase, or a partially gelled wet layer. When you're running multiple colors through a screen printing press, each ink deposit inherits some of the surface character of whatever came before it.

A yellow ink printed over wet black ink will absorb pigment from that wet layer and shift toward muddy olive. Print the yellow first onto a clean substrate and flash it, then come back with the black — now the black sits on a stable surface without contaminating the yellow. That physical relationship is the core reason a defined color sequence matters at all.

The key variables driving that relationship are:

• Ink opacity — higher pigment load means more covering power over what's beneath
• Surface energy — fresh wet ink has lower surface tension than cured ink, affecting how subsequent layers adhere
• Flash cure timing — gel-curing between stations eliminates wet-on-wet contamination at critical transitions
• Mesh count — finer meshes deposit thinner ink films, which compounds when you're stacking multiple opaque layers

How Opacity Defines the Sequence

Opacity is the primary driver of sequence decisions — not perceived color value. Low-opacity inks — transparents, fluorescents, process colors — can't cover what's beneath them. They need a clean, neutral surface to read true. High-opacity inks like white, athletic gold, and bright red have the pigment density to print over other colors and still hold their value.

This is why the traditional light-to-dark rule is more accurately described as a low-opacity-to-high-opacity rule. A pale yellow with low opacity and a bright red with high opacity will respond very differently to being printed over an underbase. Understanding that distinction helps you make better sequence calls job by job rather than defaulting to a blanket rule every time.

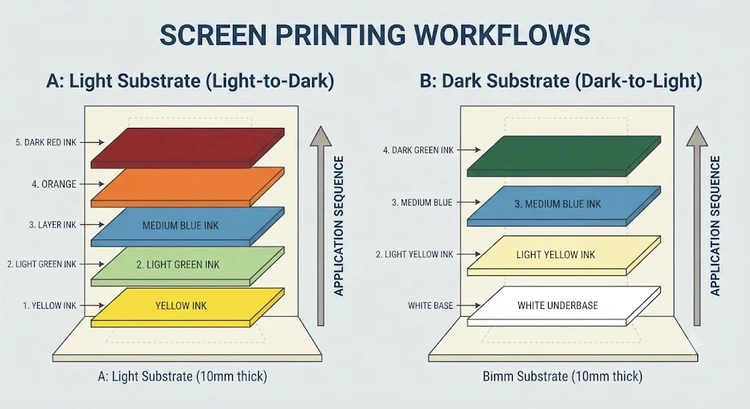

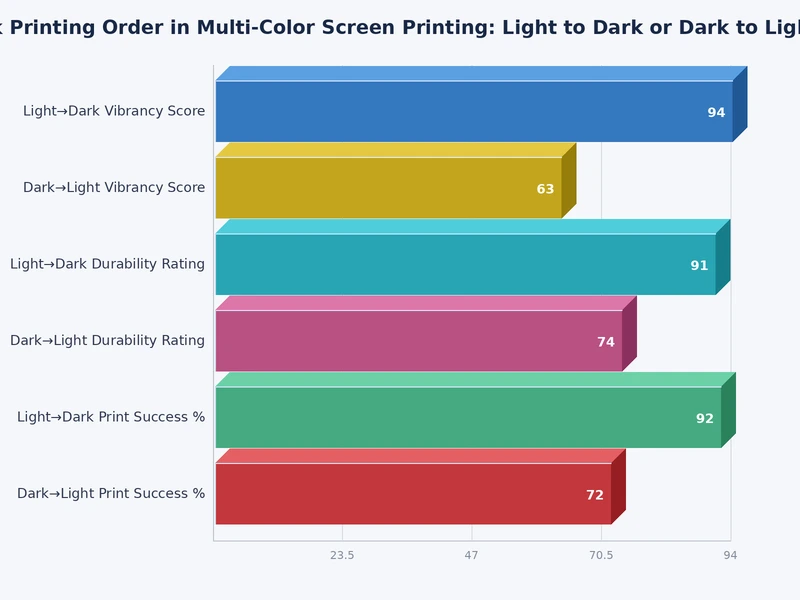

Light-to-Dark vs. Dark-to-Light: The Core Comparison

Here's where the debate actually lives. Both approaches have legitimate use cases, and experienced shops switch between them based on job requirements — substrate, ink system, artwork complexity, and press configuration all factor in.

The Traditional Light-First Argument

Printing light colors before dark ones is the industry default for spot color work on light garments. The logic is straightforward: light inks are the most vulnerable to contamination. They have less pigment density, pick up surrounding colors more easily, and visually shift when printed over anything other than white. Printing them first onto a clean substrate gives them the best possible foundation.

The sequence also simplifies underbase management. If you're printing on a white shirt with minimal ink overlap, you may not need a flash at all between stations. Light-to-dark naturally staggers opacity so each successive ink has more covering power than the one before it, reducing contamination risk at overlapping edges.

Pro tip: On light garments with minimal color overlap, a strict light-to-dark sequence often eliminates mid-run flashes entirely — saving real press time without sacrificing color integrity.

When Dark-First Makes Sense

Dark-first sequencing is more common in simulated process printing and on dark garments where a white underbase is already in the deck. Once your underbase is down and flashed, you're effectively printing every subsequent color onto white regardless of what's beneath it. In that context, the dark-vs.-light rule becomes less relevant — what matters more is halftone dot gain and how each color interacts with the underbase surface.

Some printers also prefer dark-first on wet-on-wet runs to reduce ink pickup on screens. When darker inks sit in the deck before lighter ones, there's less risk of light ink colors becoming contaminated from ghosting on screens that have already passed over earlier garments.

Color sequence decisions intersect directly with color matching — if you're chasing accurate Pantone hits across a multi-color build, the guide on matching Pantone colors in screen printing walks through how sequence and ink mixing interact under press conditions.

The Equipment That Makes Color Sequencing Reliable

Flash Cure Units and Their Role

Your flash cure unit gives you the most direct control over how your ink color order performs on press. A properly calibrated flash lets you gel-cure between stations without fully curing the ink — eliminating wet-on-wet contamination at critical transitions while maintaining layer-to-layer adhesion.

Flash cure timing is everything. Under-flashing leaves the surface tacky enough to transfer onto the next screen. Over-flashing creates a fully cured surface that subsequent inks can't bond to, leading to delamination and cracking after washing. You're aiming for a surface gel — dry to the touch but not glass-hard.

• Set flash temperature and dwell time specifically for your ink — plastisol and water-based have different gel windows
• Don't flash between every station as a blanket safety measure; only flash where the sequence genuinely requires it
• Verify flash cure consistency across the full platen surface with donut thermometers or temp strips before committing to a long run

Screen Tension and Mesh Selection

Screen tension directly affects ink release consistency, which determines how reliably you can layer colors in sequence. A low-tension screen with excessive snap doesn't release ink evenly — you get thick, uneven deposits that trap air and compromise layering. On a multi-color build, inconsistent deposits at one station compound through every station after it.

Mesh count is also part of the sequencing equation. A white underbase needs a lower mesh count — typically 86 to 110 — to deposit enough ink film for the colors sitting above it. When stacking halftone colors in a simulated process build, higher mesh counts (160–230) give you better dot definition but thinner deposits, which affects how much each layer covers what's beneath it. Choose your mesh per station based on the function that color is serving in the sequence, not a one-size standard.

Fast Fixes That Sharpen Your Color Layering

Ink Viscosity Adjustments

Ink viscosity has a direct impact on how cleanly your color sequence executes. Ink that's too thick builds up on the screen and drags at transitions between color zones. Ink that's too thin bleeds beyond the stencil edge and spreads into adjacent color areas. Both problems are fixable on press before they compound across a full run.

A few adjustments you can make quickly:

• Use a curable reducer to thin plastisol — it maintains wash durability unlike standard mineral spirits extenders
• Test ink viscosity with a #4 Zahn cup for high-volume runs where batch-to-batch consistency matters
• For wet-on-wet printing, slightly stiffer inks reduce screen pickup and bleed between stations
• For simulated process builds, thinner ink films print sharper halftone dots with less dot gain

Trap and Choke in Your Artwork

Trap and choke decisions in your film separations are the upstream fix for bleeding between sequence layers — and they need to happen before the job hits the press. A trap spreads one color into an adjacent one to prevent gaps at registration shifts. A choke shrinks one element so an adjacent color overlaps it cleanly. These are separation decisions, not press decisions, but they have a direct impact on how your color sequence reads on the finished garment.

Standard trap values for screen printing run from 0.25pt to 0.5pt depending on your press registration tolerance. Tighter registration systems can run tighter traps. Older presses with more movement in the platen arms need more generous overlap to compensate. Match your trap values to your actual press capability, not a generic standard.

Warning: Don't try to fix misregistration gaps between colors by adjusting on press — gaps between sequence layers are always a film separation problem first, not a press problem.

How Print Shops Handle Color Order in Practice

Spot Color Jobs

For a standard four-color spot job on a white shirt — say, navy, red, gold, and black — most shops run in this order: gold first, then red, then navy, then black. Gold goes first because it's the least opaque and most vulnerable to contamination. Red is next, with enough opacity to print cleanly over any gold overlap. Navy third. Black closes the sequence because it has the highest pigment density and can cover minor inconsistencies in the layers beneath it.

That sequence often requires no mid-run flashes if the ink areas don't significantly overlap. The light-to-dark rule holds, but the decision about what counts as "light" is based on opacity — not the literal color value you'd perceive when looking at the ink in a bucket.

Simulated Process Builds

Simulated process printing on dark garments changes the equation. Your sequence typically starts with an underbase white — flashed — then moves through a highlight white, followed by halftone colors in a sequence driven by dot gain characteristics rather than opacity alone. Many shops run highlight and mid-tone colors early in the stack, with the black halftone as the final station to sharpen detail and anchor the image.

If you're working with water-based inks on dark garments, the sequencing logic shifts again. Water-based inks have significantly lower opacity than plastisol, which makes underbase strategy even more critical and changes how you think about layering order. The guide on screen printing with water-based ink on dark garments covers how that changes your press approach from the ground up.

Production-level shops document their color sequence in the job spec sheet. The press operator doesn't make sequence calls from scratch on every job — the sequence is baked into the job ticket before make-ready starts, reviewed during approval, and repeated exactly on reruns.

Mistakes That Derail Your Print Order

Wet-on-Wet Trapping Errors

The most common wet-on-wet mistake is printing a light, low-opacity ink directly over a wet dark ink without a flash in between. The light ink picks up pigment from the wet dark layer, shifts in hue, and can partially lift when the next screen comes down. By the time you notice it, you've already run fifty garments with contaminated color and you're looking at a reprint.

Watch for these warning signs that your wet-on-wet sequence has a problem:

• Your squeegee is dragging heavier than expected on a particular station — wet ink from a previous station is building on the screen
• Light ink colors look dull or hue-shifted compared to the ink straight from the bucket
• You see a faint ghost of a previous screen's image appearing inside a later color area
• Ink is picking up on the back of the screen rather than depositing cleanly on the garment

Underbase Miscalculations

An underbase that's too thin doesn't give subsequent colors a neutral white surface — garment color bleeds through and shifts every ink above it. An underbase that's too thick creates a raised, spongy surface that causes later screens to print unevenly and can crack after washing.

Getting underbase right is a balance between mesh count, squeegee pressure, and ink viscosity. Compensating for a thin underbase with multiple passes compounds the problem — you end up with an overloaded deposit that over-gels inconsistently under the flash. Get it right on the first pass by selecting the correct mesh for your ink volume before the job starts, not after the first prints reveal a coverage problem.

Keeping Your Press Consistent Run After Run

Documenting Your Color Sequence

Consistency across print runs depends on documentation. If your color sequence lives only in the press operator's head, you're one sick day away from a reorder going out in the wrong order. A job ticket that specifies color sequence by station number, flash positions, mesh count per screen, and squeegee durometer gives anyone in your shop enough information to run the job accurately without guessing.

What to capture in every multi-color job ticket:

• Color sequence by station number, with ink name and mix formula
• Which stations have flash cures positioned after them
• Ink system (plastisol, water-based, discharge) and any modifier ratios
• Mesh count per color screen and squeegee durometer
• Off-contact distance setting
• Press sheet approval with sign-off before full production starts

Press Checks and Approvals

A press check before full production is the most reliable way to catch sequence problems before they scale into a full run. Print ten to twenty garments, pull them for inspection under consistent lighting, and compare against your approved color proof. Hue shifts, bleed issues, and opacity failures all show up at this stage when they're still correctable.

Press checks also let you verify flash cure timing between stations. Pull a garment after each flash station and check gel with your fingernail — a properly gelled surface should resist pressure without smearing. If you're getting smear, extend dwell time before committing to full production. Catching an under-flash on the first twenty pieces costs ten minutes. Catching it on piece five hundred costs a full rerun.

Maintaining proper screen tension between jobs is equally important. Screens that lose tension over time deposit inconsistent ink films — and inconsistent ink films make your carefully planned color sequence unpredictable no matter how well you've set up the press order itself.

Frequently Asked Questions

The right screen printing ink color order isn't a universal rule — it's a decision you make fresh on every job, based on opacity, ink system, and what your press is actually telling you.
