How to Screen Print with Water-Based Ink on Dark Garments

A local print shop owner once spent an entire afternoon reprinting twenty black hoodies. The first batch had come out faded and patchy, with barely visible designs. The culprit was a simple mismatch between technique and material — a mistake many encounter when first attempting water based ink screen printing dark shirts.

Dark garments present a unique challenge in screen printing. The deep fibers of black, navy, or charcoal fabric absorb light-colored inks, muting them significantly. Water-based inks, while celebrated for their soft hand feel and environmental profile, require a specific process to achieve opacity on darker substrates (base materials). Unlike plastisol inks, which sit on top of the fabric, water-based formulas bond with the fibers themselves — a characteristic that demands extra preparation. For a deeper comparison of ink types, see this guide to plastisol vs water-based screen printing ink.

This guide covers everything needed to approach dark garment printing with water-based inks — from setting up correctly to caring for finished pieces so the design lasts through many washes.

Getting Started: Skill Level and Equipment Needs

What Beginners Need to Know

Water-based ink on dark shirts is not the most forgiving starting point for new printers. Beginners often underestimate the number of passes and preparation steps required. That said, the fundamentals are learnable with practice. A beginner needs a properly tensioned screen, the correct mesh count, and an underbase — a white or light-colored first layer printed beneath the main design to boost color brightness on dark fabric. Without these three elements, results will disappoint regardless of ink quality or brand.

Starting with lighter garments first builds foundational skills. Once a printer understands squeegee (the rubber blade used to push ink through the screen) pressure and ink consistency, transitioning to dark garments becomes more manageable. Many hobbyists find success after ten to fifteen focused practice prints on scrap fabric.

Advanced Considerations

Experienced printers bring additional techniques to the process. Discharge printing — a method using a chemical activator to remove the garment's dye rather than layering ink on top — is one advanced approach well-suited to water-based inks on dark fabrics. The result is a very soft, vintage-feel print with no raised texture. However, discharge requires precise temperature control during curing and works exclusively on 100% reactive-dyed cotton garments.

Advanced setups also rely on varied mesh counts: 60 to 86 mesh for heavy underbase deposits, and 110 to 156 mesh for fine color detail on top. Understanding how to stretch and re-tension screen printing mesh properly becomes critical at this level, since a sagging screen destroys registration — the precise alignment of multiple color layers.

Separating Fact from Fiction About Water-Based Ink on Dark Shirts

The Coverage Myth

A persistent belief holds that water-based inks simply cannot achieve adequate coverage on dark garments. This is partially true but significantly overstated. High-solids water-based inks — formulas with a higher concentration of pigment and binders — are specifically engineered for opacity on dark substrates. Several leading brands now offer water-based whites that rival plastisol in coverage when applied with a proper underbase and sufficient passes. The ink itself is rarely the limitation. Technique and preparation are.

Pro insight: Always use a dedicated high-opacity water-based white for underbasing on dark shirts — standard white formulas will not provide adequate coverage, even with multiple squeegee passes.

The Complexity Myth

Some assume that printing water-based ink on dark shirts demands industrial equipment and a large shop setup. In reality, many small operations and serious hobbyists achieve excellent results on manual presses. What matters more than equipment scale is consistency — consistent squeegee pressure, consistent ink viscosity (thickness), and consistent curing temperature. According to the Wikipedia overview of screen printing, the craft has relied more on skill than on machinery for centuries. That principle holds true today.

Critical Mistakes That Ruin Dark Shirt Prints

Underbase Errors

The most common failure in water based ink screen printing dark shirts is a weak or missing underbase. Printing colors directly onto dark fabric without a white underbase produces dull, nearly invisible results. The underbase must be fully flashed — partially cured with heat — before printing subsequent color layers on top. Applying wet ink over wet ink causes colors to bleed together and creates muddy, undefined edges.

A second underbase error is insufficient ink deposit on the first pass. Printers often rush through the underbase layer, assuming one stroke is enough. Dark shirt printing typically requires two firm, deliberate passes of high-opacity white ink before the flash cure step. Skipping the second pass is one of the most reliable ways to produce a disappointing final print.

Mesh Count and Pressure Issues

Using the wrong mesh count undermines even skilled technique. Too fine a mesh restricts ink flow for heavy underbase applications. Too coarse a mesh produces a grainy print with poor detail. For dark garment work, an 86-mesh screen is a reliable starting point for underbase layers. Finer color details can then use 110 to 156 mesh on subsequent layers.

Squeegee pressure introduces another common error. Excessive pressure pushes ink under the screen's edges, blurring fine lines and ruining detail. Insufficient pressure leaves gaps and thin, uneven coverage. Consistent, firm strokes at a 45-degree angle to the screen frame produce the most even ink deposit across the garment surface.

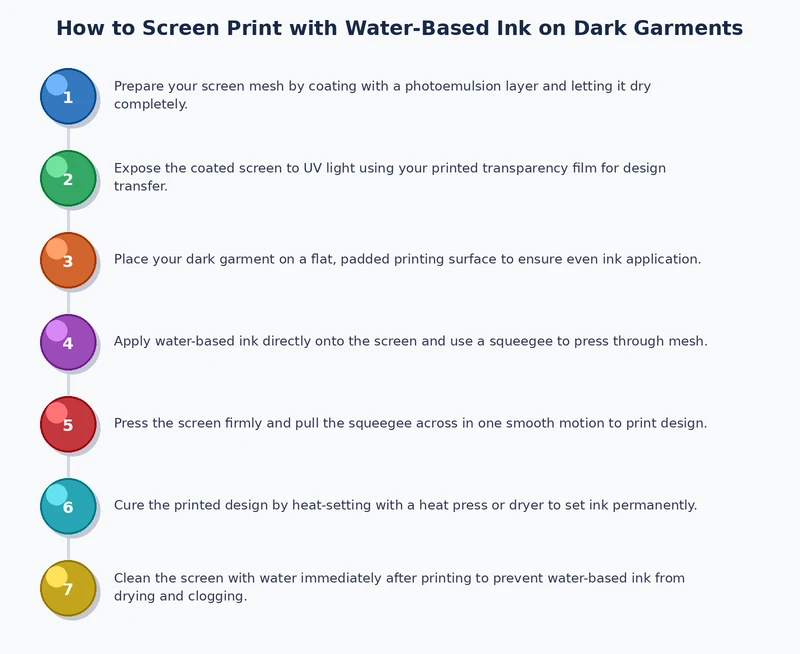

Step-by-Step: How to Screen Print Dark Garments with Water-Based Ink

Preparation and Screen Setup

Preparation determines the outcome before a drop of ink reaches the fabric. The following sequence outlines a reliable approach for dark shirt printing with water-based inks.

• Coat the screen with emulsion (a light-sensitive chemical that creates the stencil) and allow it to dry completely in a dark room before exposure.
• Burn the image onto the screen using a UV light source, then wash out the unexposed emulsion with water to reveal the open stencil area.
• Mount the screen on the press and secure the garment to the platen (the flat board the shirt rests on) using spray adhesive or platen tape.

Screen tension deserves careful attention at this stage. A loose screen causes ink to smear and layers to misalign. Testing tension with a tension meter before printing saves significant time and materials. Catching a sagging screen before printing begins is far more efficient than diagnosing the problem mid-run.

The Printing Process

With the screen in place and the shirt secured, printing begins with the underbase layer. Apply high-opacity white water-based ink and make two firm passes with the squeegee. Flash cure the underbase at approximately 260–280°F (127–138°C) until it is dry to the touch but not fully cured. Then print color layers in sequence, flashing between colors as needed to prevent bleed.

The final cure step is where many prints fail. Water-based inks require the full ink film to reach at least 320°F (160°C) to bond permanently with the fibers. Under-curing is the leading cause of wash-out failure in water-based dark shirt printing. For shops without a conveyor dryer, the guide on how to cure screen printing ink without a flash dryer offers practical alternatives suited to smaller operations.

Comparing the Benefits and Drawbacks

Key Benefits

Water-based inks offer advantages that appeal to both environmental and aesthetic priorities. The hand feel — the texture of a print when touched — is notably softer than plastisol. Designs printed with water-based inks feel integrated into the fabric rather than sitting on top of it. This quality is especially valued in fashion-oriented and retail markets, where consumers expect a garment to remain comfortable after printing.

Drawbacks to Consider

The comparison above reflects the trade-offs most printers encounter in practice. Water-based inks demand more precision but reward that precision with superior softness and a reduced environmental footprint. Plastisol remains more forgiving for beginners and high-volume runs on dark garments. Neither option is universally superior — the choice depends on end-use requirements, production volume, and the printer's skill level.

Washing and Long-Term Care for Water-Based Printed Shirts

Washing Tips

A properly cured water-based print is genuinely durable. However, washing practices affect long-term appearance. Turning garments inside out before placing them in the wash reduces direct abrasion on the printed surface. Cold water cycles are gentler on ink bonds than hot water, and shorter wash cycles minimize mechanical stress on the design. Bleach should be avoided entirely — even color-safe bleach formulas degrade water-based pigments over repeated use.

High-heat drying is the most common care mistake among end consumers. Repeated exposure to dryer temperatures above 140°F (60°C) can cause the ink film to crack over many wash-and-dry cycles. Air drying or tumble drying on a low-heat setting extends print life considerably and is worth communicating on care tags or hang tags included with finished garments.

Storage and Longevity

Proper storage of printed garments matters more than most printers anticipate. Folding prints directly face-to-face in a warm storage environment can cause ink transfer between garments — a phenomenon called offsetting. Storing finished pieces in a cool, dry space with tissue paper between folded layers prevents this. For operations managing printed inventory, labeling storage boxes with production dates allows rotation of older stock first, reducing the risk of offsetting in long-term storage. Properly cured and carefully maintained water-based prints can hold their quality through fifty or more wash cycles.

Frequently Asked Questions

Mastering water-based ink on dark garments is less about the ink itself and more about disciplined preparation, patient layering, and uncompromising attention to cure temperature.
