How to Stretch and Re-Tension Screen Printing Mesh

Screen printing mesh stretched below 25 N/cm loses ink deposit consistency by up to 40 percent, a threshold documented by mesh manufacturers and validated across production environments globally. Understanding how to stretch screen printing mesh — and when to re-tension existing screens — is essential for printers demanding repeatable, registration-accurate output. Tension deficiencies introduce ink flooding inconsistencies, premature emulsion failure, and snap-off distance problems that compound across long print runs. Operations working across diverse substrates, including those described in the guide to screen printing on denim jackets and jeans, depend on stable mesh tension as the foundation of every other process variable.

Mesh tension is measured in Newtons per centimeter (N/cm) using a tension meter placed flat against the mesh surface. Industry targets range from 25–35 N/cm for general production screens, with halftone and process color work often requiring 30–40 N/cm. Relaxation of 10–15 percent occurs in the first 24–72 hours after initial stretching — a predictable, manageable phenomenon on retensionable frames but a fixed loss on bonded fixed-frame screens. Tension directly affects emulsion adhesion and coat weight, variables examined in depth in the screen printing emulsion guide.

This guide covers diagnostic steps, step-by-step stretching technique, re-tensioning timing decisions, and cost considerations relevant to both new mesh application and screen recovery across wood, fixed aluminum, and roller frame types.

Quick Tension Checks Before a Full Restretch

Before committing resources to a full restretch, operators should determine whether existing tension loss is recoverable. Several rapid diagnostic steps identify the scope of the problem in under five minutes.

• Place a tension meter at nine points across the mesh — center, four midpoints along each side edge, and four corners. Variance greater than 3 N/cm between readings signals uneven stretch distribution, not merely low tension.
• Press lightly on the mesh surface with one finger and observe snap-back speed. Sluggish or absent recovery indicates tension has dropped below 20 N/cm.
• Hold the frame up to a diffuse light source. Visible mesh distortion, weave deformation, or localized sagging confirms that restretching is required.
• Inspect adhesive bond lines for separation. Delamination exceeding 10 percent of the perimeter cannot be corrected without full remeshing.

On retensionable roller frames, operators can adjust tension incrementally — no more than 2 N/cm per pass — and recheck after 30 minutes. Rapid retensioning without pausing risks mesh tearing at the bonding zone. This stepwise approach can recover 5–8 N/cm on screens that have relaxed naturally after initial stretching, without introducing weave damage.

Pro Tip: Always re-verify tension 24 hours after any mechanical adjustment. Mesh continues to relax after tightening — readings taken immediately post-adjustment run 2–4 N/cm higher than the stabilized value.

Mesh Count, Thread Diameter, and Tension Mechanics

Screen printing mesh is woven from monofilament polyester threads. Mesh count — expressed as threads per inch (TPI) — directly determines maximum achievable tension and appropriate ink viscosity range. Higher mesh counts use thinner threads, which reach target tension at lower elongation percentages but tolerate less mechanical stress during stretching. Managing this relationship correctly is what separates controlled screen preparation from guesswork.

According to Wikipedia's overview of screen printing, mesh selection affects both ink deposit thickness and image resolution simultaneously — two variables that move in opposite directions as mesh count increases. Understanding how thread geometry interacts with tension targets is the starting point for rational mesh specification.

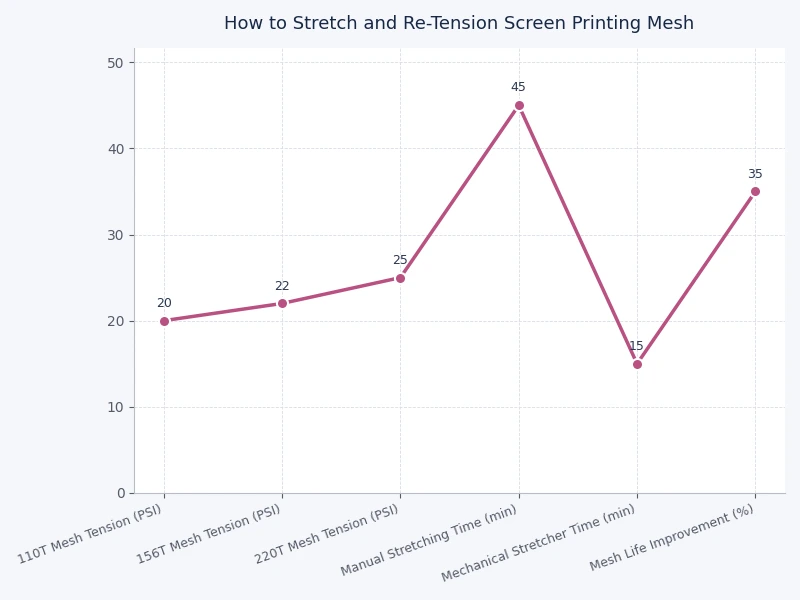

Mesh Count Selection by Application

• 40–86 TPI: Heavy ink deposits, glitter, and specialty inks. Target tension: 18–25 N/cm.
• 110–160 TPI: General plastisol printing on apparel. Target tension: 25–32 N/cm.
• 180–230 TPI: Fine detail, four-color process, and halftone work. Target tension: 30–38 N/cm.
• 280–355 TPI: Ultra-fine detail, UV inks, and electronics applications. Target tension: 35–45 N/cm.

Thread diameter, expressed in microns, interacts with mesh count to determine open area percentage — the ratio of void space to thread material. Higher open area accelerates ink passage but reduces the emulsion mechanical anchoring surface available. Operators choosing mesh for halftone applications should cross-reference open area percentage against emulsion over mesh (EOM) specifications from their emulsion supplier before committing to a mesh specification.

Achieving Uniform Tension Across the Frame

Uniform tension is more operationally important than peak tension. A screen measuring 35 N/cm at the center and 22 N/cm at the corners produces worse registration errors than a screen uniformly held at 27 N/cm. Common causes of non-uniform tension include:

• Unequal clamp pressure during pneumatic stretching
• Frame warpage — particularly on wood frames exposed to humidity fluctuations
• Mesh grain misaligned relative to the frame axis — deviation beyond 5 degrees introduces biaxial tension imbalance that cannot be corrected after bonding
• Adhesive applied unevenly, creating differential bonding zones with inconsistent stiffness

Consistent alignment using screen printing registration marks depends entirely on uniform mesh tension. A screen with more than 4 N/cm variance across its surface shifts ink deposit position between strokes, making multi-color alignment unreliable across a production run.

When Re-Tensioning Is Appropriate and When Replacement Is Required

Not every instance of tension loss warrants the same response. Operators who default to full mesh replacement at the first sign of low tension incur unnecessary costs. Equally, delaying replacement on genuinely degraded mesh compromises print quality and risks catastrophic mid-run failure.

Signs of Low Tension in Production

The following symptoms correlate reliably with tension loss and should trigger an immediate tension meter reading:

• Ink smearing or bleeding at design edges despite correct squeegee pressure and durometer selection
• Increased snap-off distance required to prevent mesh from sticking to the substrate after each stroke
• Off-registration drift that worsens progressively across a print run rather than remaining static
• Emulsion breakdown along stencil edges after fewer exposures than the expected screen service life
• Uneven ink deposit producing visible light and dark zones within solid-color fills

Many of these symptoms overlap with other causes — squeegee durometer, ink viscosity, and flood bar pressure all produce similar indicators. Before attributing print defects exclusively to tension, rule out ink and tooling variables. The HSA inks screen printing water-based guide covers viscosity troubleshooting that intersects directly with tension-related symptoms. Print adhesion failures across decoration methods share diagnostic parallels as well — the resource on why heat transfers peel off illustrates the structured diagnostic logic that applies equally well to screen printing defect analysis.

When to Replace Rather Than Re-Tension

Re-tensioning is not appropriate under the following conditions:

• Mesh tears or pinhole damage: Any physical breach in the weave requires full replacement. Re-tensioning increases stress on compromised threads and accelerates failure.
• Adhesive delamination exceeding 20 percent of the bond line: Partial re-adhesion creates tension gradients worse than starting from a fresh stretch.
• Mesh degradation from abrasive inks: Specialty abrasive formulations wear thread surfaces over time. Worn threads cannot hold tension evenly regardless of the force applied.
• Permanent set (creep deformation): Mesh held under excessive tension for extended periods loses elastic recovery. Readings may appear acceptable, but the mesh no longer snaps back cleanly between strokes.
• Wood frame warpage: A warped frame cannot produce planar tension. Re-tensioning mesh on a warped frame compounds the non-uniformity problem.

The economics of screen printing relative to other decoration methods — analyzed in the screen printing vs heat transfer vinyl comparison — underscore why mesh longevity directly affects per-unit cost competitiveness. Premature mesh replacement erodes the cost advantage that screen printing holds at volume.

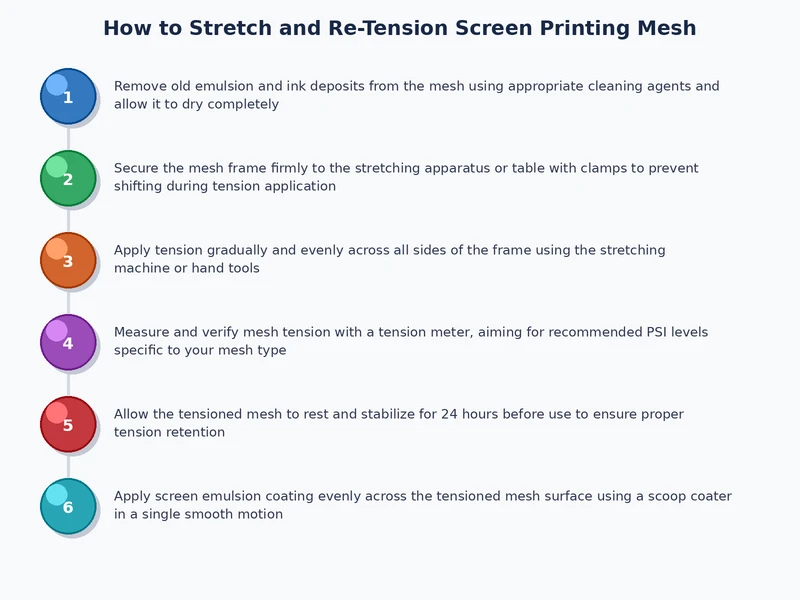

How to Stretch Screen Printing Mesh: Step-by-Step Technique

The core process of how to stretch screen printing mesh involves three sequential phases: mechanical elongation, adhesive bonding, and post-stretch stabilization. Each phase has narrow tolerance windows — errors at any stage require restarting from the mesh cutting step.

Pneumatic and Roller Frame Stretching

Pneumatic rigs use air-actuated clamps on all four sides of the mesh sheet. Roller frames achieve the same elongation through gear or ratchet mechanisms built into the frame perimeter. Both methods produce superior results to manual plier stretching at any volume above hobby scale.

Pneumatic rig procedure:

• Cut mesh to frame dimensions plus 3–4 inches of overhang on each side.
• Align mesh grain parallel to the frame edge. Deviation beyond 5 degrees introduces biaxial tension imbalance that cannot be corrected after bonding.
• Attach clamps starting at the center of each side, working outward toward corners symmetrically.
• Apply tension in 2–3 N/cm increments on all four sides simultaneously, alternating sides with each increment to maintain uniform elongation.
• Target 10–15 percent above the desired final tension to compensate for adhesive cure relaxation.
• Pause 5 minutes at target tension before reading the meter — immediate readings are consistently elevated above the true value.

Roller frame procedure:

• Thread mesh through the roller channel on all four sides before tightening any roller.
• Apply hand tension to remove slack, then secure locking pins or clips on all sides.
• Use the provided key or wrench to tension in quarter-turn increments, alternating between opposing rollers on each pass.
• Check tension after each complete rotation sequence across all four rollers before proceeding to the next increment.

Adhesive Bonding and Cure Time

Mesh-to-frame adhesive is applied while the mesh is held under full tension on a pneumatic rig. Roller frames mechanically retain the mesh without adhesive — a significant advantage for operations requiring rapid screen turnaround or frequent mesh replacement.

For fixed-frame bonding:

• Apply frame adhesive — typically a two-part epoxy or UV-cure formulation — to the frame perimeter while the mesh is at full pneumatic tension.
• Allow complete adhesive cure before releasing clamps. Premature release allows the mesh to retract before the adhesive sets, reducing final tension by 4–8 N/cm.
• Two-part epoxy systems typically require 20–30 minutes under clamp pressure. UV-cure systems reduce this to 2–5 minutes with a dedicated UV lamp.
• After cure, trim excess mesh flush with the outer frame edge using a sharp blade held perpendicular to the adhesive line.

Screen maintenance directly affects the longevity of finished printed products across the entire production chain. Readers tracking garment quality from screen preparation through final product care will find complementary information in the guide on washing and caring for screen printed shirts.

Post-Stretch Stabilization

All monofilament polyester mesh undergoes relaxation after initial stretching. This is a predictable material property, not a failure mode. Managing relaxation is where retensionable frames deliver their primary economic advantage over fixed-frame screens.

• Read tension 24 hours after clamp release. Expect 10–15 percent loss from the clamped reading.
• On roller frames, retension incrementally to target using the same quarter-turn alternating sequence used during initial stretching.
• Repeat the 24-hour check. Most mesh stabilizes within 48–72 hours of initial stretching under normal ambient conditions.
• Fixed-frame screens cannot recover relaxation loss. Stretching 10–15 percent above target before bonding is the only available mitigation on these frame types.
• Do not coat or expose screens until tension has fully stabilized. Emulsion applied to unstabilized mesh loses registration integrity as the screen continues relaxing during production use.

Cost and Equipment Breakdown for Mesh Stretching

Mesh stretching costs vary significantly depending on whether a shop outsources screen preparation, invests in entry-level DIY equipment, or commits to professional in-house capability. Each tier delivers a different cost-per-screen profile at production scale, and the right choice depends on monthly screen volume and tension accuracy requirements.

Entry-Level Stretching Options

Low-volume operators benefit from outsourcing mesh stretching to specialty suppliers or purchasing pre-stretched screens. These options minimize upfront investment but limit frame reuse, tension customization, and turnaround control.

• Pre-stretched fixed aluminum screen (20×24 inch): $15–$35 per screen, depending on mesh count
• Outsourced stretching service (per screen): $8–$20, depending on frame size and regional service availability
• Manual stretching pliers plus two-part epoxy (DIY fixed frame): $20–$50 initial setup; $3–$8 per screen in materials ongoing
• Basic roller frame (20×24 inch): $45–$90 per frame; mesh rolls cost $0.50–$1.50 per linear foot

Professional Equipment Investment

High-volume operations justify pneumatic stretching rigs, which produce more uniform tension than manual methods and reduce per-screen labor time significantly. The tension consistency achievable on a pneumatic rig is not replicable by hand at production speed.

• Entry pneumatic stretching unit: $800–$2,500. Appropriate for shops stretching 20–50 screens per month.
• Mid-range pneumatic rig with integrated tension meter: $3,000–$6,000. Produces repeatable results at 30–40 screens per session.
• Newman Roller professional frame system: $150–$300 per frame with indefinite service life under proper maintenance protocols.
• Digital tension meter: $150–$400. A non-negotiable investment for any operation producing halftone or process color work at volume.

The break-even point for in-house pneumatic capability versus outsourcing typically falls between 800 and 1,200 screens, depending on local service costs. Shops building decoration volume across multiple production methods — including operations described in the hoodies and sweatshirts heat press guide — generally recover equipment cost within 12–18 months of consistent use at that throughput level.

Frequently Asked Questions

Final Thoughts

Proper mesh tensioning is not a peripheral concern — it is the mechanical foundation on which every other screen printing variable depends. Operators who invest in accurate tension measurement, appropriate frame selection, and disciplined post-stretch stabilization protocols consistently outperform those who treat mesh preparation as a low-priority step. Begin by evaluating the current tension on every screen in active production rotation with a calibrated tension meter, determine which frames warrant re-tensioning versus full replacement using the criteria outlined above, and apply the incremental stretching technique described in this guide to establish a baseline of uniform, stable tension across the entire screen inventory.
