How to Set Up a Screen Printing Washout Booth at Home

Your screen printing washout booth setup begins with one non-negotiable principle: clean screens produce clean prints, and a properly built washout station makes clean screens achievable on every single run. A washout booth is a dedicated, waterproof enclosure equipped with a water supply, a drainage system, and a light source for inspecting screens to verify complete emulsion (light-sensitive coating) removal. Before committing to a specific booth design, review the full guide on building a screen printing studio at home to understand how your washout station integrates with your exposure unit, squeegee rack, and ink storage area.

The washout booth sits at the intersection of chemistry and craft. Every screen you coat with emulsion and expose under UV light must pass through the washout phase before it transfers a single image to fabric. Rushed or improper rinsing leaves emulsion residue that clogs the mesh, distorts design edges, and causes ink to bleed across prints in ways that are impossible to correct after the fact. The quality of your washout station directly determines the sharpness, consistency, and repeatability of every print you produce.

This guide covers location selection, enclosure construction, plumbing, lighting, daily maintenance, and long-term scaling in clear, actionable steps. Whether you are printing a dozen cotton shirts per week or working with specialty substrates like screen printing on denim jackets and jeans, the washout booth principles that govern your results remain constant and unforgiving.

Setting Up Your Screen Printing Washout Booth: A Step-by-Step Process

The screen printing washout booth setup process follows a fixed logical sequence: select your location, build or install your enclosure, connect your water supply and drainage, then add your lighting and accessories. Skipping any step creates problems that grow more expensive and disruptive to correct once you are printing at regular volume.

Choosing the Right Location

Your location determines every subsequent decision in your washout booth build. Evaluate candidate locations using these criteria, in this exact order of priority:

• Proximity to a drain: The closer your booth is to an existing floor drain or utility sink, the less plumbing work you face. Every additional foot of drain run increases slow-drainage risk and emulsion buildup inside the pipe.
• Access to both hot and cold water: Cold water alone does not dissolve emulsion residue efficiently in cool garage or basement environments. You need both supply lines, or a water heater within reasonable connection distance.
• Ventilation: Screen reclaim chemicals release fumes that accumulate in enclosed spaces. A basement or garage with a functioning window or exhaust fan is far safer than an interior room without dedicated airflow.
• Floor surface: Concrete handles water, supports heavy aluminum frames, and drains without warping. Do not place a washout booth over a wood subfloor without first installing a continuous waterproof membrane beneath the booth footprint.
• Electrical access: Your backlighting panel requires a grounded outlet within reach. Identify your power source before finalizing your booth location to avoid running extension cords across wet floors.

Building or Installing the Enclosure

Your enclosure must be waterproof on all interior surfaces and large enough to accommodate your largest frame with room to maneuver a spray nozzle around the perimeter. For most home printers working with frames up to 20" × 24", an interior space measuring 30" wide × 24" deep × 36" tall provides comfortable working clearance.

Choose one of these three construction approaches based on budget and build experience:

1. Modified utility sink: A large stainless steel utility sink mounted at counter height with a splash-back panel secured above the basin. This is the fastest, most affordable, and most reliable option for low-to-medium volume home operations, with total costs typically under $120.
2. Custom plywood enclosure with fiberglass liner: Frame your booth from 3/4" exterior-grade plywood, apply two full coats of fiberglass resin to all interior surfaces for complete waterproofing, and install a PVC drain fitting at the lowest interior point. This approach costs more in materials but delivers precise dimensions matched to your specific frame sizes.
3. Pre-fabricated commercial washout booth: Ready-to-connect units from suppliers such as Lawson Screen & Digital Products include integrated backlighting and purpose-built drain fittings, though these units typically cost between $300 and $800 depending on size and included features.

Plumbing and Drainage Essentials

Your plumbing does not need to be elaborate, but it must meet specific performance standards to support reliable screen development. Follow these specifications without compromise:

• Use a 1/2" supply line for adequate water volume at the nozzle tip. A 3/8" line restricts flow, extends washout time by 30 to 50 percent, and creates frustration during high-volume sessions.
• Install a ball valve shutoff at the wall supply independently from your nozzle trigger so you can isolate the line immediately if a fitting fails or leaks during a session.
• Route your drain into a utility sink P-trap or floor drain connected to your municipal sewer system, not directly into a storm drain or outdoor drainage channel. The EPA's guidance on nonpoint source pollution makes clear that even water-based chemicals should pass through municipal treatment, not storm water infrastructure.
• Pitch your drain line at a minimum of 1/4" drop per foot of horizontal run to prevent standing water and emulsion solid accumulation inside the pipe.

Pro Tip: Secure a mesh lint trap over your drain opening to catch emulsion solids before they enter your plumbing — make cleaning this trap a non-negotiable step at the end of every single session.

Quick Improvements You Can Make Today

If your existing washout area is functional but producing inconsistent results, several targeted upgrades deliver immediate, measurable improvement without requiring a complete rebuild of your setup.

Upgrading Your Lighting

The single highest-impact upgrade you can make to an underperforming washout station is adding a backlit inspection panel. A 2' × 2' LED panel mounted behind a frosted acrylic sheet on the back wall of your booth costs under $60 and eliminates the guesswork involved in determining whether fine detail areas have fully cleared. Without backlighting, you are rinsing by feel and hope, and you will under-wash fine halftone and small-text areas far more frequently than you realize until you see the consequences during printing.

Selecting the Right Nozzle

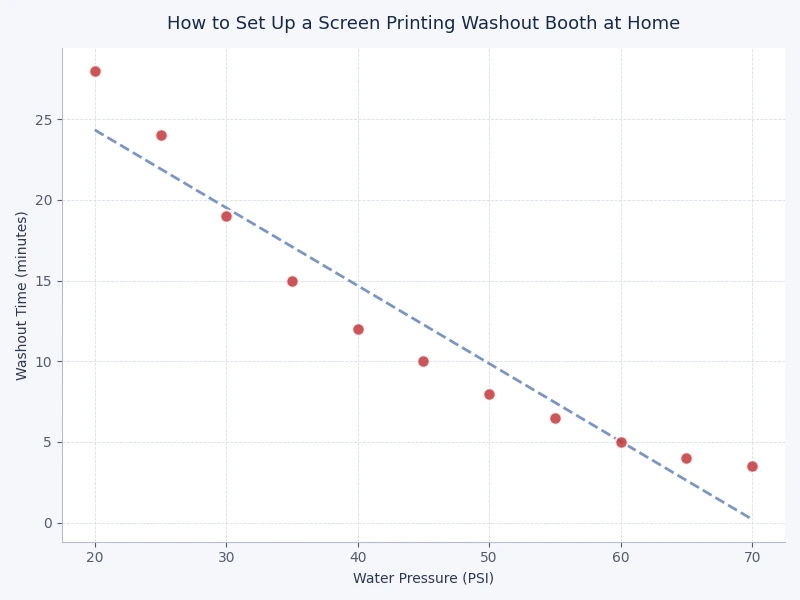

Your nozzle choice simultaneously affects washout speed and mesh longevity. Use these specifications to select the correct tool for your mesh count:

• A fan-pattern spray nozzle operating at 40 to 60 PSI is the correct tool for most mesh counts between 110 and 230 threads per inch (TPI).
• High-pressure jet nozzles damage mesh at fine counts of 200 TPI and above when applied within six inches of the surface, and the resulting mesh distortion creates permanent registration problems.
• A garden hose set to shower mode provides acceptable pressure for coarse mesh counts in the 86 to 110 TPI range, but it cannot clear fine halftone dots reliably at 160 TPI and above.
• If your measured nozzle pressure drops below 30 PSI, install an inline booster pump rather than accepting the performance penalty of inadequate pressure.

Mesh quality and tension determine how your screens respond to both exposure and washout. If washout problems persist despite adequate water pressure, the root cause is likely loose mesh rather than poor technique. Review the complete process in our guide on how to stretch and re-tension screen printing mesh before attributing poor washout results to other variables.

Washout Booth Myths That Waste Your Time and Money

Several persistent misconceptions circulate in home screen printing communities and consistently lead beginners into costly mistakes. Address each one before it costs you screens, prints, or plumbing repairs.

The Garden Hose Myth

Many beginners assume a garden hose used in a bathtub constitutes a workable long-term washout station. It does not. The bathtub surface scratches aluminum frames and deposits mineral residue on mesh, the hose lacks directional control adequate for fine detail areas, and the absence of a backlight panel means you cannot verify complete emulsion removal with any consistency. Start with a dedicated booth; the cost of replacing a single damaged screen or reprinting a failed run exceeds the cost of a basic washout station built from a utility sink and a fan-spray nozzle.

The Any-Sink Myth

A kitchen or bathroom sink is not an acceptable substitute for a dedicated washout booth, regardless of its size or basin depth. These surfaces are not designed for exposure to emulsion remover, screen degreaser, or haze remover, the standard working height is wrong for handling large frames without back strain, and emulsion particles and chemistry should not enter kitchen or bathroom plumbing. Reserve your washout chemistry exclusively for dedicated utility plumbing connected to the correct drain system, and do not compromise on this point.

Pro Tips for a Flawless Washout Every Time

The difference between a sharp, clean screen and a clogged, degraded one is almost always technique applied consistently rather than equipment quality. These practices separate printers who achieve reliable results from those who blame their tools.

Timing Your Washout Correctly

Begin rinsing your screen within five minutes of completing UV exposure. Exposed emulsion continues to harden under ambient light and UV, meaning that every minute of delay makes removing the unexposed emulsion in your image area progressively more difficult. Follow this exact sequence for consistent results:

1. Remove the screen from the exposure unit and transport it immediately to your washout booth, shielding it from direct sunlight or strong fluorescent light during the walk.
2. Pre-wet both sides of the screen with cool water for 30 to 45 seconds, allowing the unexposed emulsion in your image area to absorb water and soften before any pressure is applied.
3. Apply your fan-spray nozzle to the squeegee side (the flat, ink-facing side) first, working in overlapping horizontal passes from top to bottom at a distance of 6 to 10 inches from the mesh surface.
4. Flip the screen and repeat on the substrate side, directing particular attention to fine text, thin line work, and halftone dot areas where incomplete washout is most common and most consequential.
5. Hold the screen against your backlit inspection panel and examine the entire image area methodically; any remaining cloudiness or opacity indicates emulsion residue that requires additional targeted rinsing before the screen is acceptable for printing.

Reading the Screen Against Light

Learning to read a screen against backlighting becomes second nature within a few weeks of consistent printing, but the skill requires deliberate attention in the early stages. When you hold a correctly washed screen against your light panel, the open image area must appear completely transparent and clear, with absolutely no milky haze, clouding, or visible film of residue. Any opacity in the image area means ink transfer will be partially or fully blocked, resulting in weak prints, pinholes, or inconsistent coverage that cannot be corrected on press. Do not proceed to printing until every screen passes this inspection without exception.

Warning: Never try to clear a partially washed screen by forcing ink through the mesh during printing — this embeds emulsion solids into the mesh structure and makes the screen nearly impossible to reclaim for future use.

Understanding the technical demands of multi-color screen printing helps you appreciate why precision at the washout stage matters so significantly. The complete explanation of 4-color process screen printing demonstrates how registration, mesh tension, and clean image areas interact to produce professional-quality results across all color separations.

Planning Your Washout Station for Growth

A washout booth that handles 10 screens per week without strain cannot automatically scale to 50 screens per week without modifications. Plan your booth for future volume from the initial build phase so that your washout station grows with your operation rather than constraining it.

Integrating a Reclaim Workflow

Screen reclaiming — the process of removing ink, emulsion, and haze from used screens to prepare them for recoating — happens in the same washout booth where you develop new screens. Design your booth to support both workflows simultaneously by incorporating these elements from the beginning:

• A dedicated shelf or lean-rack positioned outside the spray zone where screens awaiting development can stand upright without contaminating one another.
• A chemical caddy or pegboard panel mounted to the exterior wall of your booth, holding emulsion remover, screen degreaser, and haze remover (a chemical that removes staining from reclaimed mesh) within arm's reach without requiring you to leave the booth area.
• A vertical screen holder mounted inside the booth that allows screens to stand during pre-wet and chemical dwell stages without requiring you to hold them manually, freeing your hands for nozzle operation.

If you plan to grow your printing operation into a revenue-generating business, the washout booth is one of the first production elements that constrains throughput as volume increases. Understanding the relationship between production capacity and order fulfillment is essential before you commit to a booth size and configuration, and our guide on how to sell custom t-shirts on Etsy walks through how operational decisions at the studio level affect your ability to fulfill customer orders reliably.

Scaling Up Without Rebuilding

When your printing volume outgrows your current booth's throughput capacity, execute these upgrades in sequence rather than replacing the entire unit:

1. Add a second supply line with its own independent ball valve shutoff, enabling pre-wet and pressure rinse operations to run simultaneously across two screens.
2. Extend the booth opening width to accommodate larger frames without rotating them during the rinse process, which introduces handling errors and increases the risk of frame damage.
3. Install a pressure-regulating valve and inline gauge on your supply line so you can dial in precise PSI for different mesh counts without changing nozzle heads between screens.
4. Add a dedicated hot water line if your emulsion removers specify warm water activation, which most solvent-enhanced removers do.

Cleaning and Maintaining Your Washout Booth

A neglected washout booth becomes a source of contamination that compromises every screen you develop or reclaim. Emulsion buildup on booth surfaces transfers to screens during rinsing, backlighting panels clouded with splatter give false inspection readings, and clogged drain traps back up during sessions at the worst possible moments. Establish your maintenance routine in the first week and treat it as non-optional from that point forward.

Daily Cleanup Protocol

Complete these steps after every session before leaving your studio:

• Rinse all interior booth surfaces thoroughly with clean water to flush emulsion residue and chemical splatter toward the drain before it dries and adheres.
• Remove and clean the drain mesh trap, discarding any collected emulsion solids in the trash rather than back into the drain line.
• Wipe down the backlit panel cover with a damp cloth; dried emulsion splatter on the panel surface reduces light transmission and distorts your inspection view in ways that are subtle but consequential.
• Inspect all supply fittings for drips or weeping; a slow fitting drip accumulates into significant water waste, floor slipping hazards, and eventual fitting failure within weeks.
• Allow the booth interior to air-dry with ventilation flowing across the opening; standing water inside a closed booth promotes bacterial and mold growth that degrades emulsion adhesion on future coated screens.

The longevity of your finished garments is directly related to the quality of your screen development and ink cure process. Pair disciplined washout practice with proper garment care by reading the detailed guidance in our article on how to wash and care for screen printed shirts to make them last, which ensures that the quality you built into your print survives the laundry cycle as well.

Chemical Disposal Requirements

Water-based emulsions and water-based emulsion removers are generally acceptable for discharge into municipal sewer systems in home-studio quantities, but solvent-based screen cleaners and plastisol ink solvents require separate handling and must never be poured down any household drain. Check your local municipal authority's guidelines before discharging any screen printing chemistry, and contact your water authority directly if you have questions about specific products or volumes. This is a legal compliance requirement, not a recommendation to consider optionally.

DIY Washout Booth vs. Pre-Built Unit: A Direct Comparison

The decision between building your own washout booth and purchasing a commercial pre-built unit involves trade-offs across cost, customization, setup time, and long-term durability. The table below presents a direct side-by-side comparison to help you choose the correct option for your specific situation.

The recommendation is straightforward: build a DIY utility-sink booth first if your total budget for washout infrastructure is under $200, and upgrade to a commercial pre-built unit once your monthly screen volume justifies the investment. There is no practical reason to spend $600 on a commercial booth if you are developing fewer than 30 screens per month. The DIY build teaches you the plumbing and spatial requirements of your booth, making you a more informed buyer when you eventually choose a commercial unit.

If you are also evaluating alternative printing methods to complement or selectively replace screen printing in your workflow, the in-depth comparison of DTF printing vs. sublimation clarifies where screen printing retains decisive advantages that neither of those technologies can match at scale.

Beginner Washout Setup vs. Advanced Professional Configuration

The gap between a beginner's washout station and a fully configured advanced setup is narrower than most assume. The fundamental components remain identical; the differences lie in precision, operational convenience, and throughput capacity rather than in any fundamentally different approach to developing screens.

The Beginner's Minimum Viable Booth

A functional beginner setup requires four components and nothing more:

1. A large utility sink with at least a 20-gallon basin, mounted at a comfortable working height that allows you to handle a large frame without hunching.
2. A connected hot and cold water supply with a fan-spray nozzle capable of 40 to 60 PSI output at the nozzle tip.
3. A free-standing LED work light or clamp light positioned to shine through the back of your screen during inspection, simulating the function of a built-in backlight panel.
4. A mesh drain trap secured over the sink drain opening to capture emulsion solids before they enter your plumbing.

This configuration costs between $80 and $150 in total and handles most home printing volumes comfortably. Do not over-invest before you understand your actual frame sizes, screen volumes, and chemistry preferences. When your printing grows to include more technically demanding substrates, the disciplined approach you applied to building your washout station will transfer directly, exactly as the techniques described in our guide on how to heat press on spandex and stretchy fabrics require the same methodical foundation to produce reliable results.

The Advanced Home Studio Configuration

An advanced washout booth configuration for a home studio developing 50 or more screens per week should include all of the beginner baseline elements plus the following additions:

• An integrated LED backlighting panel flush-mounted in the rear wall for hands-free screen inspection during active rinsing, eliminating the interruption of picking up a separate light source.
• A pressure regulator and inline gauge on the supply line, enabling precise PSI control matched to specific mesh counts without physically changing nozzle heads between screens.
• A vertical screen rack inside the booth capable of holding two to three frames simultaneously during pre-wet and chemical dwell stages.
• A chemical shelf or pegboard panel mounted above the booth exterior, organizing emulsion remover, degreaser, and haze remover at consistent arm-level reach.
• A UV-blocking curtain across the booth opening to prevent accidental partial re-exposure of freshly developed screens during operation in rooms with strong fluorescent or natural lighting overhead.
• A secondary overflow basin or recessed floor area below the booth to contain runoff during high-volume reclaim sessions when multiple screens are being processed simultaneously.

Frequently Asked Questions

Key Takeaways

• A functional screen printing washout booth setup requires a dedicated waterproof enclosure, both hot and cold water supply, adequate nozzle pressure between 40 and 60 PSI, and a backlit inspection panel — none of these elements are optional if you expect consistent results.
• Begin with a modified utility sink and fan-spray nozzle if your budget is under $150, and upgrade to a commercial pre-built unit only when your monthly screen volume exceeds 30 to 50 screens and your current setup becomes a measurable bottleneck.
• Always inspect every developed screen against backlighting before printing, and never proceed with a screen that shows any cloudiness or opacity in the image area regardless of time pressure or volume demands.
• Clean your booth after every session, check fittings for leaks, clear the drain trap, and verify that your backlighting panel is free of emulsion splatter — a maintained booth produces better screens than a neglected one of higher original quality.
