Off-Contact Distance in Screen Printing: What It Is and Why It Matters

What separates a crisp, registration-tight print from one that bleeds, smears, or pulls the garment off the platen? In most cases, the answer is one measurable variable: off contact distance screen printing operators refer to as the gap between screen mesh and substrate. That small clearance — typically 1.5 mm to 4 mm — controls how cleanly the mesh releases from the print surface after every squeegee stroke. Get it right and the physics do the work. Get it wrong and every pull compounds the defect. This guide breaks down exactly how the gap functions, how to set it, and what happens when it drifts out of spec.

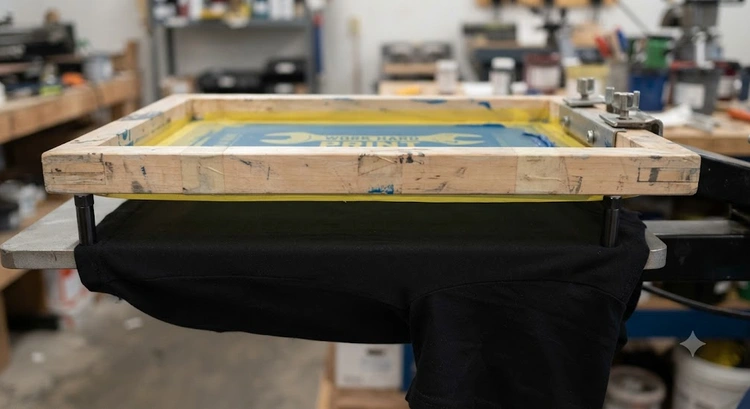

Off-contact distance — also called snap-off or off-contact gap — is the vertical clearance between the bottom of the screen mesh and the top of the substrate when the squeegee is not actively deflecting the screen. As Wikipedia's entry on screen printing notes, the squeegee pushes the screen downward during the stroke; off-contact ensures the mesh springs back the instant the blade passes. That snap-off prevents wet ink from smearing laterally behind the squeegee as the screen lifts away from the substrate surface.

Mesh count interacts with off-contact at every stage of the print cycle. Thread diameter, mesh opening percentage, and ink deposit volume all shift the ideal gap setting for a given job. The screen printing mesh count guide covers how these variables relate to ink flow and image detail — both factors that need to be understood before off-contact can be dialed in correctly. The two variables are inseparable.

Off-Contact Distance in Practice: What the Gap Does

Off-contact is not a passive measurement. It actively shapes the outcome of every stroke. When the squeegee deflects the screen downward and draws across the image area, the tensioned mesh contacts the substrate, transfers ink through open mesh cells, and then recoils as the blade moves past. Off-contact gives the mesh room to execute that recoil cleanly — without dragging wet ink laterally across the substrate surface.

Without adequate gap, the mesh stays in contact with the substrate after the squeegee passes. The wet ink deposit becomes a temporary adhesive bond between screen and garment. The result is smearing in the squeegee direction, garment lift on screen rise, and degraded image edges across the entire print area.

Ink Deposit and Edge Sharpness

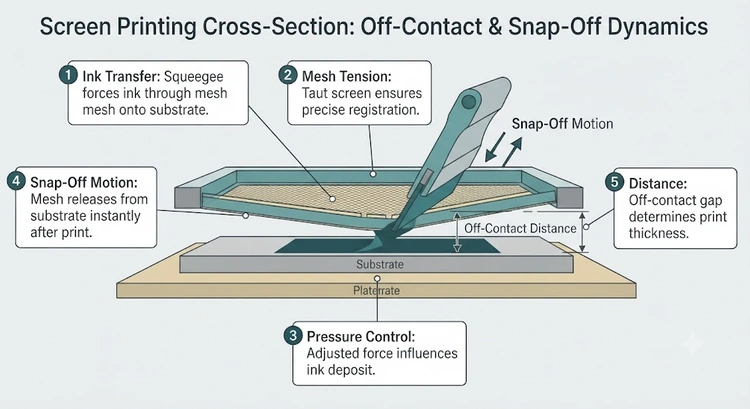

A correctly set off-contact gap produces a rolling release — the contact zone between mesh and substrate stays localized just behind the squeegee blade and travels with it across the image. Ink transfers through the open cells and bonds to the substrate before the mesh lifts away. The emulsion walls contain the ink laterally throughout the stroke.

• Too little gap: mesh stays down after the squeegee passes, pulling ink sideways and blurring edges
• Too much gap: excessive squeegee pressure needed to push ink through, forcing emulsion to flex and spread
• Correct gap: ink snaps off cleanly at the contact line, edges stay within emulsion boundaries, deposit is uniform

Edge definition is the most reliable indicator of correct off-contact distance. Fine-detail elements — halftone dots, thin serifs, fine line work — expose off-contact errors faster than solid fills. A gap that prints an acceptable block of color may still destroy a 65-line halftone. Operators running multicolor and four-color process jobs treat off-contact calibration as a non-negotiable prerequisite before color registration is confirmed.

Substrate Behavior Under the Screen

Different substrates respond differently to the same nominal gap setting. A flat-knit T-shirt on a standard platen behaves differently from a thick hoodie, a foam-fronted cap, or a stacked polo. Substrate thickness raises the print surface toward the screen, effectively reducing the off-contact gap even when the press adjustment has not changed.

Printers working across multiple garment weights — including specialty surfaces covered in detail in guides on screen printing on fleece and terry cloth — consistently find that each substrate category requires its own off-contact calibration. A setting dialed in on a 5 oz. cotton tee may be entirely wrong for a 12 oz. fleece blank. A 3 mm gap on a standard shirt may read as 1 mm or less when a thicker garment raises the platen surface.

Pro tip: Always re-check off-contact distance when switching to a thicker substrate — even a 2 mm difference in garment height can collapse the gap enough to cause persistent smearing across an entire production run.

Setting Off-Contact Distance: A Calibrated Process

Setting off-contact is a repeatable procedure. Most production shops standardize it across all press heads to ensure consistent output operator to operator and shift to shift. The procedure below reflects standard practice on a flatbed manual or automatic textile press.

Measuring and Adjusting the Gap

Industry standard off-contact distance for most textile applications falls between 1.5 mm and 4 mm. Finer mesh counts, higher screen tension, and stiffer plastisol inks tend toward the lower end. Coarser mesh, lower tension, and water-based inks tend toward the upper end.

1. Load the press with the actual substrate that will be printed — not a substitute of similar thickness.
2. Lower the screen to printing position without a squeegee loaded in the carriage.
3. Slide a feeler gauge or calibrated shim under the screen at the center of the image area.
4. Adjust the off-contact bolts or micro-registration stops until the target gap is confirmed at all four corners and at center.
5. Re-check the gap after locking hardware — tightening set screws can shift the screen position by 0.5 mm or more.

Some operators use a business card (approximately 0.5 mm thick) as a quick field reference. A standard playing card runs closer to 0.3 mm. For precision jobs — halftone work, four-color process, fine-line art — a proper feeler gauge set is the minimum acceptable measurement tool. Digital thickness gauges are available for shops with tight quality control requirements.

Testing and Confirming the Setting

Measurement alone does not confirm correct off-contact. A test print is required. Pull one stroke at normal squeegee pressure and angle on the target substrate. Lift the screen and inspect the result systematically:

• Edges should be clean with no ink halo, shadow, or directional bleed
• The mesh should release from the substrate without operator assistance as the screen rises
• No substrate should lift with the screen on the upstroke
• Ink deposit should be consistent from the leading edge to the trailing edge of the stroke
• Image geometry should match the film positive — no distortion from mesh pull

If the substrate lifts with the screen, off-contact is insufficient relative to the ink-to-mesh adhesion. Increase the gap in 0.5 mm increments and re-test. Avoid large adjustments between pulls — small increments isolate the threshold precisely. Large jumps skip over the optimal setting and introduce the opposite defect.

Presses, Screens, and Accessories That Influence the Gap

Off-contact distance does not exist in isolation. Press type, screen frame material, mesh tension level, and squeegee durometer all interact with the gap setting in ways that can either amplify or cancel each other. Understanding those relationships prevents operators from chasing the wrong variable during production troubleshooting.

Manual Press Mechanics

On a manual screen printing press, off-contact is typically controlled via set screws or bolts at the screen clamp block or micro-registration carriage. Most four-color and six-color manual presses allow independent adjustment per head — which matters when screens across a job set are tensioned to different levels after reclaim and re-stretching.

Manual presses introduce operator variability as an unavoidable factor. Different operators apply different squeegee pressure and pull at different speeds, which changes how far the screen deflects toward the substrate during each stroke. A gap confirmed for one operator may be marginally tight for another who applies heavier hand pressure. Production floors running manual equipment typically set off-contact slightly above minimum to provide a buffer against individual variability.

Automatic Press Differences

Automatic presses deliver consistent squeegee pressure and stroke speed across every print cycle. That consistency means off-contact can be set more precisely, and once confirmed, the setting holds across a full production run without operator-to-operator drift. Many automatic press manufacturers publish off-contact setup specifications by mesh count and ink type in their press documentation.

High-output automatics also use pneumatic or servo-driven screen lift mechanisms that maintain precise gap clearance at elevated stroke rates. On a well-maintained automatic press, off-contact variation between strokes is negligible — which shifts troubleshooting focus toward emulsion quality, ink viscosity, and mesh tension rather than mechanical gap variation.

Screen Tension and Frame Type

Screen tension is the single largest modifier of ideal off-contact distance. A screen tensioned to 25 N/cm or above snaps back faster and more completely than one at 12 N/cm. Higher tension supports a smaller off-contact gap, which reduces required squeegee pressure and improves edge resolution across the image.

Wood frames lose tension progressively as the wood absorbs moisture and flexes under repeated printing pressure. Aluminum roller frames and retensionable frames maintain tension more reliably over time, which means the off-contact setting confirmed at job setup remains accurate across the run and across multiple reclaim cycles.

Warning: A screen tensioned below 10 N/cm cannot sustain consistent off-contact behavior — the mesh sags under squeegee load and contact between screen and substrate becomes unpredictable across the image area, regardless of press adjustment.

Diagnosing Off-Contact Problems on Press

Off-contact errors produce recognizable defect signatures. Each failure mode maps to a specific off-contact condition — or to an interaction between off-contact and another press variable. Knowing which defect points to which cause shortens troubleshooting time on production runs.

Print Is Smearing or Ghosting

Smearing — where ink trails sideways from the image in the squeegee direction — is the classic indicator of insufficient off-contact distance. The mesh is not releasing from the wet ink deposit cleanly. Instead, it contacts the substrate throughout the stroke and drags across the ink before it can lift away.

• First check: confirm the actual gap with a feeler gauge — visual estimation at the screen edge is unreliable
• Second check: verify screen tension — low tension produces smearing at nominally correct gap settings
• Third check: squeegee pressure — excess pressure collapses the gap and forces mesh contact throughout the stroke
• Fourth check: squeegee angle — a low blade angle increases forward pressure and reduces effective off-contact

Ghosting — where a faint secondary image appears beside the primary — usually indicates the screen is contacting the substrate on the return flood stroke. Increasing off-contact distance and reducing flood bar pressure resolves most ghost image problems without other adjustments.

Ink Bleeding Under the Image

Ink bleed — where ink spreads beyond the emulsion boundary — can result from excess off-contact combined with compensating squeegee pressure. When the gap is too large, operators press harder to push ink through the mesh. That excess pressure forces ink laterally under the emulsion edge, producing bleed that closely resembles under-exposed emulsion failure. Misdiagnosis is common.

• Reduce off-contact in 0.5 mm increments and re-test before pulling the screen for emulsion inspection
• Check squeegee durometer — a soft blade (55–65 Shore A) transfers more ink and amplifies bleed at any gap setting
• Review ink viscosity — thinned inks bleed more aggressively under elevated pressure regardless of off-contact

Screen Dragging the Substrate

When the substrate lifts off the platen as the screen rises after a print stroke, off-contact is too small relative to the adhesion of wet ink to the mesh underside. The ink creates a temporary bond between screen and garment. Increasing the gap gives the mesh more recoil distance and reduces dwell time at the ink-to-mesh interface.

This defect appears most frequently on thicker substrates and on water-based ink jobs, where surface tension is higher than with plastisol. Operators transitioning between ink systems — as documented in guides on water-based ink on dark garments — frequently need to recalibrate off-contact distance when moving between plastisol and water-based formulations, even on the same press and screen setup.

Off-Contact Costs: Screen Life, Setup Time, and Output

Off-contact distance has measurable financial consequences beyond print quality. Incorrect settings accelerate mesh wear, increase ink consumption, raise spoilage rates, and extend setup time per job. Tracking these variables makes the case for investing in precision screen frames, proper measurement tools, and structured calibration procedures.

Impact on Mesh and Emulsion Longevity

Screens running at insufficient off-contact distance experience higher contact stress against the substrate during every stroke. Over hundreds of thousands of impressions, this excess stress abrades the emulsion edge and fatigues mesh fibers. The result is faster emulsion breakdown, earlier pinholes, and accelerated mesh replacement cycles.

• Correct off-contact: mesh stress is concentrated only at the squeegee contact zone, with clean recoil after each stroke
• Insufficient off-contact: mesh flexes fully against the substrate across the entire image area every stroke
• Excess off-contact: requires higher squeegee pressure to transfer ink, increasing mesh flex from the opposite direction

Production shops track screen lifespan in print cycles. A screen averaging 50,000 impressions at correct off-contact may yield only 30,000 at persistently incorrect settings — a 40% reduction in usable life before reclaim and re-stretching is required. At typical screen-making costs, that difference is significant across a fleet of 20 or 30 screens.

Emulsion is also affected. When excessive squeegee pressure compensates for wrong off-contact, the blade forces emulsion edges outward over time. Emulsion delamination accelerates, and image integrity degrades even on screens that appear visually intact on inspection.

Production Efficiency and Spoilage

Every off-contact error that reaches a finished garment is a spoiled unit. At standard wholesale blank costs, spoilage compounds quickly on large runs. A 2% spoilage rate on a 500-piece order at $5 per blank represents $50 in direct material loss — before accounting for the labor and ink required to reprint those units.

Setup time is also a real cost variable. Operators who calibrate off-contact systematically at job start typically spend 5–10 minutes confirming the gap and pulling test prints. Operators who skip the step often spend significantly more time diagnosing defects mid-run, reprinting spoiled units, and adjusting other variables to compensate for a problem that was fixable in the first five minutes. The math consistently favors upfront calibration.

• Ink consumption decreases when squeegee pressure is optimized through correct off-contact — less excess ink forced per stroke
• Emulsion reclaim frequency drops when screens are not prematurely worn by excessive contact stress
• Substrate waste decreases as spoilage rates fall with consistent print quality
• Press maintenance intervals extend when screens are not applying excess mechanical load against platens and registration stops

Frequently Asked Questions

Final Thoughts

Off contact distance screen printing operators calibrate at job setup is not a minor detail — it is the mechanical foundation that print quality, screen longevity, ink efficiency, and registration all depend on. The next step is straightforward: invest in a feeler gauge set, establish documented off-contact targets for each frame type and ink system in use, and confirm the gap at the start of every job. Consistent calibration practice is the shortest path from variable output to repeatable, profitable production.
