How to Set Up a Sawgrass Printer for Sublimation

When our team first unboxed a Sawgrass SG500 several years back, the setup process felt deceptively simple — until the color profiles started producing washed-out transfers that no amount of heat press adjustments could rescue. That hands-on failure taught us more about sawgrass printer setup sublimation fundamentals than any quick-start guide ever could, and it reshaped how our team approaches every new machine installation from that point forward. For anyone entering the world of sublimation printing, configuring the Sawgrass environment correctly from day one is the single biggest factor separating vibrant, sellable output from expensive test sheets.

Sawgrass printers occupy a specific, well-defined niche: they ship with proprietary sublimation ink already loaded, the driver stack integrates with Sawgrass's own Creative Studio software, and the entire color management pipeline is tuned exclusively for dye-sublimation onto polyester and polymer-coated substrates. Our team has run both the SG500 and SG1000 through thousands of production cycles, and the consistency we get from a properly configured Sawgrass machine is difficult to match with converted Epson setups. Understanding where Sawgrass sits in the broader production landscape — see our breakdown of sublimation vs DTG printing for context — makes the hardware and software decisions considerably clearer before the first cartridge is installed.

This guide walks through the complete installation and calibration process, covers the most damaging configuration mistakes our team has witnessed in real production environments, and gives a direct comparison between the two primary Sawgrass small-format models. Our approach is methodical: get the hardware right first, then the software layer, then the media settings, and only then run calibration prints against a heat press.

Understanding Why Sawgrass Dominates Sublimation

Sawgrass Technologies pioneered the purpose-built sublimation printing system for small-format production, and that heritage shows in how the current SG-series machines are engineered end to end. Unlike converted inkjet printers — which require third-party inks, ICC profile hunting, and frequent head-cleaning cycles to prevent clogging from non-native formulas — Sawgrass machines arrive as a closed ecosystem where ink, driver, and software are developed together by a single team. According to Wikipedia's dye-sublimation printer overview, the sublimation process converts solid dye directly into gas without passing through a liquid phase, which is precisely why substrate preparation and heat press temperature precision carry so much weight in the final output quality.

The SubliJet-HD Ink Advantage

Sawgrass's SubliJet-HD ink formulation is optimized for high-gamut output on standard sublimation transfer paper, and our team consistently sees richer blacks and more saturated cyan-to-magenta transitions compared to generic third-party inks running through converted Epson hardware. The sealed cartridge system also eliminates the fill-and-prime cycle that plagues most third-party setups, which translates directly to less machine downtime and fewer wasted test sheets during startup sequences. The cost-per-page runs higher than refillable third-party systems, but for most production environments the reliability offset and warranty protection justify the premium without hesitation.

Substrate Range and Limitations

Sawgrass printers work exclusively on materials with high polyester content or a polymer coating — 100% polyester fabrics, polyester-coated hardboards, sublimation-coated ceramics, and aluminum panels are the primary production targets. Cotton and natural fibers cannot hold sublimation dye, which is a hard constraint that catches newcomers off guard. Our team has successfully applied Sawgrass output to everything from performance apparel to custom flags (our guide on how to sublimate on polyester flags walks through the full transfer process) and neoprene products (covered in detail at how to sublimate on neoprene), and substrate selection remains one of the most important variables in achieving consistent, washfast results.

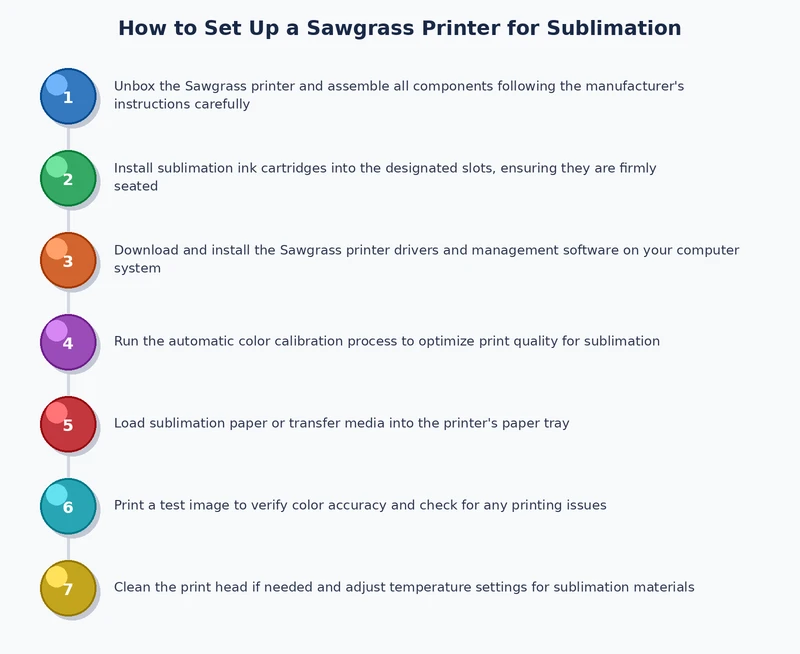

Step-by-Step Sawgrass Printer Setup for Sublimation

Our team follows a fixed installation sequence for every new Sawgrass unit, and deviating from the order consistently creates problems that take hours to diagnose and isolate. The sequence below reflects real production experience, not the condensed version printed on the quick-start card tucked inside the box.

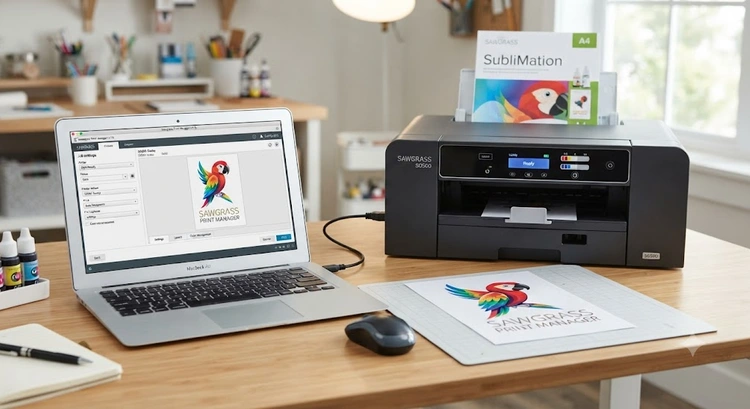

Hardware Preparation and Ink Installation

• Remove all shipping tape and orange protective clips from the print head carriage before powering on — leaving any clip in place jams the carriage and triggers a non-recoverable error code requiring a service reset
• Insert SubliJet-HD cartridges in the correct color-coded slots; the printer primes the ink lines automatically on first boot and requires no manual intervention during that cycle
• Load sublimation paper with the coated side facing up — the correct side is bright white and slightly smooth, while the reverse is noticeably duller; printing on the wrong side produces zero dye transfer
• Connect via USB first during initial setup rather than Wi-Fi, which eliminates network variables while confirming the driver installation is clean and unambiguous

Driver and Creative Studio Installation

The Sawgrass Print Manager (SPM) is the critical middleware layer between design software and the printer, and our team installs it before connecting the USB cable — contrary to what most generic Windows driver guides recommend. Download SPM directly from the Sawgrass support portal, run the installer with administrator privileges, and let it complete fully before plugging in the hardware for the first time. One non-negotiable configuration step our team enforces on every new workstation: disable all Windows automatic driver updates for the printer device, because a Windows-supplied generic driver silently replaces the Sawgrass SPM driver overnight and destroys color accuracy in a way that is genuinely difficult to diagnose without knowing to look for it.

ICC Profile and Color Management Configuration

Sawgrass ships ICC profiles for each ink-and-paper combination, and loading the correct profile for the specific sublimation paper in use is where the majority of color failures originate when the step gets skipped or rushed. Our team sets color management to "Printer Manages Colors" within the design application, then selects the matching Sawgrass ICC profile inside SPM to ensure only one color engine is active. Anyone designing for sublimation transfer also needs to mirror the image before printing — a step we cover in depth at how to mirror image a design for heat transfer printing, since the image reverses completely during the transfer process and text becomes unreadable if overlooked.

Pro tip: Our team always runs a nozzle check pattern immediately after ink installation — any missing nozzle rows at this stage indicate an incomplete prime cycle, and running a second prime before the first production sheet prevents hours of troubleshooting downstream.

SG500 vs SG1000: Choosing the Right Format

The format decision between the SG500 and SG1000 is the first hardware question most people ask, and our team has a clear, unambiguous preference: the SG1000 for any operation running more than 20 substrates per day, and the SG500 for lower-volume home or hobbyist production. The table below captures the key specifications that drive that recommendation.

The SG1000's 13-inch width is the decisive specification for anyone producing full-bleed 11×14 prints, large apparel graphics, or wide substrate panels — the SG500 becomes limiting almost immediately once order volume scales past a modest hobby level. Our team has seen operations retrofit to a larger machine mid-production cycle, and the workflow disruption is significant and avoidable with a better initial hardware decision. For a broader context on how sublimation compares to other print technologies at production scale, our article on DTF printing vs sublimation covers the volume and substrate tradeoffs in practical detail.

The Real Strengths and Limitations of Sawgrass Printers

What Sawgrass Gets Right

• Turnkey closed ecosystem — ink, driver, profiles, and software are engineered together, which eliminates the compatibility guesswork that plagues every converted inkjet sublimation setup
• Consistent color reproduction across long production runs without manual recalibration, which is critical for branded merchandise requiring specific Pantone targets across repeat orders
• Native Creative Studio templates accelerate production setup for common sublimation substrates including mugs, mousepads, tumblers, and phone cases
• Sawgrass's warranty coverage and dedicated sublimation support line are substantially stronger than most third-party ink suppliers, which matters considerably when a production machine goes down mid-order

Where Sawgrass Falls Short

The closed ecosystem is simultaneously Sawgrass's greatest engineering strength and its most significant commercial constraint. Our team cannot use third-party sublimation inks without voiding the warranty and losing SPM profile compatibility, and the proprietary cartridge pricing reflects that captive market position directly. Ink costs run roughly 30–40% higher per page compared to refillable third-party fill systems in converted Epson machines, which becomes a meaningful margin factor at high daily volume. The maximum print width of 13 inches on the SG1000 also limits production to A3+ format, so anyone requiring 17-inch or wider output must look outside the Sawgrass product line entirely.

Critical Setup Errors That Ruin Sublimation Output

Profile and Driver Mistakes

• Using the wrong ICC profile for the specific paper brand loaded — Sawgrass profiles are paper-specific and paper-brand-specific, meaning mixing them produces a predictable and consistent color cast that looks like an ink problem
• Running Creative Studio or Illustrator with "Application Manages Colors" active while SPM also has color management enabled — double color management compounds corrections and destroys neutral tones and skin-tone accuracy
• Leaving print resolution at SPM's default without confirming it matches the ICC profile's target resolution, typically 1200 dpi for SubliJet-HD output

Media Handling Errors

Sublimation paper loaded on the wrong side is the single most common error our team encounters in client production facilities — the correct coating side is bright white and slightly smooth, while the reverse is notably duller and textured. Printing on the reverse side produces essentially no dye transfer, and the failure is not always obvious until the heat press opens and reveals a blank substrate. Our team also stores all sublimation paper in sealed bags with desiccant packets, because humidity absorption degrades transfer saturation measurably within a 24-hour window in humid environments. For anyone looking to minimize material waste during setup and calibration printing, our guide on how to reduce paper waste when printing at home outlines practical approaches our team applies in daily production.

Keeping Your Sawgrass in Peak Condition

Most people underestimate how quickly a sublimation printer degrades without a disciplined maintenance routine, and Sawgrass SG-series machines are not immune to clogged nozzles and dried ink buildup on the cap station assembly after periods of inactivity.

Routine Cleaning Protocol

• Run a nozzle check pattern at least twice weekly during active production, and follow any detected gap immediately with a soft head cleaning cycle before running production media
• Clean the cap station and wiper blade monthly using a lint-free cloth dampened with isopropyl alcohol — dried SubliJet residue on the cap station prevents proper head sealing and accelerates ink consumption through unnecessary cleaning cycles
• Never leave the printer powered off for more than two weeks without running a maintenance print first, as extended idle periods dry the nozzle plate and may require multiple aggressive cleaning cycles to restore full nozzle coverage
• Keep the printer powered on standby rather than switching it fully off between production sessions — Sawgrass machines execute automatic maintenance cycles on standby, preventing the dry-nozzle failures that cost far more in ink and downtime than the minimal standby power draw

Long-Term Machine Health

Our team logs every cleaning cycle and nozzle check result in a simple production spreadsheet, and that accumulated data has proven invaluable for identifying when a machine is trending toward a head failure rather than simply needing a routine clean. A Sawgrass machine requiring more than three cleaning cycles per week to maintain a clean nozzle pattern is showing early signs of head wear, and addressing that proactively through a Sawgrass service call costs far less than an emergency head replacement during peak production season. Our team also positions all Sawgrass printers in temperature-stable environments between 60°F and 85°F, away from direct sunlight and HVAC discharge vents, since repeated thermal cycling degrades the head seals and cap station gaskets measurably over a machine's operational life.

Frequently Asked Questions

Next Steps

1. Download Sawgrass Print Manager from the official Sawgrass support portal and install it before connecting the printer via USB, then verify the SPM driver is active in Windows Device Manager before proceeding to any print test.
2. Load the correct SubliJet-HD ICC profile for the specific sublimation paper brand on hand, confirm color management is set to "Printer Manages Colors" in the design application, and disable automatic Windows driver updates for the Sawgrass device entry.
3. Run a full nozzle check pattern immediately after ink installation, and if any nozzle rows are missing, execute a second prime cycle through SPM before committing to any production media.
4. Press a calibration transfer at 400°F for 60 seconds on a test polyester substrate, then evaluate color accuracy against the original digital file — adjust heat press time before adjusting any software settings.
5. Establish a weekly maintenance log documenting nozzle check results and cleaning cycles, which builds the diagnostic history needed to catch head degradation early and protect the machine during peak production periods.
