How to Mirror Image a Design for Heat Transfer Printing

Your first batch of custom shirts came out backwards — text reading right to left, logo flipped like a mirror held up to the original file. That mistake teaches you something every heat press operator learns the hard way: mirror image for heat transfer is not optional, it is foundational. If you are printing on heat transfer paper, understanding the flip step separates clean, professional results from wasted material and frustrated clients.

The principle is straightforward, but the execution has more variables than most tutorials admit. Different transfer types carry different mirroring rules, and your design software, printer settings, and substrate all interact in ways that catch even experienced operators off guard. Getting this right from the start saves material, time, and the reputation you are building one pressed shirt at a time.

Before you press a single garment, you need a clear mental model of why mirroring works the way it does, which workflows require it, and which ones handle it automatically — because assuming the wrong default in either direction costs more than the price of a single sheet of transfer stock.

What the Mirror Image Requirement Actually Means

One of the most persistent myths in the heat transfer community is that every transfer type requires you to manually flip your artwork before printing. That claim is half-right, which makes it more dangerous than being completely wrong — because half-right assumptions lead to inconsistent results and no clear path to diagnosis when something fails.

The Contact-Flip Principle

When you press a design onto fabric, the transfer medium acts as an intermediary, and the image transfers from the carrier sheet to the garment through direct contact — a process that inherently reverses left and right. Any text or directional graphic you print normally will read backwards on the finished piece after pressing. Mirroring your file beforehand cancels out that reversal, delivering a correctly oriented design on the substrate. This is the core mechanic behind iron-on and heat transfer printing — physics you work with, not against. The reversal is invisible when you hold the carrier sheet up to light, which is exactly why operators miss it until after committing the substrate.

When Software Does the Flipping for You

Sublimation is the most common exception beginners overlook. Because sublimation ink sublimates into polyester fibers rather than adhering to a surface, many RIP software workflows mirror the image automatically at the print stage. Direct-to-film (DTF) transfers also go through a production process where the film is applied adhesive-side-down, meaning the print-side faces you correctly without a manual flip on your end. Reviewing documentation for your specific inkjet vs. laser heat transfer paper is essential, because the mirroring requirement differs meaningfully between these two chemistries and their carrier constructions.

Best Practices for Mirroring Before Every Press Run

Consistent mirroring discipline starts in your design software, not at the press. Building the habit of confirming the flip at the file preparation stage — before printing — is what separates operators who reliably produce clean results from those who catch errors only after a garment is already ruined.

Software Commands That Control the Flip

In Photoshop, Image > Image Rotation > Flip Canvas Horizontal is the reliable path for rasterized artwork. In Illustrator, Object > Transform > Reflect across the vertical axis achieves the same result for vector files. Most dedicated heat press and vinyl cutting software — Silhouette Studio, Cricut Design Space — includes a mirror toggle built directly into the print or cut dialog, which reduces the chance of forgetting the step entirely. Silhouette Studio mirrors automatically when the HTV material type is active on send, but you should verify the material profile each session rather than assuming it carried over from the previous job.

When you are weeding HTV after cutting, the design on the carrier liner should read backwards — that reversed appearance confirms the mirror was applied correctly. If the design reads normally on the liner, it will press onto the garment in reverse. For technique on intricate cuts, weeding HTV cleanly and quickly covers the tool selection and approach that keeps fine details intact without lifting adhesive from the liner prematurely.

File Preparation Checklist

• Save the mirrored version as a separate file — never overwrite your master artwork with the flipped copy
• Rasterize or outline all text layers so software does not reinterpret them during output
• Print a test on plain paper and hold it face-down against a window to verify orientation before loading transfer stock
• For multi-layer HTV builds, mirror each layer independently before layering on the platen
• Label output files clearly — "MIRROR_ready" versus "MASTER_do_not_print" prevents accidents in batch runs

Mirror Image for Heat Transfer: Real-World Scenarios

Understanding the rule in the abstract is useful; seeing how it plays out across specific material combinations is what builds genuine competency at the press. These are the real situations where mirroring decisions make or break the finished result.

Light vs. Dark Garment Transfer Paper

Light-garment inkjet transfer paper uses a transparent carrier, and the design transfers face-down onto the fabric — so you print mirrored and peel, leaving the image sitting correctly on the shirt. Dark-garment transfer paper works differently: many brands incorporate an opaque white base layer and transfer face-up, which means no mirroring is required, and applying a flip will produce a reversed result on the garment. Reading the manufacturer's instructions for each specific paper product is non-negotiable before the first print run.

If you are pressing on pile or stretch fabrics, the mirroring requirement stays constant, but the pressing parameters change significantly. Pressing on fleece fabric requires reduced pressure and precise peel timing to preserve the pile while still achieving a full transfer bond — variables that interact directly with how well a correctly mirrored design adheres through the full pressing cycle.

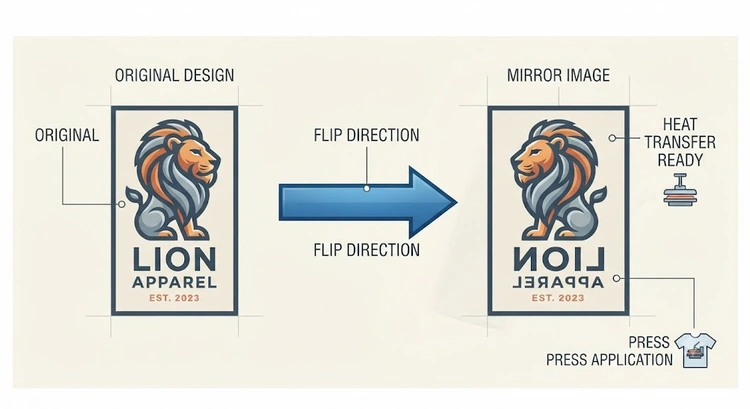

Mirroring Requirements by Transfer Type

HTV is worth exploring in depth because the product range expands design options while keeping mirroring requirements constant across all variants. Glitter HTV vs. regular HTV behave identically in terms of the flip requirement, but the layering order for glitter builds adds complexity — every layer still needs independent mirroring before you cut and weed.

Caring for Transferred Designs to Maximize Longevity

A correctly mirrored and pressed transfer bonds into the fabric fibers at meaningful depth, but that bond depends entirely on the care regimen that follows. The pressing step creates the bond; repeated washing either protects it or degrades it systematically over the garment's life.

Wash and Care Protocol

Turn garments inside out before every wash — this reduces direct friction on the transfer surface from the drum and from other items tumbling in the load. Use cold water on a gentle cycle; hot water accelerates adhesive breakdown on inkjet transfers faster than almost any other single variable in the wash process. Line drying is always preferable to tumble drying, and when machine drying is unavoidable, low heat is mandatory.

Avoid fabric softeners entirely on transfer-printed garments. Softener deposits a lubricating film on fibers that progressively degrades transfer adhesion through repeated cycles, with edge peeling appearing first. The care principles in washing and caring for screen-printed shirts apply broadly to heat-transferred garments — the chemical enemies of adhesion are the same regardless of print method.

Storing Transfer Stock Before Pressing

Store uncut transfer paper flat in its original sealed packaging, away from humidity and direct sunlight. Inkjet transfer paper absorbs ambient moisture readily, degrading print quality and causing bubbling or incomplete adhesion during pressing. HTV rolls should be stored vertically on a rack — flat horizontal storage leads to adhesive cold-flow over time, making the liner tacky and significantly harder to weed cleanly on intricate details.

Manual vs. Automated Mirroring: Weighing the Tradeoffs

The choice between manually flipping every file and relying on software-automated mirroring is less obvious than it first appears, and the right answer depends on your production volume, material mix, and the consequences of a missed flip in your specific operation.

The Case for Manual Flipping

Manual mirroring — flipping in your design software before printing — gives you full visual confirmation before a single sheet of transfer stock runs through the machine. You see the reversed artwork on screen, and any errors in text orientation or graphic symmetry become visible before they cost you material. For small-batch producers alternating between light and dark garment papers, this deliberate verification step catches material-type mistakes that automated systems miss entirely.

The downside is human error in production sequences. When you are printing multiple designs in quick succession and alternating between transfer types that do and do not require mirroring, the flip is exactly the kind of step that gets skipped under time pressure. A physical pre-press checklist posted at the machine is the most reliable defense against this class of mistake in any volume environment.

The Case for Automated Mirroring

RIP software and dedicated cutting programs that mirror automatically eliminate the forget-the-flip error for operators running a consistent single material type. The tradeoff is that you are trusting the software to detect the correct material profile — and if the file is set to the wrong media type, the automation mirrors when it should not, or skips it when it should apply, producing results that are harder to diagnose because you assumed the safeguard was active.

• Always verify the active material profile in your RIP or cutting software before each session begins
• Run a single test press on scrap fabric before committing to a full production batch with any new file
• Keep a laminated reference card at the press listing mirror requirements per material type

Frequently Asked Questions

Final Thoughts

Mastering the mirror image for heat transfer workflow is the single step that separates operators who press confidently from those holding their breath until the carrier sheet peels away. Start with the material reference table above, build your pre-press checklist, and run a test press on scrap fabric before committing any new transfer type or file to a production run — that one extra step costs minutes and saves garments, clients, and the credibility you are building with every transfer you press.
