How to Set Up a Home Screen Printing Studio on a Budget

Screen printing generates over $4.8 billion annually in the U.S. — and a significant chunk of that comes from home studio operators running a press out of a spare bedroom or garage. A well-planned home screen printing studio setup is far more affordable than the industry would have you believe, and the barrier to entry has never been lower. If you're just getting oriented, the DIY screen printing resource hub is a great starting point before you dive into gear and logistics.

The biggest obstacle isn't budget. It's not having a clear picture of what you actually need versus what gear marketers push on beginners. Most first-time home studios get operational for $250–$400. Everything beyond that is a growth upgrade, not a day-one requirement.

This guide covers the financial case for home printing, a step-by-step setup process, real studio examples, smart budget upgrades, a comparison of beginner versus advanced gear, and the myths that hold most newcomers back.

Why a Home Screen Printing Studio Setup Makes Financial Sense

The economics of home screen printing are compelling once you run the numbers. Outsourcing a 12-piece run to a local shop costs $8–$15 per shirt, including setup fees. That's $96–$180 per batch. A home studio drops your per-shirt material cost to $2–$4. You break even on the equipment investment by your third or fourth batch.

The Real Cost of Outsourcing

Outsourcing isn't just expensive — it's inflexible. Here's what you're dealing with every time you hand off a job:

• Minimum order quantities (MOQs) of 12–24 pieces on most single-color jobs
• Setup fees of $15–$50 per color, charged every time
• Turnaround times of 5–10 business days — longer for custom work
• Limited control over ink color matching and print placement
• Design revision fees if anything changes after approval

When Home Printing Beats Outsourcing

Home printing wins clearly when you're doing 20 or more shirts per month, running frequent small batches, or selling custom designs at a profit margin that outsourcing kills. If you're thinking beyond hobby printing, review the screen printing business startup costs breakdown before you invest — it'll help you set realistic revenue targets alongside your setup budget.

Setting Up Your Home Screen Printing Studio Step by Step

Follow this in order. Skipping steps leads to wasted materials, frustrating misprints, and equipment that sits unused. Every stage feeds into the next.

Choose Your Space

You need more than just a table. Your space has to support the full workflow — coating, exposing, printing, and washing. Here's the minimum:

• A work surface at least 3 ft × 4 ft for your press and inks
• Running water within a reasonable distance for screen washout
• A low-UV area for coating and drying emulsion (a closet with the lights off works)
• Ventilation — especially if you're curing with a heat gun or flash dryer
• A flat floor with room to move around the press

A garage, spare bedroom, or basement all work. A shared kitchen does not. You need separation from daily living space and access to drainage.

Core Equipment List

This is your minimum viable single-color home studio. Don't let anyone talk you into more before you've used all of this:

1. Aluminum frame screen — 110 mesh for most designs, one per design
2. Photo emulsion + scoop coater — for coating screens
3. Tabletop manual press — single-arm 1-color models start under $100
4. Squeegee — 70–75 durometer for standard garments
5. Ink — plastisol is easiest to start; water-based is better for light fabrics
6. UV exposure unit or DIY lightbox — a 250W flood bulb in a box works
7. Heat gun or entry-level flash dryer — for curing at 320°F (plastisol) or 300°F (water-based)

Before you commit to an ink system, read up on plastisol vs. water-based ink for screen printing. The choice affects your curing setup, cleanup requirements, and fabric compatibility — it's not a throwaway decision.

Exposure Station Setup

This is where most home studio beginners go wrong. Inconsistent exposure means blurry edges, pinholes, and screens that break down after five prints. You need:

• A flat, stable surface to lay the screen on
• A way to block ambient light (blackout curtain or closet door)
• A repeatable timer — same exposure time every single burn
• A glass or acrylic sheet to press your transparency flat against the emulsion

For the complete process, see how to expose a screen for screen printing — it covers emulsion types, exposure times, and how to test your setup.

Pro tip: Do a step wedge test on your first screen — expose the same design at 5, 7, 9, and 11 minutes and pick the sharpest result. Write that time on a label and tape it to your exposure unit. Never guess again.

What Successful Home Studios Actually Look Like

Most thriving home studios started as cramped, imperfect corners. What separates the ones that stick from the ones that get abandoned isn't equipment quality — it's organization. Here are two common setups that actually work.

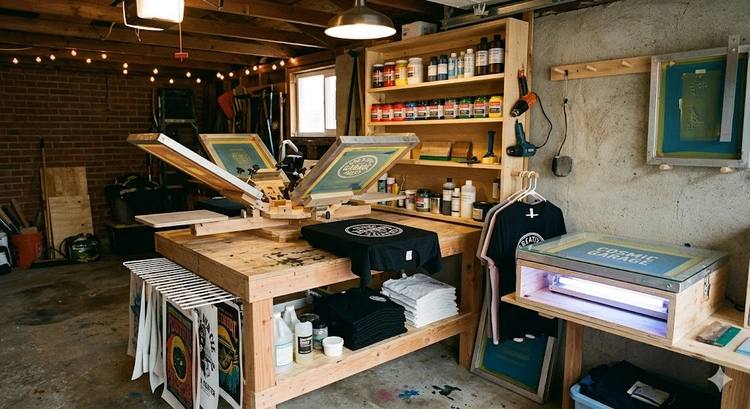

The Garage Studio Model

A single-car or two-car garage is the ideal home studio footprint. Here's a layout that works:

• Wall 1: press station, ink shelf, squeegee rack
• Wall 2: utility sink, emulsion coating area, screen drying rack
• Center floor: open area for screen washout or large-format drying
• Corner: exposure unit with a curtain or blackout panel

A garage gives you drainage, ventilation, and room to expand without affecting your living space.

The Spare Bedroom Model

Tighter, but very doable with smart space management:

• Fold-down workbench mounted to one wall for the press
• Small utility sink installed in the closet (runs about $150–$200 with a plumber)
• Emulsion coating done under a yellow safe-light bulb
• Screens stored flat on a wall-mounted rack to avoid warping
• Window fan for ventilation during curing

In a bedroom setup, keep your color count to one or two. Adding colors means more screens, more space, and more workflow steps. Master the fundamentals first.

Cheap Upgrades That Make a Real Difference

Once your baseline studio is running, targeted low-cost upgrades deliver outsized improvements. You don't need to spend big — you need to spend smart.

Better Ink Storage

• Use stackable bins with tight-fitting lids — plastisol stays open indefinitely, but water-based skins over fast
• Label every container with the Pantone reference, color name, and last-used date
• Keep a dedicated "working" tray with small ink portions — never double-dip into the main container
• Store ink at room temperature; heat and cold both affect viscosity

Screen Organization and Reclaiming

Screens are expensive. A basic reclaiming station — a garden sprayer, emulsion remover, and a rinse area — costs under $50 and extends the life of every screen you own. Don't throw out a screen that has a salvageable mesh. See the full reclaiming process at how to reclaim and clean screen printing screens.

Beyond reclaiming, organize your clean screens by mesh count and keep a log of which design was burned on which screen. This prevents wasted burns and speeds up repeat jobs.

Starter Kit vs. Full Studio — Knowing When to Upgrade

Here's the honest comparison most guides skip over. Know exactly where you are before you spend another dollar.

Signs You've Outgrown Your Starter Kit

• You're turning down multi-color jobs because your press can't handle them
• Screen prep is taking longer than the actual printing session
• You're reprinting jobs due to inconsistent exposure or curing
• You're hitting 30+ shirts per week consistently

What to Upgrade First

Upgrade your exposure unit before anything else. Consistent, calibrated exposure produces consistent screens. Consistent screens produce consistent prints. Everything downstream — ink deposit, edge definition, screen longevity — improves when your burns are dialed in. A mid-range UV exposure unit runs $150–$300 and pays for itself in saved screens and reprints within a month of heavy use.

Five Screen Printing Myths That Are Costing You Money

Bad information keeps more people out of screen printing than cost ever does. Here are the five myths that stop beginners — and why none of them hold up.

Myth 1: You need a professional press to make professional prints.
False. Tabletop presses under $100 produce crisp, clean single-color prints when used correctly. Technique matters more than hardware at this stage.

Myth 2: Plastisol ink is too complicated for home use.
False. Plastisol is the most beginner-friendly ink available. It doesn't dry in the screen, it's forgiving on off-contact, and it cures cleanly at 320°F with a heat gun. Water-based is actually harder to work with for most beginners.

Myth 3: You need a dedicated darkroom.
Not true. You need to coat and dry your emulsion away from UV light — that's it. A closet with the door closed works. A bathroom with a towel under the door works. A full darkroom build is a future upgrade, not a day-one requirement.

Myth 4: Home printing is limited to simple one-color designs.
Not anymore. Multi-color printing at home is absolutely achievable with the right registration setup. See the full approach in how to print multi-color designs with screen printing to understand what's within reach even in a small studio.

Myth 5: Home screen printing is just a hobby — you can't make real money.
The screen printing industry was built by small operators running equipment out of garages and basements. Home studio operators regularly generate $2,000–$6,000 per month from a single manual press. The ceiling is your capacity, not your location.

Frequently Asked Questions

Next Steps

1. Choose your space today — walk through your home, pick the best-fit area, and map out where your press, ink station, and wash area will go before you buy a single piece of equipment.
2. Order your starter kit — a tabletop press, two aluminum frame screens (110 mesh), photo emulsion, a squeegee, and a quart of plastisol ink. Keep your first purchase under $350.
3. Build and calibrate your exposure unit — DIY or entry-level, run a step wedge test on your first screen and record the winning exposure time. Use it every single time.
4. Print your first run of 12 shirts — one color, one design, one garment type. Document every step so you can repeat what works and fix what doesn't.
5. Set up a screen reclaiming station — before you burn your third screen, have emulsion remover, a garden sprayer, and a rinse area ready so no screen goes to waste.
