How to Make a Screen Printing Screen at Home

Ever wonder why commercial screen prints hold up wash after wash while home experiments peel after three cycles? The answer almost always comes back to the screen itself. Learning how to make a screen printing screen at home is the single most impactful skill for anyone serious about custom shirts — and the good news is it costs a fraction of what most people expect. Our team has built hundreds of screens from scratch, and we'll walk through exactly what we do, what to avoid, and how to fix things when they go wrong. For anyone ready to push further, our guide to starting a t-shirt printing business covers the bigger picture once screen-making clicks.

The core concept is simple. A screen is just a rigid frame with a fine mesh stretched across it. That mesh holds a photosensitive emulsion (a light-reactive chemical coating) that hardens under UV light. The hardened areas block ink. The unhardened areas — wherever the design blocked the light — wash away, leaving a clean stencil. Press ink through the stencil, and the design transfers sharply to fabric.

Our team recommends starting with a wood frame and 110-count polyester mesh. That combination handles most beginner designs without fuss and keeps the total build cost under $15. Once the process makes sense, most home printers are completely hooked.

What Screen Printing Is and Why It's Worth Learning

How the Process Actually Works

Screen printing is one of the oldest garment decoration techniques on record. According to Wikipedia, the method traces back to Song Dynasty China. The modern version combines mesh, photosensitive emulsion, UV light, and squeegee pressure to produce prints that outlast most other methods on fabric.

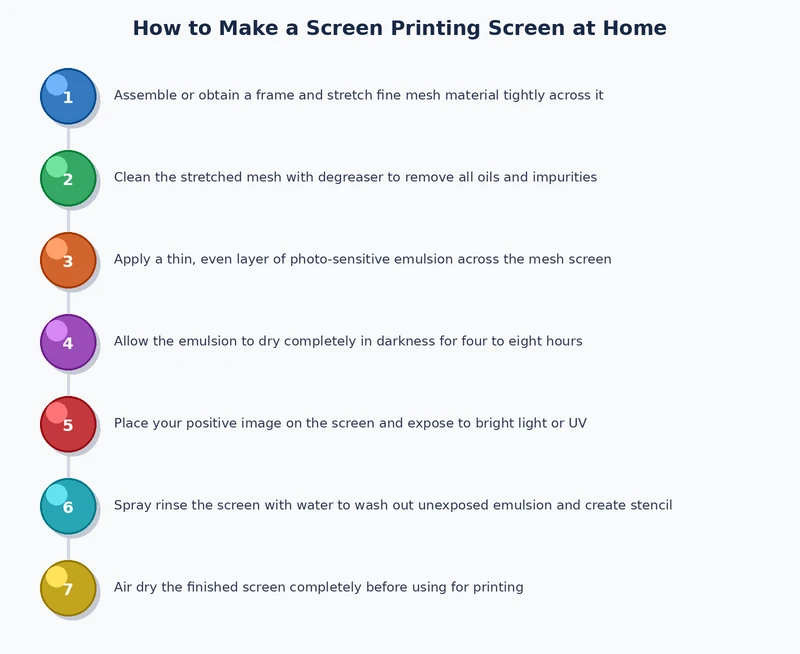

Here's the workflow at a glance:

• Print the design on transparency film at 100% black opacity
• Coat the stretched mesh screen with photosensitive emulsion
• Let the emulsion dry completely in a dark room
• Lay the transparency on the screen and expose to UV light
• Wash out the unexposed emulsion to reveal the stencil
• Pull ink across the screen with a squeegee onto the fabric
• Cure the ink with a heat press or flash dryer

Each step directly affects print quality. A bad screen means a bad print — no amount of technique at the press stage fixes a poorly burned stencil. That's why our team treats screen-making as the foundation of everything else.

Our team has tested screen printing head-to-head with alternatives like heat transfer vinyl and embroidery. The deep comparison in Embroidery vs Screen Printing: Which Is Better for Branding? lays out exactly where each method wins and loses. Screen printing takes the top spot on cost-per-print volume once a screen is made — that's its defining advantage.

Why Home Printers Love DIY Screens

Buying pre-stretched screens from a supplier costs $20–$80 each. Building one at home costs $5–$15. Anyone running multiple designs saves the cost of their entire UV exposure setup within the first dozen screens.

There's a creative advantage too. Commercial screens come in standard sizes. Homemade screens can be built to any dimension — a 14-inch wide design gets a 16-inch wide frame, no compromises. Our team builds custom sizes constantly for oversized chest prints and full-back designs.

Pro insight: Our team stretches mesh slightly looser for water-based inks and tighter for plastisol — mesh tension directly affects ink deposit thickness, and most beginners don't realize this until they've wasted a few screens.

What It Actually Costs to Build a Screen at Home

One-Time vs. Recurring Costs

Home screen-making has two cost layers: one-time setup gear and per-screen consumables. The setup is the upfront pain — but it only happens once.

One-time purchases most people need:

• UV exposure unit or basic LED light rig ($30–$200)
• Squeegee, 70-durometer (hardness rating) ($15–$40)
• Staple gun and screen stretching pliers ($20–$60)
• A printer capable of printing on transparency film

Per-screen consumables:

• Polyester mesh fabric — sold by the yard at $3–$8/yard
• Wood stretcher frame — $2–$8 depending on size
• Diazo emulsion — a $30 bottle makes 30–50 screens
• Transparency film — $0.10–$0.50 per sheet

Our team's per-screen cost after setup averages $6–$12. Compare that to buying ready-made screens at $30–$80 each and the math is impossible to argue with. For a comprehensive look at how these costs stack up across every printing method, the breakdown in T-Shirt Printing Cost Breakdown: How Much Does It Really Cost is the most thorough reference we've put together.

Full Cost Breakdown Table

Screen Types, Mesh Counts, and Materials Compared

Wood vs. Aluminum Frames

Wood frames are cheap, easy to source at craft stores, and simple to staple mesh onto. The problem is warping. Wood absorbs moisture from emulsion coating and rinse water. Over time it bows, and a bowed frame creates uneven mesh tension and blurry prints. Our team typically gets 50–100 solid print runs from a well-made wood frame before it starts showing problems.

Aluminum frames are the professional standard for a reason. They don't warp. They stay flat through hundreds of wash cycles. The upfront cost is higher, but the lifespan makes them dramatically cheaper over time for anyone printing regularly. Our team switched permanently after a batch of warped wood frames ruined a 200-shirt production run.

The call: start with wood to learn the process and dial in the workflow. Move to aluminum once the method is consistent and the volume justifies it.

Warning: Never build frames from particle board or MDF — both materials swell immediately on contact with water and will destroy the screen within the first washing.

Choosing the Right Mesh Count

Mesh count (threads per inch, or tpi) determines how much ink passes through the screen and how fine the detail can be. Lower count = bigger openings = more ink. Higher count = smaller openings = sharper detail with less ink deposit.

Our team's mesh count map:

• 60–80 tpi — Specialty inks: glitter, metallic, thick discharge prints. Bold, simple designs only.
• 110 tpi — Best all-around count for home printers. Handles plastisol and water-based inks across most designs.
• 160 tpi — Fine details, halftone shading, photo-realistic elements. Requires thinner ink viscosity.
• 200–230 tpi — Ultra-fine detail and simulated photography. Demands precise exposure and thin inks throughout.

Our team defaults to 110 tpi for roughly 80% of projects. It's forgiving, it works across ink types, and it doesn't punish slightly uneven emulsion coats the way high-count mesh does. The ink decision also shapes mesh selection — our detailed breakdown of plastisol vs. water-based ink for screen printing explains exactly which ink type pairs with which mesh count and why. And for anyone printing on dark fabrics specifically, a 110-mesh screen with a generous ink deposit is non-negotiable — the full method is covered in our guide on how to print on dark t-shirts without losing color vibrancy.

How to Make a Screen Printing Screen at Home, Step by Step

This is the exact process our team follows. It looks like a lot of steps, but most take under two minutes. Total active time is about an hour. Drying time adds another 90 minutes. Plan accordingly.

Stretching and Stapling the Mesh

What's needed: wood frame, polyester mesh, staple gun (1/4" staples), scissors, packing tape.

1. Cut the mesh 2–3 inches larger than the frame on all four sides.
2. Lay the mesh flat over the frame on a hard, level surface.
3. Pull the mesh taut along one long side. Staple from the center outward, one staple per inch.
4. Move to the opposite long side. Pull with steady, moderate tension — enough to remove wrinkles without distorting the weave grid. Staple from center outward.
5. Repeat on both short sides, always pulling from the center outward.
6. Add a second row of staples 1/4 inch from the first row for extra holding strength.
7. Trim excess mesh, leaving about 1/2 inch beyond the staple line.
8. Cover all stapled edges with packing tape to prevent ink from seeping under the frame edge during printing.

Tension test: press a finger gently into the center of the mesh. It should deflect no more than 1/4 inch under light pressure. Less deflection is always better. A loose screen causes ink bleed and muddy edges — there's no printing around it.

Applying Emulsion and Burning the Screen

Diazo emulsion is the standard for home screen makers. It's inexpensive, widely available, and tolerant of beginner mistakes. Mix the sensitizer (small blue powder packet) into the emulsion jar, stir for two minutes, and let the mixture rest for 30 minutes before coating.

1. Work in the dark. A room with no UV light is essential. Regular incandescent bulbs or a red darkroom bulb are fine. Fluorescent and LED daylight bulbs will start curing the emulsion immediately.
2. Apply emulsion to the print side first. Pour a line of emulsion across the bottom edge. Use a scoop coater or squeegee to drag it up the screen in one smooth, even stroke.
3. Flip and coat the squeegee side. Two coats — one per side — builds enough emulsion thickness for durable stencils.
4. Dry the screen horizontally in the dark. Flat drying prevents emulsion from pooling at the bottom. A fan cuts drying time to 45–60 minutes. No light until the screen is fully dry.
5. Prepare the transparency. Print the design at 100% opacity — pure, solid black. Any gray or semi-transparent areas will cause partial exposure and weak stencil spots.
6. Expose the screen. Tape the transparency firmly to the print side. Place under the UV exposure unit or in direct sunlight. Typical exposure: 10–20 minutes under a UV lamp, 5–10 minutes in strong midday sun. Thicker emulsion needs longer exposure.
7. Wash out the stencil. Spray both sides with cool water immediately after exposure. The unexposed emulsion (under the black design) will rinse away within 30–60 seconds. Use a soft brush for stubborn spots. Don't blast with high pressure — fine details can wash out.
8. Inspect and dry fully. Hold the screen up to a bright light and check edges. They should be crisp. Let the screen dry completely — at least 30–60 minutes — before printing.

Tip: Over-exposing is almost always safer than under-exposing — an under-exposed screen breaks down within the first few prints and develops pinholes (tiny ink leaks) across the entire stencil area.

With the screen ready, ink quality and type matter as much as screen quality. For anyone uncertain about which ink to start with, the comparison between heat transfer vinyl and screen printing also touches on where screen printing's ink advantages show up most clearly on different fabric types.

Fixing the Most Common Screen Problems

Even carefully made screens run into problems. Our team has troubleshot hundreds of failed exposures, washed-out stencils, and blurry prints. Here are the issues that come up most often — and what actually fixes them.

Emulsion and Exposure Issues

Emulsion washes off completely after exposure. This is under-exposure. The UV light didn't harden the emulsion thoroughly. Fix: increase exposure time by 25–50%. If using sunlight, switch to a UV lamp for consistency — cloud cover and sun angle vary too much for reliable results.

Design edges come out blurry or show halos. Halo edges come from UV light scattering under the film edges. The transparency wasn't pressed firmly enough against the emulsion surface. Fix: place a sheet of glass or a flat, heavy board over the transparency during exposure. No gap between film and emulsion means clean, sharp stencil edges.

Pinholes appear in solid areas after washing. Thin emulsion or airborne dust settling on the screen before drying. Fix: apply a third coat of emulsion before the next use, and store coated screens in a clean, sealed space while drying. Dust particles block UV light in tiny spots and create pinholes.

Ink Bleeding and Mesh Problems

Ink bleeds past the design edges during printing. Bleeding usually means too much ink on the screen, insufficient squeegee pressure, or loose mesh tension. Our team uses one firm, deliberate squeegee pass rather than multiple lighter ones. Flood the screen first (spread ink without pressing through), then pull firmly once to print. Extra passes push excess ink sideways.

Ink doesn't pass through evenly across the print. Uneven deposit almost always points to a damaged squeegee blade or inconsistent angle and speed. The squeegee should be held at 45–60 degrees and moved at a steady, controlled pace. Replacing a nicked squeegee blade costs $5 and fixes the problem immediately.

Screen stencil breaks down within the first few prints. Fast stencil failure means either under-exposed emulsion or the wrong ink chemistry for the emulsion type. Water-based inks can chemically degrade improperly exposed diazo emulsion quickly. Check the emulsion manufacturer's recommendations for ink compatibility before mixing materials.

After printing, caring for finished shirts correctly protects the investment. The guide on how to wash and care for screen printed t-shirts covers wash temperature, drying methods, and what destroys prints fastest. And if a design ever needs to come off a shirt entirely, our breakdown of how to remove screen print from a shirt covers the realistic options and their limits.

Frequently Asked Questions

Next Steps

1. Gather the starter materials — a wood stretcher frame, one yard of 110-count polyester mesh, a bottle of diazo emulsion with sensitizer, and a staple gun. Total cost should stay under $30 for a first screen build.
2. Set up a dark coating space before ordering emulsion. Identify a room where UV light can be fully blocked during coating and drying — a bathroom with the light swapped to an incandescent bulb works well for most people.
3. Print a test transparency with a bold, simple design — thick lines, no fine detail — and use it for the first exposure. Simple designs expose reliably and make it easy to diagnose problems without chasing multiple variables at once.
4. Do a test wash on the first finished shirt before committing to a full print run. The guide on caring for screen printed shirts covers the wash settings that protect ink longevity from the very first wash.
5. Once the screen-making process is consistent, explore ink options in depth. The full comparison of plastisol vs. water-based ink is the natural next read for anyone ready to move beyond starter kits.
