Plastisol Ink vs Water-Based Ink for Screen Printing

Screen printing accounts for roughly 44 percent of all decorated-apparel sales in North America. The choice between plastisol ink vs water-based ink shapes nearly every production decision that follows, from screen selection to final curing temperatures. Our team has tested both systems across a range of substrates, press configurations, and end-use conditions, and the trade-offs extend well beyond price per gallon. For anyone building a broader foundation in garment decoration, our guide to types of shirt printing offers useful context before examining these two chemistries in depth.

Plastisol is a suspension of PVC resin particles in a liquid plasticizer, and it has dominated commercial screen printing since the mid-twentieth century because it does not dry in the screen and cures predictably under standard conveyor dryers. Water-based inks use water as their primary carrier, penetrating fabric fibers directly rather than sitting on top of the material, which produces the softer hand feel that many retail brands and end consumers now actively request. The difference in how each ink interacts with fabric fibers is, in our experience, the single most consequential factor separating the two systems in everyday production.

Neither system is universally superior, and the best choice depends on carefully weighing substrate type, curing equipment, run volume, and end-consumer expectations rather than defaulting to one formulation without context. Our team's position is that understanding both systems in detail produces better outcomes than committing to one ink philosophy without examining the full range of variables involved.

The History Behind These Two Ink Systems

Plastisol's Rise to Dominance

Plastisol emerged as a commercial garment ink in the 1960s, offering screen printers a system that was stable in the bucket, non-drying in the screen, and highly consistent across long production runs. According to the Wikipedia entry on screen printing, the technique itself has roots spanning several centuries, but plastisol's introduction effectively standardized industrial garment decoration by removing much of the technical uncertainty that had limited production scale. Our research confirms that plastisol became the contract printing default precisely because its forgiving behavior reduced spoilage and lowered the training threshold for new press operators considerably.

Water-Based Ink's Resurgence

Water-based inks predate plastisol in some respects, since early textile printing relied on water-soluble dye systems, but modern discharge and water-based formulations represent a technological evolution shaped by environmental regulation and shifting consumer preferences. The current generation of water-based inks performs substantially better than formulations from even a decade ago, particularly in terms of opacity on dark garments and stability on the press. Our team notes that demand for soft-hand prints has moved from a boutique request to a mainstream expectation across many retail categories, which has accelerated investment in water-based ink technology industry-wide.

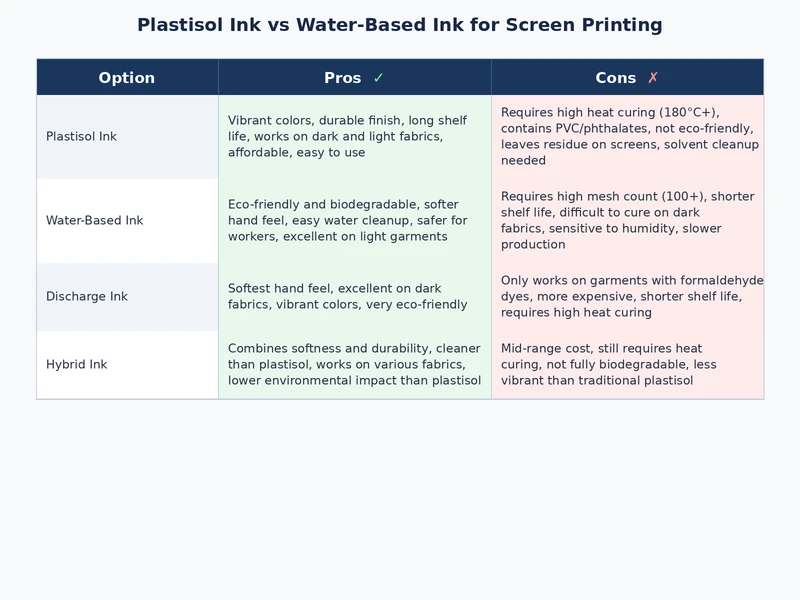

Plastisol Ink vs Water-Based Ink: Key Differences at a Glance

Print Feel and Appearance

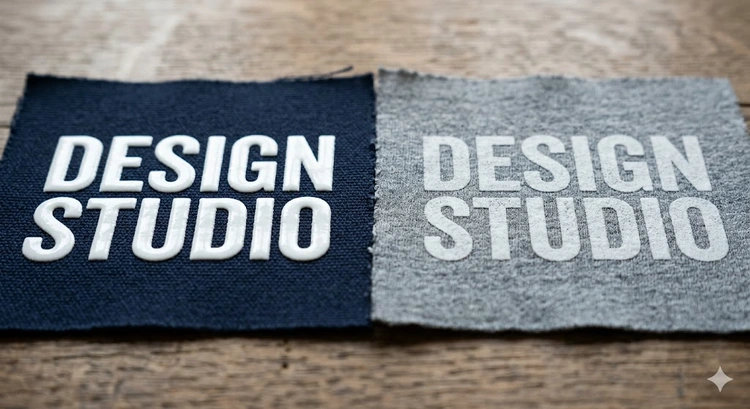

The most immediately noticeable difference is tactile: plastisol sits on top of the fabric and creates a slightly raised, rubbery print surface, while water-based ink soaks into the fibers and becomes part of the fabric itself. This distinction affects how the garment drapes, how the print breathes, and how the design interacts with the fabric's texture as the garment ages through repeated washing cycles. Our team consistently finds that recipients of water-based printed garments describe the result as more natural in feel, while plastisol prints are described as more vivid and saturated in color appearance.

Coverage and Opacity

Plastisol has a natural opacity advantage, particularly when printing white or light colors onto dark substrates, which is one reason it remains the dominant choice for high-contrast commercial designs. Achieving comparable opacity with water-based ink on dark fabric requires either a discharge base coat or multiple print passes, both of which add setup complexity and cost to the job. Our work on printing on dark t-shirts with white ink reinforces that the opacity challenge is real and manageable—but demands more careful planning than a comparable plastisol job.

Choosing the Right Ink for the Job

When maximum opacity on a dark garment is the priority and the deadline is tight, plastisol is rarely the wrong call — but when the end product demands a vintage, breathable hand feel, water-based is worth the additional setup investment.

When Plastisol Makes More Sense

High-volume contract printing, promotional merchandise runs, and any job requiring consistent opacity on dark substrates are areas where plastisol performs with reliable repeatability. Our team also finds plastisol advantageous when printing spot colors that must closely match Pantone references, since plastisol bases mix predictably and hold color accuracy across long runs without significant variation. Shops running automatic presses with established curing setups rarely need to modify their workflow between plastisol jobs, which contributes meaningfully to overall throughput efficiency and cost control.

• High-volume runs where throughput and consistency outweigh hand-feel preferences
• Dark-on-dark designs requiring maximum opacity with a single print pass
• Promotional and event merchandise with short production windows
• Shops without access to extended tunnel dryers or precise airflow control

When Water-Based Earns Its Place

Retail brands targeting premium audiences, fashion-forward labels, and anyone printing on lightweight or performance fabrics increasingly specify water-based ink because the hand feel aligns with consumer expectations for those product categories. Water-based inks also lend themselves to halftone gradients and photorealistic effects that appear more natural and less "printed" than their plastisol equivalents, making them well-suited to artistic or photography-based designs. Our team observes that many boutique printers have built recognizable brand identities around the specific aesthetic that well-executed water-based printing uniquely delivers.

• Premium retail and fashion applications where hand feel is a selling point
• Lightweight or high-performance fabric substrates sensitive to surface buildup
• Designs requiring soft halftones, gradients, or vintage-wash aesthetics
• Shops with discharge-capable dryers and established water-based workflows

Techniques That Improve Results with Either System

Optimizing Screen Tension and Mesh Count

Proper screen tension is critical for both ink types, but it is particularly consequential with water-based inks because under-tensioned screens cause ink to flood inconsistently across the mesh, which worsens dry-down problems and print edge definition. Our team targets 25–30 newtons per centimeter as a working benchmark for most detail-oriented water-based work, with mesh counts in the 160–230 range suiting the majority of those applications. For plastisol, mesh counts in the 110–160 range are common for bold graphics, while finer meshes in the 200–280 range apply to halftone and fine-detail work regardless of ink system.

Curing Considerations

Curing is where many print failures originate, and the requirements differ meaningfully between the two systems in ways that matter on a working production floor. Plastisol requires reaching a full melt temperature of approximately 320°F (160°C) throughout the entire ink film, while water-based inks must first evacuate moisture before the film can cure—making tunnel length, airflow, and dwell time more critical variables to control. Our analysis of print durability across decoration methods, including the comparison in our heat transfer vinyl vs screen printing article, consistently reinforces that curing precision separates prints that last from those that fail prematurely.

Under-cured plastisol fails a stretch test immediately — if the print cracks when the fabric is pulled firmly in both directions after coming off the dryer, the cure cycle needs adjustment before the run continues.

How Each Ink Holds Up Over Time

Wash Durability Testing

Both properly cured plastisol and water-based inks demonstrate strong wash durability in controlled testing, with industry-standard evaluations running 50 or more wash cycles to assess color retention and print integrity under realistic laundry conditions. Plastisol prints tend to retain original color saturation but can develop surface cracking on aged or lower-quality formulations that have lost plasticizer integrity over time. Water-based prints soften slightly in color presence through repeated washing—a quality that many consumers and brands interpret as a desirable vintage effect rather than degradation, particularly in fashion-oriented applications.

Cracking, Fading, and Bleed

Cracking in plastisol is almost always a symptom of insufficient curing or inadequate plasticizer in the formulation rather than an inherent weakness of the ink chemistry itself. Fading in water-based prints is more common when inks are applied at insufficient film thickness or when discharge chemistry is not fully neutralized before printing, leaving residual agents that affect color stability over time. Dye migration—where sublimation-susceptible dye from polyester fibers bleeds into the ink film—is a concern with both systems on polyester blends, though low-bleed plastisol formulations specifically designed for this challenge are widely available and consistently effective.

Caring for Prints Made with Each Ink Type

Washing Guidelines for Plastisol Prints

Most people prolong the life of plastisol-printed garments by washing inside-out in cold or warm water and avoiding high-heat drying cycles, since sustained elevated temperatures can gradually soften the cured ink film and reduce adhesion integrity over many wash cycles. Our team recommends avoiding fabric softeners when possible, as certain softener chemistries interact with PVC-based inks and can accelerate surface breakdown over an extended garment lifespan. Line drying or low-heat tumble drying represents the most conservative and effective approach for preserving plastisol print quality through years of regular use.

Washing Guidelines for Water-Based Prints

Water-based prints, once fully cured, are generally robust under standard household laundering conditions and do not require the specialized handling that some decorators assume based on the ink's reputation. The primary risk our team identifies is aggressive mechanical action combined with high-temperature washing, which can cause fabric fibers to abrade the ink film at its edges where it meets unprinted material. Turning garments inside-out and selecting a gentle cycle addresses most of this risk without requiring any special products, additional expense, or changes to a standard laundry routine.

Common Misconceptions Worth Correcting

The Eco-Friendly Assumption

The environmental calculus between plastisol and water-based inks is considerably more nuanced than the simple narrative that one is sustainable and the other is not, and our team thinks this oversimplification does a disservice to informed purchasing decisions. Plastisol ink, when fully cured and disposed of through proper channels, does not leach PVC into wastewater the way improperly managed water-based rinse water can introduce pigment particulates and surfactants into municipal systems. Water-based inks do produce lower VOC emissions during the printing process, which is a meaningful advantage in enclosed production environments, but the full lifecycle assessment is rarely as clear-cut as marketing materials tend to suggest.

The Cracking Assumption

Cracking in plastisol is a quality-control failure, not an inherent property of the ink chemistry, and well-cured plastisol prints from reputable ink brands maintain their integrity through years of normal use without developing surface fractures. Our team attributes most cracking complaints to one of three causes: under-curing during production, excessive ink film thickness from over-printing, or the use of older ink that has exceeded its usable shelf life and lost plasticizer efficacy. Modern plastisol formulations include plasticizer systems specifically engineered to maintain flexibility across a wide range of fabric weights and stretch levels, and shops that monitor cure temperature consistently rarely encounter cracking as a systematic production problem.

Frequently Asked Questions

The ink on a shirt is only as good as the cure behind it — choose either system with full knowledge of its requirements, and the results will speak for themselves.
