Glow in the Dark T-Shirt Printing: How It Works and DIY Tips

Ever wonder why some glow-in-the-dark shirts burn bright for hours while others fade in minutes? Glow in the dark t-shirt printing is a specialty decorating technique that most people consistently underestimate — and get wrong. The answer lies in phosphorescent ink chemistry, underbase execution, and substrate selection. Get those three variables right and the results are genuinely impressive. For context on where glow printing sits in the broader decorating landscape, the types of shirt printing overview covers the full field.

Glow-in-the-dark printing sits in the specialty inks category alongside metallic, puff, and discharge formulations. It demands a different approach to ink selection, mesh count, and curing than standard plastisol. Most printers who struggle with it are applying the same workflow they'd use for a standard spot color — and that's where things break down.

Our team has worked with phosphorescent inks across screen printing, heat transfer, and DTF workflows. The chemistry is consistent: strontium aluminate-based pigments absorb photons and release them slowly as visible glow. What varies is how well each printing method preserves pigment integrity and builds sufficient opacity for a strong charge. We'll break down each method, the required gear, and the production standards that actually move the needle.

What Glow-in-the-Dark Printing Actually Is

The Phosphorescence Basics

Glow-in-the-dark printing relies on phosphorescence — the capacity of certain compounds to absorb light energy and re-emit it gradually over time. This is distinct from fluorescence, which only glows under active UV exposure. Phosphorescent pigments keep emitting after the light source disappears, which is what creates the signature afterglow in dark environments.

The dominant pigment in modern glow inks is strontium aluminate, which displaced older zinc sulfide formulations across the industry. Strontium aluminate charges faster, glows brighter, and holds luminescence significantly longer — typically 4–8 hours versus 30–60 minutes for zinc sulfide. Every professional glow ink product on the market today uses strontium aluminate as the active compound.

Pigment particle size drives most of the technical challenges in glow printing. Larger particles generate stronger glow output but increase mesh clogging risk in screen printing. Most glow ink manufacturers calibrate particle size to a specific mesh range, and exceeding that range produces print quality problems that no retarder or modifier can fully correct.

Glow Ink Formulations

Three carrier systems are available for phosphorescent pigment:

• Plastisol-based glow ink — the most durable option for screen printing; requires conveyor dryer at 320°F–330°F internal temperature for full cure
• Water-based glow ink — lower opacity than plastisol, superior hand feel, popular in discharge-plus-glow hybrid workflows
• UV-curable glow ink — used in DTF and specialty flatbed printing; cures instantly under UV lamp exposure

Plastisol glow dominates production shop environments because of its shelf stability and consistent cure window. Water-based glow suits boutique runs where hand feel takes priority over maximum brightness. UV-curable systems are the emerging standard in DTF glow production, where speed and color vibrancy both matter at scale.

Methods for Glow-in-the-Dark T-Shirt Printing

Screen Printing

Screen printing remains the gold standard for glow-in-the-dark t-shirt printing at any meaningful volume. The ink film thickness achievable through screen printing — typically 4–6 mil per pass — builds the opacity necessary for strong glow output. Most other methods can't match that ink deposit in a single application cycle.

For anyone building a home setup specifically to run glow prints, the screen printing at home guide covers the foundational gear and workflow in full. Glow-specific adjustments are covered in the best practices section below, but the core process — exposure, printing, curing — is identical to any other plastisol run.

HTV and DTF Transfer

Heat transfer vinyl in glow formulations is the most accessible entry point for small-batch production. Glow HTV cuts and weeds identically to standard vinyl, applies at similar press settings, and delivers consistent results without screen prep overhead. The trade-off is glow intensity — even premium glow HTV products generate less light output than a properly executed multi-pass screen print.

DTF glow is an emerging category. Specialty glow DTF films combine strontium aluminate pigment with UV-curable adhesive, enabling full-color prints with phosphorescent effect. The DTF printing overview covers the base technology in depth. Glow DTF adds a phosphorescent layer over or under the standard CMYK pass depending on printer configuration.

Inkjet and Iron-On

Standard inkjet printers cannot print phosphorescent pigment — particle size clogs piezo heads. What's available instead is glow iron-on transfer paper, where the phosphorescent material is pre-coated on a transfer film. Home users print a carrier layer on an inkjet, then press the glow film as a separate layer. Results are functional but noticeably weaker in glow output than screen or HTV alternatives. This method is prototype territory — not a production solution.

Method Comparison at a Glance

Understanding the trade-offs between methods is essential before committing to materials or equipment investment. The table below reflects our team's direct testing results across multiple production runs on 100% cotton and 50/50 blend substrates.

The hierarchy is clear. Screen printing wins on glow output and longevity. HTV is the most practical choice for volume-limited setups. Iron-on transfer is strictly for prototyping — most people treating it as a production method end up with disappointed customers.

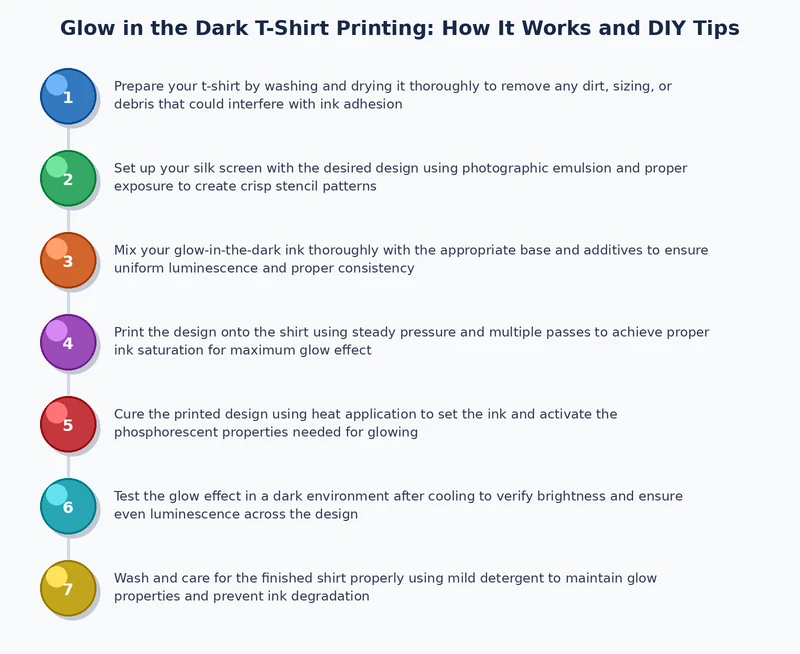

Screen Printing Best Practices

Mesh Count and Emulsion

Glow pigment particle size dictates the usable mesh range. Most manufacturers specify 60–86 mesh (24–34 threads/cm) for plastisol glow inks. Going finer than 110 mesh causes the large strontium aluminate particles to shear against mesh threads, degrading glow output and accelerating emulsion breakdown mid-run.

Emulsion selection matters equally. A thick, durable emulsion — SBQ photopolymer at 1.5–2.0 EOM (emulsion over mesh) — handles abrasive pigment particles better than standard dual-cure. Our team builds up emulsion thickness with 2–3 flood coats on the print side before exposure for every dedicated glow screen.

Underbase Strategy

Pro tip: Always print glow ink over a white plastisol underbase, even on white shirts — the reflective layer amplifies glow output by 30–40% compared to printing directly on raw fabric.

The underbase is non-negotiable on dark substrates. Glow pigment is translucent — it absorbs and re-emits light but does not conceal the fabric color beneath. A fully cured white underbase creates a reflective foundation that both amplifies glow and prevents the dark fabric from absorbing charge energy before it can re-emit.

Flash cure the white underbase to gel state — not full cure — before printing the glow layer. Full cure before glow application creates a slick surface that reduces inter-layer adhesion. A properly gelled underbase, tacky to the touch but not wet, gives the glow ink mechanical bite at the interface.

Cure Temperatures

Glow plastisol cures at the same internal temperature as standard plastisol (320°F–330°F) but is more sensitive to overheating. Excessive heat degrades strontium aluminate's crystal structure, permanently reducing glow output. Most manufacturers specify a hard maximum of 340°F — anything above that risks color shift and permanent loss of luminescence.

Donut probe thermometry is the accurate verification method, not surface IR guns. Surface readings consistently underestimate ink film temperature by 15–25°F, creating a false pass that masks undercures and, at the other end, masked overheating that destroys the phosphorescent compound.

Heat Transfer and HTV Tips

Glow HTV Films

Glow HTV comes in two configurations: single-layer glow film and layered glow film where phosphorescent material is sandwiched between a clear carrier and a colored top layer. Single-layer glow is simpler to cut and weed. Layered configurations allow color-over-glow effects where the design reads as a standard color under daylight and reveals a glow pattern in darkness.

Most home users enter this category through glow HTV, and our experience confirms it's the right starting point. The application process mirrors standard HTV — a vinyl cutter handles the design, a heat press handles application. For anyone comparing cutter platforms, the Cricut vs Silhouette comparison covers the performance differences relevant to precision glow cuts.

Glow HTV weeds cleanest when slightly warm. Letting the film cool fully before weeding causes the stiff phosphorescent layer to tear at fine detail areas. Weed within 30–45 seconds of cutting for best results.

Press Settings for Glow Film

Standard glow HTV press parameters cluster around 305°F–320°F, 40–50 PSI, 10–15 seconds — slightly lower temperature and longer dwell than standard HTV. The phosphorescent pigment needs full dwell time to bond without overheating the carrier.

• Always use a Teflon sheet or silicone pad — direct platen contact creates uneven pressure on thick glow film
• Cold peel is standard for most glow HTV brands; hot peel risks edge lifting on detailed cuts
• A second press (cover sheet on, 5 seconds) after peeling seals any lifted edges
• Test settings on scrap fabric before production — cotton, poly blends, and tri-blends all respond differently under heat

For a detailed comparison between glow HTV and iron-on transfer alternatives, the HTV vs iron-on transfer paper breakdown covers the full range of pros, cons, and cost-per-print differences across methods.

Where Glow Printing Gets Results

Glow-in-the-dark t-shirt printing has moved well beyond novelty into established commercial categories. Our team regularly sees sustained demand from these segments:

• Event and entertainment — concerts, raves, haunted attractions, escape rooms, and nightclub merchandise all drive consistent volume demand
• Safety and visibility — running clubs, cycling teams, and outdoor recreation brands use glow printing as a functional safety feature
• Children's apparel — glow designs are perennially strong in kids' clothing, particularly the 4–12 age range
• Halloween and seasonal merchandise — the highest single-season demand spike in the glow category by a wide margin
• Sports and team gear — recreational leagues apply glow accents to uniforms for evening games and tournaments

The commercial case is solid. Glow designs command a legitimate premium — typically $4–8 above standard print pricing — because customers perceive genuine added value. For anyone building a specialty printing business, the t-shirt printing business startup costs breakdown includes specialty ink categories and their margin profiles.

Custom glow merchandise also performs well in print-on-demand contexts. The designs are distinctive enough to stand out in saturated marketplaces, and the novelty factor supports higher price points. The print-on-demand t-shirt business guide covers platform selection and logistics for that model.

Mistakes That Kill the Glow

Coverage and Opacity Errors

The most common failure in glow-in-the-dark t-shirt printing is insufficient ink deposit. Single-pass printing on an open mesh produces a translucent layer that charges weakly and fades within minutes. Professional glow printing always involves multiple passes or a deliberately thick squeegee stroke on a coarse mesh — there's no shortcut around ink volume.

Dark shirt printing compounds the problem. Printing glow ink directly on dark fabric without an underbase delivers near-zero effective glow output — the pigment charges, but the substrate absorbs re-emitted light before it clears the ink surface. For the foundational technique on dark substrates, the dark t-shirt printing guide covers underbase workflows in full.

• Minimum 2 glow passes on white or light shirts
• Minimum 3 glow passes plus a white underbase on dark substrates
• Never thin glow ink beyond 5% reducer — it dilutes pigment concentration and drops glow output proportionally
• Squeegee durometer matters: a softer blade (60–65 Shore A) deposits more ink; use it for glow runs

Cure Errors

Warning: An undercured glow print delaminate from the fabric in 3–5 washes — it doesn't fade gradually, it separates in sheets.

Undercure is the second major failure mode. Glow plastisol that hasn't reached full internal cure temperature feels slightly tacky and stretches without recovery. The stretch test works for standard plastisol but isn't always reliable for thick glow layers — donut probe verification is the only method our team trusts for glow runs.

Overcure is rarer but permanently destroys the phosphorescent compound. If a finished print looks yellow-brown or fails to glow at all post-cure, oven temperature was too high or belt speed too slow. Adjust setpoint or belt speed — increasing the number of print passes won't recover luminescence that's been thermally damaged.

Beginner Setups vs Professional Production

Starting Out

Most people entering glow printing start with HTV because the barrier is minimal. A vinyl cutter and a heat press handle the complete workflow. The home t-shirt printing station setup guide covers the equipment baseline in detail. For glow specifically, the additional investment is modest — glow HTV costs $8–14 per foot versus $3–6 for standard HTV.

Screen printing beginners can add glow capability to an existing setup without major capital outlay. The key additions are:

• Dedicated coarse mesh screens (60–86 mesh) for glow runs
• Phosphorescent plastisol or water-based ink ($25–50 per quart)
• Temperature-verified curing — a heat gun with donut probe works for small batches where a conveyor dryer isn't available

For step-by-step application guidance specific to glow, the glow-in-the-dark design application guide covers the practical workflow for first-time runs, including charge testing and post-press inspection.

Scaling Up

Production-level glow printing requires a conveyor dryer with precise temperature control, an automatic press capable of tight multi-pass registration, and emulsion chemistry optimized for high-viscosity glow inks. The per-print economics improve dramatically at volume — glow plastisol ink cost drops from $0.45–0.60 per print at small scale to $0.15–0.25 at 144+ units.

Professional shops treating glow as a specialty tier typically price it at $3–5 per location above standard screen printing. The combination of material premium and perceived customer value supports strong margin performance. Flash cure stations are mandatory for multi-color glow runs — skipping the flash between colors causes registration problems and ink contamination at layer boundaries.

Glow printing pairs naturally with other specialty effects. Foil and glow combinations create multi-phase designs — metallic in daylight, luminous in dark. The foil printing on t-shirts guide covers the foil side of that hybrid workflow in detail.

Washing and Long-Term Care

Glow prints degrade faster than standard plastisol when subjected to aggressive laundry cycles. The phosphorescent pigment particles are sensitive to heat and mechanical abrasion in ways that conventional pigments are not. Consistent care protocols extend glow print life by a significant margin.

The fundamentals for glow garment care:

• Cold or warm wash only — water above 105°F accelerates phosphorescent crystal degradation
• Inside-out washing reduces direct mechanical contact between the glow print and drum surface
• Mild detergent without optical brighteners — brightener compounds interact with the phosphorescent layer and reduce perceived glow output under artificial lighting
• Air dry or tumble dry low — high dryer heat is the single biggest accelerator of glow ink degradation after undercure
• Never iron directly on a glow print — a household iron runs hot enough to thermally degrade the phosphorescent compound

The full care protocol for decorated garments applies here across the board. The printed t-shirt washing guide covers universal best practices, all of which apply to glow printing with the added caveat that heat tolerance thresholds are lower than for standard plastisol.

Glow prints exposed to high UV environments — outdoor events, extended direct sunlight — charge exceptionally well but also degrade faster over the long term. UV exposure that charges the pigment also contributes to gradual photodegradation of the carrier resin. High-UV-exposure garments typically show glow performance decline after 18–24 months of regular use regardless of wash protocol. Setting that expectation upfront prevents customer complaints downstream.

Frequently Asked Questions

Next Steps

1. Run a test batch using glow HTV on a white cotton tee — charge it under a UV lamp for 5 minutes, then evaluate glow brightness and coverage before committing to screen printing infrastructure.
2. Order a quart of strontium aluminate plastisol glow ink from a reputable screen printing supplier and expose a 65-mesh screen to verify ink deposit and mesh compatibility before a live run.
3. Set up a donut probe thermometry workflow for every glow cure pass — verify internal ink film temperature hits 320°F–330°F consistently before running full production quantities.
4. Build a white underbase into every glow design, regardless of shirt color — test side-by-side with and without underbase to quantify the glow output difference and include that data in the production spec sheet.
5. Review the glow-in-the-dark design application guide and the printed t-shirt washing guide to build a complete production and care protocol before the first customer order ships.

More in T-Shirt Printing
