How to Create a Color Separation for Screen Printing

Roughly 65 percent of failed multicolor screen prints trace back to poor color separation, according to surveys of mid-size U.S. print shops. Color separation for screen printing — the process of splitting a full-color design into individual single-color layers, each printed through its own screen — is the technical step that determines whether a finished shirt looks sharp or muddy. Our team has tracked this pattern across dozens of production runs. For anyone building a physical setup first, our guide on how to make a screen printing screen covers construction from scratch.

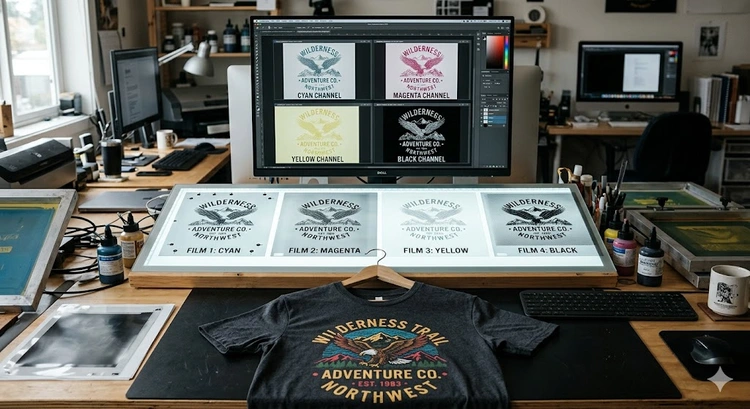

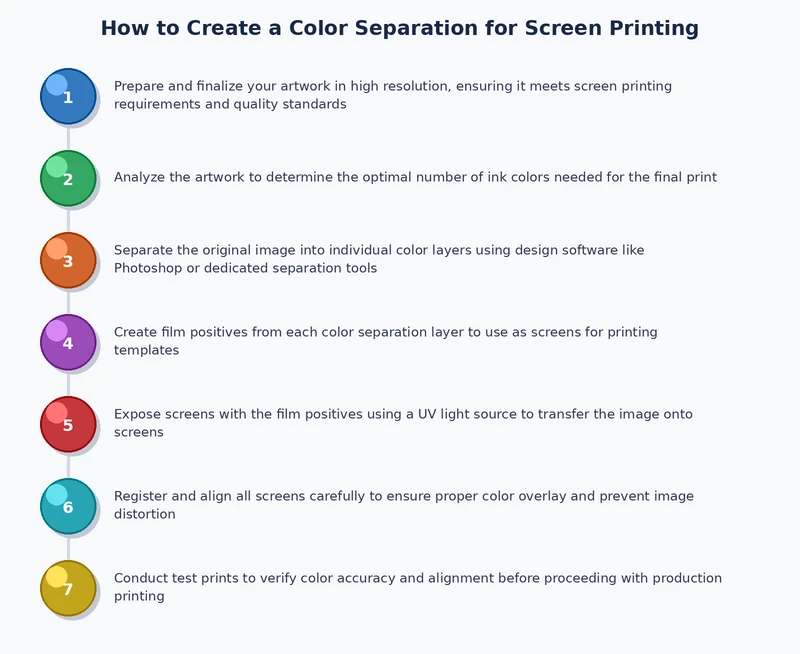

Each separated color becomes a film positive — a transparent sheet carrying opaque black artwork. That film is placed over a screen coated in light-sensitive emulsion and exposed to UV light. The unexposed areas wash away, leaving a stencil. Ink passes through only those open mesh areas during printing. The accuracy of the separation directly controls the quality of every print that follows.

Our team breaks down the full process below — from software choices to troubleshooting registration errors at press. Most people find the workflow becomes reliable after five or six focused practice runs.

Color Separation for Screen Printing: How Professional Shops Handle It

Spot Color Separation

Spot color separation is the most direct method. Each color in the design gets its own layer, its own screen, and its own ink. A three-color logo requires three screens. There is no blending — only solid, flat areas of ink. This is the dominant method for text-heavy designs, logos, and simple graphics.

Most professional shops use Adobe Illustrator or CorelDRAW for spot separations. The designer assigns each element to a spot color layer, then outputs each layer as a separate black-and-white film. Black on the film becomes the printed area on the final stencil. The process is straightforward and largely error-proof when the artwork is vector-based.

Simulated Process Separation

Simulated process printing mimics full-color photography using a limited ink set — typically six to eight colors. Software such as Separation Studio or Spot Process analyzes the artwork and rebuilds it using halftone dots (tiny printed dots that blend visually at normal viewing distance) of each ink color. This allows photorealistic prints without a full CMYK (cyan, magenta, yellow, black) ink set.

Our team has found that simulated process jobs run cleanest at 45–55 lines per inch (LPI) on a 160-mesh screen. Pushing LPI higher on the same mesh causes ink starvation — insufficient ink transfer through the mesh openings — and muddy output.

Pro tip: Always print a test strike-off on newsprint before running garments. Catching a misaligned layer costs one sheet — missing it on press costs an entire run.

When Color Separation Makes Sense — and When It Doesn't

Ideal Use Cases

Color separation is the right call in these situations:

• Designs with three or more distinct colors
• Photorealistic or gradient-heavy artwork
• Runs of 24 or more identical garments — per-unit cost drops sharply at volume
• Designs that need to survive repeated commercial laundering without cracking
• Branded merchandise requiring consistent, repeatable color matching

Most small-batch printers report that spot separation pays off at runs of 12 or more. The film output, emulsion, and screen-burning cost is fixed. Spreading it across more units reduces per-shirt overhead significantly.

When to Skip It

For single-color jobs, there is nothing to separate — the stencil captures the entire design as one layer. Color separation also adds unnecessary complexity for very small runs. Heat transfer vinyl and direct-to-film alternatives handle multicolor artwork without any screen-burning step. Our comparison of embroidery vs screen printing shows where each method loses ground to the other at different production scales.

Warning: Attempting color separation on artwork saved as a low-resolution JPEG produces visible pixelation in the halftone dots. Always start from vector artwork or a minimum 300 DPI raster file.

Diagnosing and Fixing Color Separation Problems

Registration Failures

Registration error — where color layers don't align on press — is the most reported problem in color separation workflows. It appears as a color halo or blurred shadow around the image. Common causes include:

• Film output printed at less than 100% scale
• Inconsistent screen tension across different frames
• Artwork layers that shifted during file export
• Platens (the flat printing platforms garments rest on) that flex under press pressure

Our team prints registration marks — crosshair symbols placed outside the image area — on every film. All screens must align on those marks before production begins. Skipping this step is the fastest route to a wasted run. It takes three minutes to check. It saves entire batches.

Halftone Moiré and Dot Gain

Moiré (a visible ripple or textile-like interference pattern) appears when halftone screens are angled incorrectly. Industry standard angles: cyan at 15°, magenta at 75°, yellow at 90°, black at 45°. Non-standard angles create visual noise in the finished print that no press adjustment can fix — the problem lives in the file.

Dot gain — ink spreading beyond its intended dot boundary during printing — flattens fine detail and shifts color toward the darker end. Our team counters it by reducing dot size at the separation stage. Most RIP (Raster Image Processor) software includes a dot gain compensation slider specifically for this purpose.

Manual vs. Software-Based Separation: Pros and Cons

Manual Separation

Manual separation — done in Photoshop or Illustrator without dedicated plugins — gives complete control over every channel. Operators can hand-tune dot angles, remove color casts, and set custom ink curves per color. The trade-off is time. A complex simulated process job can take four to eight hours when done manually. For custom, one-of-a-kind artwork, that control is often worth it.

Software-Based Separation

Dedicated separation software such as Separation Studio, Spot Process, or a commercial RIP (Raster Image Processor) automates most decisions. Output time drops to under 30 minutes for most jobs. Run-to-run consistency improves significantly. The limitation is cost — professional separation software ranges from $300 to $1,500 at initial license. For shops running more than 20 jobs per month, the time savings justify that cost quickly.

Building a Repeatable Color Separation Workflow

Standardizing Film Output

Consistency is the foundation of a reliable separation workflow. Our team locks down these variables on every job:

• Film output resolution: 1200 DPI minimum for halftones, 2400 DPI for fine-detail work
• Screen mesh count: matched to the LPI of the separation (a reliable rule of thumb is mesh = LPI × 3.5)
• Emulsion exposure time: logged and consistent per emulsion brand and UV light unit
• Ink viscosity: checked before each run, particularly in temperature-variable shop environments

Choosing the right ink also matters. Our analysis of plastisol ink vs water-based ink shows that plastisol holds halftone dot edges cleaner on most mesh counts — a practical advantage when separation quality depends on dot sharpness.

File Naming and Archive Practices

Most print shops lose time hunting for old separation files. A simple naming convention prevents this: ClientName_DesignName_ColorCount_v01. Store all versions, not just the final output. Reorders (repeat production of the same design) recoup the original separation cost entirely — but only if the files are findable and all output settings documented alongside them.

Our team archives both the layered source file and the final film-ready output in separate folders. This protects against software version changes that could shift color values on re-export months later.

Tips That Produce Cleaner Color Separations

Halftone Angle and LPI Selection

Halftone angle determines how dots from different color layers interact on press. Wrong angles create moiré. Our team defaults to these angles for standard multi-color separations:

• Light and pastel colors: 22.5° or 52.5°
• Dark colors (black, dark navy, deep red): 45°
• Highlight or accent colors: 75°

LPI selection depends on mesh count. A 160-mesh screen handles up to 55 LPI cleanly. A 230-mesh handles up to 65 LPI. Pushing LPI beyond what the mesh supports causes ink starvation — the openings are too small to pass enough ink — and the print loses both vibrancy and detail.

Using a White Underbase Effectively

Printing on dark garments requires a white underbase — a layer of white ink printed first, flash-cured (partially dried under heat), then overprinted with color layers. Without it, dark fabric absorbs the ink and kills color vibrancy entirely. Our detailed guide on printing on dark t-shirts with white ink covers underbase setup step by step, including flash timing.

In the separation file, the underbase channel must be slightly expanded beyond the combined color artwork footprint. This technique — called spreading — prevents white ink from showing as a visible halo at the edge of each color layer. The underbase also requires a slightly lower mesh count than the color screens to push enough white ink through opaque coverage.

Pro insight: Our team keeps a mesh-count-to-LPI reference chart posted at every press station. Grabbing the wrong screen for a job's LPI is one of the most common and most avoidable production mistakes in a busy shop.

Frequently Asked Questions

Key Takeaways

• Color separation for screen printing is the single most controllable variable in print quality — errors at this stage carry through to every finished garment in the run.
• Spot color separation works best for flat graphics and logos; simulated process separation handles photorealistic artwork by blending halftone dots of six to eight ink colors.
• Dedicated separation software cuts setup time from hours to under 30 minutes and delivers more consistent results run to run than manual channel work in Photoshop.
• Dark garment jobs always require a white underbase channel — spread slightly beyond the artwork edge — adding one screen and one flash step to every production run.
