Screen Printing on Hats: Tips for Curved Surfaces

Over 3.5 billion baseball caps are produced and sold worldwide every single year, making custom headwear one of the most consistently profitable categories in the decorated apparel market, which means learning how to screen print on hats is worth every bit of extra effort the process demands. Curved surfaces throw off most of the flat-garment techniques you already know, and that gap in knowledge is exactly where beginners lose time, money, and perfectly good caps.

Hats present a fundamentally different challenge than t-shirts or even three-dimensional garments like the ones covered in this beginner guide to screen printing on hoodies, because the crown curves in two directions at once, the brim blocks access from the front, and internal structure varies dramatically between styles. That combination of obstacles means you need different platens, different squeegee technique, and a process that accounts for uneven contact between your screen and a surface that is never perfectly flat.

This guide walks you through everything from the background of why hats are tricky to print on, to the right tools, a clear step-by-step process, and the most common mistakes you'll want to avoid so you can start producing clean, professional results on curved headwear as efficiently as possible.

Why Printing on Hats Is a Different Challenge

Screen printing — a centuries-old process with a detailed history covered in Wikipedia's screen printing article — works best when your substrate (the material you're printing on) is flat and stable. Hats are neither of those things, and that mismatch is the root cause of most problems beginners run into when they try to apply flat-garment technique directly to headwear.

Here's what makes hat printing specifically tricky:

• The crown curves in two directions — side to side and front to back, so a flat screen can only make clean contact with the very top center of the hat at any one moment.
• The brim restricts vertical access — on structured caps, the brim sits below and in front of the print area, which means you can't lower a screen straight down the way you would onto a standard t-shirt platen.
• Internal structure varies significantly — some caps are tightly built with buckram (a stiff fabric lining that holds the front panel upright), while others are soft and flexible, and those differences change how the hat responds to squeegee pressure.
• The print area is smaller than almost any garment — most hat front panels offer a workable area of roughly 2.5 inches tall by 4 inches wide, which leaves very little room to work with and no margin for registration errors.

Understanding these constraints before you start lets you make smarter decisions about equipment, design sizing, and technique, rather than discovering them by ruining a batch of caps and starting over.

The Anatomy of a Printable Hat Panel

The front panel of a structured cap is your primary printing surface, and it typically sits at a slight backward angle from vertical, which means your screen needs to be positioned at a matching angle to make even contact with the fabric across the full width of the design. Unstructured caps (like dad hats or low-profile caps) have even more give in the crown, which makes consistent pressure across the print area harder to maintain without the right platen shape supporting the fabric from underneath.

The Essential Tools for Hat Screen Printing

You can get away with minimal equipment for flat garment printing, but hat printing has a harder minimum requirement — there are a few pieces of gear you genuinely cannot skip if you want repeatable, professional results across a full batch of caps.

Hat Platens and Clamps

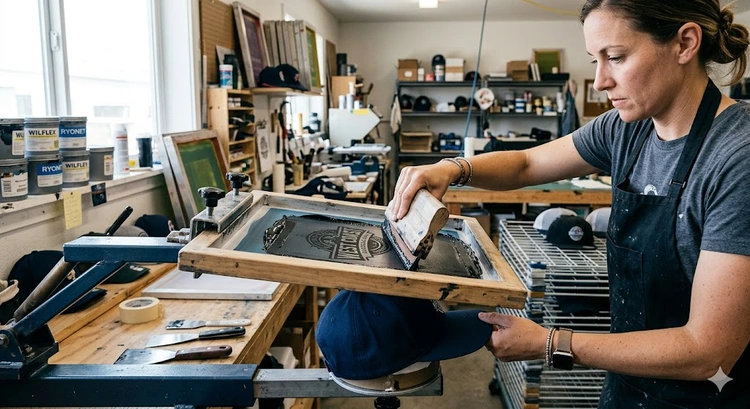

A hat platen is a curved aluminum or plastic fixture that matches the shape of a cap's front panel and mounts onto your press in place of a standard flat platen, bringing the curved print surface up to meet your screen at the correct angle. Most hat platens are designed for standard structured 6-panel caps, but you should verify the specs before purchasing if you plan to print on other hat styles with different crown profiles.

• Look for a platen with an adjustable tilt angle so you can fine-tune the match between the platen curve and the specific cap you're printing on.
• A hat clamp or brim grip bar that holds the bill down during printing is not optional — without it, the hat shifts during the print stroke and blurs the image.
• Some presses require a separate adapter arm to mount the hat platen at the correct height, so check compatibility with your specific press model before ordering any attachments.

Screens and Mesh Count

For most hat designs, a mesh count in the 110–160 range gives you the right balance of ink deposit and detail resolution on the relatively textured surface of cap fabric. If you're working with fine details or halftone gradients, you might push toward 200 mesh, but heavier cap fabrics absorb ink differently than lightweight t-shirt jersey, and going too fine on the mesh can result in thin, washed-out prints. You can find a full breakdown of mesh selection decisions in the screen printing mesh count guide if you want to dial that choice in more precisely for your specific materials.

Ink Choices for Hats

Plastisol ink is the most common and most forgiving choice for hat screen printing because it sits on top of the fabric rather than soaking in, which means it handles the texture and varied weave of cap materials without bleeding or uneven absorption. Water-based inks are usable but require more care and faster printing speeds to avoid drying in the mesh between strokes.

Pro tip: Always use a low-bleed or bleed-resistant plastisol when printing on polyester-blend caps — standard plastisol can pick up dye migration from synthetic fibers during curing, which shows up as a faint discoloration around the edges of your print on the finished cap.

How to Screen Print on Hats: Step-by-Step

Once you have your platen, screen, and ink ready, the process of how to screen print on hats follows a logical sequence, and keeping each step in order makes a measurable difference in your consistency from one cap to the next across a full production run.

Step 1 — Preparing Your Hat and Screen

1. Mount the hat platen on your press and set the off-contact distance (the small gap between the bottom of the screen and the top of the platen surface) to roughly 1/16 inch — slightly tighter than you'd use for flat garments because the curved surface already creates natural off-contact at the outer edges of the design.
2. Load the cap onto the platen by sliding the front panel over the curved form and securing the brim clamp or grip bar so the hat cannot shift in any direction during the print stroke.
3. Check your screen registration by lowering the screen onto the loaded hat and verifying that your design is centered on the front panel both left-right and top-bottom before you lock the screen into printing position.
4. Apply a line of ink above the image area on the screen so you're ready to flood the mesh on your very first pass without having to stop and reload mid-run.

Step 2 — The Printing Pass

1. Flood the screen first by pulling the squeegee lightly across the image area without applying printing pressure — this fills the mesh with ink so your first actual print stroke deposits an even, consistent layer rather than a starved one.
2. Execute the print stroke with a single firm, even pass, holding the squeegee at approximately 60–75 degrees and maintaining steady downward pressure all the way across the width of the design without stopping mid-stroke.
3. Lift the screen cleanly and straight up off the cap after your print stroke — dragging or pivoting the screen sideways will smear wet ink against the fabric and ruin the print edge definition.
4. Inspect the print immediately before removing the hat from the platen, checking for thin spots, uneven edges, or areas where the screen didn't maintain full contact with the curved panel during the stroke.

Your squeegee choice matters significantly here, and the right durometer (hardness rating), angle, and pressure all affect ink deposit quality in ways that compound across a full run. The screen printing squeegee guide covers how to match durometer, blade size, and angle to your specific job requirements if you want to refine that part of your technique further.

Step 3 — Curing and Finishing

1. Remove the cap from the platen carefully without touching the wet printed surface, and place it on a clean rack away from direct contact with other caps or materials until you're ready to cure the full batch.
2. Cure with a heat gun, flash dryer, or conveyor dryer — for small batches, a heat gun works if you keep the heat source moving in slow, consistent circles over the print area for 30–45 seconds per cap to avoid scorching the fabric or the brim.
3. Confirm full cure with a stretch test — once the cap has cooled completely, gently stretch the printed area between your fingers; if the ink cracks or separates from the fabric rather than flexing with it, the ink needs more heat time or a higher cure temperature.

Common Mistakes That Ruin Hat Prints

Most hat printing failures trace back to a short list of repeating errors, and recognizing them before your first run saves you a significant amount of wasted materials, time, and frustration.

• Using a flat platen instead of a hat platen — this is the most basic error and the one with the most immediate consequences; it results in uneven screen contact, blurry edges, and ink that only transfers cleanly to the very top center of the crown.
• Setting off-contact too high — excessive off-contact on a curved surface means the screen is only making full contact with the highest point of the crown, and the outer edges of your design will print faint or not at all.
• Designing too large for the available print area — a design that looks compact on a computer screen can easily overflow the usable 2.5" × 4" window of a standard cap front panel, especially once you account for the curve pulling the design inward from the sides.
• Skipping the flood stroke — without flooding the screen before the first print stroke, your initial pass deposits ink unevenly because the mesh isn't fully loaded, and that inconsistency is almost impossible to correct without starting over.
• Not securing the brim with a clamp — any movement of the hat during the squeegee stroke creates ghosting (a blurred double-image effect), and a loose brim is usually the source of that movement on structured caps where the bill sits at an angle beneath the platen.
• Under-curing on thick or layered cap fabrics — the layered structure of a cap crown holds heat unevenly, so a surface temperature reading during curing may not reflect what's happening deeper inside the ink layer against the buckram backing.

Warning: Never try to re-register a second print pass on a hat that has already been removed from the platen — repositioning it to the exact same location is nearly impossible without a precision jig, and a misaligned double impression will be visible on the finished cap from several feet away.

Beginner Approaches vs. Advanced Techniques

Where you start with hat printing depends on your current equipment and experience level, and there is a genuine spectrum here between the accessible and the highly technical, with meaningful stopping points at each stage.

Starting Out: What Beginners Should Focus On

• Begin with structured 6-panel caps in a single solid color — these give you the most predictable and consistent crown shape to work with, which makes troubleshooting your setup much simpler.
• Stick to single-color designs with bold lines and generous spacing between elements until you fully understand how the curved surface affects your print area, edge definition, and registration consistency.
• Always use a press-mounted hat platen rather than attempting to hand-print on caps — hand printing is possible in theory, but maintaining even pressure across a curved surface without a press is extremely difficult to do consistently.
• Work with plastisol ink before experimenting with water-based or discharge options — plastisol gives you more working time because it doesn't dry in the screen between prints, which is a significant advantage when you're still learning the rhythm of hat printing.

Advanced Techniques Worth Learning

• Multi-color registration on caps — achievable with a press that supports indexed hat platen positioning, where each color prints in exact alignment with the previous one, but it requires a more rigid setup and more consistent cap loading than single-color work demands.
• Printing on the bill or side panels — both are possible with specialized fixtures, but each area requires a custom-shaped platen or holding jig to bring the surface into flat contact with the screen during printing.
• Using discharge ink on dark cotton hats — discharge (a type of reactive ink that removes existing dye from the fabric before depositing new color) can produce incredibly soft, almost dye-like prints on dark cotton caps, but it requires proper ventilation and careful activator handling.
• Halftone printing on caps — fine halftones on curved surfaces are genuinely challenging, but achievable with a 200+ mesh screen, precisely prepared emulsion, and a well-calibrated registration system that keeps every cap in exactly the same position from print to print.

Quick Wins That Improve Your Results Fast

You don't need to overhaul your entire setup to see a meaningful improvement in your hat prints — these small, targeted adjustments tend to deliver noticeable results quickly and don't require significant additional investment.

• Lower your off-contact distance slightly compared to what you use on flat garments, since the natural curve of the hat already creates off-contact at the edges, and starting lower at the center gives you better overall contact across the full image width.
• Pre-press each cap before loading it — a quick 3–5 second pass with a heat press removes moisture and flattens any wrinkles or texture variations in the front panel, which improves both ink adhesion and surface consistency across a batch.
• Mark your platen stop position with tape after you get a good first registration — a small piece of tape on the press arm as a physical stop point saves you from re-aligning every single cap in a run and eliminates one of the most common sources of inter-cap variation.
• Use a slightly heavier ink deposit than you would on a flat garment — cap fabric textures tend to show through thin ink layers, and a slightly thicker deposit covers the weave and stitch patterns more completely without requiring a second print pass.
• Test your design on curved cardstock first by printing a test pass onto a piece of card taped around the platen before committing to a production run — it takes only a few minutes and can reveal registration, sizing, or contact issues before you waste a single cap on them.

Which Hat Styles Work Best for Screen Printing

Not all hats print equally well, and understanding the strengths and limitations of each style before you take on a job helps you set realistic expectations and choose the right printing approach for each one.

Structured Caps

Structured 6-panel caps with buckram backing are the easiest style to screen print on because the front panel holds a consistent, predictable shape and the internal stiffener gives the fabric a firm surface that responds reliably to squeegee pressure. Most hat platens are engineered specifically for this profile, which means your tooling, technique, and results will be most consistent and most repeatable here, making structured caps the right starting point for any new hat printing setup.

Unstructured and Dad Hats

Unstructured caps (often called dad hats or low-profile caps) have a softer, more flexible crown that can fold and shift during printing if you're not careful about how you load and secure the cap on the platen. You'll need a platen with a lower-profile curve that matches the flatter shape of these caps, and slightly more squeegee pressure to push ink through the fabric evenly in areas where the cap naturally gives under the blade during the print stroke.

Beanies and Knit Hats

Beanies and knit caps are the hardest category to screen print on because the fabric stretches unpredictably, the knit texture is highly irregular from panel to panel, and there's no rigid internal structure to hold the print area stable during the stroke. Screen printing on beanies is technically possible with a dome-shaped platen and careful technique, but most professionals choose heat transfer or embroidery methods for knit styles rather than fighting the challenges of screen printing on an inherently unstable surface.

Trucker and Foam-Front Hats

Trucker caps with foam or stiff mesh front panels are actually quite printable — the foam front provides a firm, relatively flat surface that accepts plastisol ink well, and the profile of most foam-front caps means you don't need as much curve compensation in your platen and off-contact setup as you would with a traditional structured 6-panel cap with a more pronounced crown curve.

Real-World Hat Printing Projects and What They Teach

Looking at specific types of hat printing jobs helps you understand where the technical details of the process matter most in actual production contexts, and each scenario tends to reveal a different weak point in a beginner's setup.

Small Batch Merch Runs

Printing 12–24 caps for a band, local sports team, or small business is one of the most common entry-level hat jobs, and it teaches you registration consistency and batch management very quickly because you're loading and unloading the platen repeatedly in rapid succession. Even small runs expose gaps in your setup with remarkable speed — any variation in how you seat the hat on the platen, or how firmly you clamp the brim, shows up immediately in the alignment of sequential prints when you compare caps side by side after the run.

Branded Corporate Orders

Corporate hat orders often require exact PMS (Pantone Matching System) color matching and very high cap-to-cap consistency across quantities of 50 or more, which is where the difference between a dialed-in hat printing setup and an improvised one becomes very clear in a hurry. If you're building toward taking on corporate orders, your registration system and curing process both need to be documented and fully repeatable — there's no room to eyeball things when every cap in the order needs to match the approved sample exactly.

Event and On-Demand Printing

Some operators set up hat printing at live events, producing custom caps on the spot for attendees, which puts a very strong premium on setup speed and operational simplicity rather than maximum print quality or color complexity. For this type of work, a single-color design with a well-dialed platen and a fast-curing heat gun finish is the practical approach, and it also serves as a useful reminder that production efficiency and setup reliability matter just as much as technical print skill when you're printing in a real business context with customers watching.

Building a Hat Printing Setup That Grows With You

If you're thinking about hat printing as an ongoing part of your business or creative practice rather than a one-off experiment, it's worth structuring your workspace and workflow for scalability from the beginning, rather than optimizing only for your first few jobs and rebuilding everything later.

Press and Platen Investment

A hat printing attachment for a standard 1-color or 4-color press is a relatively affordable upgrade — most hat platens run between $50 and $200, and they transform an existing press into a capable hat printing station without requiring a dedicated hat-only machine or a major capital investment. As your volume grows, you might consider adding a second hat platen station or a press specifically configured for headwear, but for most small-to-mid-scale operations, a single well-configured station is sufficient for consistent runs up to a few hundred caps per day.

Design and File Management

Keeping a library of approved hat-scale design files — already sized, tested, and documented for the specific constraints of your platen and print area — saves significant prep time on repeat orders and reduces the risk of printing a design that overruns the panel or conflicts with the seam placement on a particular cap style. Write down what works after every successful run: note the ink type, mesh count, off-contact setting, squeegee durometer, and anything else that produced your best results on each cap style you print regularly, so you can refer back to those notes rather than re-dialing your setup from scratch every time you start a new job.

Pricing Your Hat Work

Hat printing typically commands a premium over standard t-shirt printing because of the additional setup time, the cost of specialized equipment, the higher per-unit cost of blank caps compared to blank tees, and the smaller print areas that limit how efficiently you can move through a batch. When you're building out a pricing structure for headwear work, make sure you're factoring in your platen setup and registration time, the per-cap blank cost, and the additional handling time that curved surfaces require compared to flat garment printing — all three of those factors add up faster than most beginners expect when they first start quoting hat jobs.

Frequently Asked Questions

Key Takeaways

• Hat screen printing requires a curved hat platen and a brim clamp — flat-garment setups will not produce clean, consistent results on curved cap surfaces regardless of your technique.
• Plastisol ink is the most reliable choice for most cap fabrics, and a single firm print stroke with a 70-durometer squeegee at 60–75 degrees gives you the most consistent ink deposit on curved panels.
• Structured 6-panel caps with buckram backing are the easiest style to start with, while unstructured, knit, and flexible styles each require additional equipment adjustments and technique refinements to print well.
• Small process habits — pre-pressing caps, marking your registration stop point, and documenting your settings after every successful run — compound into significantly better consistency and less wasted material across larger batches over time.
