How to Apply HTV to Nylon Fabric Without Scorching

A few seasons back, our team pressed a logo onto a nylon windbreaker for a local cycling club. The transfer looked flawless coming off the platen — crisp edges, saturated color — then peeled at the corners after one wash. That failure sent us deep into the mechanics of heat transfer vinyl on nylon, and what we found reshaped how we approach every synthetic fabric job. For a primer on closely related challenges with synthetic substrates, our guide on heat transfer vinyl on polyester covers thermal sensitivity from a useful parallel angle.

Nylon is a thermoplastic polymer. According to Wikipedia, nylon's melting range runs from 190°C to 350°C depending on formulation — well within reach of a press running cotton settings. The real danger isn't melting. It's distortion: nylon fibers lose structural integrity and take on a glazed, scorched appearance at temperatures most crafters consider routine. Standard HTV activates at 305–320°F (152–160°C). Most nylon fabrics begin to pucker at 270–280°F (132–138°C). That 30-degree margin is where transfers fail and garments get ruined.

Our team has tested nylon HTV application across ripstop windbreakers, athletic shorts, Oxford-weave bags, and nylon pack panels. The conclusion is consistent: low-temperature HTV films are the only reliable solution for nylon substrates. Standard PU or PVC films activated at 305°F will damage most nylon before the adhesive fully bonds. The technique is specific, and no technique adjustment substitutes for the correct film chemistry.

When Nylon Is a Viable HTV Substrate — And When It Isn't

Nylon Constructions That Accept HTV

Not all nylon is created equal. Ripstop nylon — the grid-reinforced weave common in windbreakers, rain shells, and athletic outer layers — holds up better under low-heat pressing because the tight construction distributes heat more evenly across the surface. Woven nylon packcloth and Oxford nylon both perform reliably with nylon-specific HTV when prepped correctly. Our team consistently sees better adhesion on fabrics above 40 denier. Lightweight sheers and filmy nylons below 20D are too delicate for any HTV application — the fabric distorts before the adhesive activates. Nylon-polyester blends at 50/50 or 60/40 ratios are more forgiving than pure nylon because polyester raises the overall thermal tolerance of the weave and gives the adhesive more surface texture to grip.

Applications Where HTV on Nylon Makes Practical Sense

Athletic team gear is the primary use case our team endorses. Short production runs of names, numbers, and logos on nylon shorts, jackets, and gym bags are exactly the jobs that low-temp HTV was engineered to handle. The method is faster and more cost-effective than embroidery or screen printing for orders under 25 pieces, and it delivers sharp, full-color results without specialized equipment beyond a heat press and a vinyl cutter. Our post on making matching t-shirts for a group or event covers the broader production considerations that translate directly to nylon apparel runs.

HTV on nylon does not belong on garments facing heavy commercial washing cycles or prolonged outdoor exposure. Banner and flag applications are marginal. Our tests on nylon banner stock showed visible edge lifting after three months of direct sun — a timeline that makes HTV impractical for anything beyond temporary or indoor signage. If the end use involves a washing machine set above cold, the bond timeline shortens considerably from the outset.

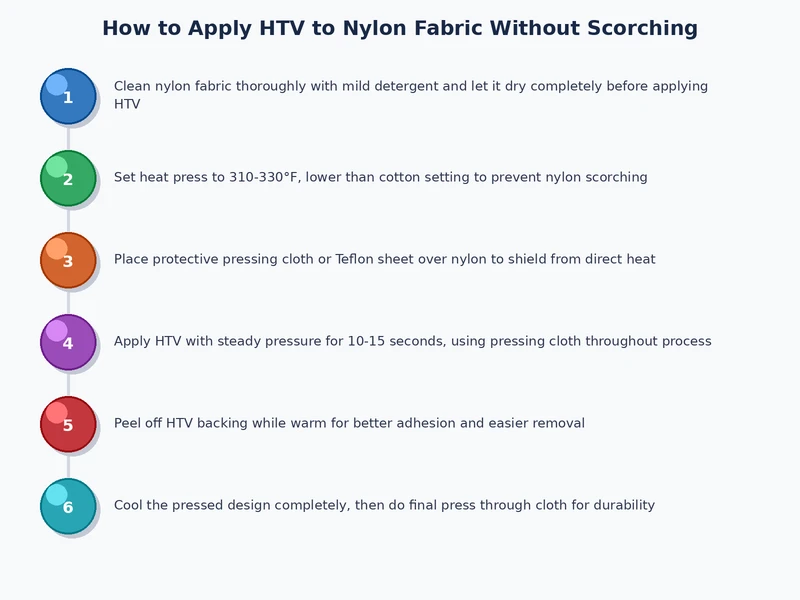

How to Apply Heat Transfer Vinyl on Nylon: The Complete Process

Preparation and Pre-Press

Substrate prep is the most commonly skipped step, and on nylon, skipping it guarantees problems. Our team pre-presses nylon for 3–5 seconds at the target application temperature before placing any vinyl. The purpose is moisture evacuation. Nylon absorbs ambient humidity, and trapped moisture under the vinyl causes immediate bubbling and adhesion failure. A quick pre-press also flattens any wrinkles or surface irregularities that create uneven pressure during the main press. Place a Teflon sheet or thin silicone pad between the platen and the nylon at all times. Direct platen contact at even 250°F leaves a permanent gloss mark on most nylon fabrics — there is no way to reverse it.

Design prep follows standard HTV protocol with one critical step: always mirror artwork before cutting. Our guide to mirroring images for heat transfer printing covers the exact workflow for common design programs. Use a fresh blade. Low-temp HTV films are softer than standard PU stock, and a dull blade drags instead of cuts — producing ragged edges that lift during pressing. Our breakdown of when to replace a Cricut blade applies directly to low-temp film behavior.

Press Settings and Technique

Temperature: 260–275°F (127–135°C). Pressure: medium-light. Time: 10–15 seconds. These are the parameters our team runs for all low-temperature nylon HTV films — Siser EasyWeed Low Temp and ThermoFlex Turbo both fall within this range. Standard EasyWeed presses at 305°F. Do not use it on nylon. The result is a scorched substrate, a transfer that peels underneath while appearing bonded on top, or both.

Pressure matters as much as temperature on slick synthetic weaves. Our analysis of heat press pressure settings confirms that excess downforce on thermoplastic fabrics causes deformation even at correct temperatures. For nylon, our team targets approximately 40 psi on a clamshell press — meaningfully lighter than the pressure we use for a cotton jersey. If vinyl requires heavy clamping force to adhere, the temperature is likely too low rather than the pressure too light. Adjust heat first, never force.

Peel and Cure

Low-temp nylon HTV films are cold-peel without exception. Let the transfer cool completely to room temperature — 60 to 90 seconds — before removing the carrier sheet. Hot-peeling stretches the adhesive layer and creates bubbles and uneven adhesion across the design. After peeling, cover the transfer with a Teflon sheet and re-press for 5 seconds at the same temperature. This final press locks the bond at the edges and reduces lifting in wash testing. Our team treats the re-press as mandatory for nylon, not a finishing option.

Troubleshooting HTV Failures on Nylon Fabric

Scorching and Surface Distortion

Scorching is the most common failure mode — a shiny, flattened patch in or around the transfer that represents irreversible fabric damage. The solution is prevention, not recovery. Always verify press temperature with an independent laser or contact thermometer before pressing any nylon substrate. Most commercial heat presses run 10–20°F hotter than their digital readout indicates. A press calibrated to read 275°F at the display may be delivering 290°F at the platen — enough to scorch lightweight nylon every time. Our team treats every press as uncalibrated until confirmed with a secondary thermometer, especially after extended downtime or recent service.

If the transfer itself discolors or fails to bond rather than the fabric scorching, the film is not rated for low-temperature application. Standard HTV adhesives are formulated to activate at 305°F. At nylon-safe temperatures, that adhesive never fully cures — producing a transfer that peels after the first wash regardless of technique.

Adhesion Failures and Edge Lifting

Edge lifting after washing traces to three causes: skipped pre-press, hot-peel, or insufficient press duration. Our team adds 2–3 seconds when working with thick ripstop above 150D — the weave texture creates micro air pockets under the vinyl that need extra dwell time to collapse. Precision weeding also matters. Excess carrier material left around interior cutouts traps air during pressing and promotes edge lift from the outside in. Our detailed guide to choosing and using weeding tools covers the level of precision needed for tight designs on difficult substrates.

Beginner Approach vs. Advanced Nylon HTV Technique

What Most People Start With — and Where They Go Wrong

Most beginners attempt nylon HTV with standard EasyWeed or a comparable PU film rated at 305°F. The result is a scorched substrate, a failed transfer, or both. Our team's position is direct: buy nylon-specific low-temp film before attempting any nylon application. There is no technique adjustment that makes standard HTV perform reliably at nylon-safe temperatures. The adhesive chemistry differs fundamentally. Low-temp film costs 15–25% more per linear foot than standard stock — an upcharge that is negligible compared to the cost of one ruined jacket or one failed client order. The economics are not close.

Beginners also skip the Teflon sheet. On cotton, this occasionally produces acceptable results. On nylon, direct platen contact at any temperature above 220°F leaves a permanent mark. There is no remediation option for glazed nylon.

Advanced Techniques for Cleaner Results

Experienced operators seal edges with a heat gun after the main press, targeting hem edges, collar areas, and seam-adjacent zones that the platen can't fully reach due to seam thickness. A brief pass at 250°F tacks down any micro-lift before it becomes a wash failure. Our team also runs mandatory swatch testing before fulfilling any nylon order: press a fabric sample, run it through three cold-water wash cycles, inspect under raking light for edge lift. The test adds 24 hours but eliminates returns entirely. For anyone weighing HTV against sublimation on nylon-polyester blends, our guide to sublimating on athletic jerseys is a useful contrast — sublimation consistently outperforms HTV for full-coverage decoration on blended fabrics and eliminates the scorching risk entirely.

The Real Tradeoffs: HTV on Nylon vs. Other Decoration Methods

Durability and Wash Performance

HTV on nylon is workable. It is not ideal. Our team is clear about this. The bond is less durable than HTV on cotton or polyester because nylon's smooth surface offers less mechanical grip for the adhesive layer. With quality low-temp film and correct application, most people can expect 30–40 cold-water wash cycles before edge degradation becomes noticeable — compared to 50+ cycles on 100% cotton. Warm-water washing accelerates bond failure. Tumble drying is high-risk. Dry cleaning destroys HTV regardless of substrate. For a broader comparison of how different film types hold up over time, our breakdown of glitter HTV vs regular HTV covers wash durability across the major film categories.

Comparing HTV Film Options for Nylon

The cost differential between standard and low-temp film is small on a per-piece basis. For runs of five to twenty pieces — the typical nylon HTV project — the upcharge is negligible. Our team stocks low-temp film as a permanent line item, not a specialty order. Any shop serving athletic or outdoor apparel clients needs it on hand before the first nylon job arrives, not after.

Frequently Asked Questions

On nylon, the right film and a calibrated press aren't optional extras — they're the entire job.
