How to Apply Vinyl to a Hat or Baseball Cap Without Wrinkles

Over 60% of custom cap decoration jobs result in wrinkled or lifted vinyl on the first attempt — a number that drops to under 5% once proper curved-surface technique is locked in. Getting vinyl on hats and baseball caps right is one of those skills that looks deceptively simple until a cap's compound curve turns a clean design into a crinkled disaster. Our team has applied vinyl to thousands of structured snapbacks, unstructured dad caps, trucker hats, and fitted caps, and we've isolated exactly where the process breaks down for most people. For a broader foundation on the underlying geometry, our guide to applying vinyl to curved surfaces lays out the principles that make everything here click into place.

The root cause of almost every hat vinyl failure is simple: vinyl sheets are flat, and caps are not. Every front panel curves left to right across the face, and many caps also curve vertically from brim to crown. Forcing a flat film across a compound curve without any accommodation produces puckering, bubbling, and corner lift every single time.

Our team treats hat vinyl as its own discipline — separate from flat shirt work, separate from tumbler wraps, with its own cutting strategy, weeding approach, and pressing sequence. Anyone doing regular custom cap orders needs to think the same way.

Why Curved Surfaces Change Everything About Vinyl Application

Flat Vinyl on Curved Caps

Vinyl is manufactured as a flat film. Heat transfer vinyl (HTV) and adhesive vinyl both start as flat rolls, and their adhesive layers are engineered to bond to flat substrates under uniform pressure. When the substrate curves, the vinyl has to stretch, compress, or fold to conform — and none of those outcomes produce a clean result without intentional technique adjustments.

The three failure modes our team sees most often on vinyl on hats and baseball caps:

• Edge curl — corners lift within hours because the adhesive couldn't bond uniformly across the curve
• Center bubbling — air gets trapped under the middle of the design when vinyl is pressed flat against a convex panel
• Radial wrinkling — fine creases radiate outward from the center when vinyl tries to conform to a curve it wasn't cut for

All three are preventable. None of them are random — each has a specific cause and a specific fix.

Cap Anatomy and Curve Types

Not all cap curves are equal. Understanding what kind of curve a specific hat has changes everything about how vinyl gets applied to it.

• Structured caps (fitted, snapback) — stiff front panels with a consistent, moderate curve. Most forgiving for vinyl work.
• Unstructured caps (dad cap style) — soft panels that flex and collapse. Require internal support during pressing.
• Trucker hats — foam or mesh front panels. Very curved, and foam doesn't hold heat well, so timing matters more here than anywhere else.
• Beanies and bucket hats — knit or woven fabric with compound curves in every direction. Adhesive vinyl doesn't work here; HTV is the only viable option.

Our team always identifies cap type before cutting a design, because the curve radius directly determines how large a single vinyl piece can be before it needs to be segmented into sections.

Tools and Materials Our Team Never Skips

Choosing the Right Vinyl

Not every vinyl performs the same way on a curved surface. Our team uses stretch HTV as the default for hat work — it has enough give to accommodate moderate curves without segmenting, and it bonds cleanly under the pressure variations that come with rounded panels. Standard HTV is stiffer and demands more care or segmenting on anything but the flattest structured panels.

For anyone sourcing permanent adhesive vinyl for hat brims or rigid surfaces, our roundup of the best permanent vinyl for outdoor signs covers which brands hold up longest under UV exposure and repeated flexing — the same durability factors that matter on a cap brim in daily wear.

Heat Sources and Pressing Equipment

The tool doing the pressing matters as much as the vinyl itself. Our firm recommendations:

• Dedicated hat press — the single best investment for consistent cap work. The curved lower platen matches the cap's profile, delivering uniform pressure across the entire front panel without manual repositioning.
• Mini heat press — works for small designs on structured caps when a hat press isn't available. Requires repositioning for designs wider than about 3 inches.
• Household iron — viable for very small designs (under 2 inches) on structured caps only. Inconsistent temperature and pressure make it unreliable for production use.
• Heat gun — useful for post-press edge sealing on adhesive vinyl, not for primary HTV application.

Our team also keeps a hat form or cap stretcher at every press station. Unstructured caps collapse under heat press pressure without internal support, making even contact impossible. A foam insert or inflatable hat form solves this completely and costs almost nothing.

Two Techniques: Basic Press vs. Segmented Application

The Basic Single-Press Method

This approach works for stretch HTV on structured caps with designs under 3.5 inches wide. Our step-by-step for clean results every time:

1. Pre-press the cap for 3–5 seconds to eliminate moisture and surface wrinkles from the front panel before any vinyl touches it.
2. Mirror and cut the design in stretch HTV. Weed cleanly and leave the carrier sheet intact.
3. Position the design centered on the front panel. Use a measuring tape or centering ruler — eyeballing produces off-center results more often than not, especially on curved surfaces.
4. Press at 305°F for 10–12 seconds with firm, even pressure. On a dedicated hat press, this is straightforward. On a flat press, work pressure from center outward.
5. Peel the carrier sheet while warm for warm-peel HTV, or let cool completely for cold-peel. Never rush the peel — it's where most adhesion failures start.
6. Re-press with a Teflon sheet for 5 seconds to seal any edges that didn't bond perfectly on the first press.

For anyone cutting with a Cricut, our detailed walkthrough on using Cricut iron-on vinyl with a heat press covers the machine settings and carrier sheet behavior that translates directly to hat work — the principles are identical.

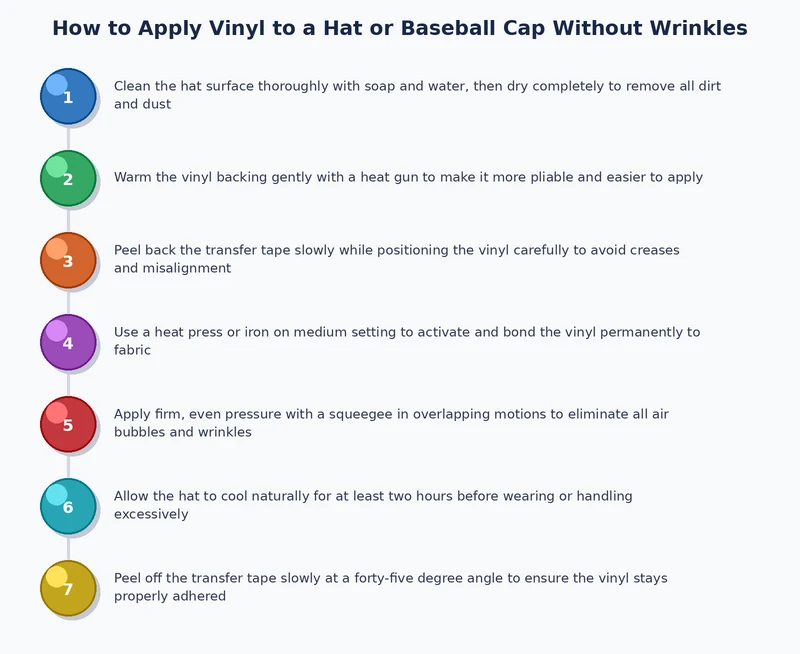

The Segmented Cut-and-Press Method

For designs wider than 3.5 inches, for standard non-stretch HTV, or for highly curved unstructured caps, segmenting is the answer. Segmenting means splitting a single design into two or more pieces that each land on a flatter portion of the curve rather than fighting the full compound radius.

How our team approaches segmentation:

• Identify the flattest horizontal band across the cap panel — usually a 2–3 inch zone running through the vertical center of the front panel.
• Split the design along a natural visual break: a gap between letters, a dividing line in an illustration, or a color boundary that hides the seam.
• Apply the center piece first, pressing from center outward. Let it cool fully before touching adjacent pieces.
• Align and press each outer segment independently, slightly overlapping the edge of the previously pressed piece to maintain visual continuity.
• Finish with a full re-press under a Teflon sheet across the entire design to unify the seams into a single cohesive surface.

Segmenting adds 5–10 minutes per cap. Our team considers it non-negotiable for designs over 4 inches wide — the alternative is a wrinkled result that no customer will accept.

When Vinyl Belongs on a Hat — and When It Doesn't

Ideal Scenarios for Hat Vinyl

Vinyl on hats and baseball caps is the right call in these situations:

• Short runs of 1–25 caps — setup cost is minimal compared to embroidery or screen printing; per-piece economics favor vinyl at low quantities
• Bold, clean designs — text, logos, and geometric shapes that don't require fine detail at small sizes
• Personalized caps — names, numbers, and custom text where every piece is different and embroidery setup per-piece is prohibitive
• Structured caps with moderate curves — the geometry cooperates with flat vinyl material in a way that unstructured caps simply don't
• Polyester and poly-blend caps — HTV bonds excellently to synthetic fibers with minimal risk of scorching
• Prototyping and samples — fast turnaround for design approval before committing to embroidery thread setup costs

Heat transfer vinyl bonds through a controlled combination of heat, pressure, and dwell time — variables that a dedicated hat press manages precisely, making it a predictable and repeatable decoration method when cap type and vinyl choice are matched correctly.

When to Switch Decoration Methods

Our team is direct about this: there are hat situations where vinyl is simply the wrong tool, and pushing through anyway wastes material, time, and customer goodwill.

• Fine artwork below 0.25 inch detail — vinyl can't hold intricate lines at small scales; screen printing or DTG handles this far better
• Deeply textured or terry cloth caps — the adhesive can't penetrate the fabric texture for a reliable long-term bond
• Heavy-weave cotton canvas — standard HTV adhesion drops significantly; embroidery is the professional standard for this substrate
• Full-panel wraps — covering the entire front panel creates severe wrinkling on any cap style; sublimation on sublimatable caps is the correct path here
• Production runs over 100 units of the same design — at that volume, embroidery becomes more cost-efficient per piece and more durable long-term

Real-World Use Cases for Vinyl on Hats and Caps

Custom Orders and Small Batches

Custom cap orders are where vinyl shines hardest. Our team regularly handles runs of 5–50 caps for local businesses, event organizers, school groups, and family reunions — all scenarios where the near-zero setup cost of vinyl makes it the clear winner over embroidery or screen printing at those quantities.

The workflow our team uses for reliable small-batch results:

• Collect artwork as vector SVG or AI file — rasterized logos at screen resolution are a constant source of problems and should be rejected upfront
• Cut a test piece on scrap vinyl before running the full batch to verify sizing and design clarity
• Press one cap fully before committing to the run — identify any temperature or timing issues before they affect 30 caps
• Source consistent cap blanks across the batch — mixing structured and unstructured caps within a single order creates inconsistent pressing results and inconsistent finished appearance

Sports and Team Cap Production

Team and sports caps are one of the highest-volume use cases for vinyl on hats in our experience. Youth leagues, adult recreational leagues, corporate sports events — all need personalized caps on short timelines and tight budgets, and vinyl delivers on both counts.

Key considerations for team cap production:

• Number and name personalization means every cap is technically a unique piece — vinyl handles this without additional per-piece setup cost
• Stretch HTV in matched team colors gives consistent appearance across the run without color drift between pieces
• Structured fitted or snapback caps deliver the most consistent pressing geometry across a large batch
• Batching by design element (all logo pieces first, then all name pieces) moves faster than doing each cap from start to finish individually

For businesses pricing custom cap jobs, our breakdown on how to price heat press items to sell covers the per-unit math that keeps small-batch cap work profitable without undercharging for labor.

Making Hat Vinyl Last Through Heavy Wear

Care Instructions That Matter

Hat vinyl sees more mechanical stress than shirt vinyl. Caps flex, get stuffed into bags, get sweated through, and frequently get washed incorrectly. The care instructions passed along with every custom cap directly affect whether a customer sees their vinyl last two seasons or two weeks.

Our team's standard care guidance for vinyl on hats and baseball caps:

• Hand wash only, always — machine washing, even on delicate cycle, creates enough agitation and temperature variation to lift vinyl edges consistently
• Air dry face-up on a cap form or rounded object — never in a dryer; heat cycles without controlled pressure degrade adhesion
• Avoid scrubbing directly on the vinyl design with any brush or abrasive cloth
• Store flat or on a dedicated cap rack — stacking caps compresses vinyl against surfaces and creates permanent impressions over time
• Keep away from prolonged direct sun during storage — UV degrades vinyl adhesive faster than washing does

When to Re-Press or Replace

Vinyl on caps doesn't last forever, but a timely re-press can extend the life of a design significantly when the core bond is still mostly intact. Our team's decision framework:

• Edge lifting under 2mm — re-press with a Teflon sheet at original temperature for 8 seconds. Most edges re-bond cleanly at this stage.
• Edge lifting over 5mm — the adhesive has likely dried out or been compromised. Re-pressing won't hold long-term; replacement vinyl is the better call.
• Center bubbling — caused by incomplete initial bonding. Re-press firmly from center outward while the vinyl is warm and pliable.
• Color fading or surface cracking — the vinyl film itself has degraded. Full replacement is the only option; no press will restore a compromised surface.

For shops managing recurring customer orders, tracking which cap styles and vinyl brands generate the most warranty claims is worth the overhead. Our team keeps a simple log of cap type, vinyl brand, application date, and re-press frequency — patterns emerge quickly and inform future material sourcing decisions.

Frequently Asked Questions

Getting vinyl on hats and baseball caps right isn't about forcing a flat material onto a curved surface — it's about cutting, positioning, and pressing in a way that respects the geometry from the very start.
