How to Store Vinyl Rolls and Sheets to Prevent Damage

What's the fastest way to destroy a roll of premium vinyl before a single cut? Store it incorrectly. Creases, lifting adhesive, and warped liners all trace back to one root cause: poor storage habits. Knowing how to store vinyl rolls and sheets correctly isn't complicated — but it does demand intentional setup. Whether you're managing adhesive stock, heat transfer vinyl, or specialty finishes on your vinyl cutting machine, the same core principles keep your material cut-ready and your waste low.

Vinyl is more sensitive than most crafters expect. Polyvinyl chloride (PVC), the base material in most adhesive and HTV rolls, reacts to heat, UV exposure, and humidity over time. Adhesive layers are especially vulnerable — once they lose tack or pick up contaminants, the damage is permanent. A dedicated storage system is not optional if you're buying in volume.

This guide covers every dimension of vinyl storage: correct physical setup, environment control, real-world organization strategies, common mistakes that cost you material, and an honest look at what proper storage hardware actually costs.

The Right Way to Store Vinyl Rolls and Sheets

Good storage reduces to three non-negotiables: orientation, environment, and light control. Get these right and your vinyl stays usable indefinitely. Skip any one and you're burning material budget on preventable waste.

Orientation and Positioning

Rolls should always be stored horizontally — parallel to the floor. Standing rolls vertically puts the full weight of the roll on the bottom layers. That compressive force deforms the cardboard core and permanently distorts the adhesive in the lower portion of the roll.

• Suspend rolls on a dowel rod, PVC pipe, or dedicated holder — never stack them directly on each other
• Store with adhesive facing inward toward the core — that's the default factory winding direction, don't re-roll backward
• Rolls over 15 feet in length need center support to prevent sagging and oval-core deformation
• Partial rolls: re-tape the leading edge before returning to storage to prevent curl and adhesive contamination
• Loose sheets and offcuts: store flat in a folder, binder, or flat drawer — never folded or crumpled under other material

For sheet stacks, limit depth to 25–30 sheets before adding a rigid separator board. Sheets at the bottom of an unsupported stack develop liner impressions and adhesive transfer marks within weeks.

Temperature and Humidity Control

Vinyl adhesive is engineered to perform within a specific environmental window. Push outside that window and the chemistry degrades — sometimes visibly, often not until you're mid-project.

• Temperature: 60°F–80°F (15°C–27°C) is the safe zone. Garages, attics, and uninsulated sheds routinely exceed this range seasonally
• Humidity: 40–55% relative humidity (RH) is ideal. Below 30% RH makes adhesive brittle. Above 65% RH causes liner curl and premature release
• Never position storage racks near HVAC vents, space heaters, radiators, or exterior walls with poor insulation
• Climate-controlled interior rooms — a dedicated craft room or a conditioned garage — are the default best option for most setups

Pro tip: A $15 digital hygrometer tells you the exact temperature and humidity in your storage area. Buy one before you build your storage system, not after a batch of stock goes bad.

Light and UV Protection

UV radiation degrades both the vinyl film and the adhesive layer. Direct sunlight is worst-case, but months of indirect fluorescent or window light exposure accumulates measurable damage.

• Store rolls in opaque tubes, original cardboard cores, or covered racks wherever possible
• For open shelf storage, hang a light-blocking curtain across the rack face or add cabinet doors
• Chrome, holographic, and glossy specialty vinyls degrade fastest under UV — prioritize those for covered storage
• Glow-in-the-dark and photochromic vinyls often have complete-darkness requirements specified by the manufacturer — check your product spec sheets
• Even "indoor" storage near a window can compromise adhesive on light-colored permanent vinyl within a few months

How Pros Organize Their Vinyl Inventory

Professional vinyl users treat their inventory like a material library. The organizational system you build determines how fast you work and how often you waste cuts on compromised stock. Improvised systems — rolls piled in bins, sheets loose in drawers — cost time and money that compounds over every production run.

Roll Storage Setups

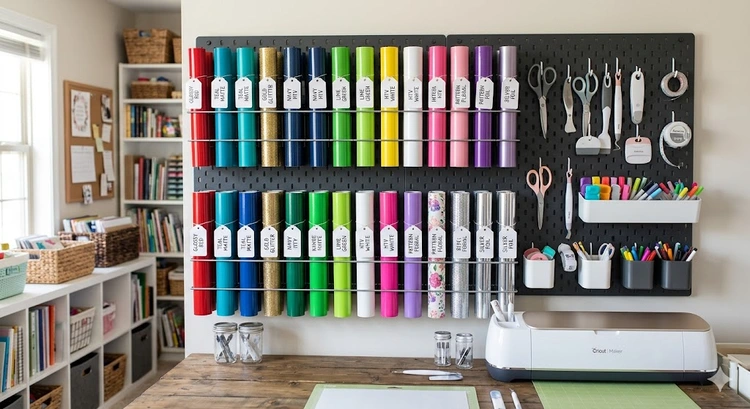

The two most common professional setups are wall-mounted dowel racks and freestanding pipe racks. Both work well. The choice comes down to your available space and how often you reconfigure.

• Wall-mounted dowel racks: Attach 1" wooden dowels or 3/4" PVC pipe horizontally to wall brackets spaced 4–6 inches apart vertically. A 4-foot section holds 8–10 standard 12" rolls. Fixed, high-capacity, and fully visible
• Freestanding pipe racks: Use 1.5" PVC or metal conduit on adjustable shelving uprights. Portable and easy to reconfigure when your inventory grows. Good for studios that share space with other equipment
• Wire shelving with threaded dowels: Standard Rubbermaid wire shelving with wooden dowels run through the wire grid — the budget-friendly middle ground that most hobbyists build first
• Pegboard with horizontal arms: Useful for smaller rolls and partial rolls. Combine with hooks for transfer tape rolls and vinyl scraps in bags

If you're running multiple vinyl types — adhesive, HTV, and specialty — keep them on separate, labeled rack sections. Knowing how to store vinyl rolls by type saves real time when you're moving fast on a multi-color job. See our adhesive vinyl vs heat transfer vinyl breakdown for a detailed look at the construction differences worth tracking in your inventory.

Sheet Storage Systems

Sheets and offcuts need a dedicated flat storage system, fully separate from your roll rack. Your main options:

• Flat file drawers: Standard blueprint or art flat files. Expensive new but ideal — fully flat, enclosed, zero compression. Worth sourcing used
• Poster tubes: For large sheets you'd rather roll than fold. Keep tube diameter at least 3" to avoid tight curl that becomes permanent
• Hanging file folders in a deep lateral drawer: Works well for 12"x12" cut sheets. Label each folder by color family for fast retrieval
• Accordion-style expanding files: Portable, under $20, and surprisingly effective for standard-cut sheets. Organize by color or finish type

Labeling and Inventory Tracking

Unlabeled rolls cost time and money. You cannot reliably distinguish 30+ colors and finishes by sight alone, especially across brands that use similar color naming conventions.

• Label every roll with: brand, product line/SKU, color name and number, finish (matte/gloss/satin), and purchase date
• Attach a physical swatch of the actual vinyl to each label — visual identification without unrolling
• Track remaining yardage with a marker line on the core or a simple inventory spreadsheet
• Color-code rack sections: permanent adhesive in one zone, removable in another, HTV in a third, specialty separate
• Flag low-stock rolls — anything under 3 feet — with a colored tag so you know before you start cutting

If you're stocking multiple brands, our best vinyl brands for Cricut guide covers the product line naming conventions across Oracal, Siser, and Cricut-branded stock — useful context when building out your label system.

Storage Method Trade-offs: What Works and What Doesn't

Vertical vs Horizontal Roll Storage

The horizontal-vs-vertical debate comes up constantly in vinyl communities. The data is clear, but context matters:

Horizontal wins for anything over 5 feet or stored more than a few weeks. Vertical is acceptable for short partial rolls you're cycling through quickly.

Cabinet vs Open Rack Storage

Both approaches are viable. They solve different problems.

• Open racks: Maximum visibility, fast access, low cost, and easy inventory checks at a glance. Downsides: dust accumulation on adhesive edges, no UV protection, messy appearance in client-facing spaces
• Closed cabinets: Full UV and dust protection, professional appearance, better for specialty vinyl. Downsides: higher cost, slower access, harder to spot a specific roll quickly
• Hybrid approach: Open rack for active rolls in weekly rotation, closed cabinet for archival and specialty stock — this is the standard in full-time vinyl shops for good reason

Mistakes That Ruin Your Vinyl Stock

Environmental Errors

Most vinyl loss is environmental and fully preventable. These are the failure modes that show up most often:

• Garage storage in seasonal climates: Temperature swings of 50°F+ between winter and summer are standard in most of the US. Adhesive cannot survive those cycles intact
• Storage near windows: Even indirect light causes degradation over months. Oracal 651 permanent vinyl holds tack longer than budget alternatives, but neither is UV-immune
• Unventilated basement storage without a dehumidifier: Below-grade spaces routinely hit 70%+ RH in summer. Liner curl and mold growth on paper-backed vinyl are predictable outcomes
• Direct floor contact: Concrete floors transmit cold and moisture upward. Always store on shelving — never in contact with the floor
• Storing near chemical solvents or cleaners: Off-gassing from cleaning products degrades adhesive formulations over time

Handling and Retrieval Mistakes

Damage happens during retrieval just as often as in storage. These habits protect your stock every time you pull from the rack:

• Never grab a roll by gripping the vinyl film surface — always handle by the core ends to avoid surface impressions
• Don't pull sheets from a stack by sliding — lift cleanly to avoid adhesive transfer between sheet faces
• Avoid touching the adhesive side with bare hands — skin oils contaminate the surface and cause application failure. This is a direct cause of the heat transfer vinyl peeling off shirts that consistently frustrates HTV users
• Don't re-roll vinyl against its natural curl direction — this introduces micro-creases in the film layer that show up as tracking errors at the cutter
• Return partial rolls to the rack immediately after cutting — leaving them unrolled on the table for hours exposes adhesive to airborne debris and humidity fluctuations

Storage Setup Costs: What to Expect

Proper storage hardware is a one-time capital expense. Here's what realistic setups actually cost across four investment tiers:

The mid-range setup handles the majority of small-business use cases without over-engineering. If you're evaluating this investment against your overall craft equipment budget, our vinyl cutting machine cost comparison puts hardware spend in broader context.

Key cost-saving notes:

• DIY wooden dowel wall racks cost under $30 in lumber and hardware — functionally equivalent to commercial racks priced at 5–10x that
• Digital hygrometers run $12–$20. This is the single most impactful purchase per dollar spent
• Flat file drawers are expensive new — used office furniture suppliers and estate sales regularly stock them at 20–30 cents on the dollar
• Label makers pay for themselves in time saved within a few weeks of use on an active inventory
• Skip decorative storage bins and acrylic organizers marketed to crafters — they look clean but create accessibility problems and block visibility

Essential Storage Tools and Supplies

Roll Holders and Racks

Your roll storage hardware is the foundation. Match materials to your roll size and weight:

• 3/4" PVC pipe: The most cost-effective core material for standard 12" and 15" rolls. Smooth surface, won't scratch cores, cuts easily to any length with a handsaw
• 1" wooden dowels: Stronger and more rigid than PVC for heavier 50-yard-plus rolls. Seal or stain bare wood to prevent fiber transfer to vinyl edges
• 1/2"–3/4" metal conduit: Appropriate for commercial-weight rolls over 50 yards or wide-format stock. Heavier to handle but zero flex under load
• Ready-made vinyl roll holders: Products like Cricut's roll holder or third-party acrylic stand systems are convenient but limited to 12"–15" widths and don't scale well past 10–12 rolls
• Adjustable shelf brackets with notched arms: Allow mounting multiple dowels at variable heights without custom woodworking — the best DIY upgrade for an existing wire shelf unit

Sheet and Offcut Organizers

Sheets and offcuts need systems separate from your roll rack. The right choice depends on how many you're managing:

• 12"x12" scrapbook accordion organizers: Sized perfectly for standard cut vinyl sheets. Divide by color family. Available at most craft retailers for under $15
• Labeled manila envelopes in a lateral file cabinet: Nearly free and surprisingly effective. Sort by color, finish, or brand depending on your inventory complexity
• Clear poly bags with hole punches on pegboard: Maximum visibility at minimum cost. Label each bag with a printed swatch and product code
• Art portfolio cases: Ideal for large-format sheets over 18". Keep fully flat and never store under compression
• Resealable zip bags for scraps under 6": Fine for short-term active use, but avoid for long-term storage — they trap humidity against the adhesive layer over time

Frequently Asked Questions

Key Takeaways

• Store all vinyl rolls horizontally on dowels or pipe racks — vertical storage causes gravity-driven adhesive compression and permanent core deformation on full rolls.
• Maintain 60°F–80°F temperature and 40–55% relative humidity in your storage area; a $15 digital hygrometer is the highest-ROI purchase in your entire storage setup.
• Block all UV exposure during storage — direct sunlight and prolonged indirect window light degrade both the vinyl film and the adhesive layer over months.
• Label every roll with brand, color code, and finish, and attach a physical swatch — an unlabeled inventory of 30+ rolls costs you more in wasted retrieval time than any storage hardware ever will.
