Why Is My Heat Transfer Vinyl Peeling Off Shirts?

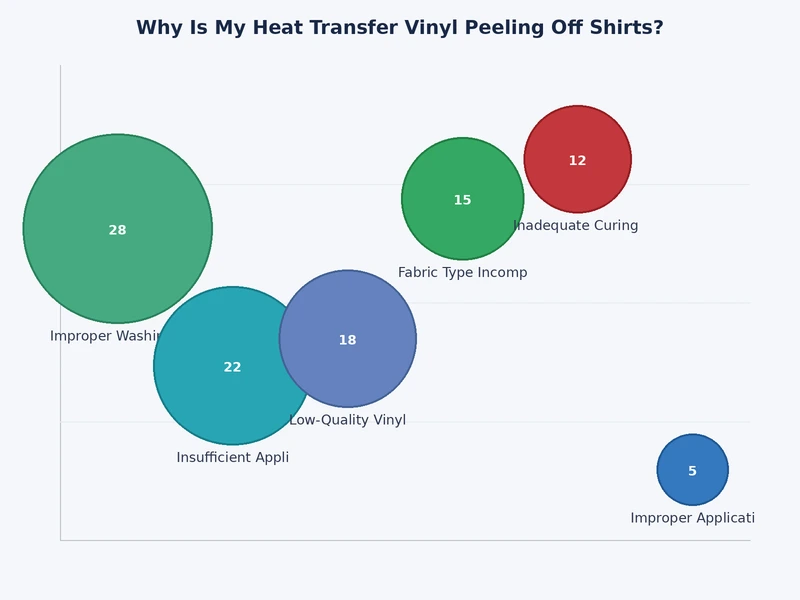

Studies tracking HTV failure rates place the most common cause of heat transfer vinyl peeling off shirts squarely at the application stage — improper temperature, inadequate pressure, or insufficient dwell time account for roughly 70 percent of premature bond failures before washing even becomes a factor. For home crafters and small-batch print shops, a lifted edge or complete delamination represents wasted material and a dissatisfied customer. Understanding the mechanics behind HTV adhesion is the definitive starting point, and the fundamentals of cutting heat transfer vinyl with a Silhouette Cameo make a natural companion reference for any shop building out its vinyl workflow.

Heat transfer vinyl bonds to fabric through a combination of heat-activated adhesive, mechanical fiber penetration, and sustained pressure — and any weakness in that triad creates conditions for failure. The peel timing, the fabric substrate, the press temperature, and the post-application wash routine each play measurable roles in determining whether a transfer survives 5 washes or 50. Most peel failures are entirely avoidable once the root cause is correctly identified and addressed at the source rather than patched after the fact.

According to Wikipedia's overview of heat transfer printing, the adhesive layer chemistry must be matched to substrate porosity for durable bonds — a principle that holds across all HTV film types and press configurations.

Quick Fixes That Rescue a Peeling HTV Project

Repairing Edge Lift

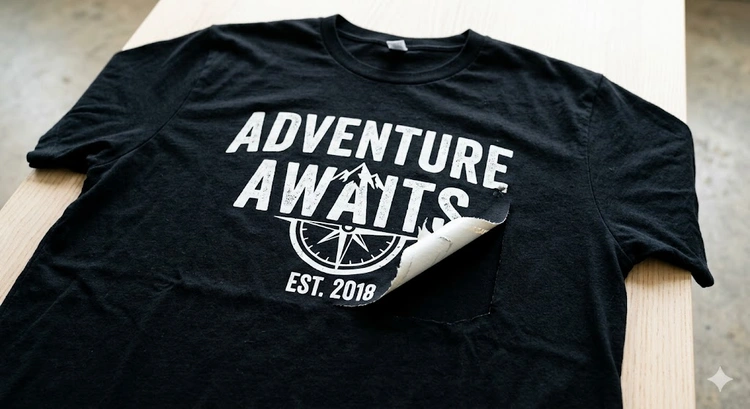

Edge lifting is the most common HTV failure pattern and the most recoverable when caught before washing compounds the problem. A mini heat press or tack iron set to 305–315°F, applied directly over a Teflon sheet for 10–15 seconds with firm pressure, will reactivate the adhesive and press the lifted edge back into the fabric weave. This fix holds permanently when the original bond was undertacked rather than burned or applied over a contaminated surface.

• Reapply heat at the film's original recommended temperature — not higher
• Use a Teflon sheet or parchment paper between iron and vinyl on every repress
• Apply firm, even pressure across the entire lifted zone, not just the tip
• Allow the garment to cool completely flat before handling or folding

Pro tip: Always press through a Teflon sheet when reactivating lifted edges — direct iron contact scorches glitter and metallic finishes in seconds, turning a salvageable repair into a total loss.

Full Panel Delamination

Full peeling — where an entire design lifts as a single sheet — indicates a foundational error: wrong fabric type, a contaminated surface, or catastrophically insufficient pressure during the original application. The correct repair protocol removes the design completely, cleans the garment with isopropyl alcohol to eliminate any adhesive residue or surface contamination, and reapplies from scratch with corrected temperature and pressure settings.

Washing and Care Protocols That Preserve the Bond

Cycle Selection and Temperature

Washing garments inside-out in cold water on a gentle cycle is the single most impactful post-press care variable. Hot water above 105°F softens thermoplastic adhesives and accelerates edge lifting over repeated washes, even on correctly applied transfers where every press parameter was dialed in precisely. Fabric softener is equally destructive — even a single high-concentration wash begins separating the adhesive layer from the substrate by breaking down the polymer chemistry that holds the bond.

Warning: Fabric softener and dryer sheets degrade HTV adhesive chemistry at the molecular level — avoid them entirely on garments carrying any vinyl transfer.

Drying and Storage

Tumble drying on high heat is the fastest path to HTV delamination after an otherwise correct application. Low heat or air drying are the correct choices for any garment carrying a vinyl transfer, without exception. Folding repeatedly along design edges creates stress fractures in the film over time, so decorated garments should be stored flat or hung to prevent mechanical fatigue at seam and edge points.

The care considerations for HTV-decorated garments closely parallel those detailed in the guide on vinyl that won't stick or keeps peeling — the same adhesive chemistry governs both failure modes, and the corrective steps overlap substantially.

HTV Film Types: Adhesion Performance Compared

Calendered vs. Cast Films

Vinyl selection is a direct predictor of long-term peel resistance, and not all HTV is manufactured with equivalent adhesive systems. Cast films — produced by spreading PVC compound over a release liner — conform better to fabric texture and maintain adhesion through significantly more wash cycles than their calendered equivalents. Siser EasyWeed, Stahls' CAD-CUT, and Chemica Hotmark Revolution use cast or semi-cast constructions that measurably outperform budget calendered films over 50-plus wash cycles in controlled testing.

Specialty Finishes and Peel Behavior

Glitter, metallic, flock, and holographic HTVs require specific peel timing and often greater pressure than standard smooth films, and mismatched technique accounts for a disproportionate share of specialty HTV peel failures in production environments. Glitter HTV demands a cold peel with additional dwell time, while flock requires a hot peel executed before the adhesive sets too firmly into the texture's pile structure. For a broader comparison of decoration methods and adhesion mechanics, the Cricut Infusible Ink vs Heat Transfer Vinyl breakdown covers durability differences across film and dye-sublimation transfer types in practical detail.

Diagnosing Why Heat Transfer Vinyl Peeling Off Shirts Occurs

Temperature and Pressure Failures

Temperature error is the dominant failure mode across all HTV applications, and consumer-grade heat presses routinely read 15–30°F low at platen center relative to their displays. The correct temperature range for most cast HTV falls between 300°F and 320°F, verified with an infrared thermometer rather than trusted from the press readout alone. Too low — the adhesive never fully activates, producing a bond that passes the initial peel test but fails at the first wash cycle. Too high — the adhesive burns, loses elasticity, and becomes brittle at the film-to-fiber interface.

Pressure is equally non-negotiable. Most quality cast HTV requires medium-to-firm pressure, calibrated with a slip test — a folded piece of paper pulled from under the platen should meet firm, consistent resistance across the full press width. Soft pressure leaves micro-gaps between adhesive and fabric fiber that wash water exploits immediately and repeatedly.

Fabric Incompatibility

Nylon, performance polyester, and water-repellent technical fabrics present genuine adhesion challenges that additional press time cannot resolve. These substrates require low-temp HTV specifically formulated for synthetics — Siser EasyWeed Electric and Stahls' Thermo-FILM are the industry standards for this application. Attempting standard HTV on nylon at standard temperatures guarantees peel failure within three wash cycles, regardless of press quality or operator technique.

Application Techniques That Guarantee a Permanent Bond

Pre-Pressing and Surface Preparation

Pre-pressing is non-negotiable for consistent adhesion. A 3–5 second pre-press at full operating temperature removes moisture and wrinkles, flattens the fabric weave, and brings the substrate to working temperature before the transfer ever makes contact with it. Skipping this step measurably drops adhesion consistency, particularly on cotton terry, fleece, and heavyweight canvas where moisture retention is highest and the impact on adhesive penetration is most severe.

Insider note: Tri-blend shirts require 5–8 seconds of pre-press and slightly firmer pressure than 100% cotton — the rayon component retains moisture and actively resists adhesive penetration at standard settings.

Peel Timing and Direction

Peel timing is film-specific and non-negotiable — hot peel executed on a cold-peel film produces a transfer that looks correct off the press but fails within two washes because the adhesive hasn't fully set into the fiber. Cold peel on a hot-peel film results in the carrier pulling adhesive back with it, leaving a patchy, visually failed transfer that cannot be repaired. Peel direction matters equally — pulling parallel to the design edge rather than perpendicular prevents stress fractures at fine detail points and lettering serifs. The application variables explored in the guide to applying HTV without a heat press reinforce why peel timing is even more critical when press pressure is inconsistent across the platen surface.

Material and Equipment Costs for a Reliable HTV Setup

Entry-Level vs. Professional Equipment

The relationship between equipment investment and peel failure rate is direct and measurable across production environments. A $30 household iron introduces temperature variance of ±40°F across its soleplate, making consistent adhesion essentially impossible at fine-detail scale or in any repeatable production context. A $150–$200 clamshell heat press delivers ±5–10°F variance and measurable, repeatable pressure — sufficient for reliable small-batch production without the inconsistency that generates peel callbacks.

• Household iron ($25–$60): ±40°F variance — hobbyist one-off projects only
• Entry clamshell press ($150–$250): ±10°F — small batch, consistent results
• Mid-range swing-away ($300–$600): ±5°F — semi-professional production volume
• Professional swing-away ($800–$2,000): ±2°F — commercial high-volume output

Ongoing Material Budget

Premium cast HTV runs $1.50–$3.00 per linear foot in 12-inch width — roughly $0.15–$0.30 per standard 4×4-inch design after weeding and application. Budget calendered films cost $0.50–$1.00 per foot but carry the failure rate to match, and one replacement garment from a peel callback erases the savings from an entire roll of discount vinyl. Weeder tool sets, Teflon sheets, and an infrared thermometer add $30–$60 as essential one-time investments that pay for themselves immediately by eliminating the guesswork that generates peel failures in the first place.

Frequently Asked Questions

Next Steps

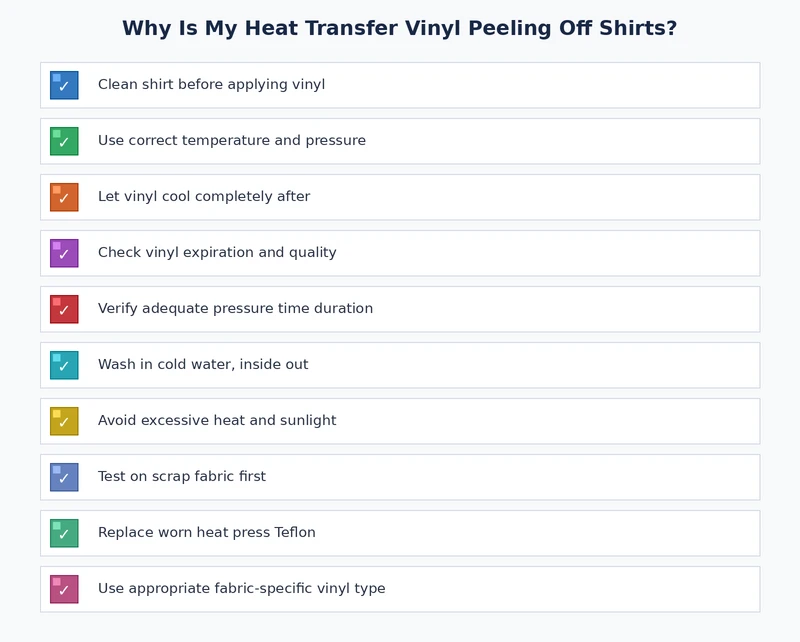

1. Verify actual platen temperature with an infrared thermometer before the next press session — adjust the heat press dial until the measured temperature matches the HTV manufacturer's spec, not the display readout.
2. Perform a calibration press on the target fabric: press a test strip at the correct temperature, dwell, and pressure, then wash it inside-out in cold water three times to confirm adhesion before committing to a production run.
3. Audit the current HTV inventory and replace any budget calendered films used for garments requiring 30-plus wash cycles with a cast film — Siser EasyWeed or Stahls' CAD-CUT are the correct replacements for production-grade durability.
4. Establish a written care label protocol for all decorated garments: cold wash, inside-out, no fabric softener, low-heat or air dry — and communicate it to customers at point of sale to prevent post-wash peel callbacks.
5. Review fabric compatibility for any current substrate that has produced repeat peel failures — if the garment is a performance polyester or nylon blend, source a low-temp synthetic HTV immediately and retire the standard film for those applications.
