How to Use Registration Marks for Multi-Color Vinyl Designs

Our team spent an afternoon troubleshooting a three-color decal project that kept shifting out of alignment. The second layer landed two millimeters off the first, and the third was worse. The culprit was the absence of any registration marks vinyl cutting workflow — a fundamental technique most people skip until a ruined project forces them to learn it.

Registration marks are small printed targets — typically crosshairs, circles, or corner brackets — placed outside a design's boundary. Cutters reference these marks to align each successive layer with machine accuracy. The technique originated in commercial offset printing and has since become standard practice across vinyl cutting, screen printing, and heat transfer workflows. Our team at PrintablePress has documented this method across every major cutter platform, from entry-level home machines to professional plotters used in production shops.

Multi-color vinyl projects — whether heat transfers, window decals, or layered wall art — all share the same fundamental challenge: getting each color layer to land precisely on the one beneath it. The vinyl cutting machines available today are capable of extraordinary accuracy, but that accuracy depends entirely on a reliable registration system. Without it, even a 1mm shift creates visible misalignment. Our team considers registration marks a non-negotiable foundation for any multi-layer production workflow.

Registration Marks Vinyl Cutting: What They Are and Why They Matter

Registration marks have been a cornerstone of precision color work for over a century. Understanding their history clarifies the logic behind their vinyl application immediately.

The Origins of Registration in Commercial Print

In commercial color printing, each ink color runs through the press in a separate pass. Even minor misalignment between passes produces blurry edges, color fringing, and visible gaps. Printers solved this problem by adding small targets — crosshairs, circles, or corner brackets — at the edges of each printing plate. Press operators align each plate to these marks, not to the design itself. The result is consistent, repeatable alignment across thousands of impressions.

The same logic applies directly to vinyl. Multi-color vinyl designs require each color to be cut from a separate sheet, then layered during application. Without a fixed reference point, layers drift. Registration marks provide that fixed reference. Our team traces every registration failure back to one of two causes: marks placed incorrectly or marks ignored entirely.

How the Technique Transfers to Vinyl Work

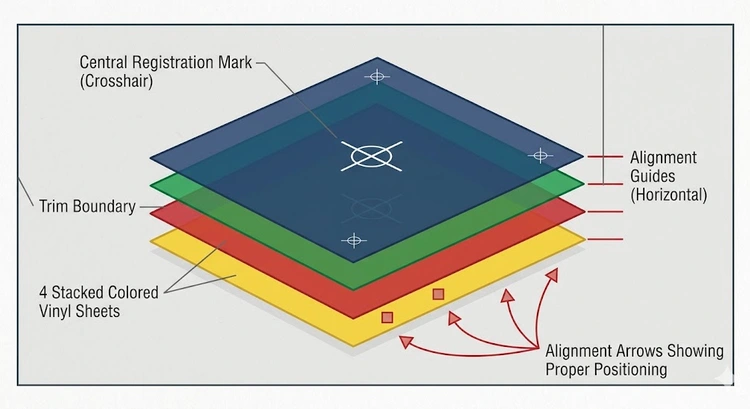

In vinyl cutting, the process operates in two clear stages. First, a base file — containing the full design plus registration marks — is printed or lightly cut onto a reference sheet. Second, each color layer is cut from separate vinyl, with matching registration marks in identical relative positions. The marks on each cut layer align to the reference marks. Every color locks in place using the same fixed points.

Pro insight: Registration marks should be placed at a minimum of three corners — not just two sides — to catch rotational drift in addition to linear shift along a single axis.

Most modern vinyl cutting software includes a built-in registration mark function. Cricut Design Space, Silhouette Studio, and professional RIP software all handle this differently, but the underlying principle is identical. Our team recommends learning the native registration tools in whatever software is in use before attempting any manual workarounds.

Getting Aligned Fast: First Results Without Trial and Error

Most people achieve usable registration on their first attempt when following a structured setup process. Skipping steps is consistently where problems start.

Setting Up Registration Marks in Design Software

The setup process varies by software, but the core steps remain consistent across platforms:

• Create a new document at the intended final design size
• Separate each color onto its own layer in the design file
• Add registration marks to every layer — not just the base layer
• Keep marks outside the design boundary by at least 5mm
• Use the same mark shape and size across all layers
• Export each color layer as a separate cut file before production

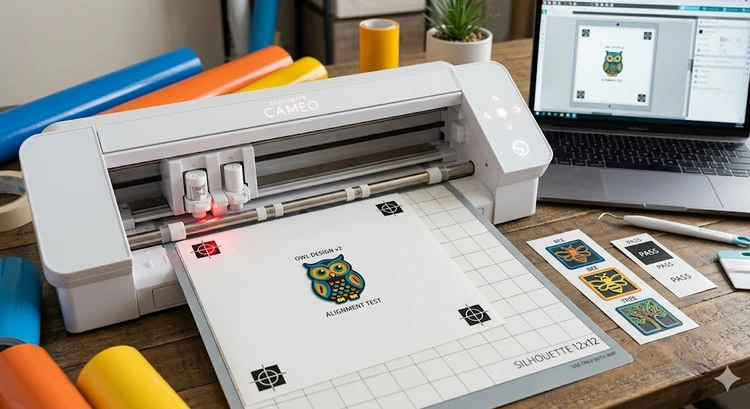

Silhouette Studio's Print & Cut feature automates much of this process. It prints a registration page, then uses the machine's optical sensor to locate the marks before cutting begins. Cricut Design Space uses a similar system for its Print Then Cut workflow. Both approaches eliminate manual mark alignment for simple two-layer designs and reduce setup time significantly.

For more complex layered designs — three or more colors, intricate overlaps — manual registration marks give more granular control than automatic systems allow. Our team details the full layering approach in our guide on how to make layered vinyl signs step by step, which covers file preparation, layer sequencing, and adhesive strategies.

Cutting the First Layer with Registration Targets

The first cut establishes the reference frame for every subsequent layer. Accuracy here propagates forward through the entire project. Our team always runs a test cut on scrap material before committing to production vinyl. The test cut confirms several critical conditions:

• Registration marks cut cleanly with no drag or tearing at the edges
• Mark positions match the on-screen layout exactly
• Blade pressure is calibrated correctly for the vinyl thickness in use
• The mat is loaded squarely against the guide rails — not at any angle
• The material lies completely flat with no bubbles or edge curl

Any deviation in the first layer compounds in subsequent ones. A 0.5mm error in layer one becomes a 1.5mm total misalignment by layer three. Our team treats the first layer test cut as non-negotiable, regardless of production pressure or schedule constraints.

Registration Mark Methods Compared

Several distinct registration approaches exist for vinyl cutting. Each has clear trade-offs depending on project complexity, machine type, and production volume.

Manual vs. Automatic Registration

Manual registration involves physically aligning each vinyl layer using printed or cut marks as visual guides. Automatic registration uses the machine's optical sensor to locate marks and adjust the cut path accordingly. The table below summarizes key differences our team observed across tested methods:

Warning: Optical sensor registration fails on reflective or holographic vinyl — the sensor cannot locate marks reliably on metallic surfaces and will abort the cut or misfire.

Software-Specific Registration Options

Silhouette Studio Business Edition offers the most granular manual registration control among consumer-grade software. Users can define custom mark shapes, sizes, and absolute positions. The free version limits mark customization significantly, which pushes more complex projects toward workarounds.

Cricut Design Space handles registration primarily through its Print Then Cut workflow, which is optimized for paper and printable vinyl rather than layered solid-color HTV. For multi-layer HTV work with a Cricut, our guide on how to cut vinyl with a Silhouette Portrait illustrates an alternative registration approach that translates across multiple machine platforms.

Professional RIP software — used with commercial vinyl plotters — handles registration automatically as part of the cut file workflow. The software reads optical marks, calculates any deviation from expected positions, and adjusts the cut path accordingly before the blade moves. For anyone running production-level multi-color work at volume, this software investment eliminates a significant source of waste and rework.

Registration Marks in Real Multi-Color Projects

Seeing registration marks applied across different project types reveals how adaptable the technique is to widely different production contexts.

Two-Color Heat Transfer Application

A two-color heat transfer vinyl project is the most common entry point for registration mark work. The workflow our team uses consistently across this project type:

1. Design both colors in a single file, with each color on a separate named layer
2. Add three corner registration marks to each layer in identical absolute positions
3. Cut color one, weed it, and place it on the heat press platen
4. Cut color two with matching marks from the same origin point
5. Align color two's marks to the reference sheet marks before pressing
6. Press color two over color one using consistent temperature and pressure settings throughout

This method produces reliable results across standard HTV materials. Our team uses light adhesive spray on the heat press platen during alignment to prevent layer drift before the press closes. Anyone working with specialty materials like flock vinyl should review our guide on what is flock vinyl and how to use it on shirts before attempting to layer it with standard HTV — flock requires specific press temperatures and timing adjustments that affect the registration sequence.

Three-Color Window Decals

Three-color window decals introduce a third layer and the additional challenge of applying to a vertical, non-flat surface. Registration marks become critical here because adhesive vinyl does not tolerate repositioning the way HTV does on a heat press platen.

Our team transfers each color layer to a single piece of clear application tape before final installation. All three colors are aligned on the application tape using the registration marks, creating a complete multi-color assembly. This unified piece is then applied to the window in a single controlled pass — eliminating any need to align three separate pieces on the final surface under production conditions. The registration happens at the workbench, not on the window.

Registration Errors That Destroy Layered Cuts

Our team has catalogued the most frequent registration failures across multi-color projects. Most fall into two identifiable categories with consistent root causes.

Positioning and Placement Problems

The most common error is placing registration marks too close to the design boundary. Marks need clearance — a minimum of 5mm from the design edge, and 10mm or more on larger files. Marks that crowd the design area confuse optical sensors and make manual alignment nearly impossible without disturbing the design itself.

A second common error is using only two registration marks — one at each end of a horizontal axis. Two marks correct for linear shift along that axis but not for rotation. A design loaded at a slight angle aligns perfectly at both marks but drifts in the middle of the design area. Three marks at non-collinear positions eliminate this failure mode entirely.

A third error is inconsistent mark size across layers. If the crosshair on layer one is 10mm and the crosshair on layer two is 7mm, alignment will be off by the size difference at the center point. All marks across all layers must be identical in size, shape, and relative position from the document origin. Our team locks mark dimensions and positions in the master design file before exporting any individual layer.

Material Slippage and Substrate Shift

Registration marks are only as reliable as the material's stability during cutting. Vinyl that shifts on the cutting mat between passes destroys registration regardless of how carefully marks were placed or how accurately the machine operates.

Our team addresses material stability with several consistent practices:

• Use a fresh, tacky cutting mat for every multi-color production run — not a worn mat carried over from previous sessions
• Load material in the same orientation every time, using the mat grid lines as a consistent reference
• Allow HTV to cool completely between heat press passes before repositioning any layer
• Weight or tape the transfer tape assembly flat during multi-color alignment to prevent edge curl
• Avoid touching or flexing the vinyl near registration marks after weeding is complete

If cuts consistently drift despite correct mark placement and clean material handling, the issue often lies with the cutting machine itself. Our troubleshooting guide on why a Cricut is not cutting through vinyl covers mechanical issues — including roller wear and blade holder play — that produce registration drift identical in appearance to software or user error.

Tip: Mark the top-left corner of every cutting mat with a permanent marker arrow — loading consistently from the same corner eliminates an entire category of registration error caused by mat orientation variation.

Professional Standards for Consistent Registration

Professional vinyl shops maintain registration consistency through disciplined process — not through more expensive equipment alone. These standards transfer directly to home and small-studio workflows without modification.

Material Preparation Before Cutting

Material flatness directly affects registration accuracy. Rolled vinyl that has not been allowed to relax carries tension that shifts the material during cutting even when mat tack is strong. Our team stores vinyl rolls vertically on a rack and allows cut sheets to rest flat on a smooth surface for at least 15 minutes before any production use.

Ambient humidity also affects results. HTV and adhesive vinyl both respond to moisture in the air. High humidity causes minor dimensional changes that accumulate across large designs. Climate-controlled storage at 40–60% relative humidity is the professional standard. Home users working in wider humidity ranges generally encounter this issue only on designs larger than 10 inches in either dimension — smaller work tolerates more environmental variation.

Material brand consistency matters more than most people expect. Switching vinyl brands mid-project — even within the same color family — introduces thickness and backing material differences that change how the blade behaves. Our team uses a single vinyl source for all layers within any given multi-color project.

Cutting Order and Weeding Strategy

Cutting order affects both registration accuracy and material efficiency. Our team follows a consistent rule: cut the most detailed color layer first, and the largest solid color block last. Detailed layers produce less weed debris, handle more cleanly, and are easier to inspect for mark integrity before layering begins. Large color blocks can absorb minor position corrections more easily because their overlap area is greater.

Weeding strategy is equally important. Aggressive weeding — pulling vinyl at steep angles with high tension — stretches the material and shifts registration marks out of position relative to the design. Our team uses a slow, controlled pull at 45 degrees to the cut line, keeping tension minimal throughout. Any warping of the vinyl around registration marks after weeding is a production stop signal. Warped marks will not align correctly regardless of how careful the subsequent alignment process is.

Keeping Registration Sharp Across Every Project

Equipment drift is real and gradual. Machines that delivered precise registration months ago may produce degraded results today without any obvious single cause. Preventive maintenance keeps performance consistent across production sessions.

Machine Calibration Checks

Most consumer cutting machines — including Cricut, Silhouette, and Brother models — include a calibration or test cut function accessible through the machine's software. Our team runs calibration checks at the start of any production day involving multi-color work. The calibration cut confirms that the machine's reported cut position matches the actual blade position on the mat. A discrepancy of more than 0.3mm warrants investigation and correction before production begins.

For machines with optical sensors used in Print & Cut workflows, lens cleanliness is critical. Dust or adhesive residue on the sensor lens shifts the machine's perceived mark location by a consistent offset. Our team cleans sensor lenses monthly with a dry lint-free cloth and inspects them visually before any optical registration job. A misread sensor produces registration errors that look identical to design setup errors, which makes diagnosis significantly harder and wastes production time on the wrong fixes.

Mat and Blade Maintenance

A worn cutting mat is one of the most underestimated causes of registration failure in production environments. As the mat loses tack, vinyl shifts during the cut pass. The blade follows the correct path, but the material has moved — which means registration marks end up in positions the machine never measured. The resulting misalignment looks like a software error because the cut geometry appears correct in isolation.

Our team replaces cutting mats on a fixed schedule: every 40–60 production cut sessions for multi-color work, regardless of visible wear or remaining tack. This schedule is more conservative than most manufacturer recommendations, but it eliminates mat-related registration failures from the diagnostic list almost entirely — a worthwhile trade-off in any production context where rework costs time and material.

Blade wear produces a similar drift pattern through a different mechanism. A dull blade drags through vinyl rather than cutting cleanly. The drag tension pulls the material slightly forward or sideways during the cut, moving it relative to its original position on the mat. Our team replaces blades every three to four production sessions for standard vinyl, and more frequently for thicker or textured materials. Regular replacement keeps cut quality consistent and removes blade condition as a variable in registration troubleshooting.

Frequently Asked Questions

Registration marks do not compensate for poor process — they reveal it, and that precision is exactly what transforms a frustrating multi-color project into a repeatable craft.
