How to Make Layered Vinyl Signs Step by Step

Our team first picked up layered vinyl signs as a weekend experiment — three colors of adhesive vinyl, a cheap roll of transfer tape, and a cutting mat that had clearly seen better days. The results genuinely surprised everyone on our team: crisp, dimensional pieces that looked far more polished than the modest effort behind them deserved. Layered vinyl signs build depth by stacking multiple cut vinyl pieces directly on a surface, and once most people see the effect in person, flat single-color designs rarely satisfy them again. Anyone already browsing our vinyl cutting machines guide will find plenty of cutters capable of handling multi-layer work right from the start.

Making these signs involves more planning than basic single-layer vinyl work, but the process is genuinely approachable for home crafters at almost any skill level. Our team has guided dozens of first-timers through their initial layered projects, and the universal lesson is always the same: registration — the precise alignment of each successive vinyl layer — is the one step demanding real patience, while everything else follows a repeatable sequence that gets faster and more intuitive with every sign.

The core materials are affordable and widely available: adhesive vinyl in multiple colors, a vinyl cutter, transfer tape (a semi-transparent adhesive sheet used to move vinyl from its backing to the target surface), a weeding tool, and the surface itself. Our team keeps a dedicated project folder in the design software — tools like those compared in our Silhouette Studio vs Cricut Design Space comparison — so every layer file stays organized and ready to cut in sequence without confusion.

What Most People Get Wrong About Layered Vinyl Signs

Myth: Layered Vinyl Requires Expensive Equipment

Our team hears this constantly, and it simply is not true. Any entry-level cutter — a Cricut Explore Air 2, Silhouette Cameo 4, or comparable machine — handles standard adhesive vinyl cleanly, and blade sharpness plus pressure settings matter far more than price. A $200 cutter with a fresh blade consistently outperforms a $600 machine running a dull one in our team's hands-on testing.

Other misconceptions our team encounters regularly:

• Premium vinyl brands are mandatory — Mid-range PVC-based adhesive vinyl (polyvinyl chloride film with a pressure-sensitive adhesive backing) like Oracal 651 performs excellently for most indoor and outdoor signs without the premium price tag.
• Layers always bubble or peel — Proper surface prep and squeegee technique eliminate the vast majority of adhesion issues before they start.
• Advanced software is required — Basic shapes and bold text in any standard cutting software produce perfectly respectable layered designs at any skill level.
• Layering only works on wood — Glass, metal, plastic, ceramic, and sealed painted surfaces all accept vinyl layers without any special treatment.

Myth: Perfect Alignment Is Impossible Without a Registration System

Registration — lining up each successive vinyl layer so edges align precisely — sounds intimidating until most people learn the hinge method, which our team considers the single most important technique in the entire layered vinyl process. The hinge method uses a strip of masking tape as a fixed anchor along one edge while the vinyl backing is removed and the piece pressed down gradually, allowing full repositioning control before the adhesive commits permanently to the surface.

Simple Starter Designs vs. Complex Multi-Layer Projects

Where Beginners Should Start

Our team recommends starting every beginner with two-color layered vinyl signs because mastering the hinge method on just two layers builds the muscle memory needed for more demanding work later. Strong starter projects include:

• Bold text on a contrasting solid background (white letters on black, or black on white)
• Simple geometric shapes with a single color overlay sitting on top
• One-word home décor signs — "HOME," "EAT," "GATHER" — where minor misregistration is barely visible
• Monograms with a two-tone drop shadow offset built from two cuts of the same letter shape

What Advanced Projects Look Like

Experienced crafters push layered vinyl signs into territory that genuinely impresses — five or six colors, detailed illustrated scenes, and gradient illusions built from carefully sequenced layers. Our team's most ambitious project was a seven-layer mandala (a circular geometric design with radial symmetry) on a stained wood plank, requiring a printed registration guide taped under a clear acrylic overlay to align each layer without drift.

Advanced techniques worth pursuing after mastering the basics:

• 3D shadow effects using offset duplicate layers cut in a darker or contrasting shade
• Gradient illusions assembled from closely related hue steps applied in careful sequence
• Multi-panel signs where each board carries one section of a single continuous design
• Mixed-surface projects that combine adhesive vinyl on the sign substrate with applied vinyl on fabric accents, similar to the technique covered in our guide on applying vinyl to canvas tote bags

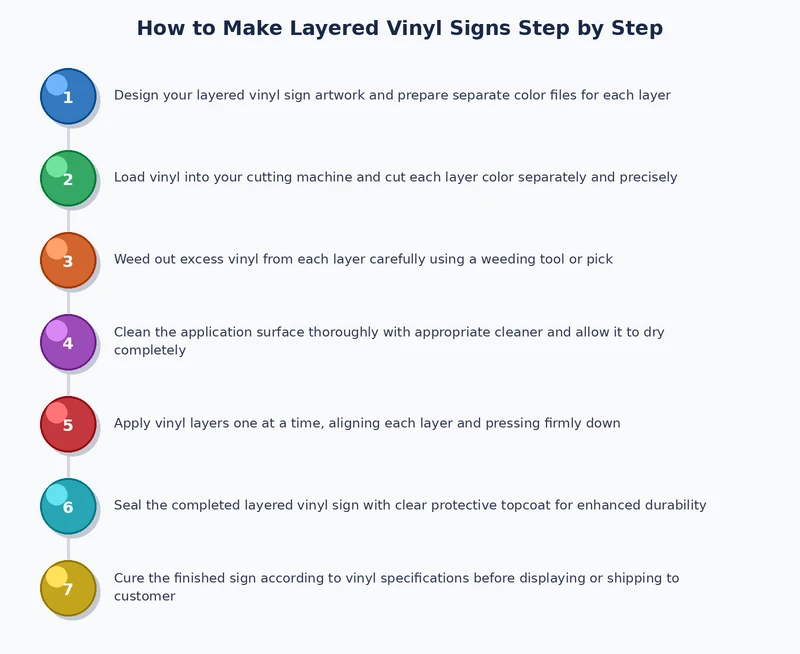

How to Make Layered Vinyl Signs from Start to Finish

Step 1 — Plan the Design and Color Order

1. Choose the design — Keep the first layered project to 2–3 colors maximum and avoid thin intricate details smaller than a quarter inch, which tear during weeding.
2. Separate layers in software — Place each color on a separate file layer or page so each one cuts independently, with no risk of confusion at the cutting stage.
3. Determine the cutting order — Our team always cuts the bottom layer first (the one applied directly to the surface) and works upward, preventing accidental scratching of already-applied vinyl during subsequent cuts.
4. Plan color contrast carefully — Adjacent layers should differ enough in value (lightness or darkness) to visually separate; colors too similar in tone flatten the dimensional illusion that makes layered signs worth the effort.

Step 2 — Cut and Weed Each Layer

1. Set blade depth and pressure — The blade should cut cleanly through the vinyl film without scoring the backing paper; run a small test square to confirm settings before committing the full design sheet.
2. Weed excess vinyl — Remove the vinyl surrounding the design using a weeding hook, working from the outside edges inward to avoid accidentally lifting design elements. Our team's guide on why a Cricut won't cut through vinyl covers blade and pressure fixes for anyone getting incomplete cuts that make weeding difficult.
3. Label each layer immediately — Writing the layer number and color on the vinyl backing with a permanent marker before weeding prevents mix-ups when multiple weeded sheets sit on the worktable together.
4. Trim backing close to the design — Leaving about half an inch of backing around each weeded piece makes the hinge method far easier to execute with precision and control.

Step 3 — Align and Apply Using the Hinge Method

1. Apply transfer tape to the first layer — Lay transfer tape over the weeded vinyl, smooth it down firmly with a squeegee or the flat edge of a credit card, then peel the vinyl's backing paper away so the vinyl now clings to the transfer tape instead.
2. Position over the surface — Hold the transfer tape and vinyl assembly above the surface, adjust placement visually until satisfied, then tape one edge firmly with masking tape to create the hinge — this anchored edge stays fixed throughout the entire application.
3. Fold back, peel, and lower — Fold the transfer tape and vinyl back over the hinge, peel the backing completely away, then slowly lower the vinyl onto the surface from the hinge edge outward while smoothing the vinyl down as it makes contact.
4. Burnish firmly and completely — Press the vinyl down using a hard squeegee with firm overlapping strokes from the center outward to every edge, then peel the transfer tape at a shallow 30-degree angle or less to avoid pulling vinyl edges up with it.
5. Repeat for each subsequent layer — Apply every additional layer using the same hinge alignment, positioning each new piece relative to the already-applied layers beneath and burnishing fully before peeling transfer tape.

Pro tip from our team: Burnishing vinyl for a full 60 seconds before peeling transfer tape is the single change that eliminates most lifted-edge failures — rushing this step is the most common mistake our team sees from beginners.

Habits That Separate Good Layered Signs from Great Ones

Surface Preparation Is Non-Negotiable

Our team considers surface prep the most consistently overlooked step in the entire layered vinyl sign process, and skipping it accounts for the majority of adhesion failures we encounter. Key preparation steps that make a measurable difference:

• Clean the surface with isopropyl alcohol (70% or higher concentration) and a lint-free cloth, wiping in one direction to avoid redepositing oils or residue
• Allow 15–20 minutes of full drying time after cleaning before applying any vinyl layer
• Sand rough wood surfaces to at least 220-grit smoothness, then apply a water-based topcoat or sanding sealer before any vinyl goes down
• Avoid silicone-based furniture polish or spray cleaners on any surface destined for vinyl — both leave an invisible film that defeats adhesive bonding completely

Choosing the Right Vinyl for Every Layer

Our team uses Oracal 651 (a gloss calendered vinyl rated for outdoor use and typically lasting five-plus years on exterior surfaces) as the default for layered sign work because it cuts cleanly, weeds without tearing on fine details, and bonds reliably to the widest range of surfaces. Selection guidelines worth following:

• Use the same brand and finish type — matte or gloss — across all layers on a single sign to ensure consistent inter-layer adhesion
• Avoid ultra-thin bulk craft vinyl packs for multi-layer work, as the thinner material tears too easily during weeding on any detail smaller than half an inch
• For outdoor layered signs, every single layer must be outdoor-rated vinyl to prevent differential weathering and peeling between layers over time
• Glitter or textured vinyl works beautifully as a top accent layer but should never sit beneath a smooth layer, since the texture prevents the upper layer from bonding flat

The Real Pros and Cons of Layered Vinyl Work

Why Our Team Recommends Layered Vinyl

• Dimensional visual impact — Stacked layers create genuine depth that printed flat designs simply cannot replicate, especially at typical viewing distances in home or shop settings
• No specialized equipment required — Any vinyl cutter handles the cutting work, and all remaining tools are basic hand items available at any craft store
• Unlimited color flexibility — Each layer can be any color from the full vinyl range, without the ink coverage or bleed limitations of direct-printed designs
• Durable and long-lasting results — Properly applied outdoor vinyl layers on sealed wood routinely survive several years of weather exposure without significant fading or edge lifting
• Low material waste per project — Precise cutting means minimal vinyl scrap, and leftover pieces from larger rolls work perfectly for smaller accent projects

Honest Drawbacks Worth Knowing Before Starting

• Meaningful time investment per sign — A four-layer sign takes our team between 45 and 90 minutes from file preparation to final burnish, which is significantly longer than equivalent single-layer work
• Registration errors compound across layers — Each misaligned layer makes the next one harder to place correctly, so early mistakes cascade into visible problems by the final layer
• Edge buildup on thick stacks — Four or more layers create a noticeable ridge at the design perimeter, which looks distracting on smooth surfaces like glass or acrylic
• Vinyl-on-vinyl adhesion is weaker than vinyl-on-surface — The bond between two vinyl layers is inherently less strong than vinyl bonded directly to wood or glass, making edge sealing important for any high-touch items

Solving the Problems That Trip Up Most Crafters

Layers Won't Adhere to Each Other

When an upper vinyl layer refuses to bond to the one beneath it, the cause is almost always one of three things: surface contamination from handling, mismatched vinyl finishes between layers, or insufficient burnishing time before the transfer tape was removed. Our team's diagnostic checklist for this problem:

• Check that no fingerprints or dust landed on the lower layer before applying the next — even clean, dry hands transfer enough skin oil to weaken the adhesive bond noticeably
• Confirm both layers share the same finish type; a gloss layer applied over a matte layer bonds poorly in our team's consistent experience
• Re-burnish the lower layer for a full 60 seconds before applying the next piece — the friction heat slightly softens the adhesive and dramatically improves bonding
• In cold workshop environments below 60°F, warm the already-applied vinyl layer briefly with a heat gun on its lowest setting to restore adhesive flow before adding the next layer

Bubbles and Lifting Edges

Bubbles form when air gets trapped between the vinyl and the surface during application, and lifting edges almost always trace back to insufficient burnishing pressure at the margins of the design. Reliable fixes from our team's experience:

• Pierce small bubbles at their center with a fine pin at a shallow angle, then press flat with a squeegee working from the pinhole outward toward the bubble's edge
• For lifting edges on already-applied signs, apply a thin bead of clear craft sealant along the lifted edge with a small brush, press flat, and allow a full hour of curing time
• Re-burnish the entire sign with a felt squeegee (which is softer than hard plastic and conforms better to slight surface texture) if multiple edges are lifting simultaneously
• On outdoor signs, seal all design edges with a clear exterior polyurethane spray coat to lock every layer edge against moisture infiltration and seasonal temperature cycling

How Much Layered Vinyl Signs Actually Cost to Make

Full Material Cost Breakdown

Where to Save Without Sacrificing Quality

Our team's honest assessment is that mid-range vinyl like Oracal 651 is worth the price premium for the improved cutting and weeding experience it delivers, but several other line items offer real savings without any quality penalty:

• Buy vinyl in 12-foot rolls rather than pre-cut sheets — the per-foot cost drops by 30–50% for colors used frequently across multiple projects
• Source wood blanks from hardware stores rather than craft chain retailers — quality is equivalent and the price is typically 40% lower for the same pine or MDF stock
• Reuse transfer tape on multiple applications — our team pulls tape from scraps and uses each piece 2–3 times before adhesion drops enough to require a fresh piece
• Cut from leftover scraps before opening new rolls — most 12×12 sign designs fit within vinyl pieces left over from earlier projects, which reduces material cost per sign considerably over time

Frequently Asked Questions

Final Thoughts

Layered vinyl signs are one of the most rewarding projects our team regularly recommends to crafters at every skill level — the materials are inexpensive, the learning curve is short, and the results look genuinely professional after just a handful of practice signs. Our team's strong recommendation is to grab three colors of Oracal 651, cut a simple two-word bold text design, and run through the hinge method once on a scrap piece of wood before attempting a finished piece, because that single practice run eliminates the most common beginner mistakes in one session. Head to our vinyl cutting machines guide to find the right cutter for the work, then get started — the first layered sign is always the most instructive one.
