How to Make a Screen Printing Stencil: Emulsion vs Film Methods

The first time our team attempted a photo emulsion burn in a makeshift darkroom, we coated the screen unevenly, rushed the drying step, and produced a stencil so fragile it tore apart before the third print. That experience made us study how to make a screen printing stencil far more carefully than any manual had prompted us to do. The craft depends on two primary methods — emulsion-based stencils and film-based stencils — and choosing between them shapes everything from material costs to the quality of the finished print. For anyone exploring the broader craft through our DIY screen printing resource hub, this comparison provides a grounded starting point.

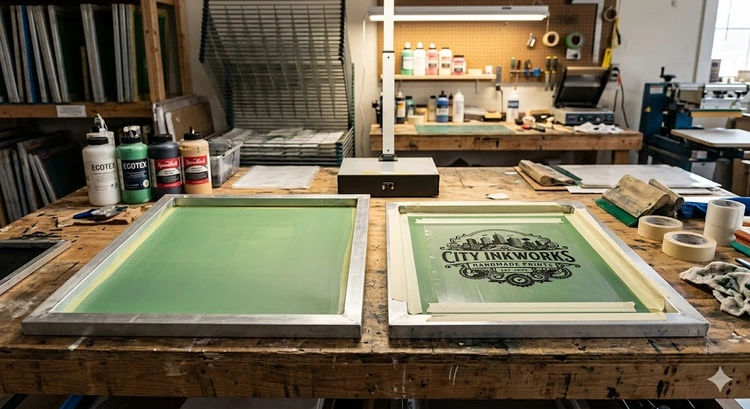

Emulsion stencils rely on a light-sensitive chemical coating — typically a dual-cure or SBQ (styrylquinoline) formula — that is applied to the mesh, dried in darkness, and then exposed under UV light through a film positive (a transparent sheet printed with the design in dense black ink). The UV light hardens the coating everywhere except where the design blocks it, and rinsing with water clears the unexposed area to reveal the open stencil. Capillary film, by contrast, is a pre-manufactured photopolymer sheet with a precisely controlled thickness that adheres directly to the mesh through capillary action, then undergoes the same exposure and washout process with far fewer coating variables to manage.

Our team has applied both methods across single-color apparel runs, fine halftone prints, and high-volume production jobs. The technical context for these techniques is well established in Wikipedia's overview of screen printing, which traces the industrial and artisan applications of both approaches. What follows is a practical guide grounded in our direct experience rather than theory alone.

Two Methods, One Goal: Understanding Your Stencil Options

How the Emulsion Method Works

The emulsion process begins with a clean, degreased mesh screen that is coated using a scoop coater (a metal trough with a rounded edge that deposits a consistent layer of emulsion across the mesh surface). Most practitioners apply one coat to the squeegee side and two coats to the print side to build adequate film thickness and reduce pinholes (small openings in the coating that allow ink to bleed through in unwanted areas). The coated screen is then placed horizontally in a light-safe drying environment until the emulsion is completely dry, which typically requires several hours at room temperature with moderate airflow.

Once fully dry, the film positive is positioned emulsion-side-down against the coated screen and the assembly is exposed in an exposure unit equipped with UV-producing lamps. Exposure times vary based on emulsion formulation, mesh count, and lamp intensity, and our team strongly recommends consulting a comprehensive resource like the Screen Printing Emulsion Guide: Types, Coating, and Exposure Times for specific timing recommendations. After exposure, a thorough water rinse removes the unexposed emulsion to reveal a clean, sharp stencil ready for printing.

How the Film Method Works

Capillary film arrives in rolls and is cut to the approximate dimensions of the screen. The film is briefly wetted on its photopolymer side, then pressed firmly onto the print side of the mesh, where capillary action draws the photopolymer layer up into the mesh threads and anchors it in place. After the polyester backing sheet is peeled away and the film has dried completely, the screen moves directly to the exposure step without any coating equipment or drying cabinet requirements. The photopolymer layer is then exposed and washed out using the same water-rinse process used in the emulsion method, producing a stencil with a highly uniform thickness across the entire image area.

Before committing to a full production screen, our team always runs a step wedge test — a single exposure using segments of incrementally longer durations — to identify the precise exposure time for each emulsion or film batch, which prevents both underexposure and the brittleness caused by overexposure.

Emulsion and Film Stencils in Real Production Environments

Small-Batch Studio and Home Use

For home printers and small-batch operations, the emulsion method tends to be the initial choice because the materials are inexpensive and available from most screen printing suppliers without minimum order requirements. A quart of dual-cure emulsion typically costs between $20 and $40 and provides enough material for several dozen screens at standard coating thicknesses. Our experience indicates that most home users grasp the coating technique within a few attempts, though producing a smooth, pinhole-free coat on the very first screen is uncommon, and some material waste during the learning phase should be anticipated.

Capillary film, while more expensive per screen, regularly produces better first-attempt results for home users because it removes the coating variable from the process entirely. Anyone who has spent time troubleshooting uneven emulsion buildup will find the film method's consistency a welcome simplification. For guidance on preparing the film positives that both methods require, our detailed article on making film positives for screen printing at home covers inkjet transparency settings, ink opacity, and output resolution comprehensively.

High-Volume Commercial Print Shops

Professional print operations typically favor emulsion for high-volume work because of its substantially lower per-screen material cost and the broader selection of specialty formulations available, including high-solids emulsions, solvent-resistant variants for aggressive ink chemistries, and fast-exposure formulas designed for production-speed UV units. Shops processing hundreds of screens per week often invest in automated coating machines that apply emulsion at consistent speeds and angles, eliminating the manual variability that causes problems at the home studio scale.

Capillary film maintains a strong presence in commercial environments where fine halftone detail and tight registration are paramount, such as four-color process (CMYK) printing or photographic image reproduction. Some high-volume shops adopt a hybrid approach, using capillary film for detail-critical screens and emulsion for straightforward spot-color work, which balances cost efficiency against the quality demands of each individual job type.

Breaking Down the Costs of Each Stencil Method

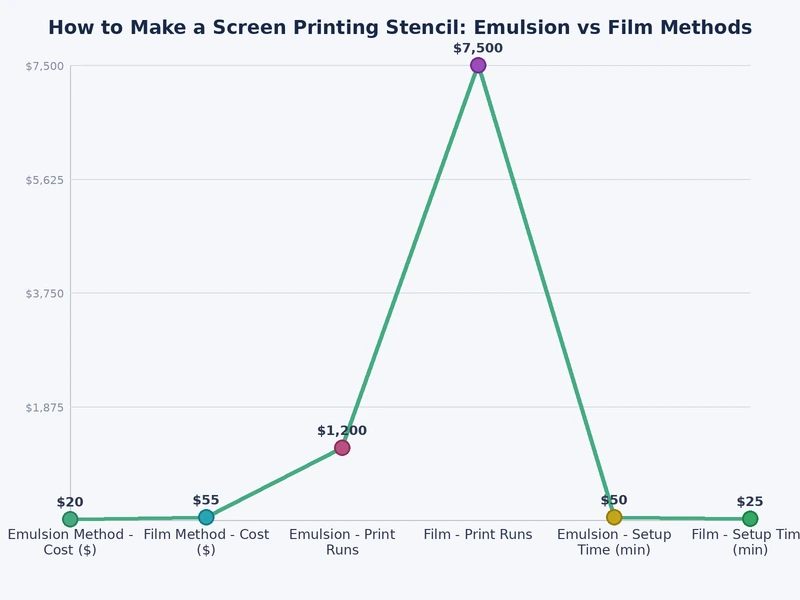

The cost comparison between emulsion and capillary film is more nuanced than the raw material price suggests. Initial material costs favor emulsion by a significant margin, but the total cost per usable stencil — accounting for learning-curve waste, equipment requirements, and processing time — tells a more balanced story for new practitioners. The table below presents the primary cost categories for a typical home or small-studio printer preparing a single screen.

When the cost of wasted screens during the learning phase is included, the per-usable-stencil cost advantage of emulsion narrows considerably for beginners. Our team's assessment is that emulsion becomes clearly more economical once a reliable coating process has been established — typically after the first ten to fifteen screens — at which point the material savings compound meaningfully over time. Until that threshold is reached, the film method often delivers a lower effective cost per usable stencil despite its higher listed material price.

Separating Fact from Fiction About Screen Printing Stencils

Several persistent misconceptions circulate among newcomers to stencil work, and addressing them directly prevents wasted materials and misplaced troubleshooting effort.

Myth: A stronger light source always produces a better exposure. Overexposure is as damaging as underexposure, and in many ways more difficult to diagnose after the fact. An overexposed emulsion becomes brittle and may seal fine detail areas that should remain open to ink passage, producing prints that lack sharpness in complex areas of the design. Our team follows manufacturer-recommended exposure parameters rather than assuming more light produces a more durable stencil.

Myth: Capillary film produces inferior halftone detail compared to emulsion. High-quality capillary film, matched to an appropriate mesh count and exposed through a properly opaque film positive, can resolve halftone dot detail at or above the level achievable through hand-coated emulsion screens, because the film thickness is factory-controlled at tolerances that manual coating cannot reliably replicate.

Myth: Professional-quality stencils require professional equipment. Process discipline matters more than equipment cost at the entry level. A well-prepared film positive, a correctly applied stencil material, and a carefully timed exposure on a modest DIY exposure unit consistently produce print-ready stencils that meet production standards, provided each step is executed with care and attention to the process variables involved.

Extending the Life of a Screen Printing Stencil

Emulsion Stencil Care After Printing

Immediate post-run cleaning is the single most important maintenance habit for emulsion stencils. Plastisol ink (a PVC-based ink that does not air-dry but requires heat curing) must be removed with a dedicated plastisol wash or mineral spirits before the screen is stored, while water-based inks must be rinsed thoroughly before any drying occurs on the mesh. Dried ink trapped within an emulsion stencil is extremely difficult to remove without degrading the surrounding coating, which dramatically shortens the screen's productive lifespan and often forces premature reclaiming.

Properly coated, exposed, and cleaned emulsion screens are capable of withstanding several thousand print impressions under normal squeegee pressure and with compatible ink formulations. Screens used for longer runs should be inspected periodically for edge breakdown (the erosion of stencil edges nearest the image boundary), which appears first as slight ink bleed and progresses to visible image distortion if left unaddressed.

Capillary Film Stencil Care

Capillary film stencils respond well to the same immediate cleaning discipline recommended for emulsion screens. Because the photopolymer layer bonds tightly to the mesh threads, film stencils demonstrate good resistance to edge delamination (peeling of the stencil from the mesh) during well-managed print runs, provided that squeegee pressure remains consistent and appropriate for the ink viscosity in use. Excessive pressure or abrasive ink additives accelerate surface wear, and our team recommends inspecting film stencil edges after every fifty to one hundred impressions during long production runs to catch early signs of deterioration before they affect print quality.

Mistakes That Undermine Stencil Quality and Print Results

The most common error our team encounters in emulsion work is inadequate drying before exposure. A screen that feels dry at the surface may still carry residual moisture within the emulsion film, and that moisture scatters UV light during exposure in a way that softens stencil edges and reduces image clarity. Screens should be dried at a temperature between 65°F and 90°F (18°C – 32°C) with low ambient humidity, ideally for a full overnight period, before any exposure attempt is made.

Insufficient film positive opacity is a second frequent source of stencil failure across both methods. When the printed design areas on the transparency allow even small amounts of UV light to pass through, the emulsion or film beneath the design hardens partially, making washout incomplete and leaving a stencil that blocks ink in areas where it should flow freely. Our team prints film positives at maximum density settings and double-prints the transparency when RIP (Raster Image Processor) software is unavailable, ensuring true opacity across all design elements.

Low mesh tension is a third variable that many practitioners underestimate until print quality deteriorates noticeably. A screen with insufficient tension flexes under squeegee pressure, causing stencil edges to shift slightly with each stroke and producing blurred registration and accelerated stencil breakdown. Our team measures tension with a dedicated tension meter and removes any screen from production that falls below the minimum tension recommended by the mesh manufacturer for the application in use. For a detailed analysis of how squeegee selection interacts with stencil performance under varying tension conditions, the guide on choosing the right squeegee for screen printing addresses durometer (blade hardness) selection and stroke angle recommendations with practical specificity.

Frequently Asked Questions

Final Thoughts

Mastering how to make a screen printing stencil — whether through the emulsion method or capillary film — is the single most consequential skill in the screen printing process, because every print that follows is only as sharp and consistent as the stencil that produced it. Our team encourages anyone ready to move from reading to practice to gather materials for both methods, run a side-by-side test on two screens with the same design, and let the results of that direct comparison guide the decision rather than relying on general recommendations alone. The hands-on evidence gathered from even a single test session will be far more instructive than any guide, including this one.
