How to Align Heat Transfer Vinyl on a T-Shirt Every Time

Our first batch of custom tees came back with the design sitting a full centimeter left of center. The client flagged it before we even finished unboxing. That one run taught us more about how to center htv on t-shirt blanks than any tutorial had — because we felt the cost of getting it wrong. Every shop working in t-shirt printing eventually hits this wall, and the fix is less about equipment and more about process.

Heat transfer vinyl adheres permanently on first press contact. There's no peeling back a cooled transfer and repositioning without damaging the vinyl or the fabric. This makes alignment a pre-press decision, not a post-press correction. Our team has evaluated every common centering method — tape measures, laser guides, alignment jigs, and printed placement templates — across shirt styles ranging from standard Gildan 5000s to fitted fashion blanks where side seams don't align with shoulder seams.

The results are consistent: shops and home users who document and repeat a precise alignment workflow produce better output and spend less time on reprints. The following breakdown covers when centering matters most, which methods hold up under real production conditions, and the exact process our team uses for clean, repeatable HTV placement every run.

When Alignment Makes or Breaks the Finished Shirt

Shirt Types Where Precision Is Non-Negotiable

Not every shirt demands the same alignment tolerance. Certain combinations of design type, garment construction, and end use make even a 5mm deviation visible and commercially unacceptable.

• Centered chest logos on crew necks — the most common HTV application and the most visually exposed. The neckline and shoulder seams frame the design, making asymmetry immediately apparent.
• Multi-layer or multi-color designs — each layer must register to the same reference point. A misaligned first layer throws off every subsequent pass with no clean recovery.
• Text-based designs — off-center text reads as a production error even to non-craft audiences. Human perception of text alignment is disproportionately sensitive compared to graphic shapes.
• Youth and toddler shirts — smaller chest panels shrink the margin for error. A quarter-inch deviation on an adult XL may be invisible. On a size 2T, the same error represents a significant fraction of the available design field.
• Fitted or fashion-cut blanks — side seams on these cuts often don't align with shoulder seams, making shoulder-seam-based measuring structurally unreliable. Chest-width measurement at armhole level is mandatory.

Cases Where Exact Centering Is Less Critical

Some applications tolerate variation without a noticeable result. Knowing where to spend less alignment time preserves throughput on lower-stakes work.

• Small left-chest pocket logos — the eye doesn't expect perfect symmetry in pocket-logo placement. A 3–5mm shift is imperceptible at normal viewing distance.
• Back neck labels and tag replacements — these need to sit straight, but precise horizontal centering is far less critical than correct vertical drop from the collar.
• Sleeve graphics on athletic cuts — placement relative to the seam matters more than geometric centering from the shirt's center axis.
• Casual craft and personal-use transfers — for personal projects and applications like vinyl keychains where commercial production standards don't apply, small alignment variations are generally acceptable and not worth extended setup time.

The Case For and Against Each Centering Method

Ruler and Tape Measure

The tape measure method is the baseline. It requires no specialty equipment and works on any blank, any size, any cut. The process involves measuring the shirt's chest width at armhole level, halving it to find center, then measuring down from the collar seam to establish vertical drop.

Pros:

• Zero equipment cost beyond a $2 tape measure and a heat-erasable marker
• Works on any blank regardless of size, cut, or brand
• Transferable skill — no proprietary tools or templates required

Cons:

• Slowest method per shirt in batch production — 60 to 90 seconds per shirt adds up fast at volume
• Error compounds if the operator rushes or measures from inconsistent reference points
• Chalk or heat-erasable marks must be applied and removed for every shirt

Laser Alignment Tools and T-Squares

Laser alignment tools project a crosshair or grid onto the shirt surface, providing a visible reference without physical contact. T-squares work similarly — a rigid right-angle guide indexes off the shirt's neckline or collar seam and drops a vertical reference line across the chest.

Pros:

• Faster per shirt than tape measure once setup is dialed in — no marking step required
• Consistent reference point across every shirt in a run
• Visual reference disappears when the tool is removed, leaving no residue

Cons:

• Laser tools run $30–$150 depending on model and mount type
• T-square accuracy depends on consistent collar construction — fashion blanks with variable collar widths compromise the index point
• Neither tool confirms design position once the carrier sheet is laid down

Pro tip: When using a laser alignment tool, always verify the projected crosshair aligns with the shirt's actual measured center — not the platen center. Platens are not always perfectly centered under the laser mount, and assuming they are introduces systematic error across an entire batch.

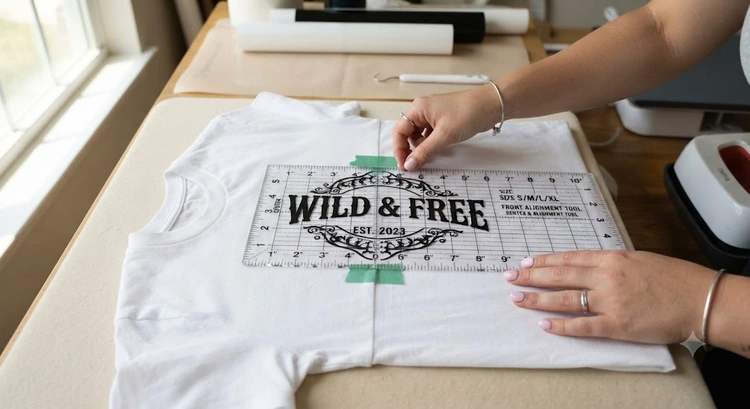

Pre-Made Alignment Jigs and Boards

Alignment boards — marketed as centering boards, t-shirt rulers, or placement guides — are rigid or semi-rigid templates that slide inside the shirt and position the design relative to a printed grid. Dedicated heat press alignment boards and purpose-built centering tools fall in this category.

Pros:

• Fastest method for repeat placements on the same shirt size — under 10 seconds per shirt once the board is calibrated
• Eliminates operator-to-operator variation in batch production entirely
• Most boards include standard placement grids for chest, pocket, and sleeve positions

Cons:

• Requires a separate board per size range when working across multiple shirt sizes in the same run
• Up-front cost of $15–$80 per board depending on brand and material
• Fashion blanks or garments with unusual construction don't always seat properly on a rigid jig

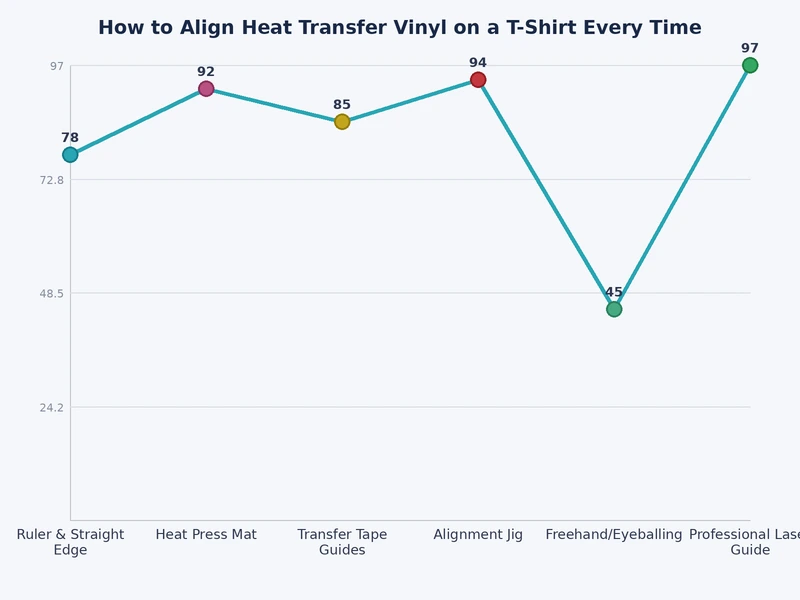

Centering Method Comparison at a Glance

Our team rates each method across the factors that determine real production value:

For most home operations running mixed shirt sizes, our team defaults to the tape measure and heat-erasable pen — it's the most adaptable setup with no fixed investment. For same-size batch production at 12 or more shirts per run, an alignment board pays for itself in time savings by the second session.

How to Center HTV on a T-Shirt: Our Exact Process

This is the workflow our team uses across all standard centering applications. It has been refined across hundreds of production runs and delivers consistent results on blanks from XS through 3XL on both standard unisex and fashion-cut constructions.

Preparing the Blank and the Cut Vinyl

• Pre-press the blank for 3–5 seconds to remove moisture and wrinkles. A wrinkled shirt surface shifts the measurement reference points and allows the design to drift during the press cycle.
• Confirm the HTV is cleanly and completely weeded before starting alignment. Remaining matrix material changes the visual footprint of the design and makes center-by-eye estimation unreliable.
• Verify that the design is correctly mirrored in the cut file before pressing. Our breakdown of how to mirror image a design for heat transfer printing covers this step for every major cutting software platform.
• Lay the shirt flat on the platen and pull it taut with no bunching at the seams. Load the shirt the same way every time, using the platen's front edge as a consistent reference for vertical positioning.

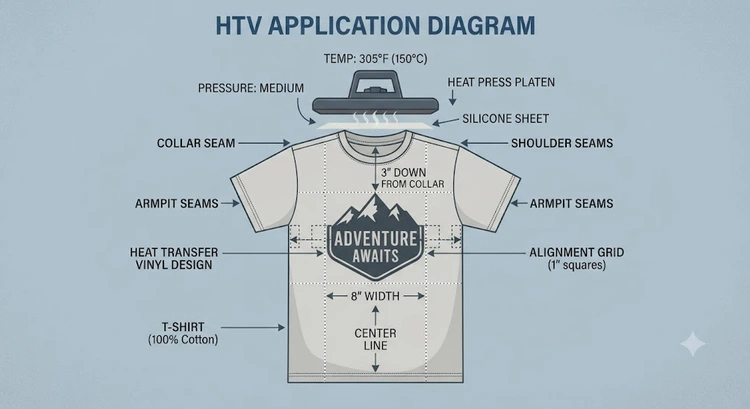

Measuring and Marking Placement Points

This is where understanding how to center htv on t-shirt blanks correctly makes the biggest practical difference between professional results and reprint-generating errors.

1. Find the shirt's chest width — measure across the front of the shirt at armhole level, not shoulder to shoulder. Divide by two and mark the centerline with a chalk pencil or heat-erasable marker. This is the horizontal anchor for every placement decision.
2. Establish vertical drop — measure down from the collar seam, not the neck edge, which varies with ribbing tension. Standard adult chest logo placement lands 3–4 inches below the collar seam. Increase to 4–5 inches for 2XL and above.
3. Mark the design's center point — fold the HTV carrier sheet in half vertically. The crease identifies the design's horizontal center. Align this crease with the shirt's centerline mark.
4. Set vertical position — the top edge of the design typically drops 3 inches from the collar seam on adult shirts, or center the design at the calculated vertical drop point for larger designs that span significant height.
5. Confirm before pressing — step back and view the shirt from arm's length. Misalignment that isn't visible at 6 inches frequently becomes obvious at 3 feet. This 5-second check catches the majority of pre-press errors.

Warning: Never use shoulder seams as a horizontal centering reference on fashion-cut or slim-fit blanks — the side seams on these constructions shift the true chest center axis by as much as 1.5 inches compared to standard unisex builds, producing systematic misalignment across an entire run.

Pressing and Final Checks

• Place the HTV carrier-side up, design-side down, aligned to the marks. Do not slide or drag the carrier sheet into position — lift and place.
• Apply a Teflon sheet or pressing pillow if the design includes materials with significant height variation. Glitter HTV sits considerably thicker than standard smooth HTV and benefits from a pressing pillow to maintain even platen pressure across the design surface.
• Press per the vinyl manufacturer's specified time, temperature, and pressure. Heat transfer vinyl adhesive chemistry is calibrated to specific temperature ranges, and both over- and under-pressing cause adhesion failures that look, initially, like alignment problems.
• Peel the carrier hot or cold per the vinyl specification. Peeling before the correct temperature window is reached shifts designs that haven't fully bonded.
• Post-press fold check: fold the shirt front-to-back at the shoulders and verify the design is symmetric at the fold line. This is the fastest and most reliable final QC step available.

What We've Seen on Real Production Runs

Small Batch Home Operations

Home-based setups running 1–20 shirts per session are the most common users of the tape-measure-and-mark method. Our observation of home operations across multiple years shows a single recurring failure: measuring from the wrong reference point.

• Most home users measure from the shoulder seam to find horizontal center. On standard unisex blanks this works adequately. On fashion-cut or women's fitted blanks, shoulder seams are structurally offset from the true chest center by design — sometimes by over an inch.
• Wrinkled platens and bunched shirt fabric account for a significant share of placement complaints from home operators. Pre-pressing for 5 seconds resolves this almost entirely and adds under a minute to total session time.
• When working with specialty fabrics — particularly fleece or pile constructions — the surface texture makes visual centering by eye unreliable. Physical measurement with a tape is mandatory on these materials.
• Cricut users in particular tend to under-weed designs, leaving matrix material that visually widens the design footprint and throws off eye-based centering estimates. A proper weeding tool and thorough weeding before any placement check eliminates this variable.

Mid-Volume Commercial Shops

Mid-volume shops pressing 50–500 shirts per run operate under different constraints. Throughput matters, and per-shirt measurement overhead compounds fast at scale.

• Alignment boards are standard in professional HTV shops. At 100+ units per run, the time savings over tape-measure methods are documentable and substantial — often reducing per-shirt setup time by 80%.
• Commercial operations using mixed blank styles in the same run should maintain a size chart cross-referencing shirt style to measured center drop per design. Ad-hoc remeasuring per shirt at commercial volume is not viable.
• Shops running multi-layer HTV designs should use registration marks or tape the design position before pressing the first layer. Repositioning between layers without a fixed reference is the leading cause of registration failure in layered commercial work.
• Staff training on the centering process is a one-time investment. Our team documents placement specifications per client design — shirt size, design dimensions, measured center drop, and reference photos — in a shared spreadsheet that any operator can access without relearning the setup.

Alignment Mistakes That Destroy Otherwise Good Transfers

Pre-Press Errors

The majority of centering failures are locked in before the press closes. These are the mistakes our team documents most consistently across home and commercial operations alike.

• Skipping pre-press — moisture and fabric wrinkles shift as the press heats the garment. Designs can drift visibly during the press cycle on shirts that weren't pre-pressed, even when the initial placement was correct.
• Measuring chest width at the shoulder instead of at armhole level — shoulders taper on fitted cuts. Armhole-level chest width is the geometrically correct reference for chest logo placement, and it's the measurement that stays consistent across shirt sizes within the same style.
• Not accounting for design visual weight — a design with heavy graphic elements on one side will appear off-center even when geometrically centered. Visual balancing sometimes means shifting the geometric center slightly toward the lighter side to achieve perceived symmetry.
• Using a blade past its service life — a dulling cutter produces designs with slightly irregular cut edges that make visual centering harder to judge and can alter the design's effective visual boundary. Knowing when to replace a Cricut blade directly affects cut quality, which in turn affects how reliably alignment checks read true.
• Inconsistent platen loading — pulling the shirt tighter on one side than the other shifts the fabric's centerline relative to the platen surface. Load every shirt using the same reference points and the same tension every time.

During and Post-Press Errors

• Rushing the carrier peel — peeling hot on a cold-peel vinyl, or cold on a hot-peel vinyl, moves the design as the adhesive transitions. The vinyl specification defines this, and the specification exists for a reason.
• Not smoothing air pockets before pressing — air trapped under the carrier sheet creates localized pressure variations. Smoothing from center outward before the press closes takes three seconds and prevents one of the more common post-press edge failures.
• Using a worn or damaged Teflon sheet — degraded Teflon distributes heat unevenly, producing adhesion failures at design edges. These edge-lift failures often occur consistently on the same side as the wear pattern, making finished designs appear to drift toward one edge.
• Skipping the fold-check — the shirt fold test (fold front-to-back at the shoulders and verify the design is symmetric at the fold line) catches misalignment that individual measurement steps sometimes miss. It takes five seconds and should be standard on every shirt in every run.

Key Takeaways

• Measure chest width at armhole level, not at the shoulder — this is the geometrically correct horizontal reference for centering any chest HTV design and remains consistent across shirt styles where shoulder measurements fail.
• Alignment boards deliver the fastest and most repeatable results for single-size batch production; tape measures and heat-erasable markers remain the most adaptable solution for mixed-size and low-volume work where fixed jigs don't justify the cost.
• Most centering failures originate before the press closes — pre-pressing the blank, measuring from correct reference points, and visually confirming placement from arm's length prevent the vast majority of errors without adding significant time to the workflow.
• The fold-check — folding the finished shirt front-to-back at the shoulders and verifying design symmetry at the fold line — is the fastest and most reliable post-press QC step available and should be standard procedure on every production run.
