Sublimation Troubleshooting: Fixing Ghosting, Blurry Prints, and Faded Colors

I pulled a 150-piece mug order off the press and every single one had a faint shadow image offset from the main print. Three hours of work, straight to the reject pile. If you've been there, you already know how fast sublimation printing problems and solutions become the only thing on your mind. This guide covers the exact fixes for ghosting, blurry prints, and faded colors — the three defects that kill more runs than anything else. For a full overview of the craft, start at the sublimation printing resource hub and then come back here to troubleshoot.

These aren't random flukes. Each defect has specific, repeatable causes. Once you know what to look for, you can diagnose a bad press in under 30 seconds. And the fix is almost always in your setup — not your printer, not your ink.

Whether you're running a Sawgrass SG500 or a converted Epson EcoTank, the fundamentals are identical. Pressure, time, temperature, and substrate prep are the four variables that control everything. Dial those in and most sublimation printing problems and solutions stop being problems at all.

Equipment Check: Starting With the Right Setup

Most sublimation printing problems trace back to gear that's either wrong for the job or poorly calibrated. Before you blame your ink or your paper, check your equipment. You'd be surprised how many "mysterious" defects disappear the moment you verify your actual platen temperature versus what the display claims.

Heat Press Fundamentals

A clamshell press and a swing-away behave differently under pressure. Neither is inherently wrong, but you need to know how yours distributes heat across the platen. Uneven heat is the single biggest source of partial fades and patchy coverage — on mugs and flat substrates alike.

• Verify platen temp with a laser thermometer — don't trust the digital readout alone. Check all four corners and the center. A 20°F variance across the platen is not unusual and is absolutely a problem.
• Even pressure matters as much as temperature — use a pressure gauge, or run a paper-slip test at multiple points. Resistance should feel identical everywhere.
• Mug presses need wrap-around contact — if the heating element doesn't make full circumferential contact, you'll get crescents of faded color at the edges every single time.
• Inspect for platen warping — a bent lower platen creates pressure dead zones that no setting adjustment can compensate for. Replace it.

If you're still dialing in times and temps, our sublimation heat press time and temperature guide covers substrate-specific settings that eliminate the guesswork entirely.

Printer and ICC Profile Setup

Running without the correct ICC profile is a mistake that beginners and experienced operators both make. Sublimation inks shift color dramatically after pressing — what looks magenta on the transfer looks crimson on the substrate. Your ICC profile compensates for that shift before you print, not after.

• Use the manufacturer-provided ICC profile matched to your specific paper and ink combination — not a generic profile.
• Set your printer driver to "No Color Management" when a profile is active in your RIP or design software. Double-applying color management destroys saturation.
• Disable automatic color correction in Photoshop, Illustrator, or CorelDRAW before sending to print.
• If colors still look off after pressing, calibrating your printer color is the logical next step before assuming the press is the culprit.

Fixing Blurry Sublimation Prints Step by Step

Blurry prints have one cause ninety percent of the time: the transfer moved during pressing. That's it. The gas released during sublimation creates a small pressure cushion under the paper, and if it isn't locked down, it shifts — even a fraction of a millimeter shows up as noticeable blur at print resolution.

What's Actually Causing the Blur

• Transfer paper isn't taped down — the most common culprit by a wide margin.
• Moisture in the substrate — steam escaping during pressing creates micro-movement under the paper, especially on cotton-poly blends.
• Over-pressing — too much time or heat causes dye to spread beyond ink boundaries and bleed into surrounding fibers.
• Low-GSM transfer paper — flimsy paper has less stiffness and shifts more easily under clamp pressure.
• Opening the press too fast — jerking the platen open can drag the paper across the substrate before the dye has fully set.

The Fix: A Locked-Down Transfer Process

1. Pre-press your blank for 5–8 seconds — no transfer, just heat. This removes moisture and pre-flattens the surface.
2. Position your transfer precisely, then tape all four edges with heat-resistant tape rated for your press temperature.
3. For apparel, lay a Teflon or parchment cover sheet over the transfer to prevent dye migration to the upper platen.
4. Close the press slowly and deliberately. No slamming.
5. When time's up, open the press in a controlled, steady motion and peel the transfer while still warm. Most sublimation papers are hot-peel — confirm with your paper spec sheet.
6. Lay the pressed item flat to cool. Don't stack hot pieces — stacking traps heat and causes dye migration between items.

If you follow that sequence and still see blur, drop your temperature by 5°F and run another test. Over-pressing causes more blur than most operators expect.

Stopping Ghosting Before It Ruins Your Blank

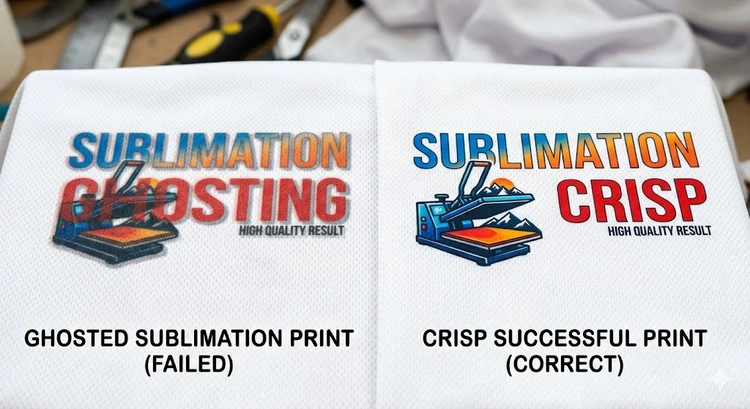

Ghosting is that faint double-image shadow offset from the main print. It's one of the most infuriating sublimation printing problems because it's invisible until the item cools — at which point it's permanent and unfixable on that piece.

Why Ghosting Happens

The dye-sublimation process converts solid dye to gas under heat. If the transfer paper moves even a millimeter after the press opens — while dye gas is still escaping from the paper — you get a ghost. It takes less than a second.

• Paper movement on press-open — the platen lifting pulls the paper off the substrate as it rises.
• Air movement in the room — a ceiling fan or A/C vent aimed at your press absolutely causes ghosting. This is not a myth.
• Tape failure at press temperature — cheap tape softens above 380°F and releases, letting the paper drift during cooling.
• Re-pressing a sublimated item — residual dye in the polymer coating re-sublimes if you press again, ghosting onto whatever's in contact.

Ghosting Prevention Checklist

• Tape all four edges of the transfer. For prints larger than 8×10 inches, add a center strip.
• Hold the substrate firmly as you open the press — don't let the rising platen pull the paper off the surface.
• Peel the transfer in one smooth, confident motion immediately after pressing. No hesitation.
• Cool in still air. No fans, no A/C drafts for the first 30–45 seconds after pressing.
• Use high-tack heat tape rated for 400°F or higher. The economy rolls from general office suppliers are not the same product.
• Never re-press a finished sublimation piece unless you accept that it will ghost onto anything it touches.

Faded Colors: Root Causes and Real Fixes

Faded, washed-out colors are almost always a time or temperature problem. Sublimation dye needs to hit a minimum temperature threshold to convert fully to gas and bond with the polymer. Under-press and the dye never fully transfers. Over-press and the coating breaks down, dye bleeds, and you lose saturation either way.

Time, Temperature, and Substrate Issues

• Under-pressing — if your press reads 385°F but actually runs at 370°F, colors will be noticeably faded on every single piece. Verify with a laser thermometer, not the display.
• Wrong substrate — sublimation only bonds to polyester or polyester-coated hard surfaces. Cotton gives you a near-invisible ghost of an image, full stop.
• Low polyester percentage — a 50/50 cotton-poly blend produces muted, faded output. You need at least 65% poly for acceptable saturation; 100% for vibrant results.
• Aged or improperly stored blanks — polymer coatings degrade over time and won't accept dye the way fresh stock does. Store blanks sealed, away from UV exposure and humidity.
• Excessive pressure on hard substrates — over-clamping mugs and tiles can crack the coating and prevent proper dye penetration.

Color Management and ICC Profiles

If your time and temp are correct but colors still look flat or hue-shifted, the problem is in your color management chain, not your press.

• Confirm your design file is in sRGB — sublimation RIPs are RGB-based. Sending a CMYK file produces unpredictable color shifts after pressing.
• Check for double color management: correction applied once in the design software and again in the printer driver kills saturation and produces muddy output.
• Print a color reference bar on every transfer sheet alongside your main artwork and compare pressed output against expected values.
• Reds shifting orange or blues going purple typically means your ICC profile is wrong for your current paper brand or the file is corrupt — re-download from the manufacturer's site directly.

Sublimation Printing Problems and Solutions: At-a-Glance Table

Use this table to diagnose fast. Find your symptom, trace it to the root cause, and apply the fix before burning another blank on the same mistake.

The Real Trade-offs in Sublimation Troubleshooting

Not every fix requires new equipment. But some budget workarounds create new problems down the line. Know what you're trading before you commit.

Budget Workarounds vs. Proper Equipment

Budget moves that genuinely work:

• Parchment paper as a cover sheet — performs identically to Teflon sheets for most applications and costs pennies per press.
• Hardware-store heat-resistant tape instead of branded sublimation tape — same adhesive chemistry, fraction of the cost.
• A $25–$35 laser thermometer to verify platen temp — this is the single highest-ROI tool purchase in sublimation. Buy it immediately if you don't own one.
• A silicone pad under rigid blanks — distributes pressure evenly and eliminates edge fading on tiles and coasters without any additional equipment.

Budget moves that cost you more than they save:

• Cheap sublimation paper — low-GSM paper ghosts more, blurs more, and produces inconsistent color transfer. This is not the place to cut costs.
• Skipping an ICC profile — eyeballing colors without a proper profile means you'll chase color accuracy indefinitely. The profile takes five minutes to install once.
• Consumer irons for any real volume — uneven heat distribution amplifies every problem simultaneously and destroys your ability to diagnose root causes.

Investments that pay back immediately:

• A swing-away press with a verified flat platen eliminates most pressure-uniformity problems in one purchase.
• RIP software like Wasatch, Ergosoft, or Sawgrass Print Manager takes color management off your plate entirely — it handles what the printer driver does badly.
• Single-source blanks from one trusted supplier. Mixing suppliers introduces batch-to-batch coating inconsistency that looks like a press problem but isn't.

Building a Zero-Problem Sublimation Workflow

The best long-term answer to sublimation printing problems and solutions is a process tight enough that defects don't get a foothold. Reactive troubleshooting is expensive in wasted blanks and time. Proactive process control is cheap — it's just habits.

Daily Habits That Prevent Defects

• Warm up your press for 10–15 minutes before the first press of the day. Platens don't reach true operating temp the moment you flip the switch — heating elements need to stabilize.
• Check platen temp every morning with your laser thermometer. Elements drift. Don't assume yesterday's setting still holds.
• Inspect your transfer paper before printing — humidity warps paper and creates adhesion and transfer inconsistency even when everything else is correct.
• Pre-press every blank without exception — 5–8 seconds of heat, no transfer. Removes moisture, pre-flattens the surface, eliminates white spots from trapped humidity.
• Run a test press on a sacrificial blank whenever you start a new substrate batch or a new roll of paper. Don't assume — verify.

Pro-Level Tips for Consistent Results

• Print a color reference bar on every transfer sheet alongside your main artwork. Press it with the piece and compare against your expected values — instant QC at zero extra cost.
• Label every roll of sublimation paper with the matching ICC profile name. Mixing paper types without updating the profile ruins entire runs, and it happens more than anyone admits.
• Keep a simple press log: substrate type, platen temp verified, press time, pressure setting, and result. You'll identify failure patterns within days, not weeks.
• Store unused sublimation paper rolled, not flat, in a sealed bag with a desiccant packet. Paper that absorbs ambient humidity transfers inconsistently even when your press settings are perfect.
• When pressing hard substrates in volume, a vacuum heat press eliminates edge fading and pressure dead zones completely. If your volume justifies it, there's no better long-term investment for hardgoods consistency.

Frequently Asked Questions

Key Takeaways

• Ghosting and blur both come from transfer paper movement — locking down every edge with high-tack tape and controlling the press-open motion eliminates both defects in most setups.
• Faded colors almost always trace back to a platen running cooler than the display reads — a laser thermometer is the most important diagnostic tool in your shop.
• A wrong or missing ICC profile silently ruins color accuracy regardless of how well your press is calibrated — use paper-matched profiles and disable double color management.
• Prevention beats troubleshooting: pre-pressing every blank, verifying platen temp daily, and keeping a simple press log will eliminate the vast majority of sublimation printing problems before they cost you material.
