How to Sublimate on Wood

Learning how to sublimate on wood starts with one non-negotiable fact: you must coat the surface first. Raw wood has no polyester molecules for sublimation ink to bond with — skip this step and the dye wipes right off once the piece cools. Apply a polycrylic or polyester-based coating, press at the right temperature, and you produce sharp, permanent transfers that rival any commercial product. Wood is one of the most rewarding substrates in any sublimation printing practice once you understand the prep.

The equipment is the same gear you already use for fabric or polymer sublimation. What changes is surface prep and press timing. Get both right, and wood produces some of the most visually striking results you can sell or gift — photo panels, ornaments, coasters, and custom signs all perform exceptionally well.

This guide covers everything: the science behind why coatings work, the three main methods and their tradeoffs, a real cost breakdown, and the pro-level adjustments that separate mediocre transfers from print-quality results.

How Sublimation on Wood Actually Works

Sublimation ink doesn't behave like regular ink. Under heat and pressure, it converts from solid to gas. That gas penetrates a polymer layer and bonds permanently as the surface cools. On fabric, the polyester fibers provide the bonding sites. On wood, those sites don't exist naturally — you have to create them.

According to Wikipedia's overview of dye-sublimation printing, sublimation ink requires a polymer-receptive surface layer to achieve a permanent bond. That's why coating is the foundation of the entire process — not optional, not a shortcut you can skip.

Why Raw Wood Fails

• No polyester content means the dye gas has nothing to bond with
• Open grain absorbs moisture and causes color bleed and blur
• Uneven texture creates inconsistent heat distribution under the platen
• Without a polymer seal, dye sits on the surface and wipes away once cooled

What the Coating Actually Does

Water-based polycrylic creates a smooth, polymer-rich surface. Heat opens that polymer layer during pressing. The sublimation dye gas penetrates it, then the layer closes around the dye as the piece cools. The result is a fully embedded image — not a surface print, not a decal. It won't scratch, peel, or fade under normal use.

• Use water-based polycrylic only — oil-based versions yellow and block dye penetration
• Apply 3–4 thin coats minimum; 5–6 for designs with deep shadows or saturated colors
• Allow a full 24-hour cure before pressing — uncured coating transfers poorly
• Sand lightly between coats with 400-grit to remove brush marks

What You Need to Get Started

If you're already doing sublimation on other substrates, you own most of this equipment. Wood adds one line item: coating supplies.

Essential Equipment

• Sublimation printer — Sawgrass SG500/SG1000 or a converted Epson EcoTank; read our Sawgrass vs Epson sublimation printer comparison before you buy
• Sublimation ink — matched to your printer; never mix brands or types
• Heat press — clamshell or swing-away; even pressure matters more than size
• Sublimation transfer paper — high-release sheets designed for rigid substrates
• Water-based polycrylic — Minwax Polycrylic is the standard; a quart covers 60–80 standard blanks
• Heat-resistant tape — not regular masking tape; it melts at press temperatures
• Teflon sheet or butcher paper — placed between the blank and the upper platen
• Heat-resistant gloves — the blank exits the press at 385°F+
• 220-grit and 400-grit sandpaper — for raw wood surface prep
• Lint-free cloth or lint roller — a single dust particle creates a visible white speck in the final transfer

Before your first run, make sure your printer's color output is accurate. Our printer color calibration guide walks through exact steps for dialing in sublimation paper output so your colors match what you see on screen.

Choosing Your Wood Surface

• MDF (medium-density fiberboard) — smoothest surface, most consistent coating absorption; the best choice for beginners
• Birch plywood — fine grain shows subtly through the transfer; intentional rustic effect works well for certain designs
• Pine planks — affordable and widely available; natural oils require extra polycrylic coats
• Basswood — minimal knots, fine grain, coats cleanly; excellent for detailed photo transfers
• Pre-coated blanks — ready-to-press with factory polyester layers; highest per-unit cost, most consistent results

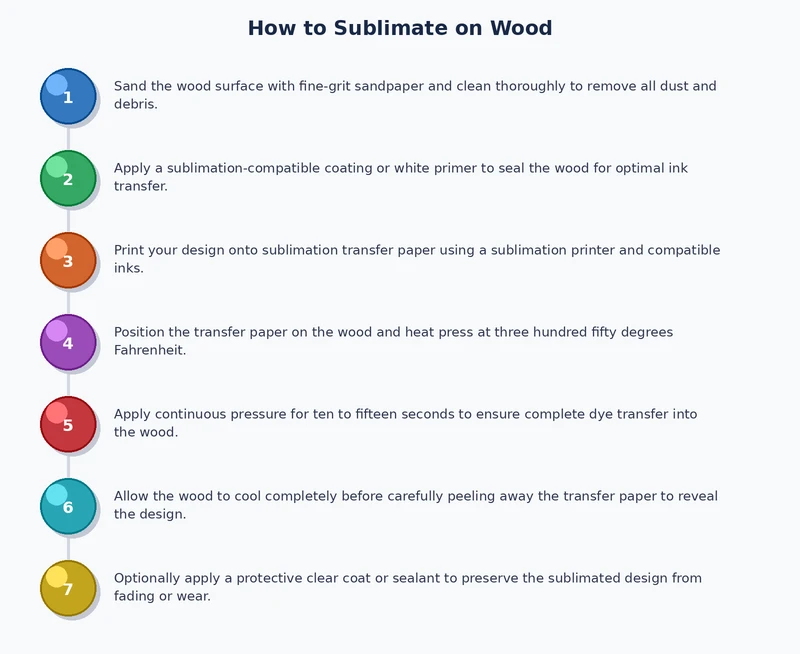

The Step-by-Step Process

1. Sand the surface. Use 220-grit on raw wood. Sand with the grain only. Remove all dust with a lint-free cloth before coating.
2. Apply polycrylic. Brush thin, even coats — don't glob it on. Three to four coats minimum. Let each coat dry completely before the next.
3. Sand between coats. Use 400-grit after each dried coat. This removes brush strokes and creates a glassy, receptive surface.
4. Cure fully. Wait a minimum of 24 hours after the final coat. Rushing this step is the single most common cause of poor transfers.
5. Print mirrored. Enable horizontal flip in your print settings before every print. Set it as a driver default so you never forget.
6. Pre-heat the blank. Place the bare blank in the press for 10–15 seconds at full temperature. This drives out moisture that causes ghosting.
7. Position and tape the transfer. Lay the print face-down on the coated surface. Tape all four edges firmly — movement during pressing creates double images.
8. Press at 385°F–400°F. Apply medium pressure for 60–90 seconds. Our sublimation heat press time and temperature guide covers exact settings by blank thickness and coating type.
9. Hot peel immediately. Pull the paper while the piece is still hot. Cold peel smears the dye before it fully sets in the coating.
10. Cool flat. Place the finished piece face-up on a flat surface. Never stack or lean pieces while hot — thin MDF warps easily.

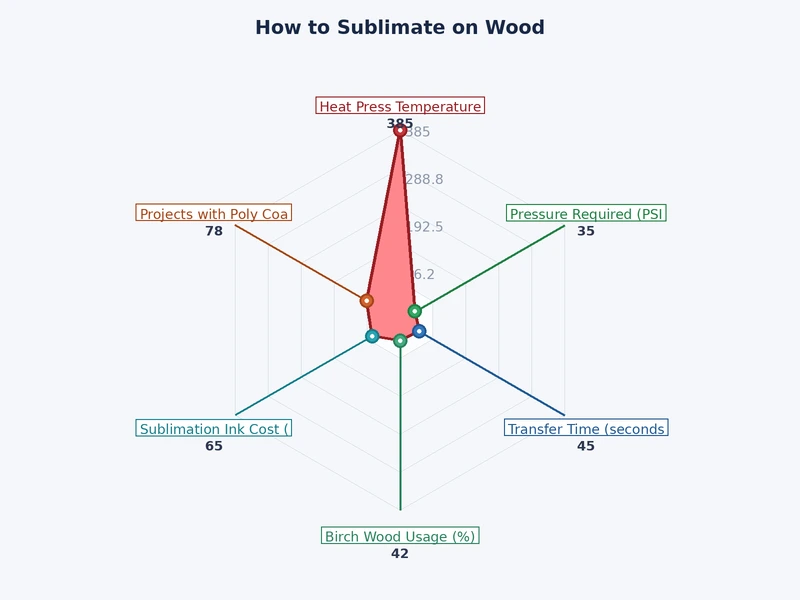

How to Sublimate on Wood: Three Methods Compared

Three distinct approaches exist for wood sublimation. Each has a different cost structure, prep requirement, and result profile. Know the tradeoffs before committing to one for production.

DIY Polycrylic Method

The most cost-effective and versatile approach at scale. You control coating thickness, cure time, and surface type. Works on any shape you can cut.

• Highest vibrancy among DIY approaches when coating is applied correctly
• Lowest per-unit material cost at production volume
• Requires 24-hour planning lead time — not suitable for same-day turnaround
• Results vary with coating consistency; document each batch carefully

Pre-Coated Wood Blanks

Pre-coated blanks eliminate all coating prep. The factory-applied polyester layer is calibrated for sublimation, so vibrancy is predictably high. You pay a per-unit premium, but you eliminate failed-run losses and save labor time on every batch.

• Ideal for new sublimators testing designs before scaling production
• Limited to standard sizes — 6×6, 8×10, and 12×12 inches are most common
• Every blank behaves identically; no coating inconsistency to troubleshoot
• Higher per-unit cost, but lower total cost when failed DIY runs are factored in

Sublimation HTV on Wood

Sublimation HTV (heat transfer vinyl) applies a polyester-receptive layer to any wood surface. You press the HTV first, then sublimate your design onto the vinyl. This works on surfaces where liquid coating is impractical — rough live-edge slabs, round dowels, or odd-shaped pieces.

• Works on surfaces where polycrylic coating is impractical or too slow
• Slightly lower vibrancy than direct coating methods
• Adds a subtle texture from the vinyl layer that's visible in raking light
• Faster per-unit than polycrylic method; more consistent than hand-coating

If you work on curved or irregular surfaces without a heat press, our guide on printing on waterslide decal paper covers a low-pressure alternative worth knowing for certain applications.

What It Actually Costs to Start

Your largest investment is the printer and heat press — and if you already do sublimation, you own both. Adding wood sublimation to your existing setup costs under $100 in new materials.

Starter Budget

For someone building a sublimation setup from scratch:

• Converted Epson EcoTank sublimation printer — $200–$280
• Sublimation ink set (initial fill) — $25–$50
• Entry-level 15×15 heat press — $150–$300
• Water-based polycrylic, quart — $15–$20
• MDF blanks, uncoated 12-pack — $15–$25
• High-release sublimation paper, 100 sheets — $20–$35
• Heat-resistant tape, gloves, Teflon sheet — $20–$30

Total starter investment: $445–$740 including the printer and press. Already equipped for sublimation? Adding wood capability costs $70–$110 in new supplies.

Mid-Range Setup

Once you're producing consistently and ready to scale:

• Sawgrass SG500 or SG1000 — $350–$700; purpose-built for sublimation with superior color management
• Professional swing-away heat press, 15×15 or 16×20 — $300–$600; more even pressure than entry-level clamshells
• Pre-coated wood blanks, 50-pack — $80–$150
• High-release sublimation paper, 500 sheets — $60–$100

At this level, per-piece material cost drops significantly. A DIY-coated MDF blank runs under $2.00 in materials. Finished pieces sell for $25–$75 depending on size and design complexity. The margin is strong. For a deeper look at print system economics, our comparison of sublimation printing vs inkjet breaks down which setup makes more sense at different production volumes.

Pro Tips for Flawless Results

These adjustments cost nothing. They're habits — and they separate inconsistent hobby results from repeatable professional output.

Before You Press

• Always mirror your design. Every single time. Set horizontal flip as a default in your print driver so it's never a decision.
• Pre-heat every blank. Press the bare, uncoated side for 10–15 seconds at full temperature. This drives out moisture that causes ghosting and color shift.
• Lint-roll the coated surface. Even a single dust particle creates a white speck in the finished transfer. Do this immediately before positioning the paper.
• Tape all four edges. Not two — all four. Any movement during pressing creates a ghost double image that ruins the piece.
• Verify press temperature with an infrared thermometer. Press dials are unreliable. Most units run 5°F–15°F hotter or cooler than displayed. Know your machine's actual temperature.
• Print a test swatch first. Run an inexpensive blank before committing your final design. Adjust color saturation in your design software, not the printer driver.

During and After

• Use medium pressure. Heavy pressure compresses the coating and flattens fine detail. Too light causes faded, blotchy areas.
• Don't open the press early. Set a timer. Commit to the full duration. Early opens cause pressure-release ghosting along edges.
• Hot peel only. Remove paper immediately after the press opens. The dye sets permanently as the piece cools — peeling cold smears it.
• Cool on a flat surface, face-up. Never stack hot pieces. Don't lean them against a wall. Thin MDF warps in seconds at press temperature.
• Add a topcoat for outdoor or high-touch products. The sublimation bond is permanent, but a clear protective topcoat adds scratch and UV resistance for items that see regular handling.

Building a Sustainable Wood Sublimation Workflow

One-off projects prove the process. A repeatable workflow builds a business. Once you're getting consistent results, systematize so you're not re-learning settings with every new batch.

Batch Processing for Consistency

• Coat blanks in batches of 20–30. Block one evening for coating and let them cure overnight. You'll have ready-to-press stock for an entire week of production.
• Number each blank and track its coating date. Use blanks within two weeks of coating — older coatings lose receptivity and produce duller transfers.
• Pre-cut sublimation paper to blank size before printing. This speeds up taping significantly and reduces paper waste on partial sheets.
• Keep a press log. Record temperature, time, pressure, blank type, and coating brand for every run. After 20 runs, you'll have a personal reference sheet more valuable than any tutorial.
• Run one test piece at the start of each session. Press settings drift — temperature, humidity, and coating cure time all affect results. A test piece catches problems before they cost you a full batch.

Expanding Your Product Line

Once your core process is dialed in, wood sublimation supports a wide range of product categories. Start with one, master it, then expand.

• Photo panels and wall art — high margin, easy to personalize, strong repeat customer rate
• Ornaments from 1/8-inch birch plywood — thin stock presses at slightly lower time; test before scaling
• Custom coasters — pre-coated MDF rounds sublimate cleanly; add a cork backing for a retail-ready product
• Door signs and nameplates — consistent sizing makes batch coating efficient
• Pet portrait prints on pine planks — one of the highest-converting gift categories in the sublimation market
• Cutting boards — sublimate the decorative face only; apply food-safe finish to any food-contact surfaces

Each new product format has its own optimal press settings. Test each format independently before mixing it into a production run.

Frequently Asked Questions

Next Steps

1. Buy a quart of water-based polycrylic and a 12-pack of MDF blanks. Sand and coat your first batch today — let it cure overnight so you're ready to press tomorrow.
2. Verify your heat press temperature with an infrared thermometer before your first production run. Adjust your target temperature based on what the platen actually reads, not what the dial says.
3. Read the sublimation heat press time and temperature guide and create a simple press log — even a paper spreadsheet. Record temperature, time, blank type, and result for every run.
4. Print a test swatch of your first design at full saturation and press it on a coated scrap blank before committing to your finished piece. Use the result to adjust color in your design file, not the printer driver.
5. Pick one product category — coasters, wall panels, or ornaments — and produce five identical pieces. Consistent results across five is your benchmark before you start accepting customer orders.
