How to Sublimate on Phone Cases

Can a heat press bond vivid, permanent designs into a polycarbonate smartphone case? It can — and the process is more accessible than most crafters assume. Knowing how to sublimate on phone cases is the entry point to one of the highest-margin product categories in custom printing. The core variables are substrate coating, ink chemistry, temperature, and dwell time. Get those four dialed in and results are consistent, commercial-grade, and genuinely permanent. For the precise press parameters that govern every successful transfer, the Sublimation Heat Press Time and Temperature Guide is the essential companion reference to this walkthrough.

Phone case sublimation sits within the broader sublimation printing category, sharing the same dye-diffusion chemistry used for mugs, panels, and garment decoration. The critical difference is geometry — rigid backs, raised edges, and camera cutouts demand precise pressure distribution that a bare flat platen rarely achieves without accessories.

The global custom phone case market generates billions in annual revenue, with sublimation holding a dominant position among production methods. The reason is permanence. Unlike UV printing or vinyl, sublimated designs embed into the substrate itself. No peeling. No surface fade from abrasion. The design and the case become a single material.

What Sublimation Actually Does to a Phone Case

Sublimation printing relies on dye-sublimation chemistry. Solid dye crystals embedded in sublimation ink convert directly to gas under heat, bypassing the liquid phase entirely. That gas penetrates the polyester coating on a phone case blank and bonds at the molecular level. When the case cools, the dye re-solidifies inside the substrate material — not on top of it.

The result is a print with no surface layer to scratch or peel. It is a structural change in the material. According to Wikipedia's entry on dye-sublimation printing, the process exploits the thermodynamic property of certain organic dyes to transition between solid and gaseous states without passing through liquid, enabling deep penetration into polymer substrates at controlled temperatures.

Substrate Requirements

Only polyester-coated blanks work for sublimation. Polycarbonate (PC) and PC/ABS blends with a factory-applied polyester coating are the industry standard. Matte and gloss surface finishes both accept sublimation dye without issue. Uncoated blanks, silicone cases, and leather cases will not accept dye transfer under any heat or pressure setting — the chemistry has no receptor to bond with.

The Temperature and Time Window

Effective dye diffusion for phone case blanks requires 375–400°F (190–205°C) and 50–70 seconds. Below that range, dye transfer is incomplete and colors appear washed out. Above it, the polyester coating degrades and the print scorches. The margin for error is narrow. Consistent results require a calibrated press with a verified temperature readout, not estimates based on feel.

Common Misconceptions About Phone Case Sublimation

Persistent myths circulate in craft and small-business forums. Most stem from confusing sublimation with other heat-transfer methods, or from experimenting with incorrect equipment and drawing incorrect conclusions.

"Any Inkjet Printer Works"

Standard inkjet ink contains no sublimation dye. Running regular ink through a heat press against a blank produces nothing — the paper print simply contacts the surface without bonding. Only printers loaded with genuine sublimation ink produce usable transfers. Options include purpose-built Sawgrass units or converted Epson EcoTank models. The Sawgrass vs Epson sublimation printer comparison covers the trade-offs between those two equipment paths in detail.

"A Mug Press Is Good Enough"

Mug presses apply cylindrical wraparound pressure. Phone cases are flat-backed with a raised edge perimeter. The geometries are fundamentally incompatible. Using a mug press on a phone case creates incomplete contact at the edges, producing blurry borders and uneven color density across the print area. A flat platen press with a dedicated silicone phone case mold is the correct tool — not an approximation.

"UV Printing Beats Sublimation for Cases"

UV printing deposits a surface coating. Sublimation embeds dye into the substrate. In scratch-resistance and UV-fade longevity comparisons, sublimated cases consistently outperform UV-printed cases. UV printing wins in one specific area: substrate flexibility. It works on silicone, dark-color blanks, and uncoated materials where sublimation cannot operate. For white-base polyester blanks, sublimation is the superior production method on every durability metric.

How to Sublimate on Phone Cases: The Full Process

Equipment Checklist

• Sublimation printer — Sawgrass SG500, SG1000, or converted Epson EcoTank ET-2803 or ET-15000
• Sublimation ink — brand-matched to the printer; mismatched ink voids warranties and corrupts ICC profiles
• Sublimation paper — Beaver TexPrint, A-SUB, or Koala brand; standard office paper is not a substitute
• Flat heat press with digital temperature control, or a dedicated phone case mold insert for the platen
• Polyester-coated PC/ABS case blanks in the target device model sizes
• Heat-resistant tape — secures the transfer during pressing without shifting
• Silicone wrap or foam pressure pad — ensures edge-to-edge contact on raised case perimeters
• Heat-resistant gloves — transfers peel immediately after pressing, while still hot

Design Preparation

Print dimensions must match the blank supplier's official case template. A standard 6.1-inch device blank typically requires a 167×82mm print area, but dimensions vary by manufacturer and case model. Always download the template from the supplier. Estimating dimensions produces misaligned transfers.

Mirror the design horizontally before sending to the printer. Sublimation reverses on transfer; printing without mirroring delivers a backward image on the finished case. Install and apply ICC profiles matched to the specific ink and paper combination in use. Unmanaged color output shifts predictably — blues go purple, oranges go red, and skin tones go muddy.

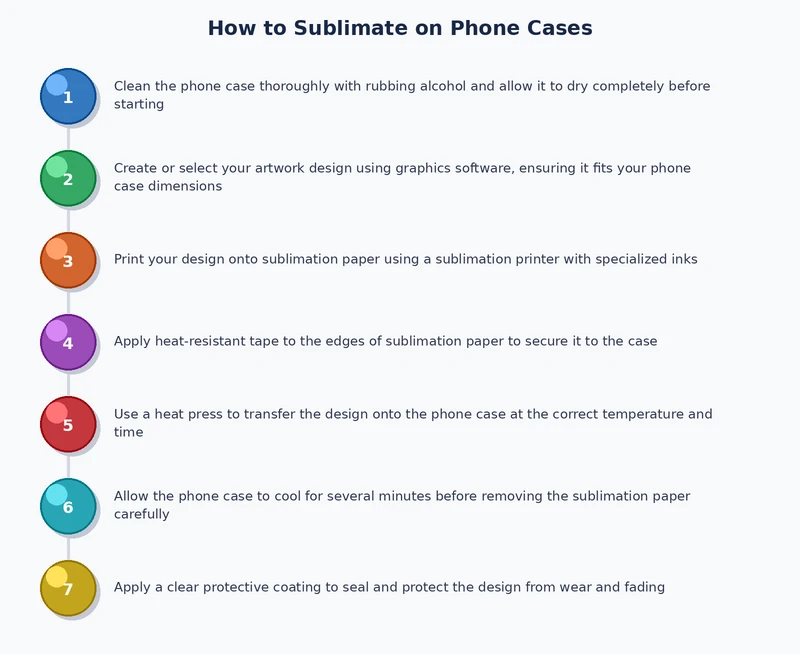

Heat Application Steps

1. Pre-press the blank at 375°F for 5 seconds to drive out residual moisture from the polyester coating.
2. Position the mirrored transfer face-down against the case's print surface, aligned to the template edges.
3. Secure all four corners with heat-resistant tape to prevent paper shift during pressing.
4. Wrap the assembly with a silicone pad or foam insert to distribute pressure evenly at the raised edge perimeter.
5. Press at 385°F, medium pressure, for 60 seconds.
6. Remove immediately and peel the transfer paper while the case is still hot — peel-hot technique produces sharper edge definition than peel-cold.
7. Set the finished case face-up on a flat surface and allow 60 seconds to cool before handling or inspection.

Equipment and Material Costs at a Glance

Startup costs for a phone case sublimation setup range from under $400 on the entry level to over $1,500 for production-grade configurations. The table below presents representative figures across three operator tiers.

Per-Unit Economics

Total COGS per finished case — blank, paper, and ink combined — runs $2.00–$5.00 at small production volume. Retail pricing for custom sublimated cases sits at $15–$35 depending on market and design complexity. Gross margins exceed 70% at mid-volume output. At 100 units per month, startup equipment costs typically recoup within 60 to 90 days of consistent operation.

Advantages and Limitations of Sublimation Phone Cases

Advantages

• Edge-to-edge full-bleed coverage with no white borders or frame artifacts
• Permanent, scratch-resistant output — the dye is inside the substrate, not on top of it
• No minimum order quantity — single-unit production is economically viable from day one
• Full-color photography reproduces without halftone screening or banding
• Fast cycle time — 60 to 90 seconds per case once heat press settings are dialed in
• Zero incremental design cost — swap the digital file and press the next unit immediately

Limitations

• White or very light substrate required — sublimation ink is transparent and cannot cover dark base colors
• Restricted to polyester-coated blanks only — silicone, leather, and uncoated PC are incompatible
• Color accuracy requires ICC profile management and periodic press calibration
• Dark design backgrounds require a white case blank; the color visible in dark areas is the blank itself, not ink
• Equipment is model-specific — each phone model requires its own correctly fitted silicone mold insert

How Shops and Creators Are Using Phone Case Sublimation

Small print shops consistently rank phone cases among their top-three revenue product categories. Low COGS, high margin, and zero design inventory risk make the category attractive at any production scale.

School and Sports Markets

Team photo cases are a reliable volume driver. Schools and sports organizations typically order 20 to 100 units per season run. At that batch size, per-unit blank cost drops to the lower wholesale tier. Pressing time across a full 50-unit batch runs under two hours. Operators in this market build case templates once per team and reuse them across multiple order cycles without additional design cost.

Corporate Branded Merchandise

Corporate buyers favor matte-finish blanks with logo-only or two-color designs. Single-color logo jobs are straightforward to profile and produce consistent output across large runs. Color accuracy is non-negotiable at the corporate level — a logo that drifts from established brand colors generates chargebacks. Operators serving this segment run a test print on every new blank lot before committing to full production.

Independent Sellers and DTC Creators

Individual creators using converted Epson EcoTank printers paired with 15×15 flat presses represent the largest segment of the Etsy custom case market. Most operate with two to four molds covering the top device models. Pre-designed listings allow order-to-ship fulfillment in under 24 hours, a key competitive advantage in the on-demand personalization market.

Building a Sustainable Phone Case Sublimation Operation

Blank Inventory Management

Stocking blanks for the top 10 device models covers approximately 80% of active consumer demand. Current iPhone and Samsung Galaxy flagship models dominate order volume in most markets. Ordering 50 to 100 units per model keeps inventory lean without incurring per-unit cost penalties from low-quantity purchasing. A simple spreadsheet tracking blank count by device model prevents stockouts on high-velocity SKUs.

Printer Maintenance Protocol

Sublimation ink clogs print heads when the printer sits idle. Run a nozzle check every 7 days. Print a full-coverage saturation test sheet every 3 days if the printer is unused for extended periods. Head clog recovery — solvent flushes, manual cleaning cycles, and replacement of damaged heads — costs significantly more in time and consumables than weekly prevention. Treat maintenance as non-negotiable production overhead, not optional housekeeping.

Expanding the Product Line

Operators who master phone case sublimation typically add mugs, tumblers, and flat hardboard panels within 6 months of initial setup. The same printer, ink, and design workflow applies across all substrates. Marginal expansion cost is limited to the new blank type and any required press attachment or mold insert. The core sublimation skillset — temperature calibration, ICC profile management, pressure distribution — transfers directly to every new product category added.

Frequently Asked Questions

Next Steps

1. Source polyester-coated PC/ABS case blanks from a wholesale supplier and order a sample lot of 5 to 10 units in the target device model before committing to bulk inventory.
2. Select a sublimation printer platform — review the Sawgrass vs Epson trade-offs for ink yield, color accuracy, and total cost of ownership before purchasing.
3. Download the manufacturer's official case template, set up the design file with correct mirroring applied, and install the ICC profile matched to the specific ink-paper combination before the first test press.
4. Run a calibration press sequence — test three blanks at 375°F, 385°F, and 395°F for 60 seconds each and compare color saturation, edge sharpness, and coating condition to identify the optimal setting for that specific blank lot.
5. Calculate COGS per unit from the first production run to establish a firm pricing floor before listing on any retail or wholesale channel.
