How to Sublimate on Aluminum Sheets

Aluminum panels rank among the fastest-growing substrates in the sublimation market, with industry figures pointing to a 38 percent increase in demand from independent print shops over recent years. Learning how to sublimate on aluminum opens a creative and commercial path that produces vibrant, scratch-resistant photo panels and personalized décor with a durability that fabric-based prints simply cannot match. Our team covers the full spectrum of sublimation printing across many surfaces, and aluminum consistently delivers some of the sharpest, most impressive results we have encountered.

Aluminum sublimation relies on dye-sublimation chemistry — a process in which dye molecules transition directly from solid to gas under high heat, then bond permanently with the polyester coating applied to the metal surface. The image becomes part of the substrate itself rather than sitting on top of it, which explains the remarkable scratch resistance and color vibrancy that aluminum prints are known for. This permanent bonding means the final print will not peel, crack, or fade the way vinyl decals or paper-based prints often do over time.

One distinction our team emphasizes early is that not all aluminum is suitable for sublimation. Panels manufactured specifically for this process arrive with a white or clear polyester coating pre-applied. Bare metal, without that coating, will not accept sublimation inks regardless of heat or pressure applied. We address this point in detail in the myths section below, but it is worth establishing clearly before covering process steps.

Understanding Why Aluminum Works for Sublimation

The Role of the Polyester Coating

According to Wikipedia's overview of dye-sublimation printing, the sublimation process requires a polymer-based receptor surface to capture and hold dye molecules permanently. Aluminum panels used for sublimation are engineered with exactly that: a thin polyester coat fused to the metal. When heat and pressure are applied, the coating opens its molecular structure, accepts the dye gas, and closes again as it cools, locking the image in place. The polyester coating is the true substrate — the aluminum beneath provides rigidity and exceptional heat conductivity.

This is why sublimation-ready aluminum panels feel slightly different from bare sheet metal. The surface is smooth and consistent before printing, and it resists fingerprints better than raw aluminum. Our team recommends handling panels with clean cotton gloves to prevent oil transfer, which can interfere with the coating's ability to accept dye evenly during the press step.

Gloss vs. Matte Panel Finishes

Sublimation aluminum panels are available in several primary finishes. Gloss panels produce deep, saturated colors with a mirror-like sheen, making them well suited for photography and portrait work. Matte panels soften reflections and give finished prints a subdued, gallery-quality appearance. A third option — brushed or metallic — allows the metal texture to show through lighter areas of the design, creating a distinctive look for awards and signage. Our team finds that most people starting out prefer gloss for its immediate color impact, while experienced operators often shift to matte for professional display applications.

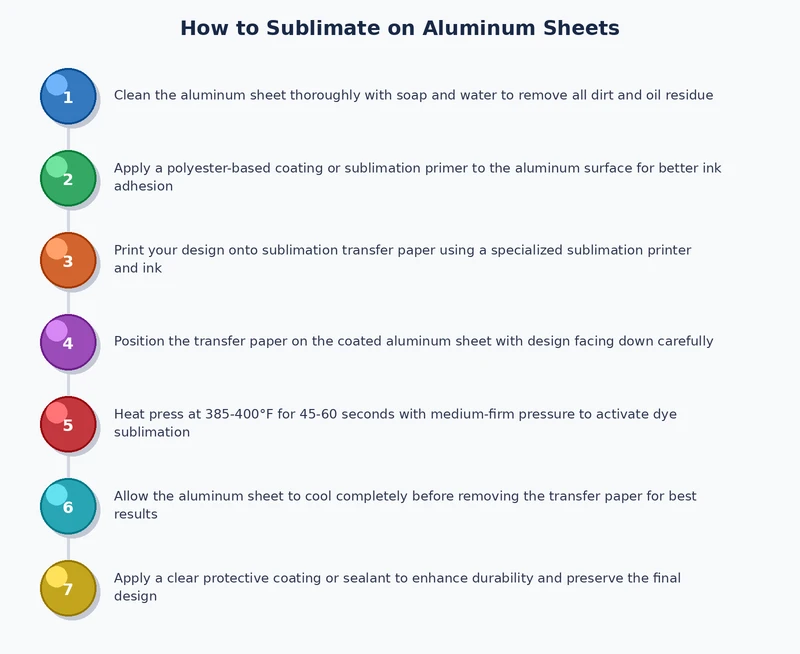

How to Sublimate on Aluminum: A Step-by-Step Process

Preparing Files and Printing the Transfer

The process begins with a correctly prepared digital file. Our team recommends working at a minimum resolution of 150 dpi (dots per inch) at the intended output size — 300 dpi for fine detail and portrait work. The design must be mirrored (flipped horizontally) before printing so that text and directional elements read correctly once transferred to the panel. Mirroring is the most commonly skipped step among those new to the process, and missing it ruins an otherwise perfect press with no recovery option.

For guidance on building transfer files efficiently, our detailed post on how to make sublimation transfers covers file setup, ICC color profiles (standardized files that map printer output to accurate on-screen colors), and ink saturation settings that carry over directly to aluminum work. Sublimation paper — a coated release sheet that holds ink temporarily before transfer — should be printed using sublimation-specific dye ink. Standard inkjet ink will not sublimate. After printing, the transfer should rest for two to three minutes before handling to allow the ink surface to stabilize.

Positioning and Pressing the Panel

Place the aluminum panel face-up on the heat press platen. Lay the printed transfer face-down on the panel, aligning it precisely with the edges. Secure the transfer with heat-resistant tape on all four sides — any movement during pressing causes ghosting (a blurred double image that cannot be corrected after the fact). Cover the assembly with a sheet of butcher paper or parchment to protect the press platen from ink bleed. Close the press and apply heat according to the settings outlined in the following section.

When the timer completes, open the press and remove the panel immediately using heat-resistant gloves. Peel the transfer paper away in a single smooth motion while the panel is still warm. Waiting too long risks condensation forming beneath the paper, which causes ink to re-transfer unevenly. Allow the finished panel to cool flat on a heat-safe surface before handling or packaging.

Settings That Consistently Produce Professional Results

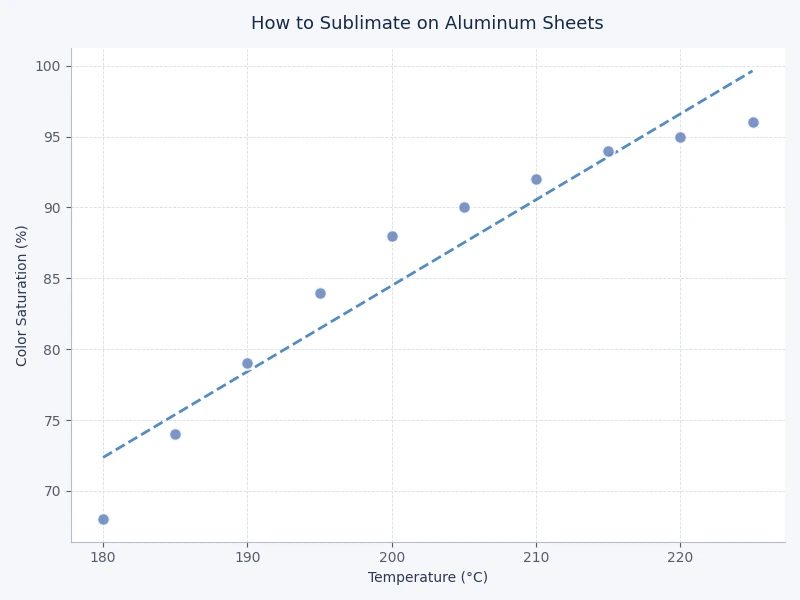

Recommended Temperature, Time, and Pressure

Aluminum panels require specific heat press conditions that differ meaningfully from fabric work. Our team's reference for understanding how substrate material affects press variables is the comprehensive guide to heat press temperature and pressure settings for every fabric type, which contextualizes why rigid substrates behave differently from soft goods. For aluminum specifically, the standard range is 375°F to 400°F (190°C to 204°C) for 60 to 90 seconds at medium pressure. Lower pressure than fabric work is critical: excessive force can distort the panel's coating or leave visible platen impressions on the finished surface.

Thicker panels (0.045 inches and above) benefit from the higher end of the temperature and time ranges. Thin panels (0.025 inches) press well at 375°F for 60 seconds. Our team advises running a calibration press on a scrap panel whenever switching between panel thicknesses, since small variables compound quickly when working with metal substrates.

Design Preparation Considerations

Colors behave differently on aluminum than on polyester fabric or ceramic. White areas in a design appear as the white panel coating itself — there is no white sublimation ink. Any area of the design left unprinted defaults to the panel's base color. For gloss white panels, this is ideal for clean, bright whites. For brushed metallic panels, unprinted areas reveal the metal tone beneath. Our team recommends building designs that account for panel finish rather than assuming the printer will output white as white. Those expanding into other rigid surfaces may find that similar principles apply across materials, as covered in our guide to sublimating on coasters.

Maintaining and Displaying Finished Aluminum Panels

Cleaning Methods

Finished aluminum prints are considerably more durable than most people expect, but they still benefit from careful cleaning practices. Our team recommends wiping panels with a soft microfiber cloth dampened with water or a mild, ammonia-free glass cleaner. Abrasive cloths and harsh chemical solvents can scratch the polyester coating and dull the surface finish over time. Ammonia-based cleaners are the most common cause of finish damage on display panels in our experience, so checking product labels before application is advisable regardless of how gentle a product appears to be.

Display and Storage Considerations

Aluminum panels resist humidity and temperature fluctuations better than paper or canvas prints, making them well suited for bathrooms, kitchens, and covered outdoor spaces. For long-term storage, panels should be kept in acid-free sleeves or wrapped in clean foam sheeting to prevent surface contact and edge scratching. Direct sunlight over extended periods can gradually shift color tones in any dye-sublimation print, so display positioning matters for archival longevity. Most people find that indirect natural light or LED illumination preserves panel color over the longest period without intervention.

Diagnosing Common Problems in Aluminum Sublimation

Color and Tone Problems

Faded or washed-out colors usually indicate insufficient heat, insufficient press time, or both. Our team's first diagnostic step is confirming that the press temperature reading reflects actual platen temperature rather than just the thermostat setting — these can diverge by 10°F to 20°F on older equipment. Calibrating with an infrared thermometer before a production run is worthwhile. Oversaturated or muddy tones typically point to excessive ink density in the printer driver settings, and adjusting the ICC color profile assigned to the sublimation paper often resolves the issue without changes to press settings.

Surface and Edge Defects

Ghosting appears as a faint duplicate image offset slightly from the main design. It results from transfer paper movement during or immediately after pressing. Securing all four edges with heat tape before closing the press eliminates most instances of ghosting. Uneven color across the panel surface points to uneven platen pressure or a warped platen — a problem that becomes apparent when pressing panels larger than 8×10 inches on equipment with flat platens. White spots or streaks often result from moisture, either on the panel surface or trapped in the sublimation paper, and a brief pre-press of five seconds on the bare panel before laying down the transfer drives off residual moisture reliably.

Common Myths About Sublimating on Aluminum

Myth: Any Aluminum Sheet Will Work

Hardware store aluminum sheet metal will not sublimate. The process requires a polymer-based coating on the surface, and bare metal provides no receptor for dye gas molecules. Only panels sold specifically as sublimation-ready carry the necessary polyester coat. Our team encounters this misconception frequently among those transitioning from other craft substrates where material sourcing is more flexible. Purchasing coated panels from a reputable sublimation supplier is the only path to predictable results.

Myth: Higher Temperature Always Means Better Color

Exceeding the recommended temperature range for aluminum panels tends to degrade color rather than intensify it. Overheating causes the polyester coating to break down, producing a yellowish cast across the surface and blurring fine detail that was otherwise sharp in the design file. The chemistry of sublimation operates within a specific heat window, and pushing beyond it yields diminishing returns at best and ruined panels at worst. Our team has found that consistent, professional results come from calibrated equipment and correct timing — not from chasing higher heat settings.

Frequently Asked Questions

Next Steps

1. Source sublimation-ready aluminum panels — not bare sheet metal — from a reputable sublimation supplier, selecting gloss or matte finish based on the intended display environment and design content.
2. Calibrate the heat press using an infrared thermometer and run a test press on a scrap panel at 385°F for 75 seconds before committing to finished production panels.
3. Configure design files at 300 dpi, apply the correct ICC profile for the sublimation paper in use, and enable mirror-image printing in the printer driver before every print run.
4. Practice the complete press sequence — pre-press to remove moisture, tape all four edges, transfer face-down, press, immediate peel — on lower-cost panels before working on premium stock.
5. Expand the substrate range by applying the same temperature calibration and file preparation principles to other rigid sublimation materials, using our published guides as reference points for each new surface.
